450nm 80W plus Focal Fixed Laser Module Laser Head for CNC Laser Cutting machine, laser Engraving Machine, laser writing machine, laser printing machine, laser engraver, with 2pcs diodes built-in micro FAC, Compressed Spot Technology

Features：

– Designed for Laser Engraver, CNC Mill, DIY Engraving and Cutting, this 80W laser module is widely used on CNC3018 Pro, Max, Plus, it’s compatible with most 2-axis, 3-axis, 4-axis cnc controller boards in market.

– Can engrave mirror stainless steel directly.

– Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel

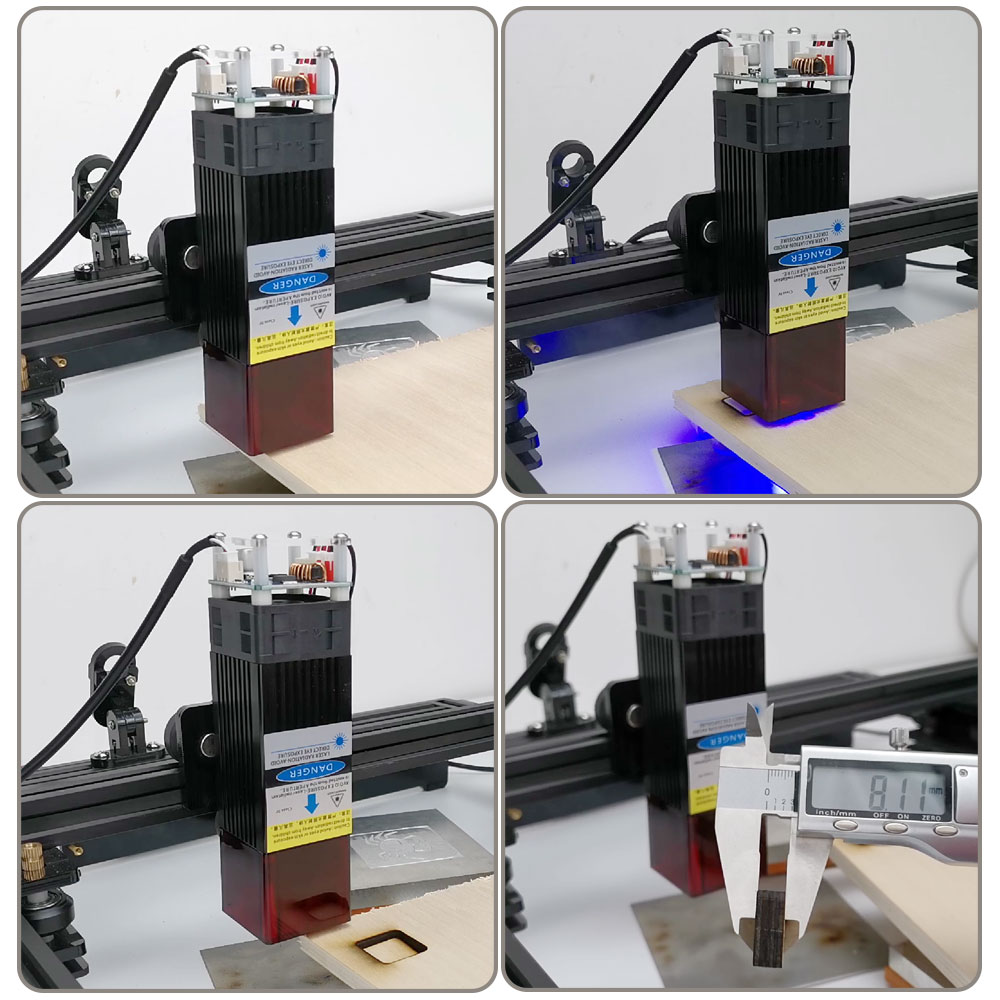

– Can cut 8mm Plywood by one pass.- Can work without wearing laser safety goggles because of the red protective cover on the laser head.

– Adjusting the focus is very important to the cutting effect. The density of plywood produced by different manufacturers is different, and the depth you can cut needs to be tested beforehand.

– Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board

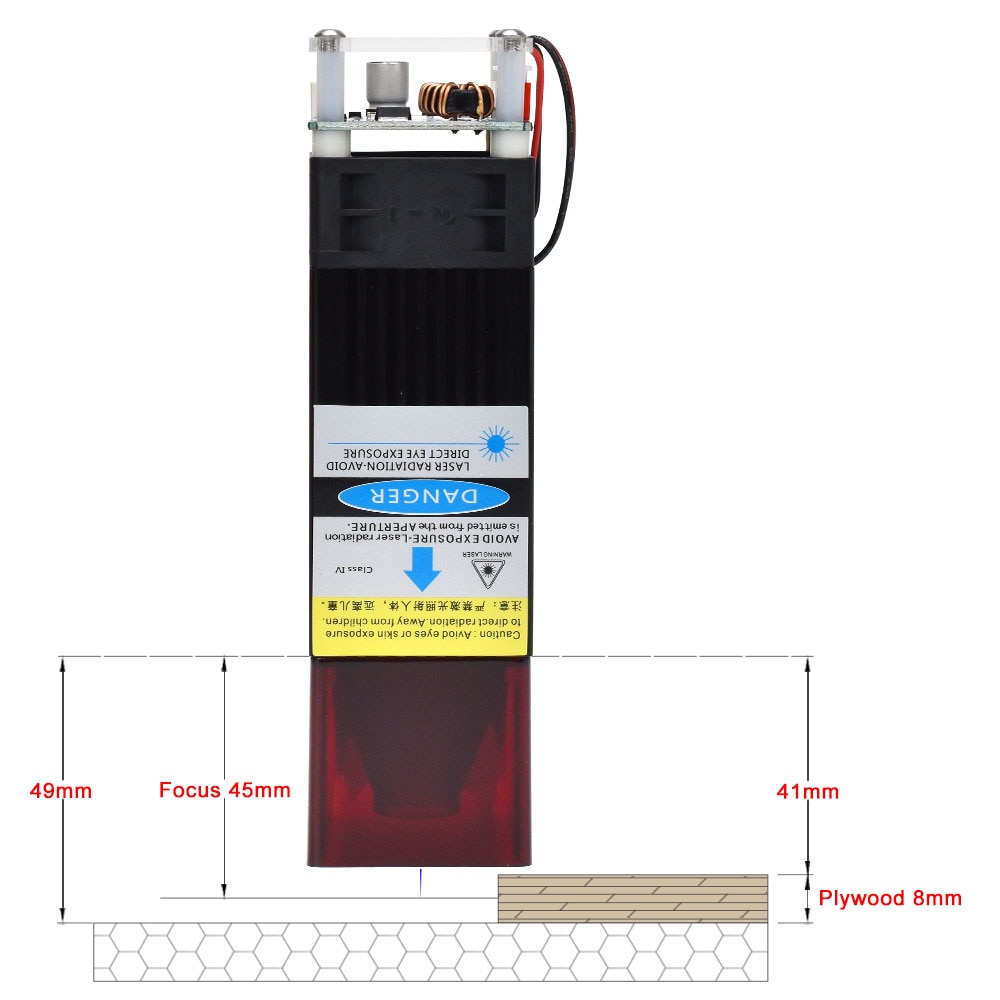

– Fixed Focus 45mm, no need to focus, easy to use.

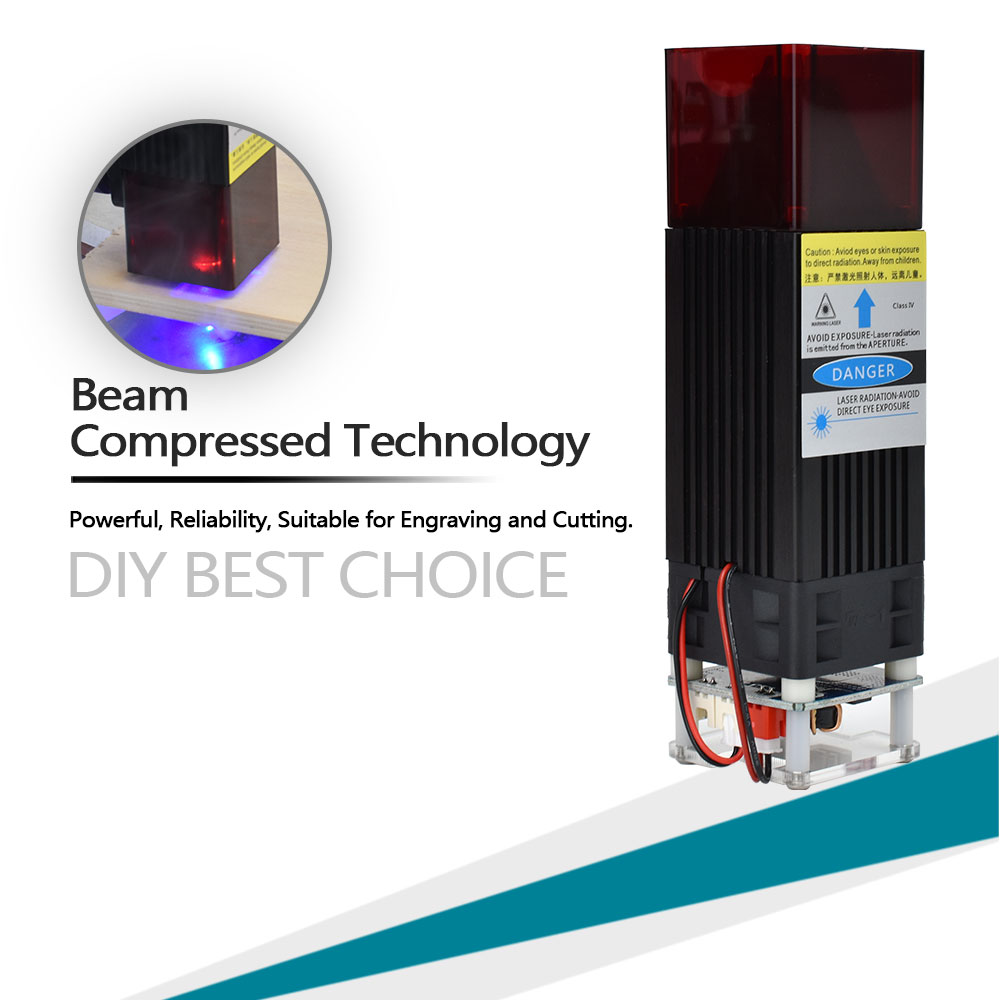

There are two diodes built-in micro FAC in the module, so that it is more powerful, more reliability.

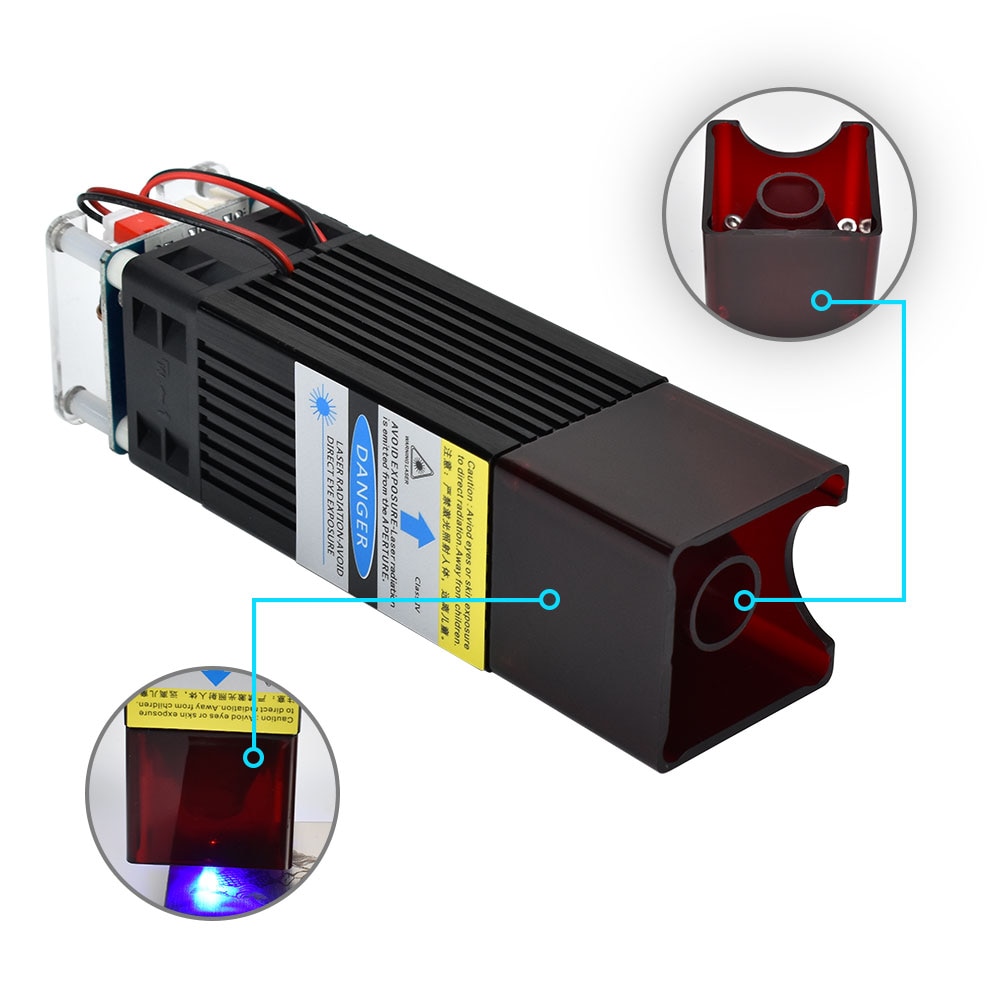

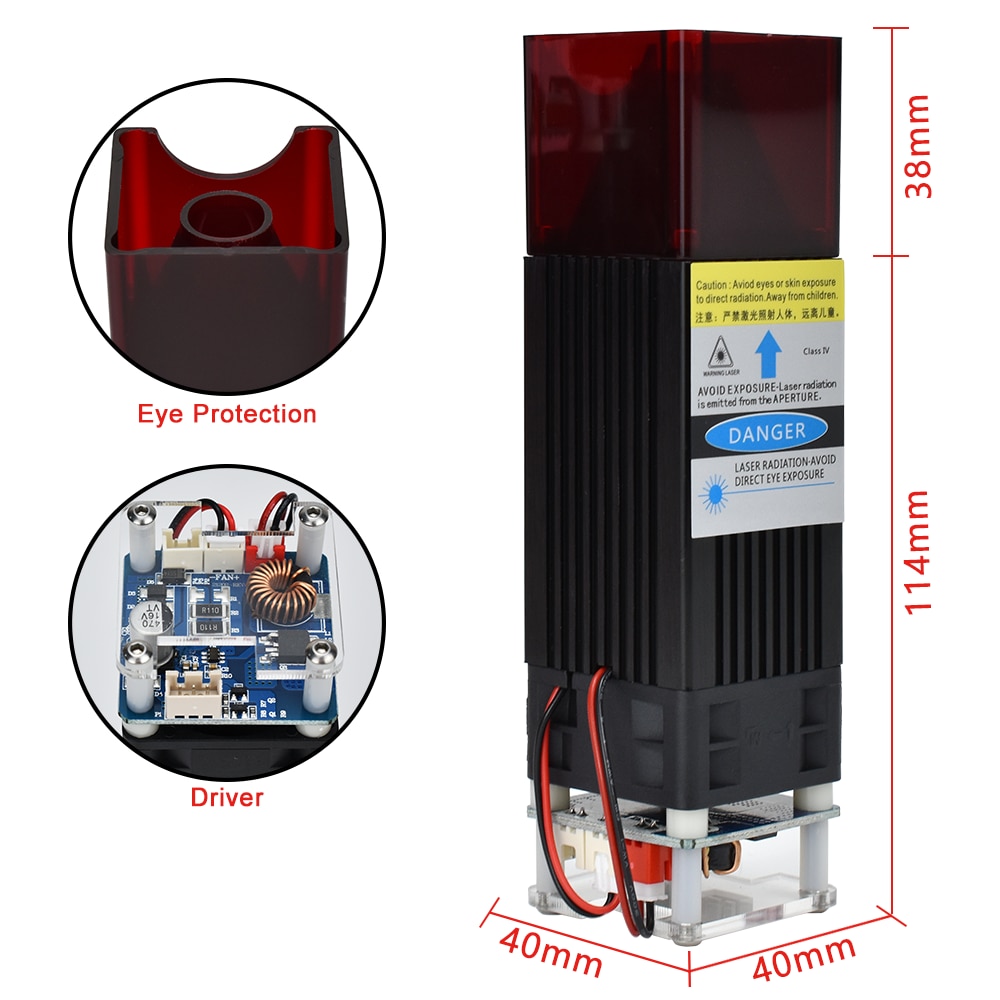

Eye protection design:

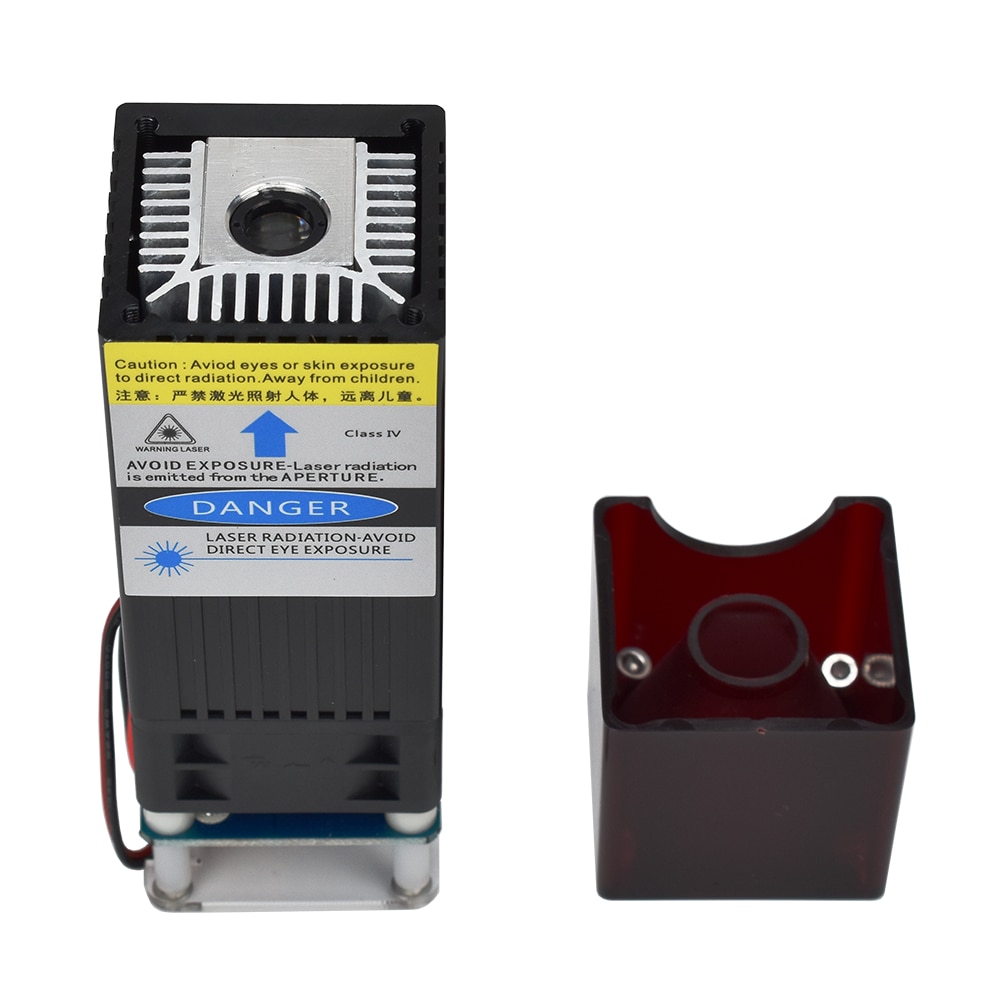

The red protective cover is excellent in filtering 450nm blue light, we can work without wearing laser safety goggles.

The 80W laser module is 100% compatible with both lightburn and laserGRBL software.

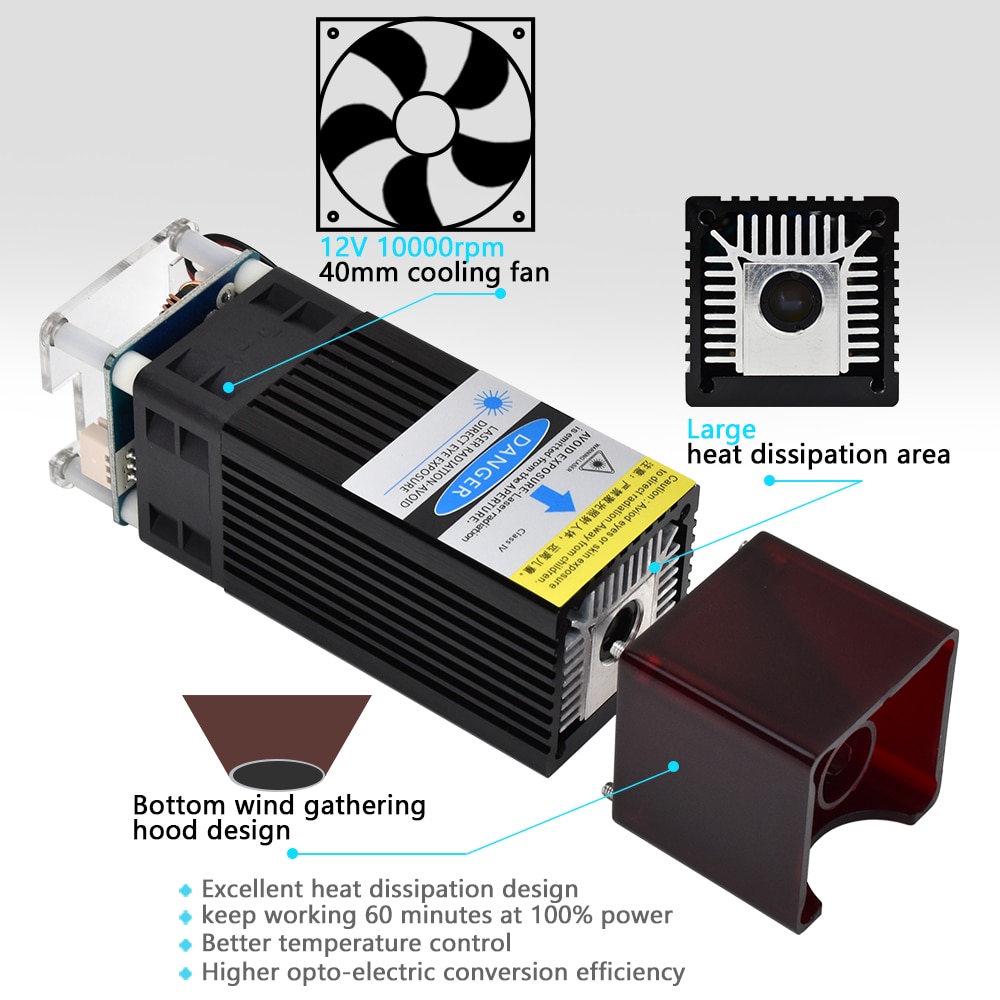

Excellent heat dissipation design

keep working 60 minutes at 100% power

Better temperature control

Higher opto-electric conversion efficiency

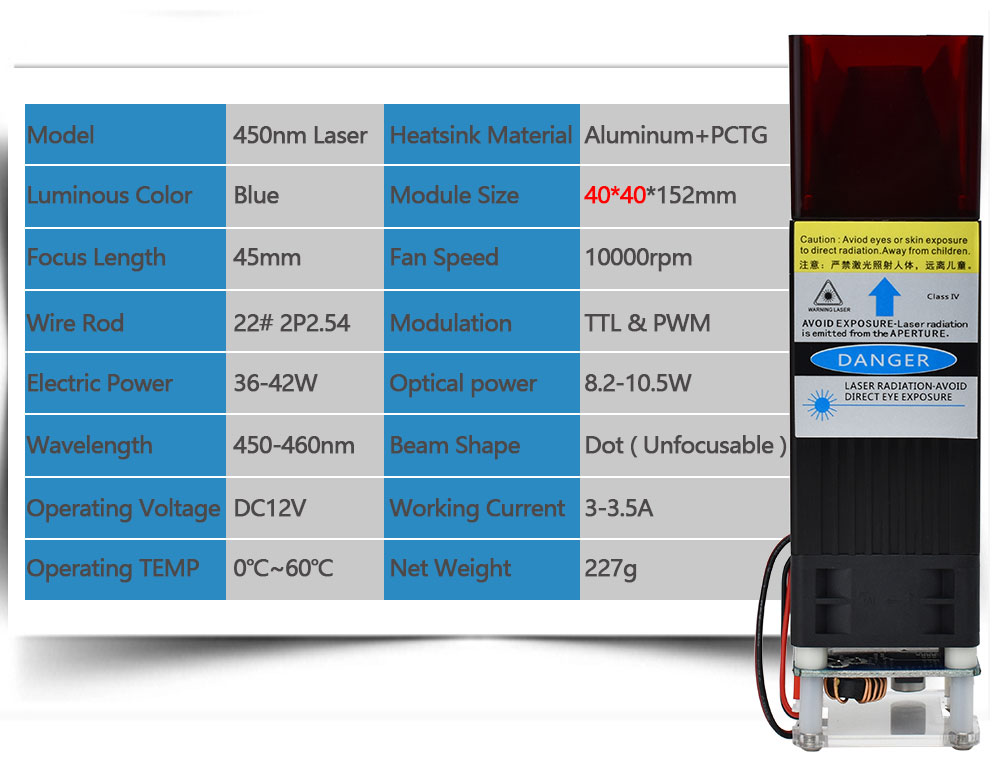

Product Specifications:

Model：450nm Laser

Heatsink Material：Aluminum + PCTG

Luminous Color：Blue

Module Size：40mm x 40mm x 152mm

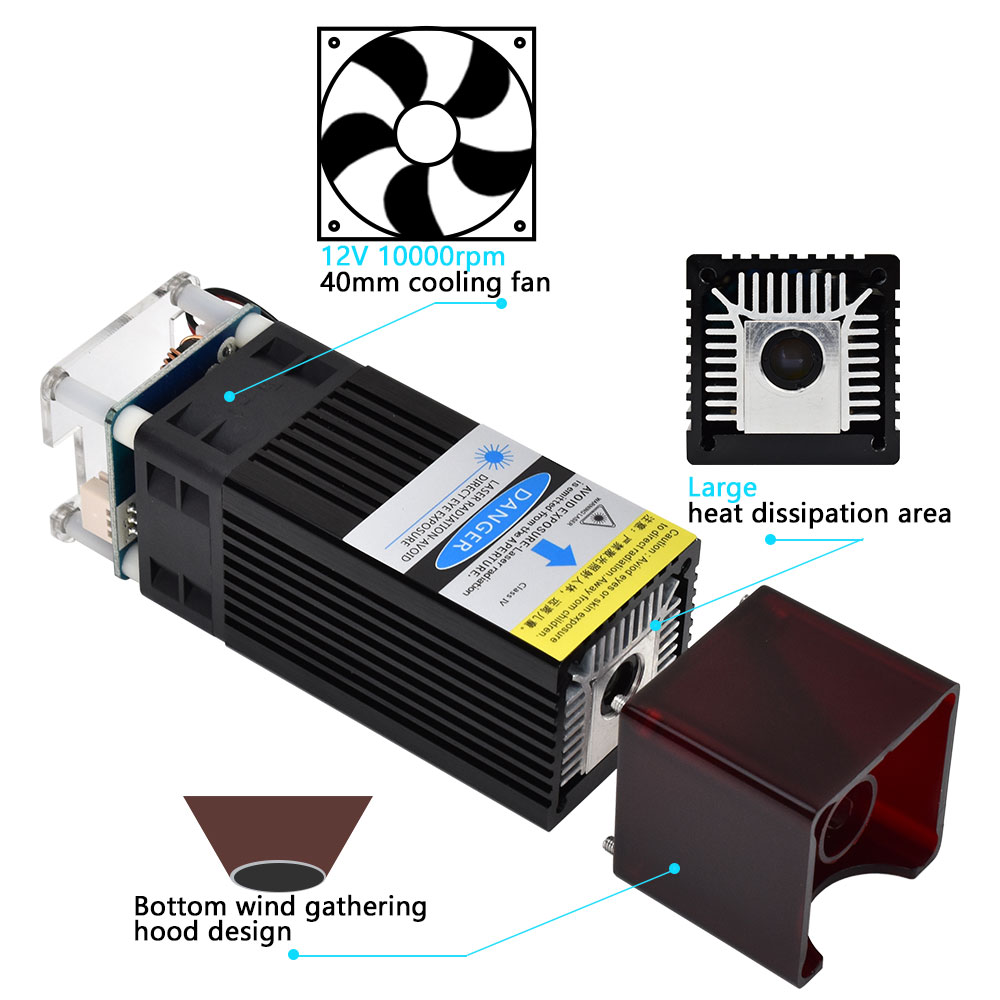

Cooling Mode：12V 10000 rpm 40mm cooling fan

Diode: 2pcs, built-in micro FAC (compressed spot technology)

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm

Product Net Weight: 227g

Technical Parameters：

Electric Power：36-42W

Optical power output：8.2-10.5WEffect power output: 80W

Laser Wavelength：450-460nm

Beam Shape：Dot ( Fixed Focus )

Operating Voltage：DC 12V

Working Current：3-3.5A

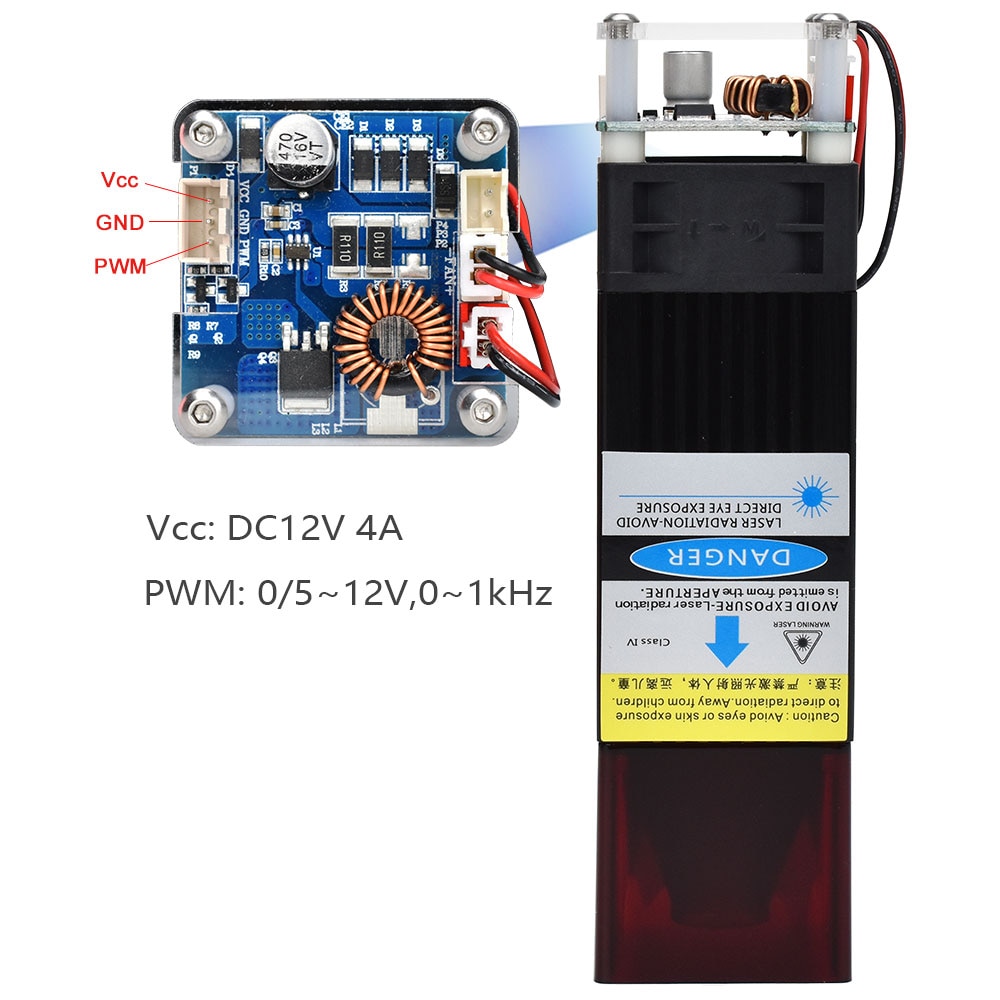

PWM/TTL Input：DC5-12V

Input Interface：PH2.0-3Pin (+,-, PWM/TTL)

Safe temperature range：<60 ℃

Life Time：over 10000 hours

Package includes:

1 x laser head

1 x 80cm 3pin cable

Product Display

Package includes:

80W includes

1 x laser head

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable

80W Kits 1 includes:

1 x laser head

1 x interface adapter board

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable

80W Kits 2 includes:

1 x laser head

1 x slide plate

2 x L wrench

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable

80W Kits 3 includes:

1 x laser head

1 x slide plate

1 x interface adapter board

2 x L wrench

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable

80W Kits 4 includes:

1 x laser head

1 x slide plate

1 x interface adapter board

1 x DC12V 4A power supply

1 x safety goggles

2 x L wrench

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable
