Description
Product Overview
80W Laser Head Diy Laser Module With 445nm And PWM Control For Laser Engraving Machine
Features：
* Can Cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.
* FAC technology: FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.

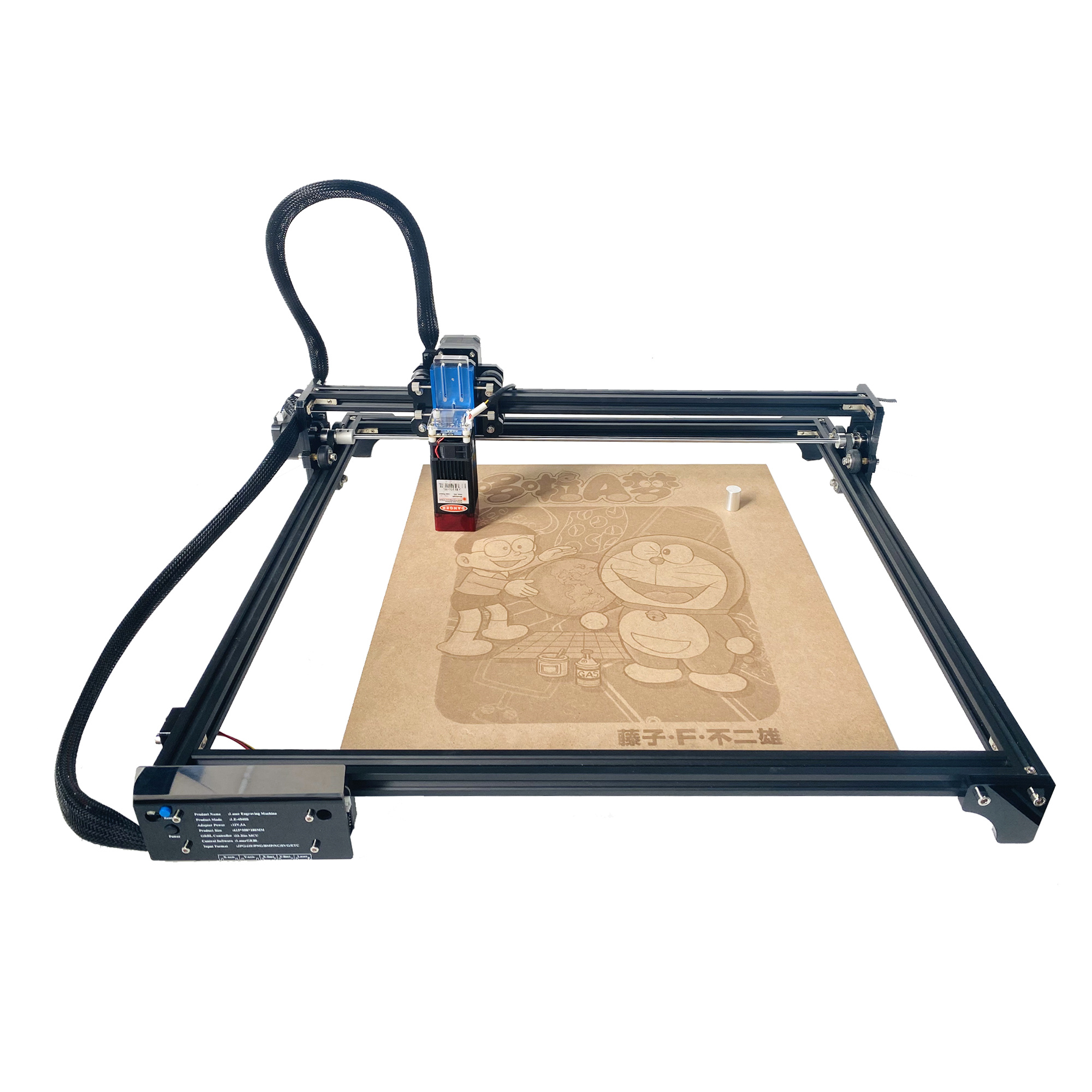

* It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.
* The Upgraded Laser Modele equiped with protective cover can effectively reduce the damage of the laser to the eyes, and is safe and beautiful.
* Can Cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.
* FAC technology: FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.
* It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.
* The Upgraded Laser Modele equiped with protective cover can effectively reduce the damage of the laser to the eyes, and is safe and beautiful.
Specification
|
Laser Power
|
40W/80W
|
|
Laser Wavelength
|
445nm (blue viole)
|
|
Optical Power Output
|
5.5W/10W
|
|
Drive mode
|
External ACC constant current drive
|
|
Cooling Method
|
Forced air cooling
|
|
Operating Voltage
|
12V DC
|
|
Shell Material
|
Aluminum,Surface Anodized
|
|
Module Material
|
Copper
|
|
Life Time
|
8000-10000 hours
|
|
Working Temperature
|
-40-75Celsius
|
|
Focal Length
|
40W-23mm; 80W-50mm
|

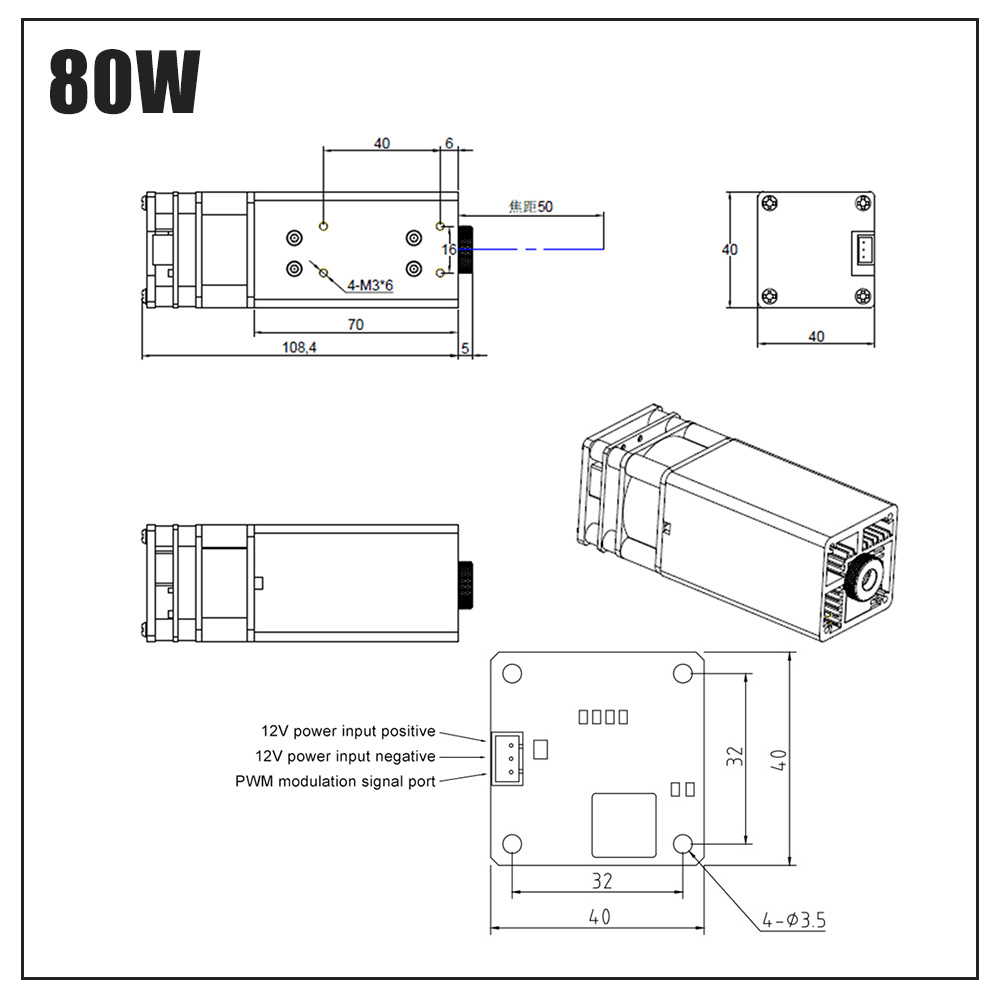

Dimensions
Product Detail

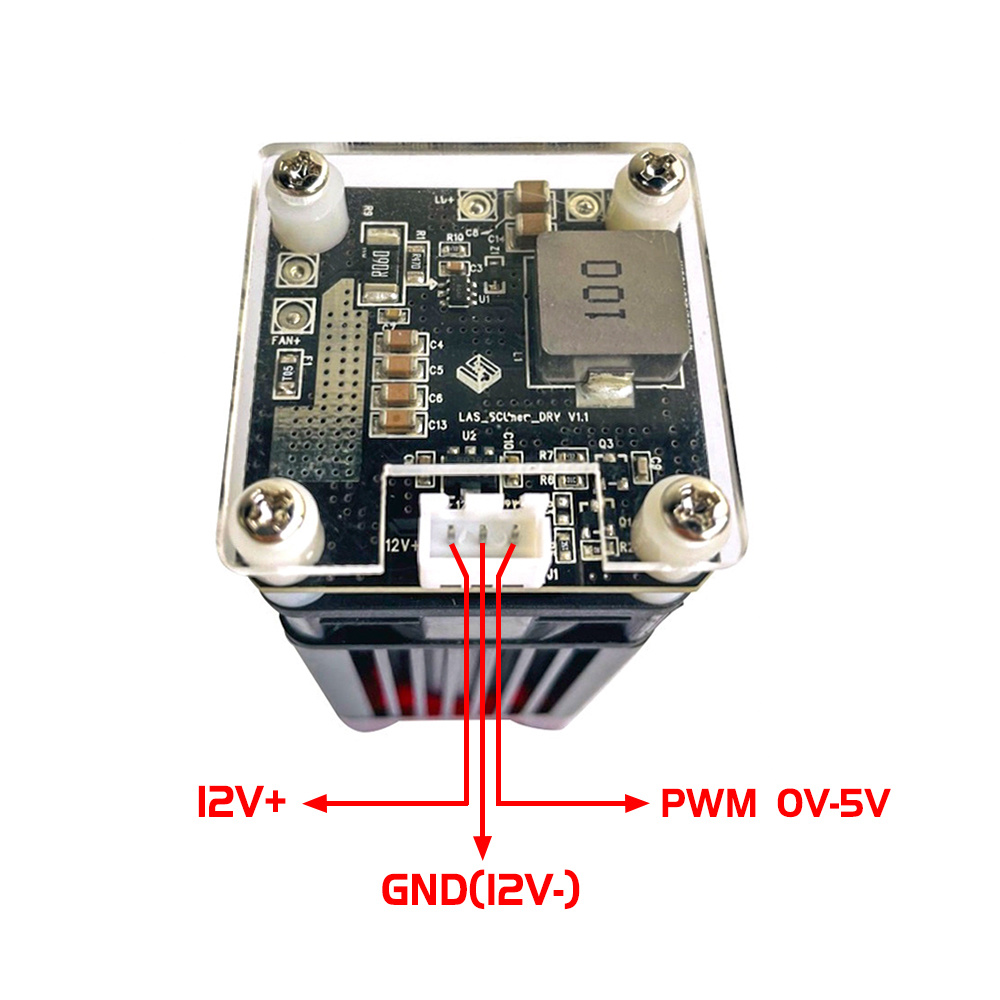

DIODE INPUT VOLTAGE: 5V
POWER INPUT VOLTAGE: 12V
CONTROL: PWM

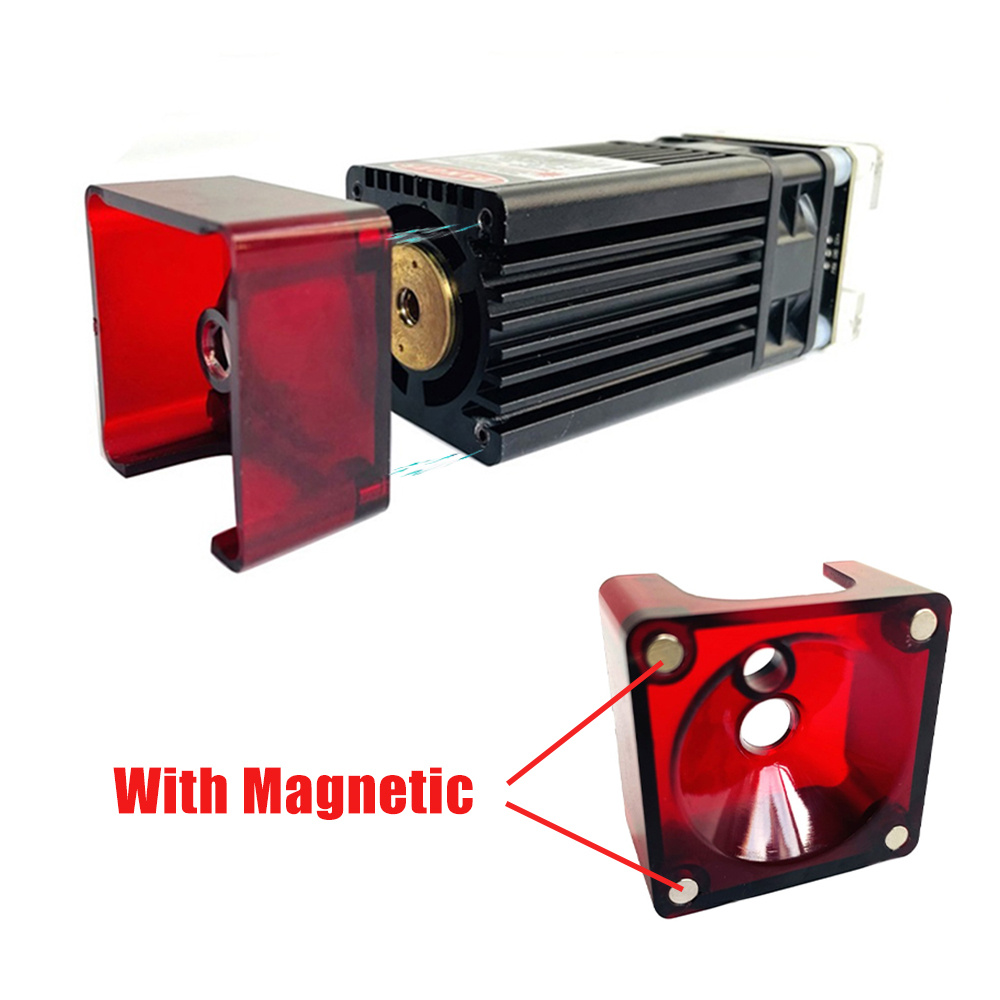

AIR ASSIST PROTECTIVE COVER
EYE PROTECTIVE COVER
FIXED FOCAL LENGTH
40w-23mm
80w-50mm
FIT MOST LASER MACHINE
Free lift
Application
