Description
Product Show

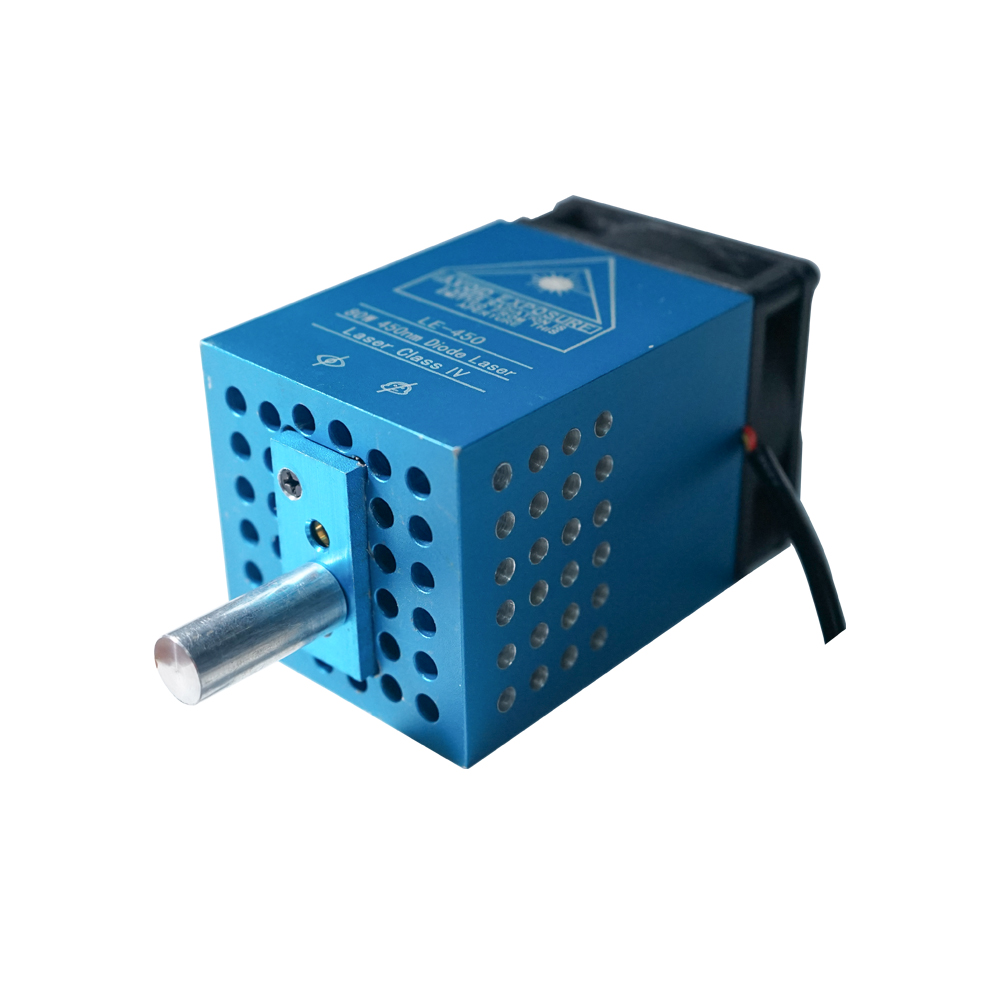

80W Diode Laser Head With TTL And PWM Modulation For Plywood And Black Acrylic Cutting
![](http://sc04.alicdn.com/kf/Hebc92915218e44138f945c0eb24e63b1r/231854775/Hebc92915218e44138f945c0eb24e63b1r.jpg)
Built-in dual laser tube, powerful Laser Head
Product Features
* Model: 80W
* Heatsink Material: Aircraft Aluminum + Brass Shell
* Luminous Color: Blue
* Cooling mode: intelligent temperature sensor control + cooling fan
* Can engrave: MDF / Balsa / Paper / Wood / Fabric / Plastic / Leather / Plywood / Foam Paper / Anodized Aluminum / Stainless Steel
* Module input: 80W
* Optical output power: 10W
* Wavelength: 450nm
* Beam shape: spot (fixed focus)
* Operating voltage: DC 12V
* Input voltage: DC12V 3-4A
* PWM / TTL input: DC3.3V-12V
* Drive Mode: External ACC
* Life time: 10000-20,000 hours
Product Details
Large model 80w diode laser, easy to cut 7mm plywood,If you already have a laser engraving machine, 40w laser will be the best choice for upgrading. Please consult before buying, we will choose the best fit for you!!
![](http://sc04.alicdn.com/kf/H1938a5f45bc64f7592f19d668fc8078bG/231854775/H1938a5f45bc64f7592f19d668fc8078bG.jpg)
![](http://sc04.alicdn.com/kf/Ha1bd4eb3a9e34178b9ece7f6daffda994/231854775/Ha1bd4eb3a9e34178b9ece7f6daffda994.jpg)
![](http://sc04.alicdn.com/kf/H38e503b156314b0ca4323a87ebd43364n/231854775/H38e503b156314b0ca4323a87ebd43364n.jpg)
How To Installation

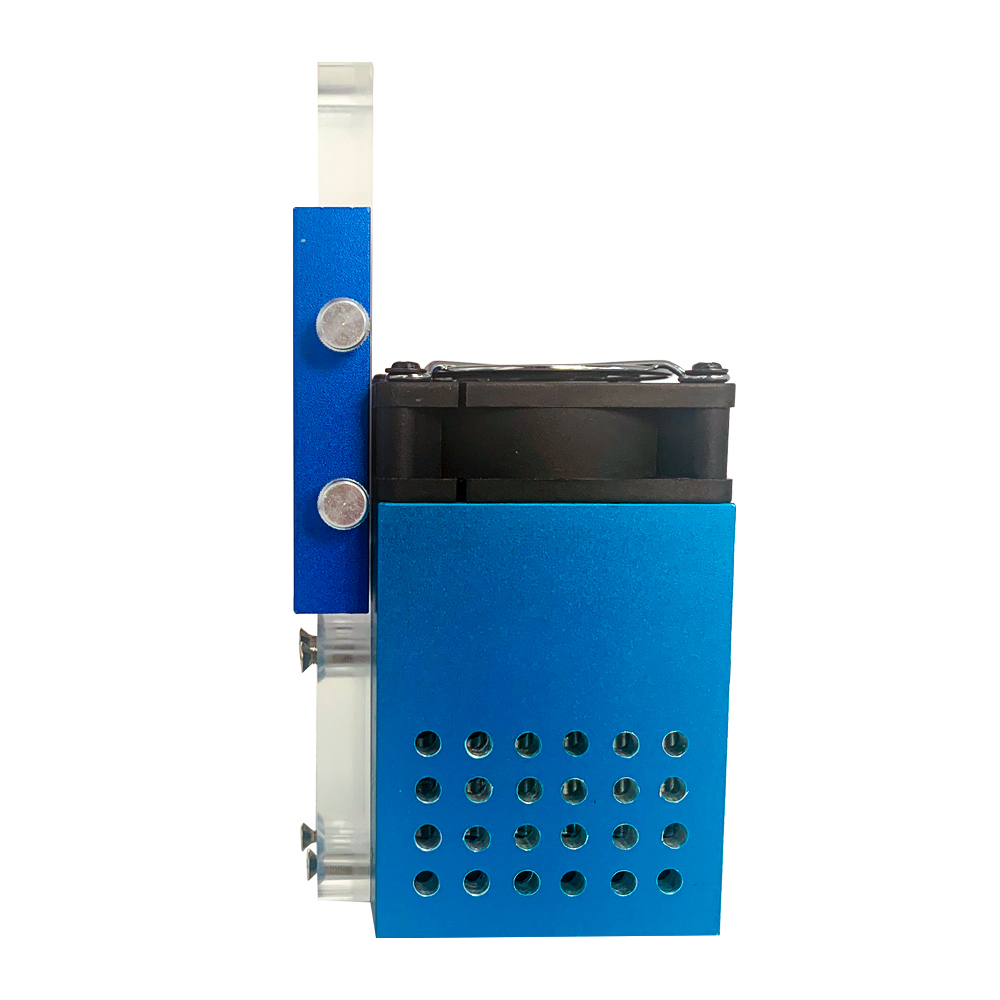

Use lifting acrylic board and 33mm heat dissipation aluminum block to adjust, get rid of height restrictions
![](http://sc04.alicdn.com/kf/Ha03e0b8701ca4803bf462efdce45a521p/231854775/Ha03e0b8701ca4803bf462efdce45a521p.jpg)
![](http://sc04.alicdn.com/kf/Hc8afae2f823743ca9075bb28da683b3fL/231854775/Hc8afae2f823743ca9075bb28da683b3fL.jpg)
Product Effects
Your satisfaction is our relentless pursuit,start your DIY engraving adventure!
![](http://sc04.alicdn.com/kf/H4c74659c8b284c9fae2d06d3c1c2dc845/231854775/H4c74659c8b284c9fae2d06d3c1c2dc845.png)
![](http://sc01.alicdn.com/kf/H8665cc4076314b92ac38f76c4b2919aat/231854775/H8665cc4076314b92ac38f76c4b2919aat.jpg)
