Description
- Type: Hand Tool Parts
Product Description

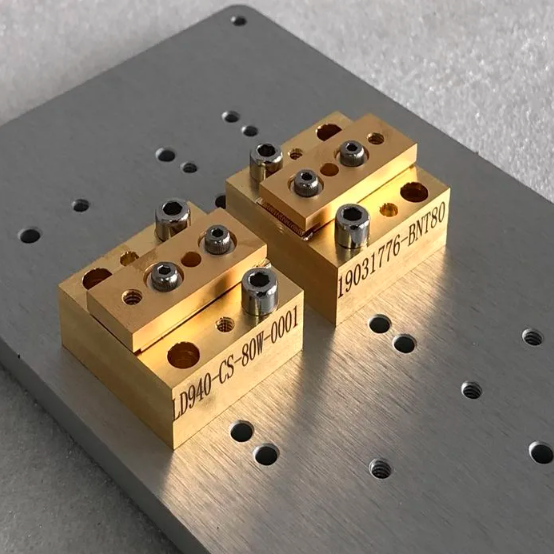

80W 940nm CS-Mount Laser Diode Bars Arrays LD for Pumping
Competitive Advantages:
-
Prompt Delivery
-
Well and High Quality Control
Competitive Prices
Small Order Acceptable
Customized options can also be developed to meet your unique requirements -

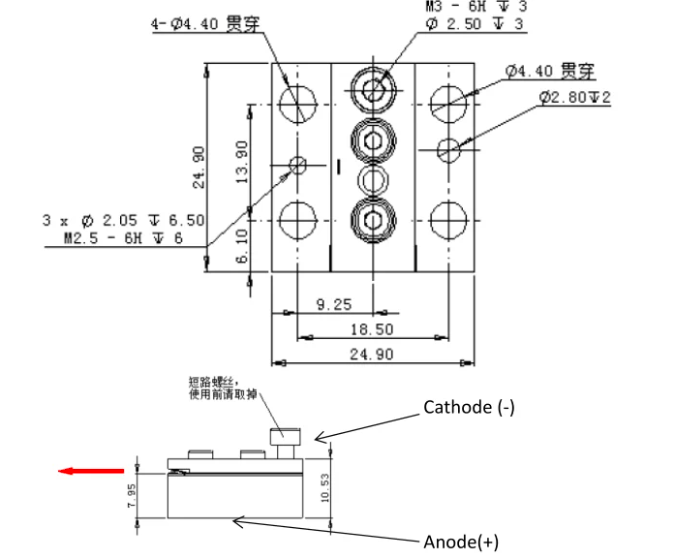

Detailed Images
Specification
|
Optical
|
|
|
Center Wavelength
|
940nm
|
|
Wavelength Tolerance
|
±5nm
|
|
Output Power
|
80W
|
|
Working Mode
|
CW
|
|
Electrical
|
|
|
Operating Current Iop
|
73A
|
|
Threshold Current Ith
|
6A
|
|
Operating Voltage Vop
|
1.6V
|
|
Power Conversion Efficiency
|
68%
|
|
Thermal
|
|
|
Operating Temperature
|
15~30℃
|
|
Storage Temperature
|
0-55℃
|
|
Temperature Coefficient
|
~0.3nm/℃
|
Reviews
There are no reviews yet.
