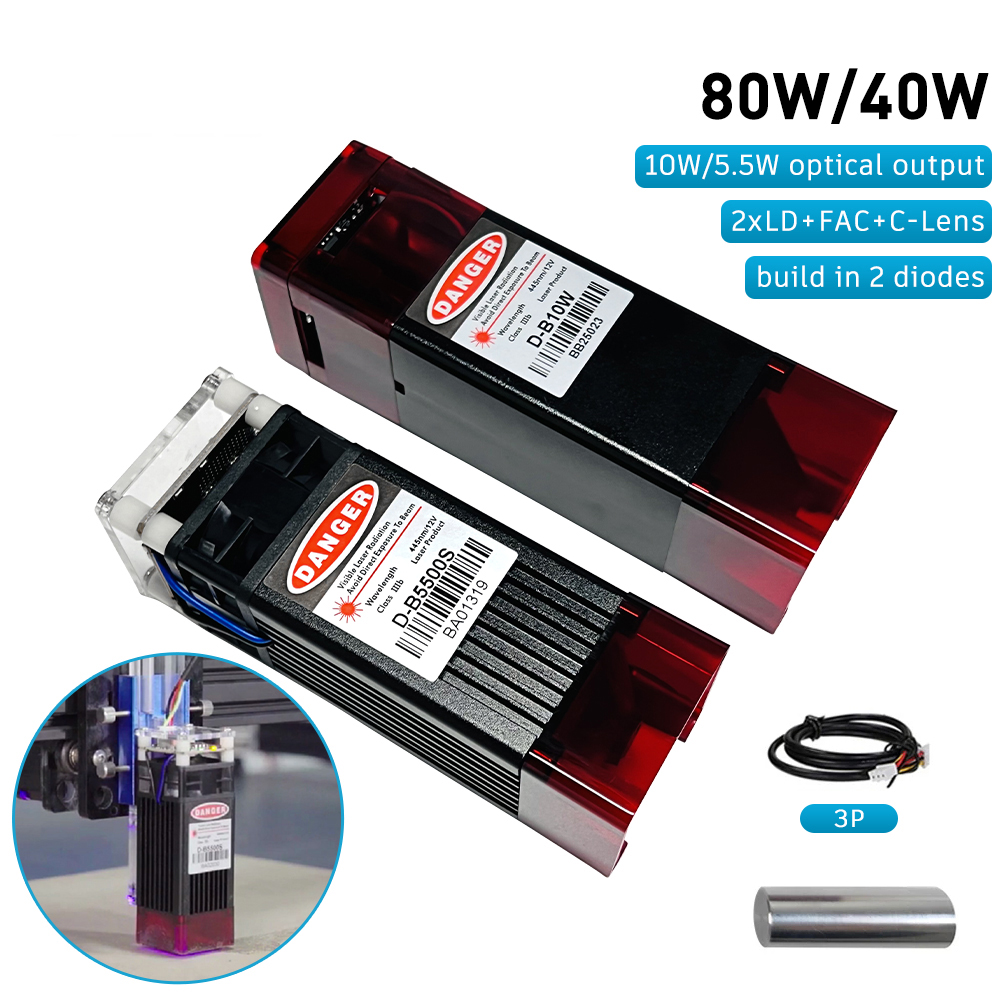

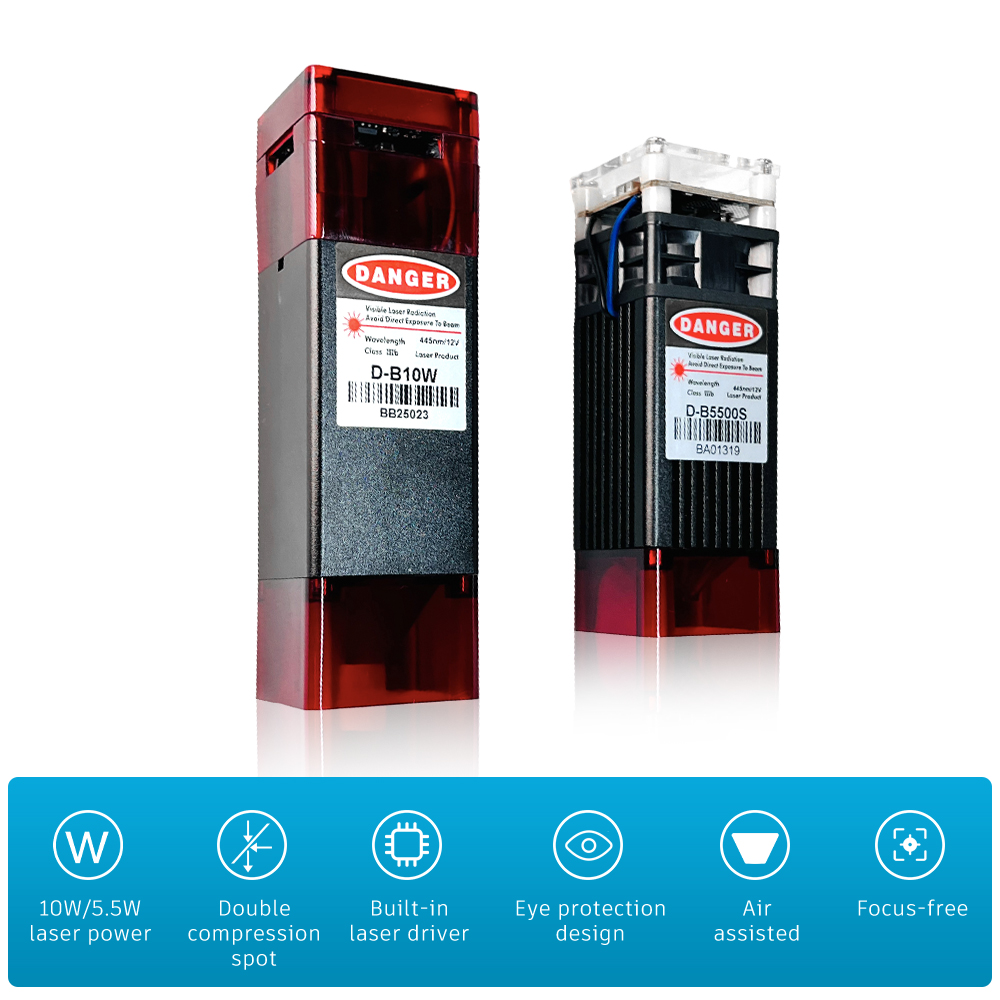

40W / 80W Laser Module Laser Head 450nm with Magnetic Protection Case for Laser Engraver 10mm Wood Cutting Tool

• Built-in dual laser tube, strong and high power

• Using a long focal length laser tube and lens, the focal length is long, the focus is smaller, and the single cutting depth is deeper

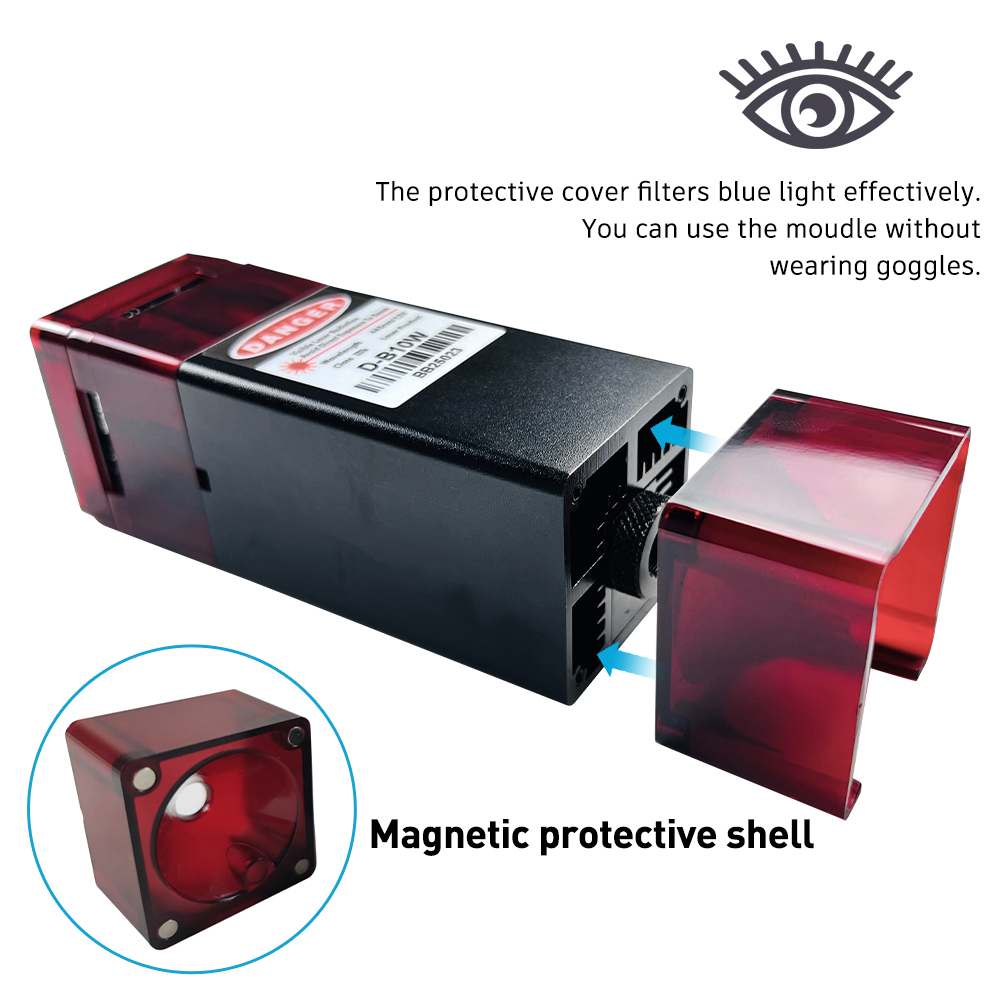

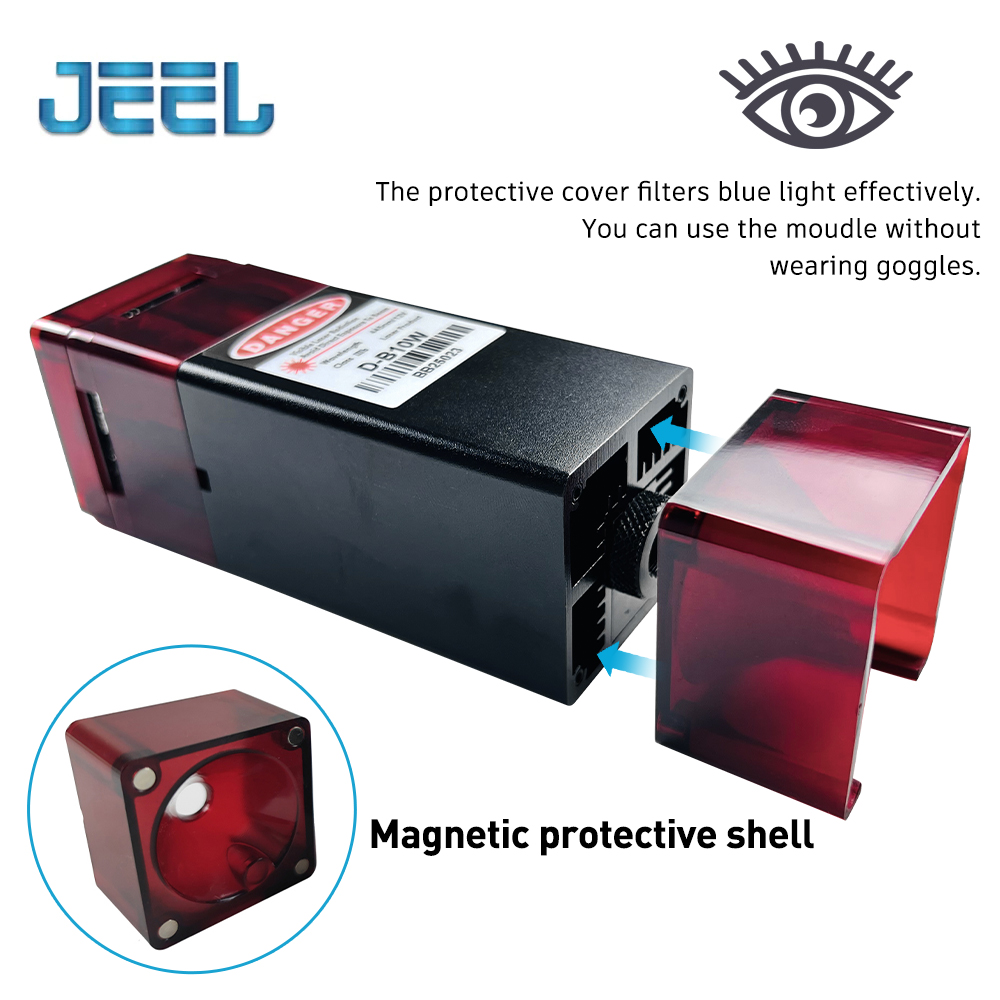

• The magnetic suction blast protective shell uses the special structure of the shell to generate air ducts, which can not only eliminate the black edge of cutting, protect the laser head, but also protect the eyes

• The anti-static design of the laser can eliminate static electricity of up to 40kV after the metal shell of the laser is grounded.

• Black matte metal shell, strong heat dissipation, smooth matte texture

• Can Cut:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.

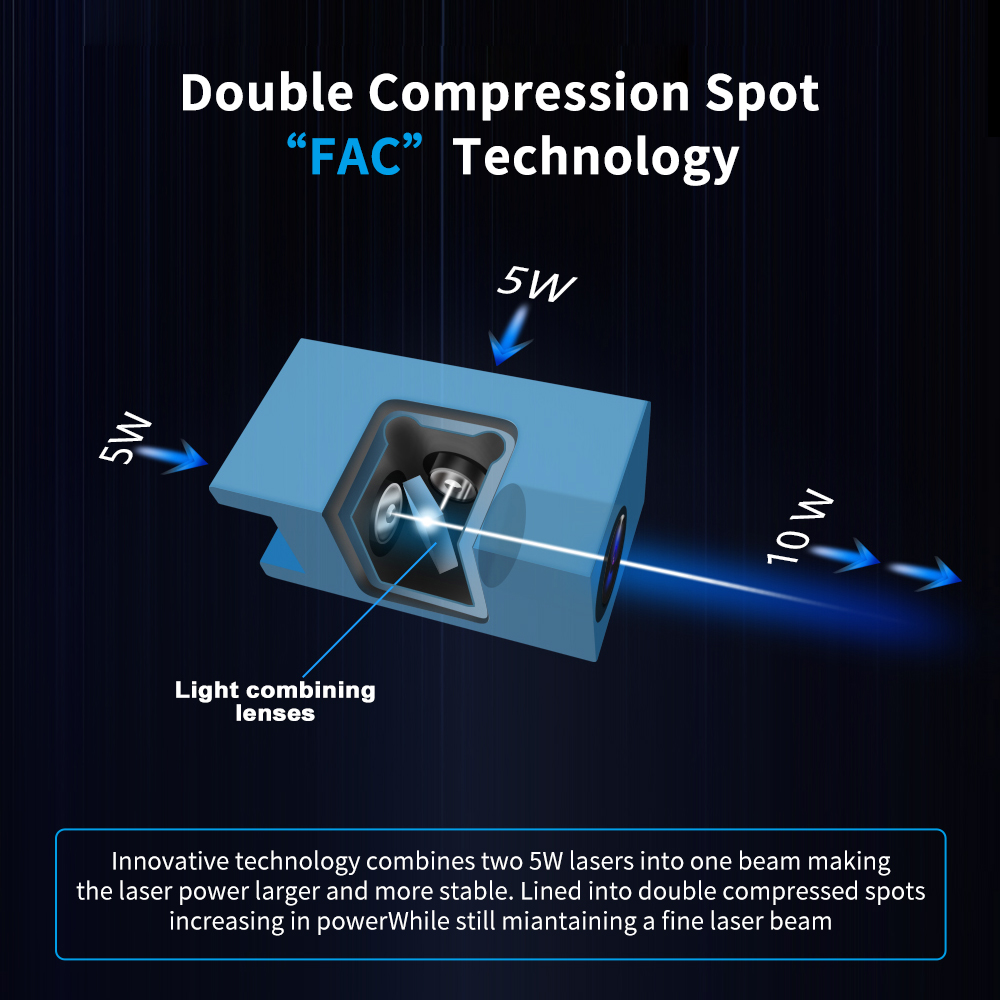

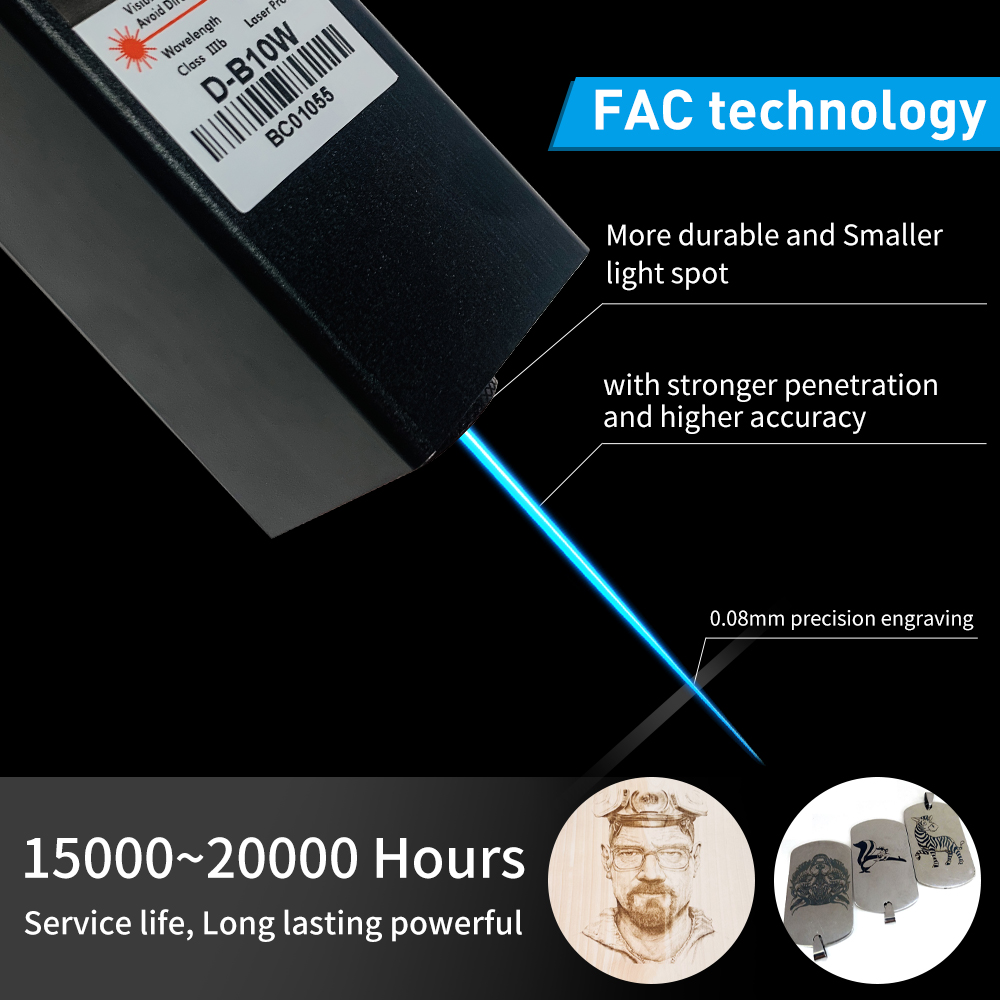

• FAC technology: FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.

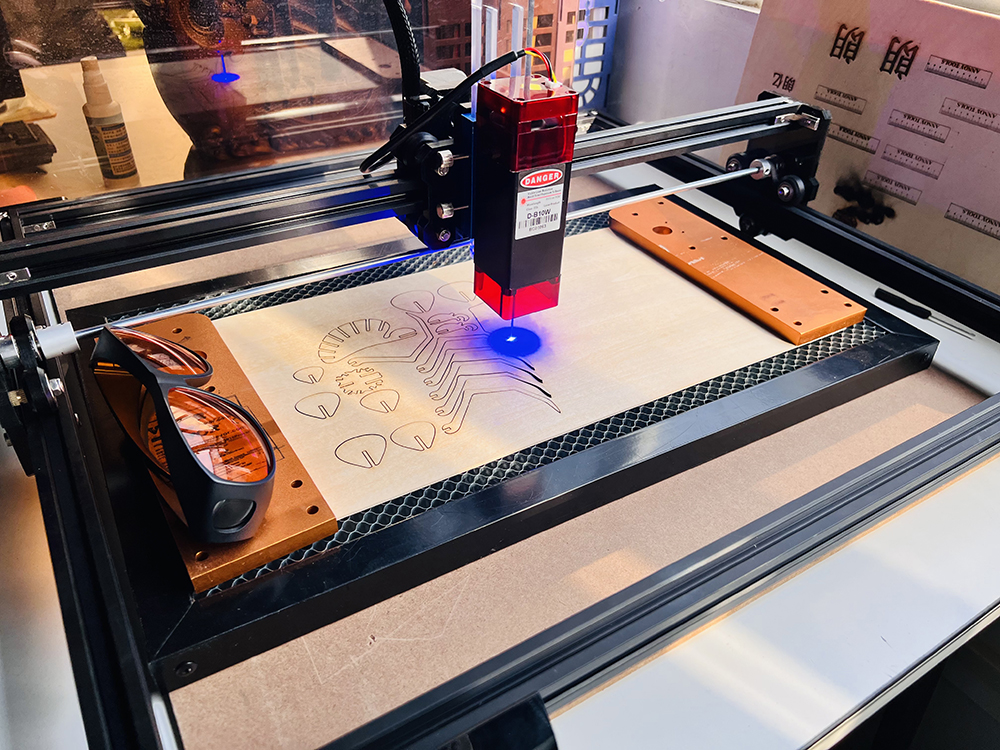

• It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.

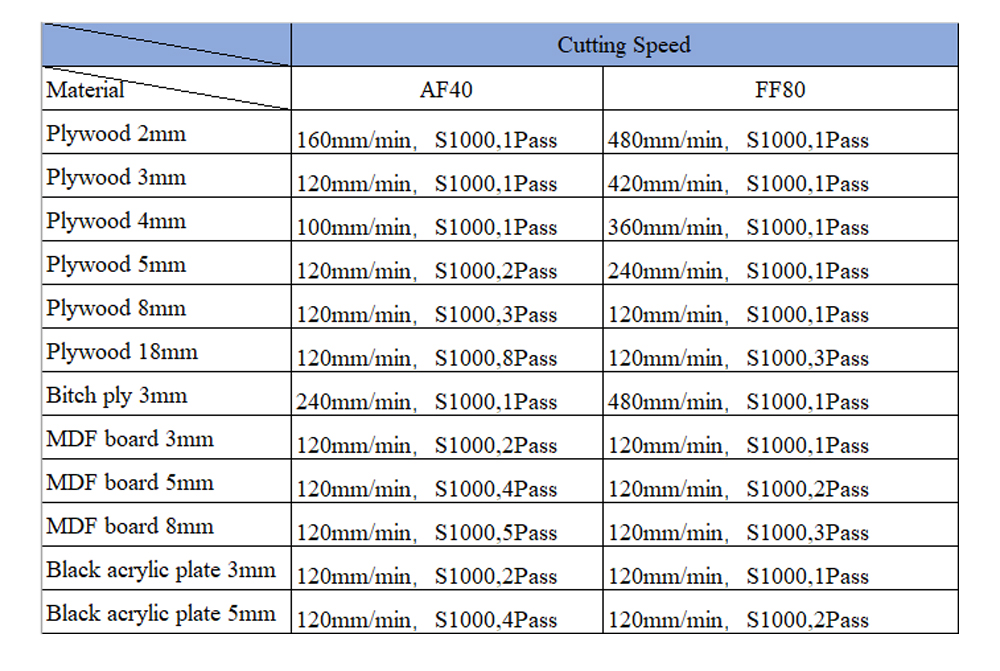

• Cut 5mm plywood from 1 pass, 5mm black acrylic board from 1 pass, Able to engrave stainless steel, metal, ceramic, glasses and so on

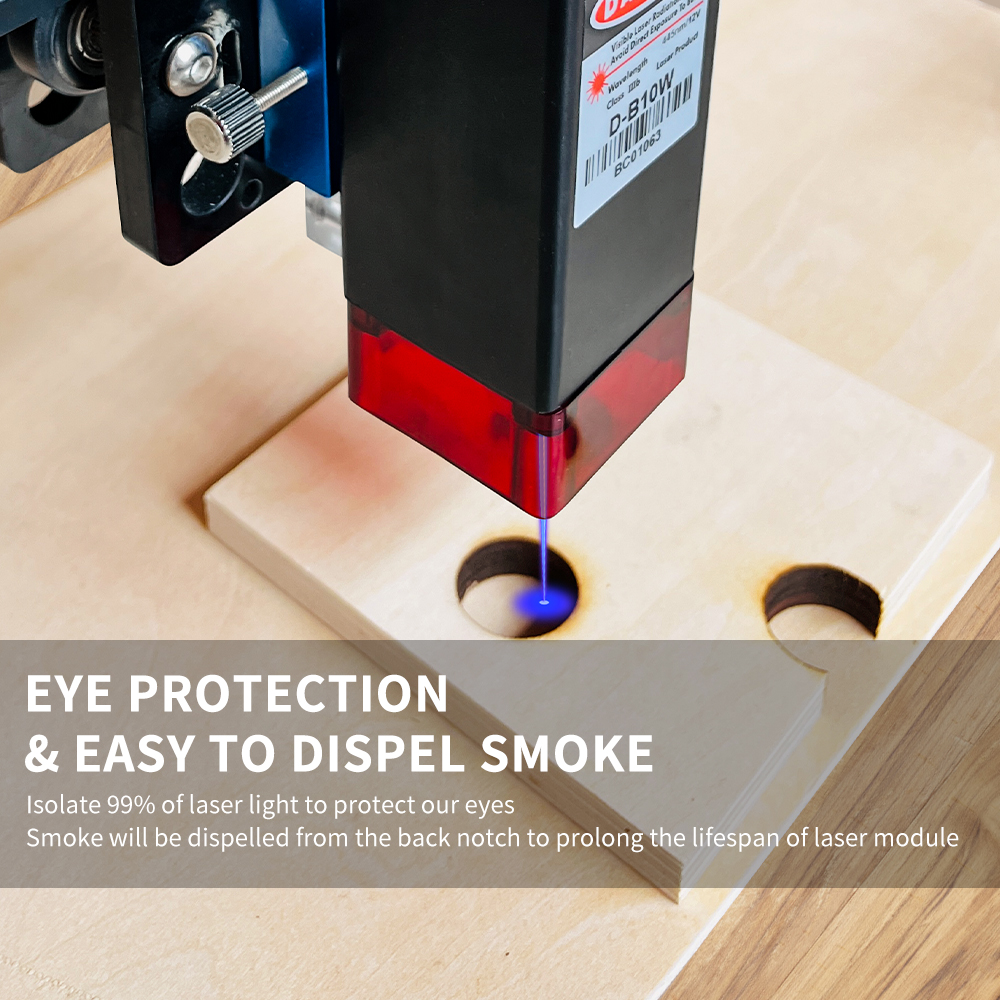

• The Upgraded Laser Modele equiped with protective cover can effectively reduce the damage of the laser to the eyes, and is safe and beautiful.

• Laser Wavelength: 445nm (blue viole)

• Laser Power: 40W/80W

• Optical Power Output：5.5W/10W （Label shows standard output power）

• Drive mode: External ACC constant current drive

• Cooling Method: Forced air cooling

• Operating Voltage: 12V DC

• Shell Material: Aluminum,Surface Anodized

• Module Material: Copper

• Life Time:10,000 hours

• Working Temperature:-40-75Celsius

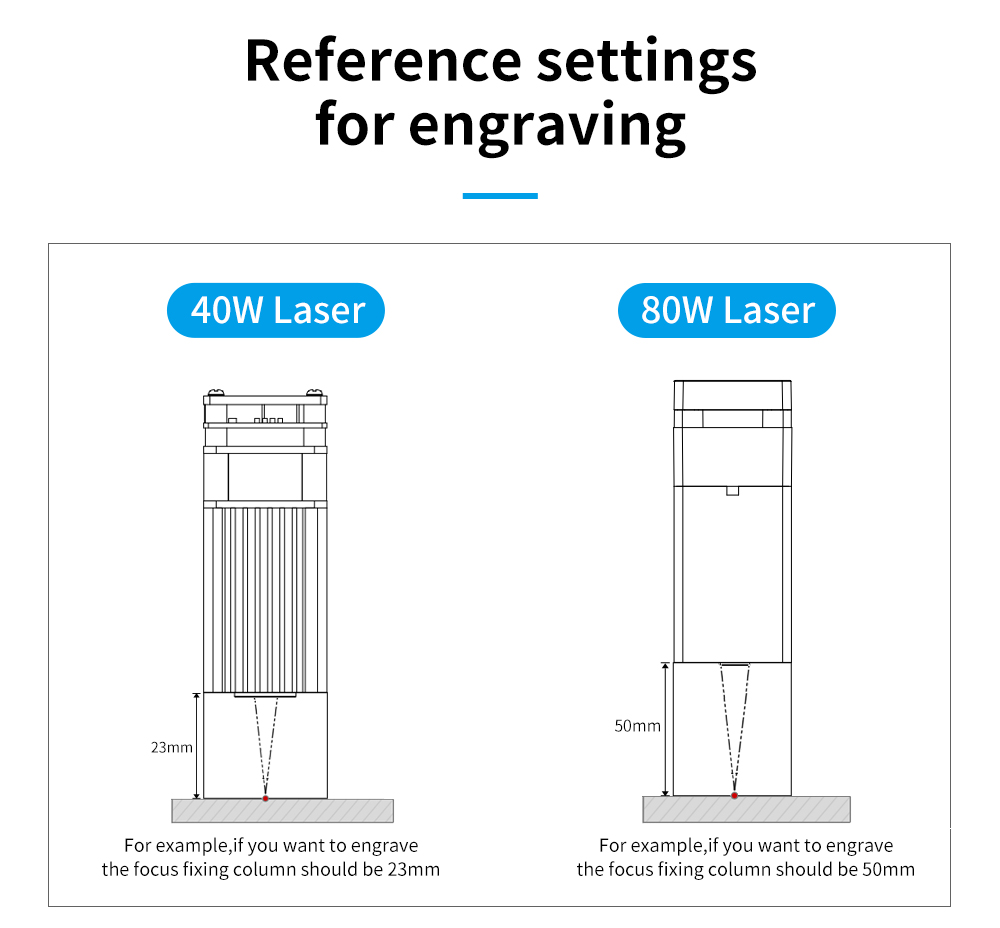

• Focal Length: 40W-23mm; 80W-50mm

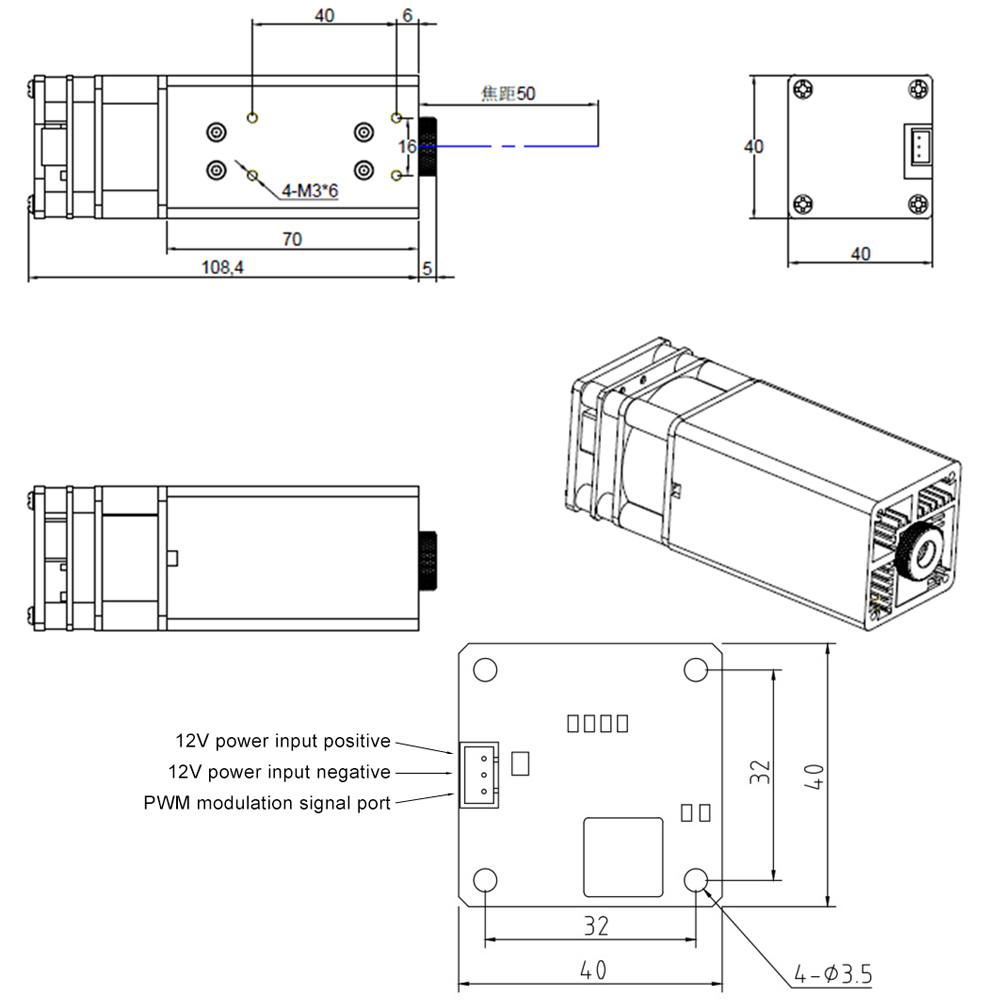

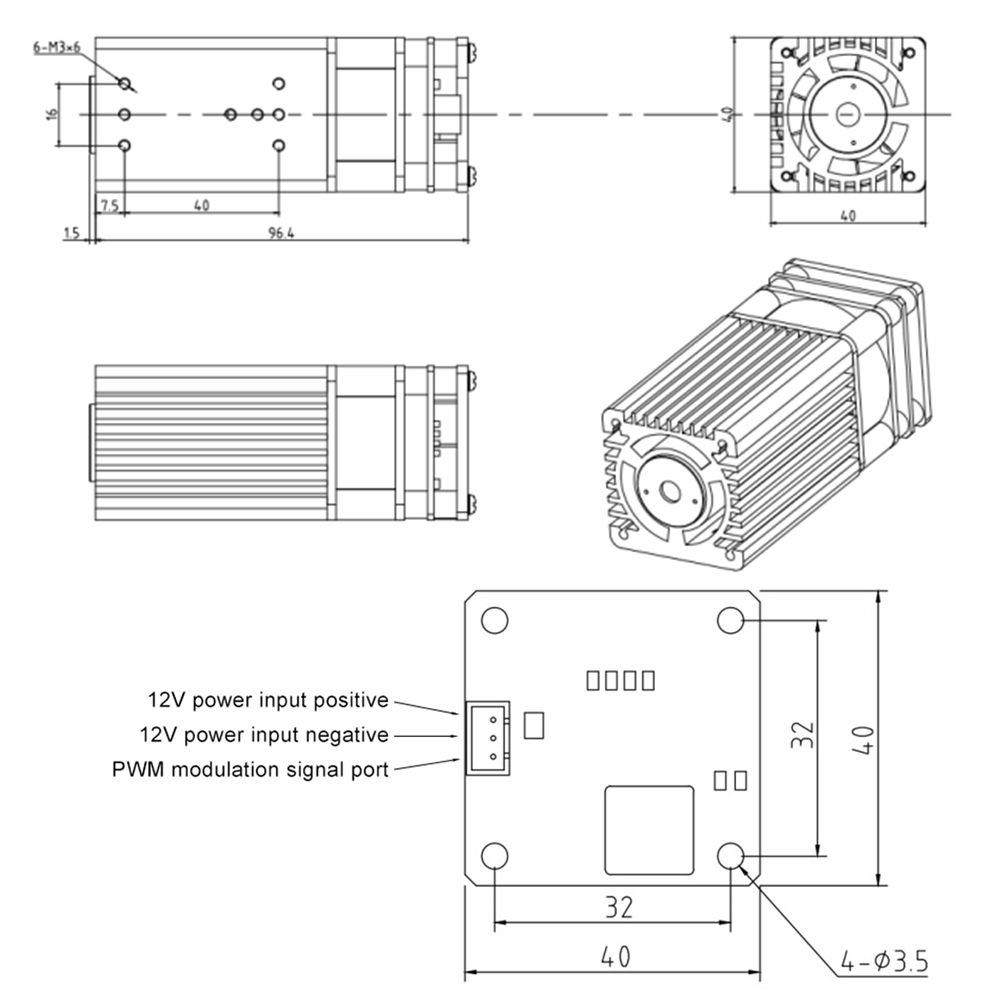

• Cable: 3 pin, Red “+” Black “-” Yellow “PWM”

• 1 x Laser Module

• 1 x 3 PIN Cable

• 1 x Fixed Focal

40w laser

80w laser
