Description

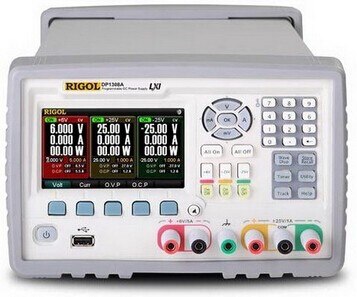

80W 3-channels 4.3 inch Large True C olor LCD Display  DP1308A Programmable DC Power Supply

Features:

• 4.3 inch large True Color LCD Display with 480×272 high resolution:Displays multiple parameters and state graph simultaneously
• Separate Control and Independent Triple Outputs:+6V/5A,+25V/1A,-25V/1A,total 80W power
• The +6V channel output is electrically isolated from  25V channel output to minimize the interference between the circuits under test
• Low ripples noise: < 350 μVrms/2 mVpp
• Excellent line regulation rate: < 0.01% + 2 mV (voltage), < 0.01% + 250 μA (current)
• Excellent load regulation rate: < 0.01% + 2 mV (voltage), < 0.010% + 250 μA (current)
• Fast Transient Response Time:<50μs
•  25 channels have output tracking functions: the change of voltage value in one channel can be reflected in the other channel
• Overvoltage and Overcurrent protection functions
• Two-level overtemperature protection function
• Store and recall system setups
• Supports Timing setting
• Real time V/A/W waveform display mode : dial plates with pointer and V/A/W values
• On-line help,Chinese & English interface and input

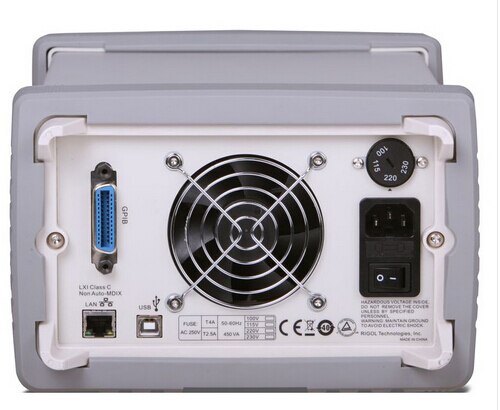

• Comprehensive Connectivity and Remote Control Interface:USB Device, USB Host, LAN and GPIB (IEEE-488)
• Support USB flash device storage
• Support remote control via Web and SCPI commands
• Conform to LXI-C class instrument standards (version 1.2

Advanced Functions:

• 1mV and 1mA resolution
• 3 channels independent voltage and current outputs

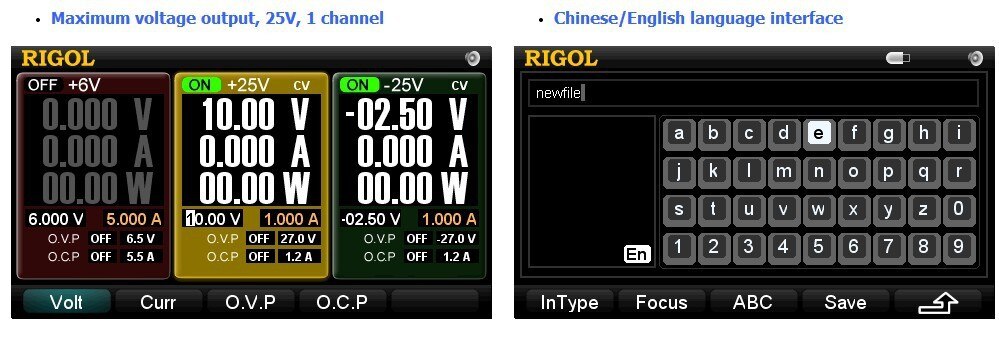

• Maximun voltage output, 25V, 1 channel
• Chinese/English language interface
• File/storage management
• On line help

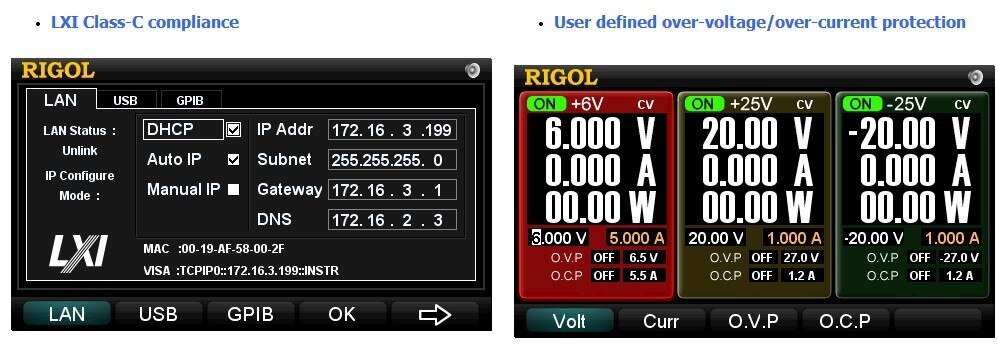

• LXI Class-C compliance
• User defined over-voltage/over-current protection

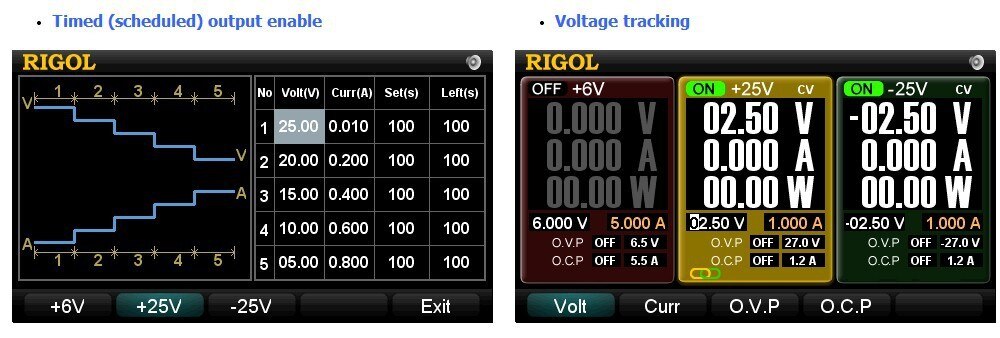

• Timed (scheduled) output enable
• Voltage tracking
• Waveform displa

Specification:

Model		DP1308A
Output Ranges/Channels		+6 V	+25 V	-25 V
DC Output ( 0 – 40)
Voltage		0 to +6V	0 to +25 V	0 to -25 V
Current		0 to 5 A	0 to 1 A	0 to 1 A
Overvoltage Protection		0.1 V to 6.5 V	0.1 V to 27 V	-0.1 V to -27 V
Overcurrent Protection		0.1 A to 5.5 A	0.1 A to 1.2 A	0.1 A to 1.2 A
Load Regulation (output percentage + offset)
Voltage		< 0.01% + 2 mV
Current		< 0.01% + 250 μA
Line Regulation (output percentage + offset)
Voltage		< 0.01% + 2 mV
Current		< 0.01% + 250 μA
Ripple and Noise (20 Hz – 20 MHz)
Normal Mode Voltage		< 350 μV rms/2 mVpp
Normal Mode Current		< 2 mA rms	< 500 μA rms
Common Mode Current		<1.5 μA rms
Accuracy 12 Months[1] (25-5)(output percentage + offset)
Programming	Voltage	0.1% + 5 mV	0.05% + 20 mV
	Current	0.2% + 10 mA	0.15% + 4 mA
Read Back	Voltage	0.1% + 5 mV	0.05% + 10 mV
	Current	0.2% + 10 mA	0.15% + 4 mA

Package Include:

·  1 x New RIGOL DP1308A Programmable DC Power Supply 80W +6V/5A +25V/1A -25V/1A 3-Ch

·  12 months warrant

·  60 days money back

·  Life-time support
