808nm Laser Bars 600W Diode Laser Stack for Hair Removal Handle

  • Home
  • 808nm Laser Bars 600W Diode Laser Stack for Hair Removal Handle
Sale!

808nm Laser Bars 600W Diode Laser Stack for Hair Removal Handle

$1,910.06

200 in stock

SKU: 1005004010969367 Category:

Description

  • Origin: CN(Origin)
  • Certification: NONE
  • DIY Supplies: ELECTRICAL
  • Brand Name: BWD
  • Model Number: WC808VS600
  • Laser Type: Nd: Yag Laser
  • Style: PORTABLE
  • Type: Laser
  • Application: For Commercial, For Commercial & Home Use
  • Warranty: 1.5 years, 18 Months
  • Center Wavelength: 808nm
  • Output Power Per Bar: 60W
  • Number of Bars: 10
  • Certification: ISO
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{padding:0;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{font-size:16px}#detail_decorate_root .magic-9{font-size:18px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:252.1875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:252.1875px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-15{margin:0;padding:0}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:625.7142857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:625.7142857142857px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:518.5714285714286px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:518.5714285714286px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:281px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:281px}#detail_decorate_root .magic-22{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:442.4157303370786px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:749.9999999999999px;height:442.4157303370786px}

Product Description



808nm Laser Bars 600W Diode Laser Stack for Hair Removal Handle

Aimed at the demand of the hair removal market, the diode laser stack series incorporate a new design and innovative technology to achieve the advantages of high optical-electrical conversion efficiency, high power density, long lifetime and low power consumption. Its quality and reliability enable customers to differentiate the performance of their hair removal systems for aesthetic market as well as serving the medical application market.
Features:
Over 30 million shots lifespan and 20 months warranty
Macro channel with simple water cooling and no strict requirement for water quality
Ausu Soldering ensure high reliability
Rectangular symmetrical spot output, high energy density, easy to shape
Compatible with most Chinese hair removal machine, such as ADSS, Weifang KM,Syntech, ect.

Details

Item No.: WC808VS600

Item Name: 600W 808nm Water Cooled Vertical Stack Diode Laser

Optical:

Center Wavelength λ 808nm

Wavelength Tolerance ±10nm

Working Mode QCW

Output Power Per Bar 60W

Number of Bars 10

Bar to Bar Spacing 2mm

Fast Axis Divergence(FWHM) 38Deg

Slow Axis Divergence (FWHM) 12Deg

Polarization Mode TE

Slope Efficiency ≥1.0W/A

Pulse Width ≤400ms

Duty Cycle ≤40%

Electrical:

Operating Current Iop 60A

Threshold Current Ith 12A

Operating Voltage Vop 19V

Power Conversion Efficiency 45%

Thermal:

Operating Temperature (No Condensation) 15~30℃ (No Condensation)

Storage Temperature (No Condensation) 0-55℃(No Condensation)

Warranty:18Months

Other Choices:

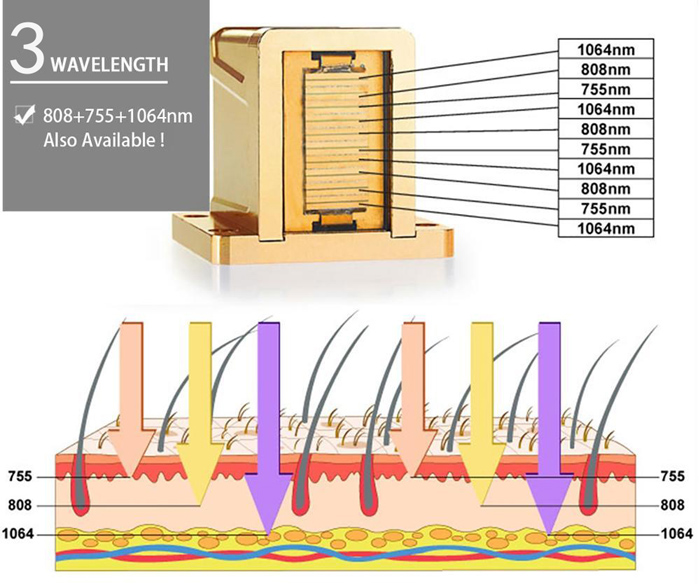

Triple Wavelength 755nm 808nm 1064nm is available for your choice
Pls contact us as below for more details.

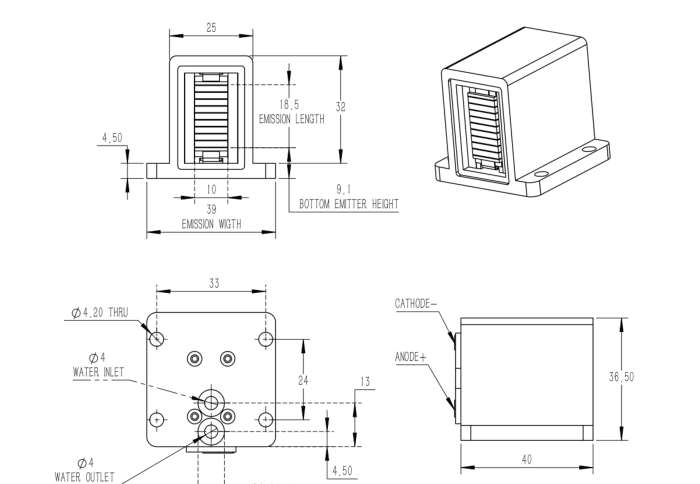

Dimension Diagram
Packing & Delivery

Packing


One set in a case(According to your request)

Delivery

Normally 1-2 Weeks

FedEx,DHL Express,UPS,TNT

Payment Term

T/T and Western Union, For your Choice

Return Policy

Buyer Pay the Shipping Cost.
