Description
Specification
|
Laser energy measuring range
|
1-100J, 200J
|
|

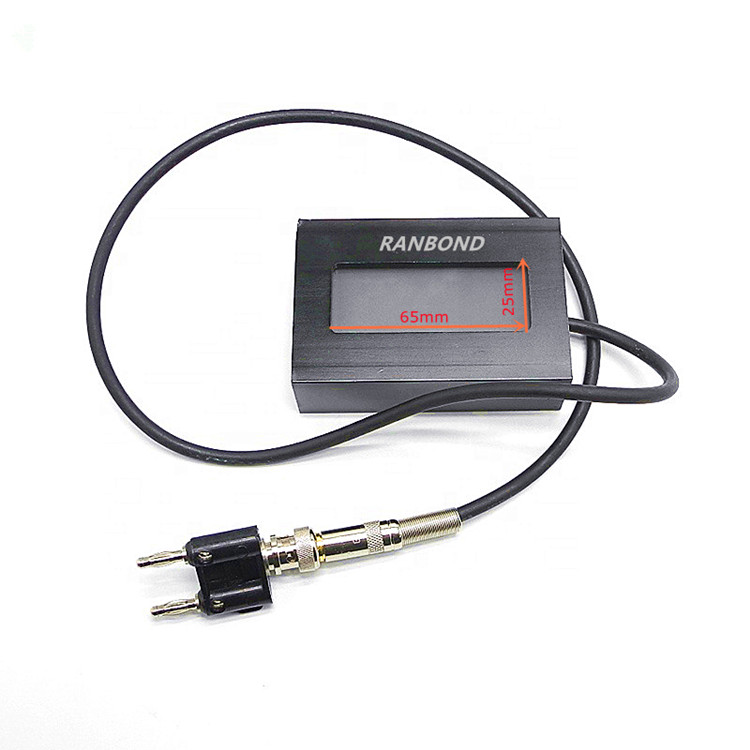

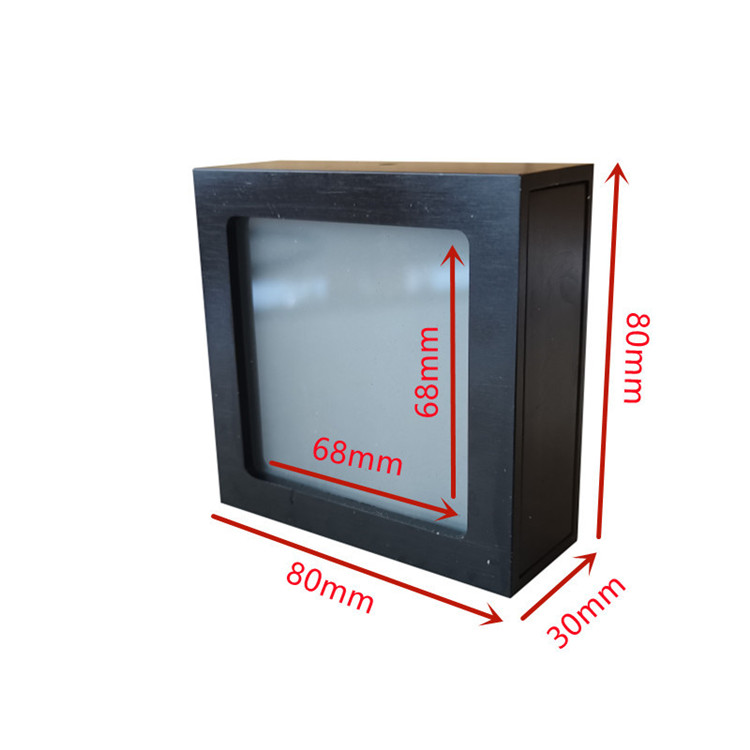

Receiving aperture size
|
65x25mm/68x68mm
|
|
Spectral range
|
350nm – 2500nm
|
|
Measurement uncertainty
|
<5%
|
|
Applicability
|
pulsed laser
|
Product Description

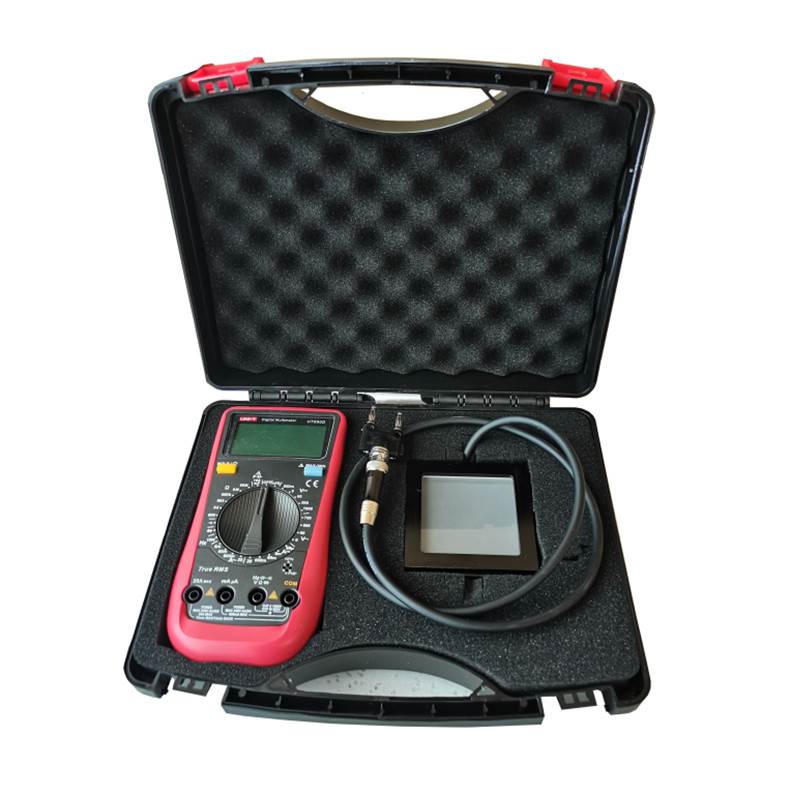

This IPL laser energy detector is a digital multimeter. It can be used to measure the emitted energy of IPL laser hair removal. It has a very high cost performance.
It is very easy to operate.
1. Insert the other end of the signal wire BNC provided with the probe to the right two holes of the digital multimeter. (The protrusion is inserted upwards.)

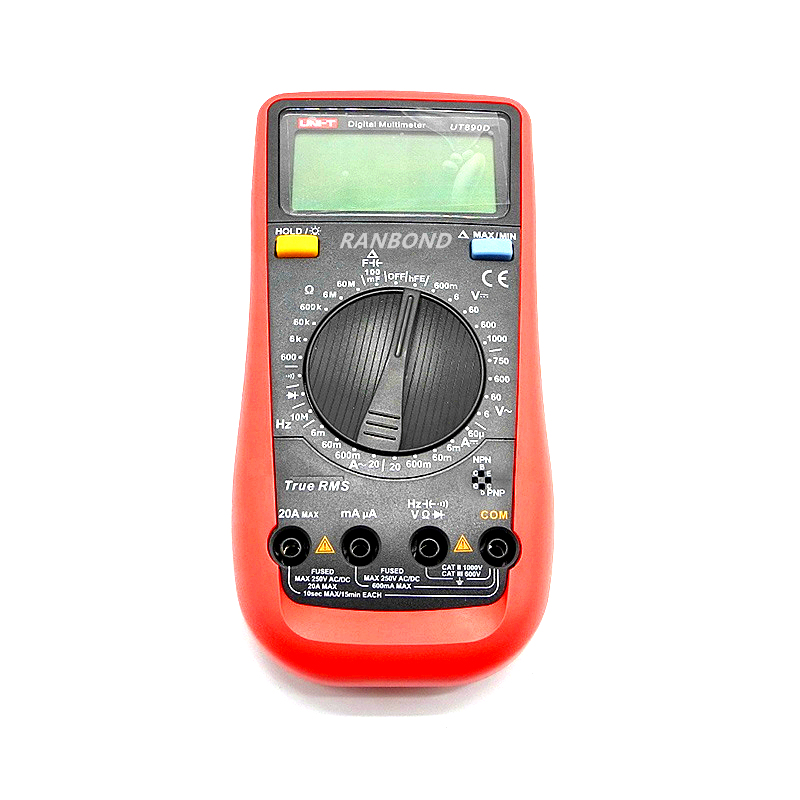

2. Turn the measurement gear from OFF to DC 600mV(corresponding to 600J).
3. After the display data is stable, press the “MAX MIN” button three times, then the multimeter shows MAX-MIN in the upper left corner.
4.Trigger the light pulse, and the multimeter displays the monotonically rising data. After 10-15 seconds, the display number shows a peak value and is held by the multimeter.
5. At this point, the value displayed on the multimeter is the difference between the maximum and the minimum, which is the measured energy value（mV corresponds to J）.
2. Turn the measurement gear from OFF to DC 600mV(corresponding to 600J).
3. After the display data is stable, press the “MAX MIN” button three times, then the multimeter shows MAX-MIN in the upper left corner.
4.Trigger the light pulse, and the multimeter displays the monotonically rising data. After 10-15 seconds, the display number shows a peak value and is held by the multimeter.
5. At this point, the value displayed on the multimeter is the difference between the maximum and the minimum, which is the measured energy value（mV corresponds to J）.
6. After measuring, press the “MAX MIN” button for 3 seconds to make the multimeter out of the state of MAX MIN. Observe the multimeter data, and repeat 3 to 5 steps to measure again after it stably displays and no longer drops monotonously.
