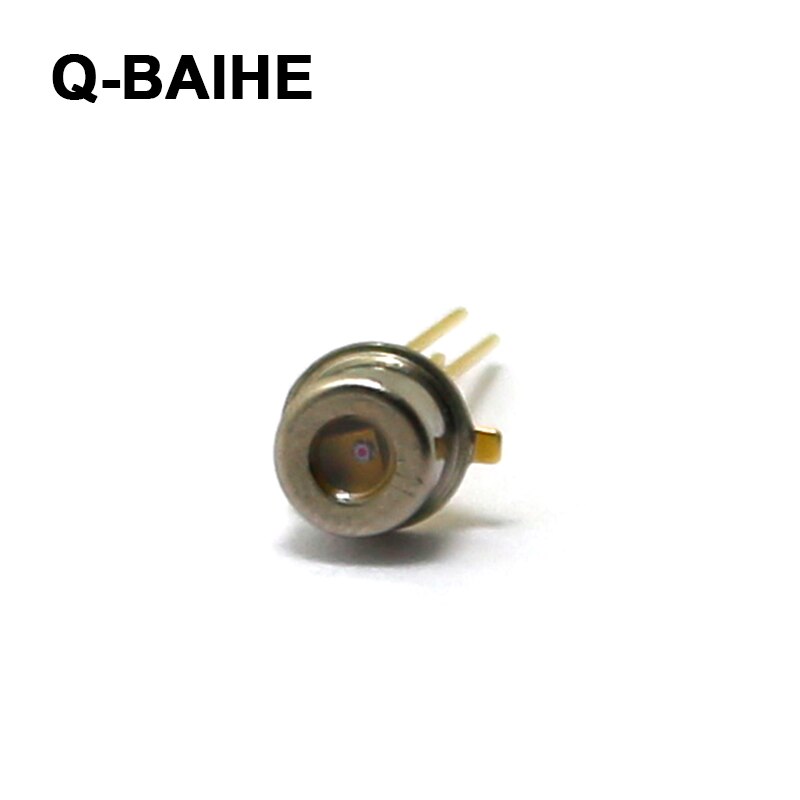

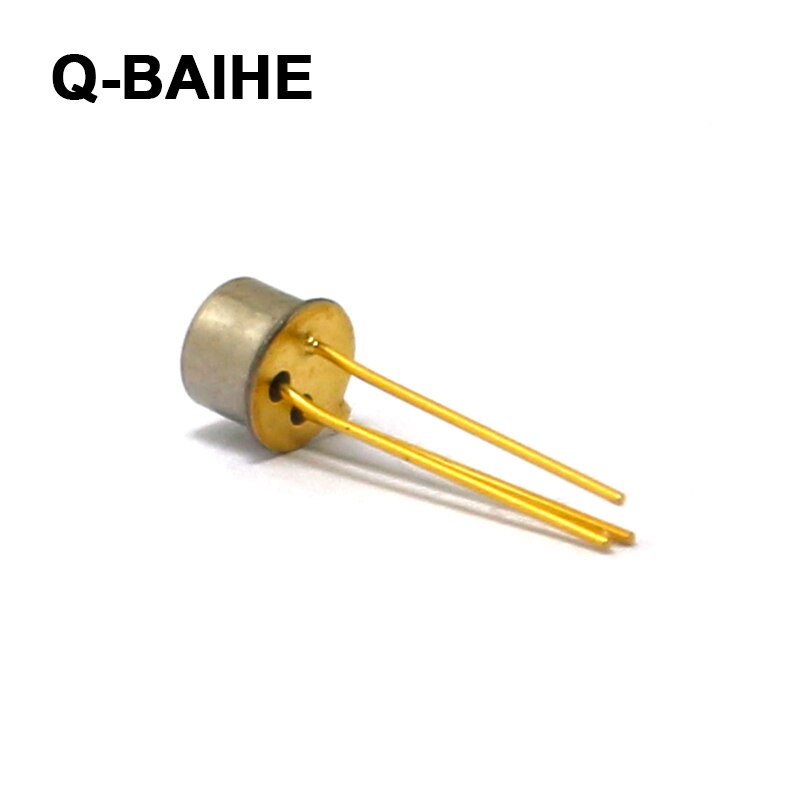

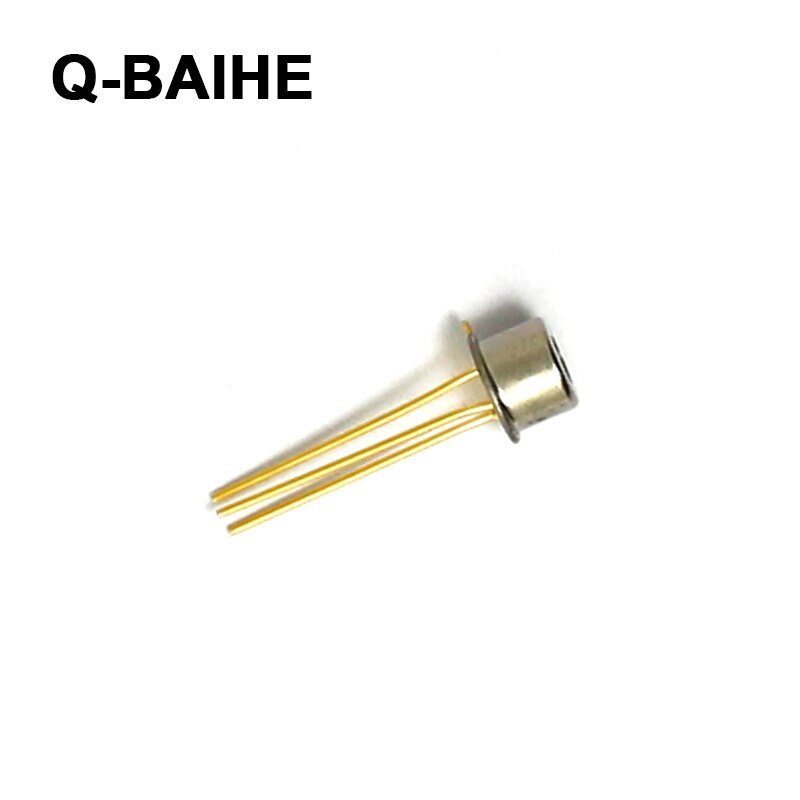

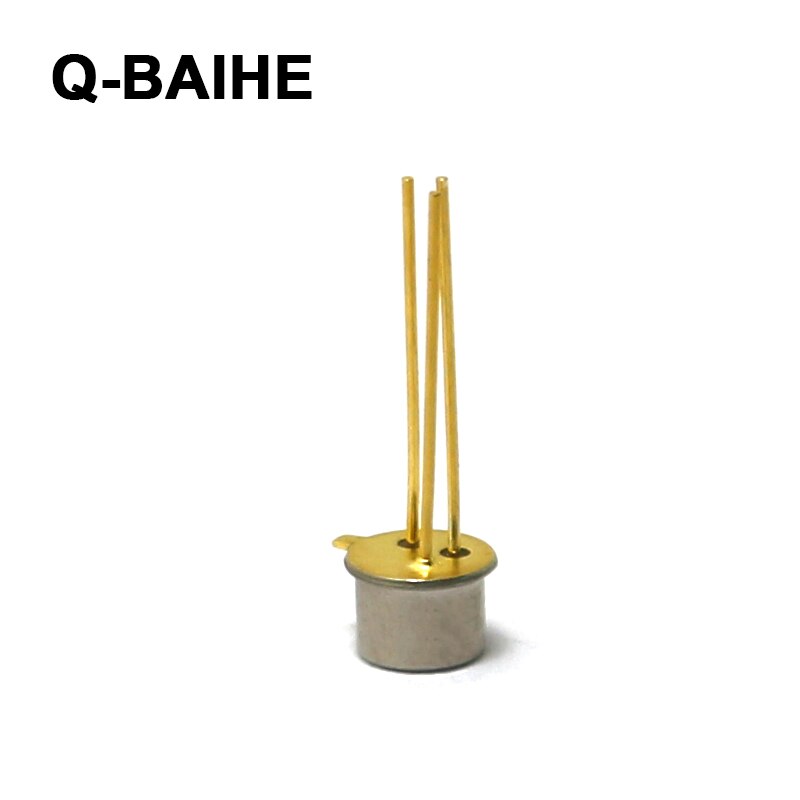

Product Description

1. Model: LSIPD26-0.3



2. Photosensitive surface diameter: 300um



3. Response wavelength: 800-2600nm



4. Dark current: 0.5uA@-0.5V



5. Response time: 10 ns@-0.5V



6. Package: TO-46 Can, fiber coupling, optical interface optional



7. Response:



0.5 mA / mW @ 1310 nm 1.1 mA / mW @ 2300 nm









Application:



1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television



4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer



7. Optical fiber sensor

Package:

1*800-2600nm 2600nm 0.3mm InGaAs PIN Photodiode To-46
