LaserSE

All Lasers in Life Science Industry info@laserse.com

800-2100nm 0.3mm InGaAs PIN Photodiode 2JKFC Can be equipped with fiber

  • Home
  • 800-2100nm 0.3mm InGaAs PIN Photodiode 2JKFC Can be equipped with fiber

800-2100nm 0.3mm InGaAs PIN Photodiode 2JKFC Can be equipped with fiber

$99.00

996 in stock

SKU: 32945951411 Category:

Description

800-2100nm 0.3mm InGaAs PIN Photodiode 2JKFC Can be equipped with fiber

  • Item Type: Stage Lighting Effect
  • Occasion: Home Entertainment
  • Style: Mini
  • Model Number: LSIPD21-0.3-2JKFC
  • Brand Name: Q-BAIHE
  • Power: 0.9W
1. Model: LSIPD21-0.3
2. Photosensitive surface diameter: 300um
3. Response wavelength: 800-2100nm
4. Dark current: 8nA@-0.5V
5. Response time: 3ns@-0.5V

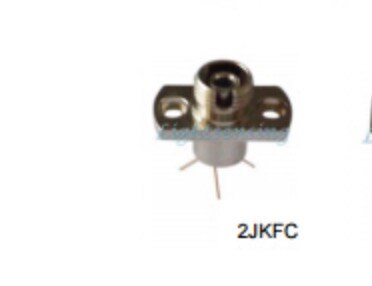

6. Package: 2JKFC Can, fiber coupling, optical interface optional
7. Response:
0.7 mA / mW @ 1310 nm 1.0 mA / mW@1600 nm

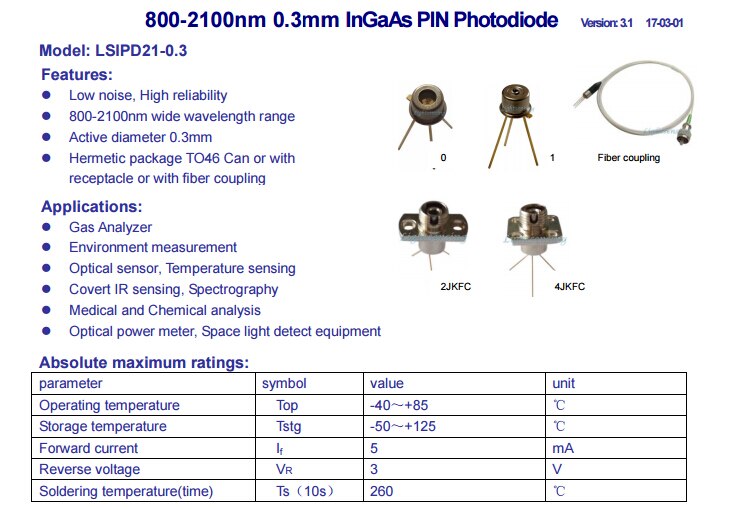

21-0.3 1

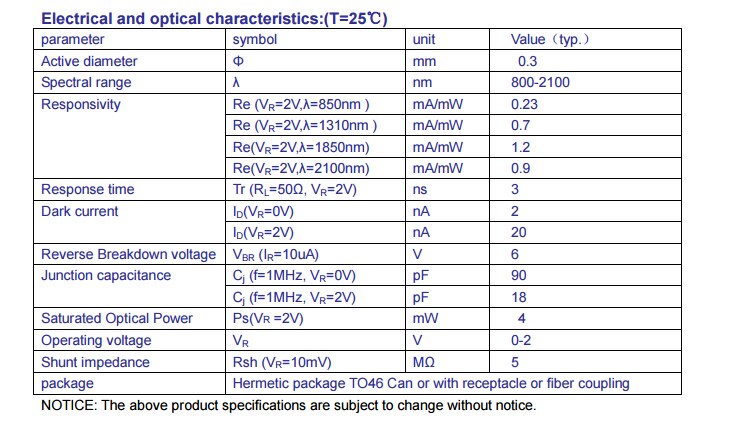

21-0.3 2

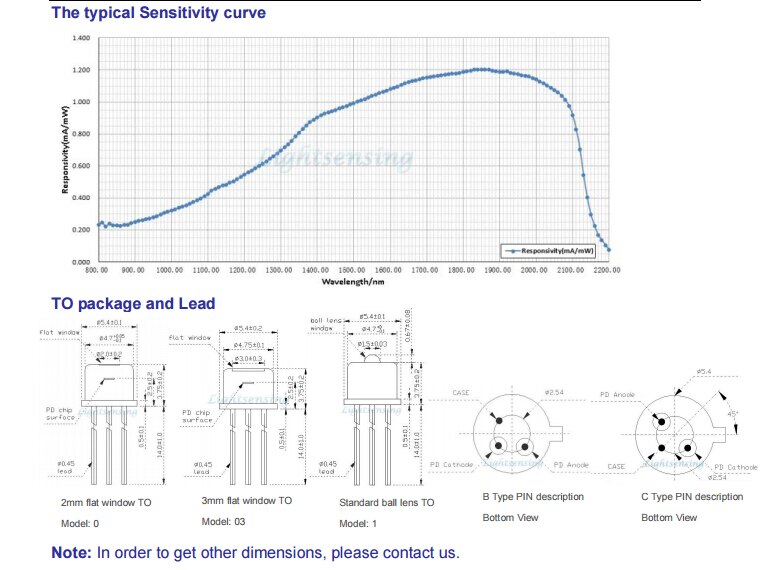

21-0.3 3

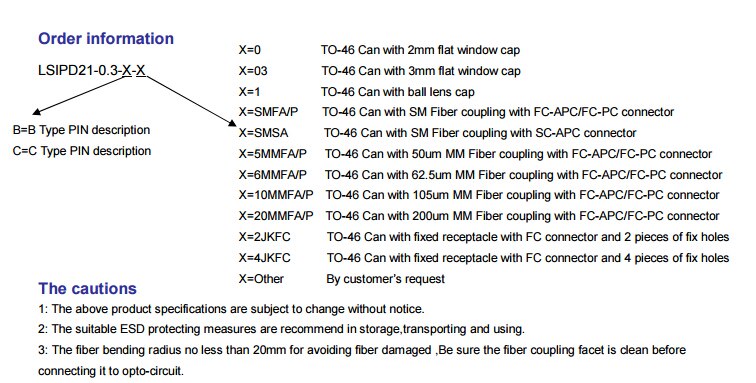

21-0.3 4
Application:
1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television
4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer
7. Optical fiber sensor

Package:

1*800-2100nm 0.3mm InGaAs PIN Photodiode 2JKFC
