Description

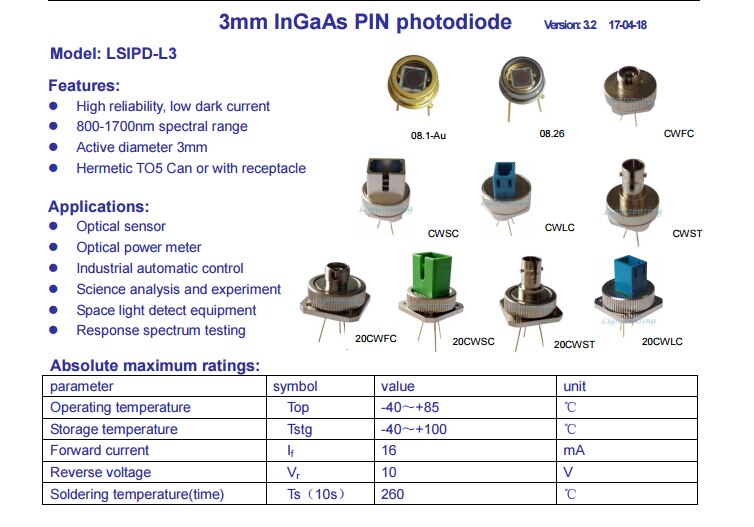

800-1700nm 3mm InGaAs PIN photodiode high reliability low dark current TO-5

Product Description

1. Model: LSIPD-3

2. Response wavelength: 800-1700nm

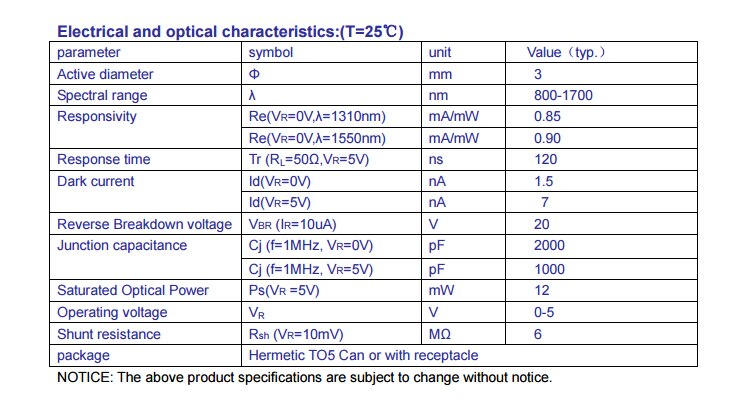

3. Dark current: 8nA @ -5V

4. Rise time: 30ns @ -5V

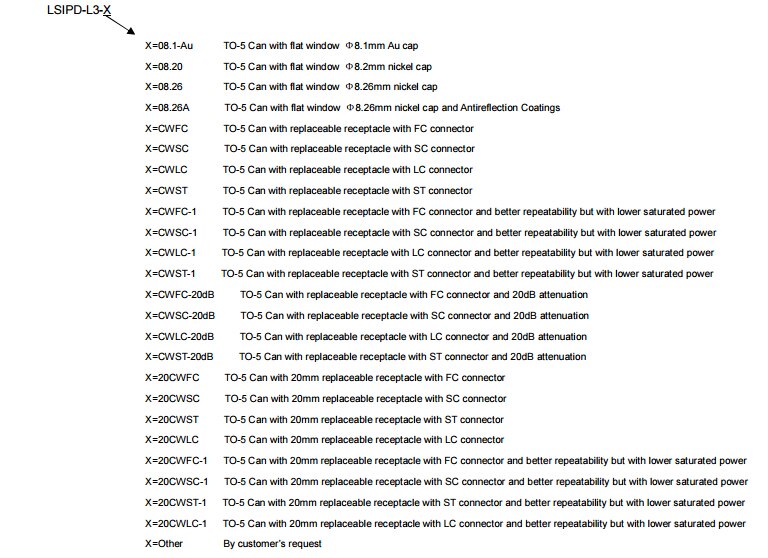

5. Package: TO-5 Can, optical interface optional

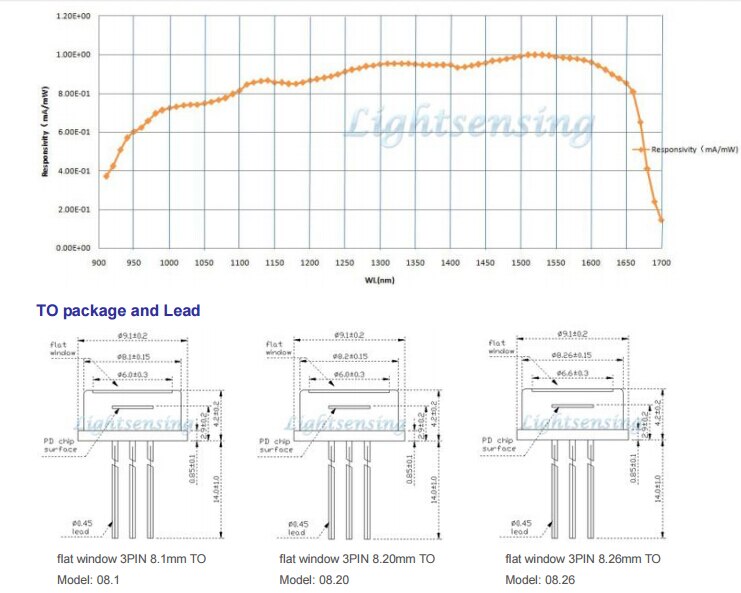

6. responsiveness:

0.85 mA / mW@1310 nm

0.90 mA / mW@1550 nm

Application:

1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television

4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer

7. Optical fiber sensor
