Description
24V 7W 15W laser head, blue laser module, actual wattage. Actual power, oxidizable metal can be carved, with PWM TTL
- Model Number: 7W 15W 24V
- 24V laser engraving parts: 24V laser engraver
(OEM compatible production services, enterprise customized solutions,)
(The product parameters and product information we describe are the results of rigorous testing (not exaggerated))
(On the market, 30W can only cut 2mm-3mm plywood. The 15W produced by our company can cut 4mm-5mm plywood. This is the actual power. The actual wattage. The emitted beam is strong enough. This is the best way to tell the truth. (False power)
(7W can cut 3mm plywood) 15W can cut 4mm plywood, one cut does not require repeated cutting, and can engrave stainless steel and oxide metals, which means that the output power of the laser head is very powerful. The greater the power, the greater the wattage, the stronger the laser output, and the thicker the cut. This is the actual power and actual wattage. According to this standard, calculate and learn how to buy a laser head with actual power and actual power. This is the easiest way to identify true and false power.
(Industrial laser module, heavy and stable beam precision, very practical, industrial level, international standard)
Technical Parameters
Total length of laser + fan: 100mm-105mm
Laser light source: semiconductor blue light
Shell material: aircraft aluminum
Module center material: copper
Color: Oxygen silver

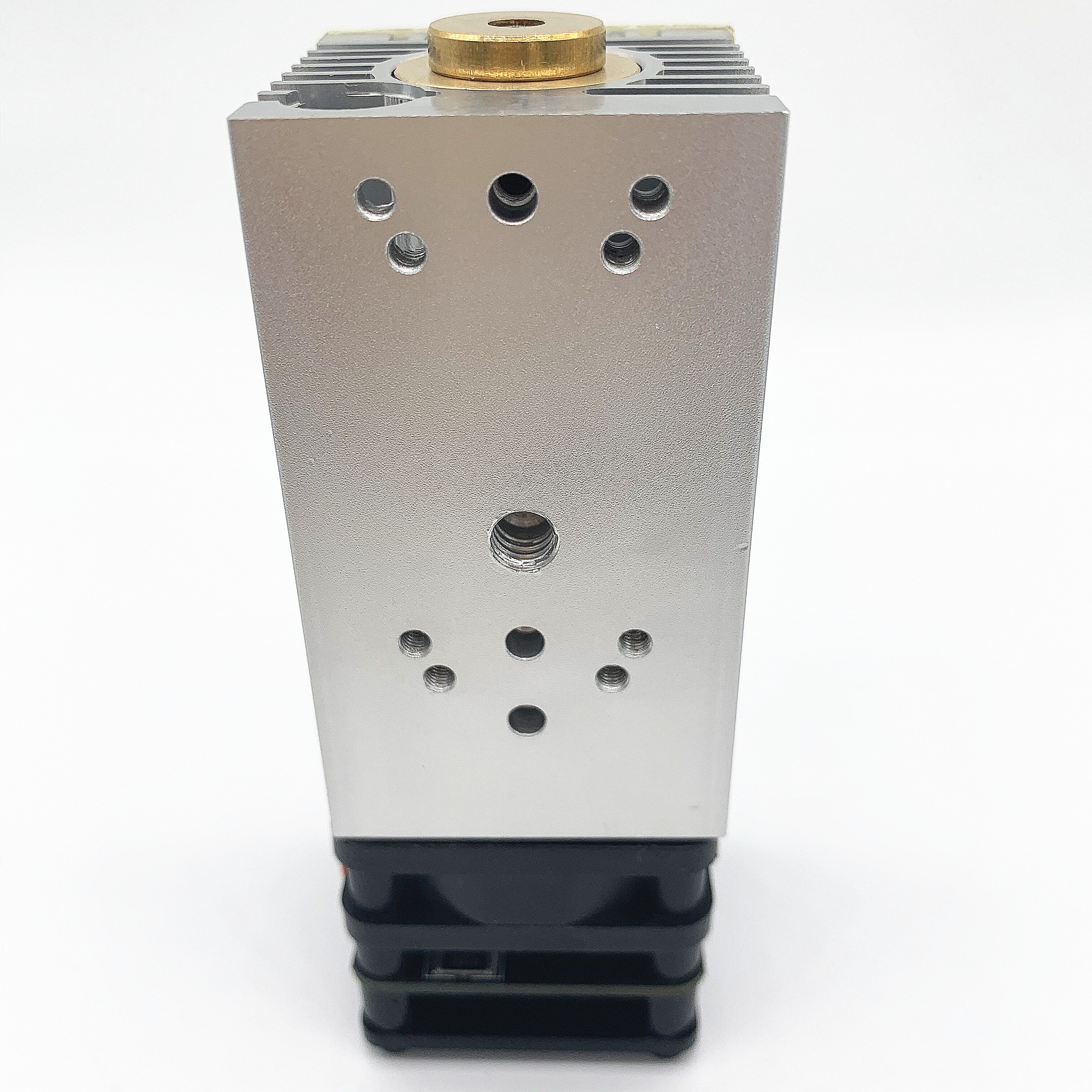

Shell size: 7W (33×33×70mm) (40×40×70mm)
Shell size: 15W
You need to know which size is suitable for installing the engraving machine.
Optical power output: 7W 15W
Laser wavelength: 450nm
Optical lens material: efficient light transmission
Power control: PWM TTL
Power supply current: (4.2A)
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: (7W point-shaped adjustable focal length) (15W point-shaped fixed focus)
The life span is 10500 hours.
The 15W list includes: 4P line*1, 3P line*1, short line DC*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)

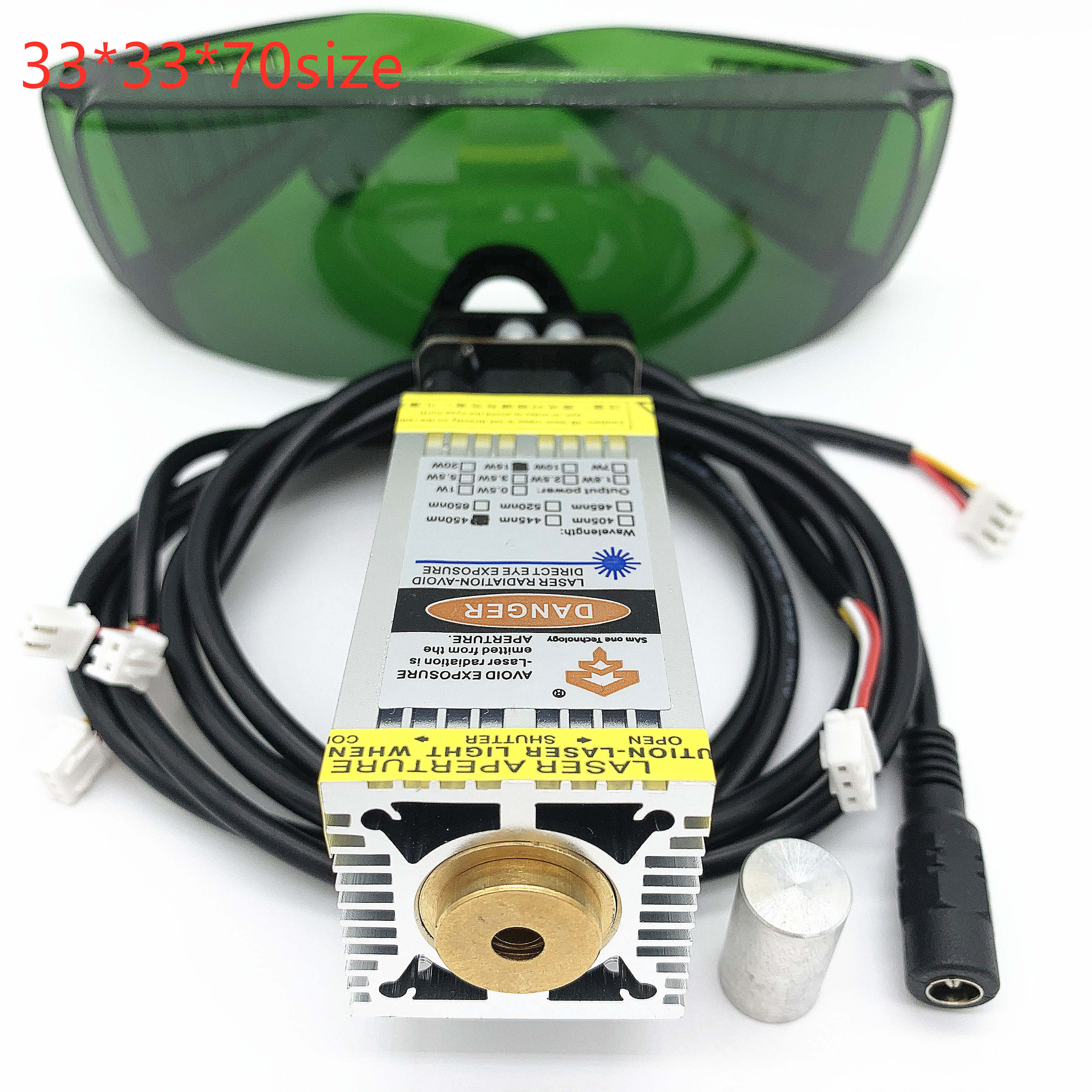

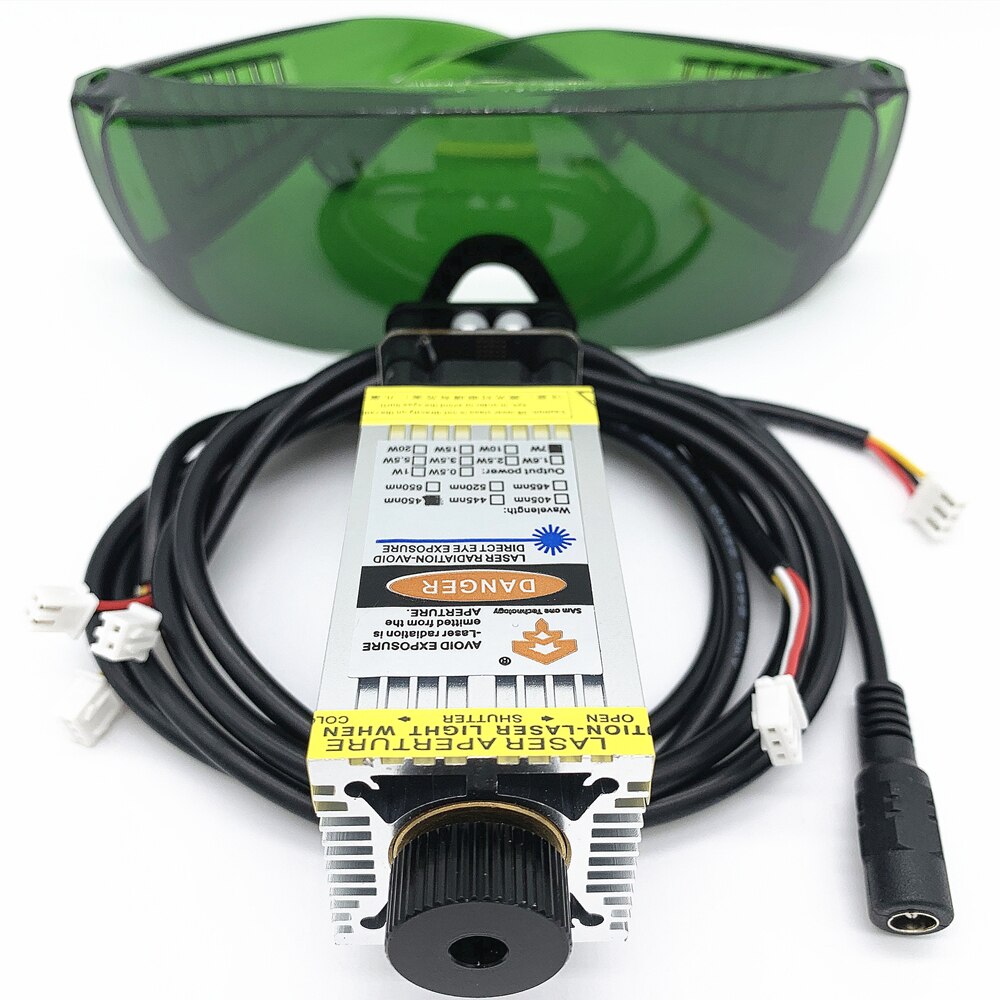

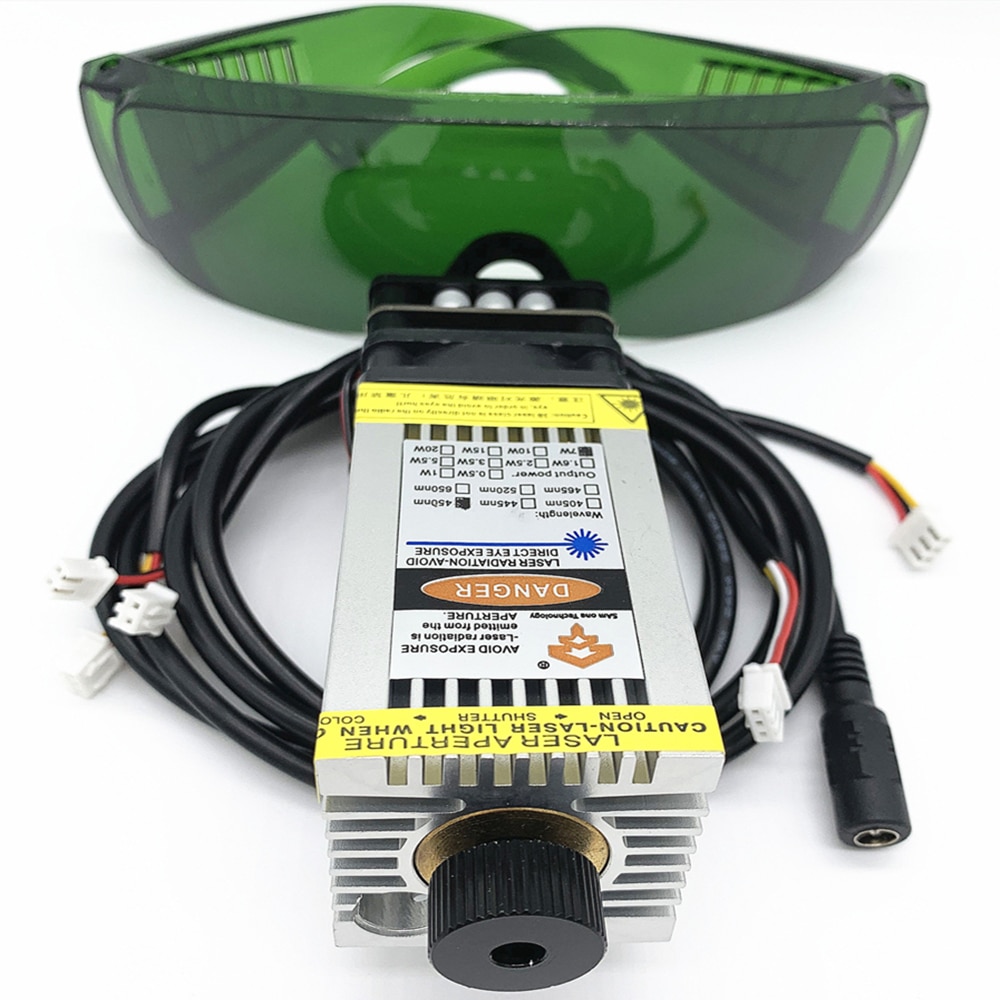

The 7W list includes: 4P line*1, 3P line*1, short line DC*1 glasses*1, laser module*1. (The color of the glasses is delivered randomly)

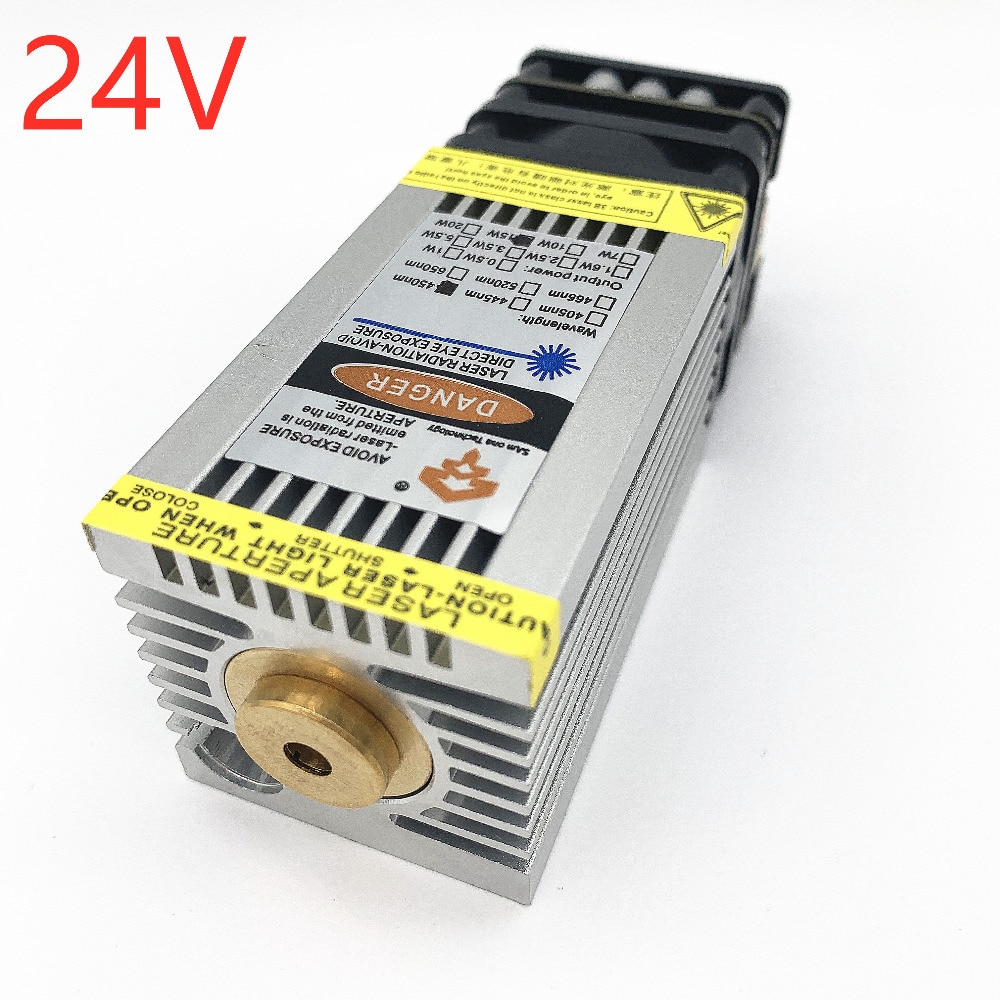

Note: It must be known: the laser head can only be used according to 24V power supply
Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.

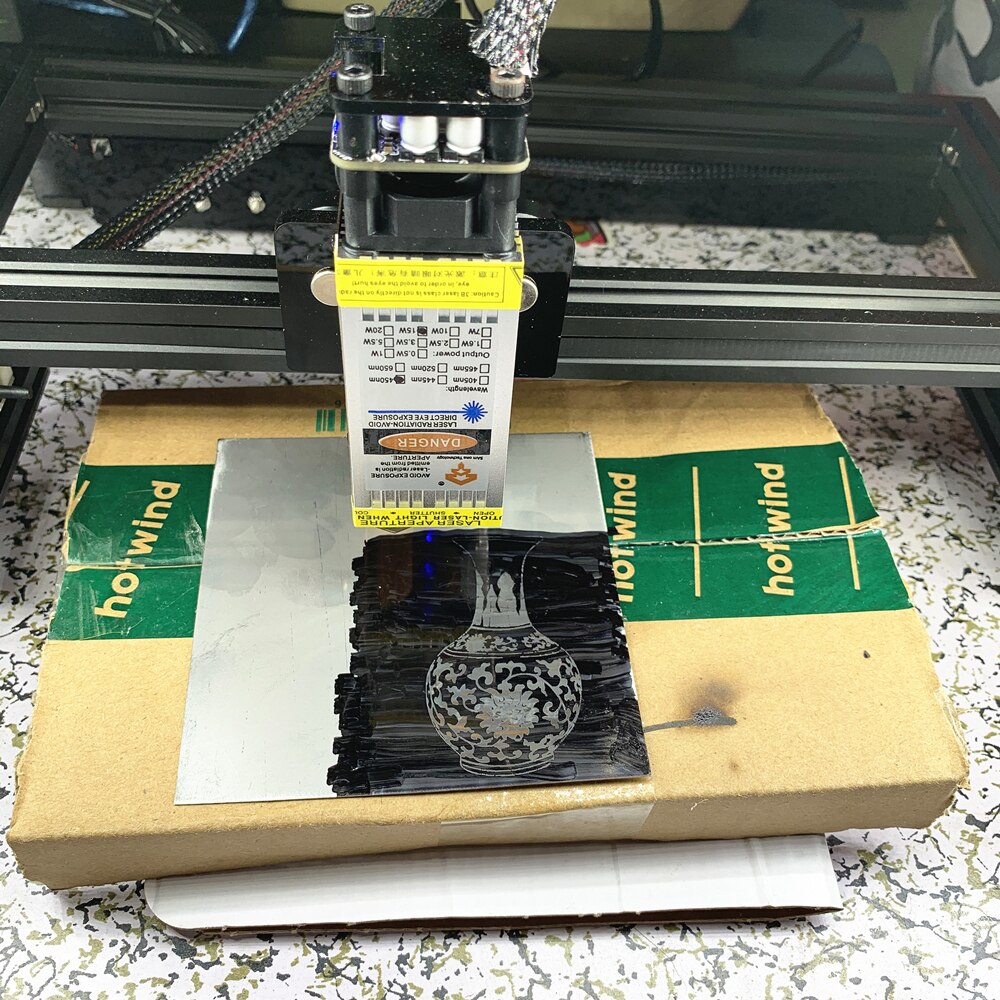

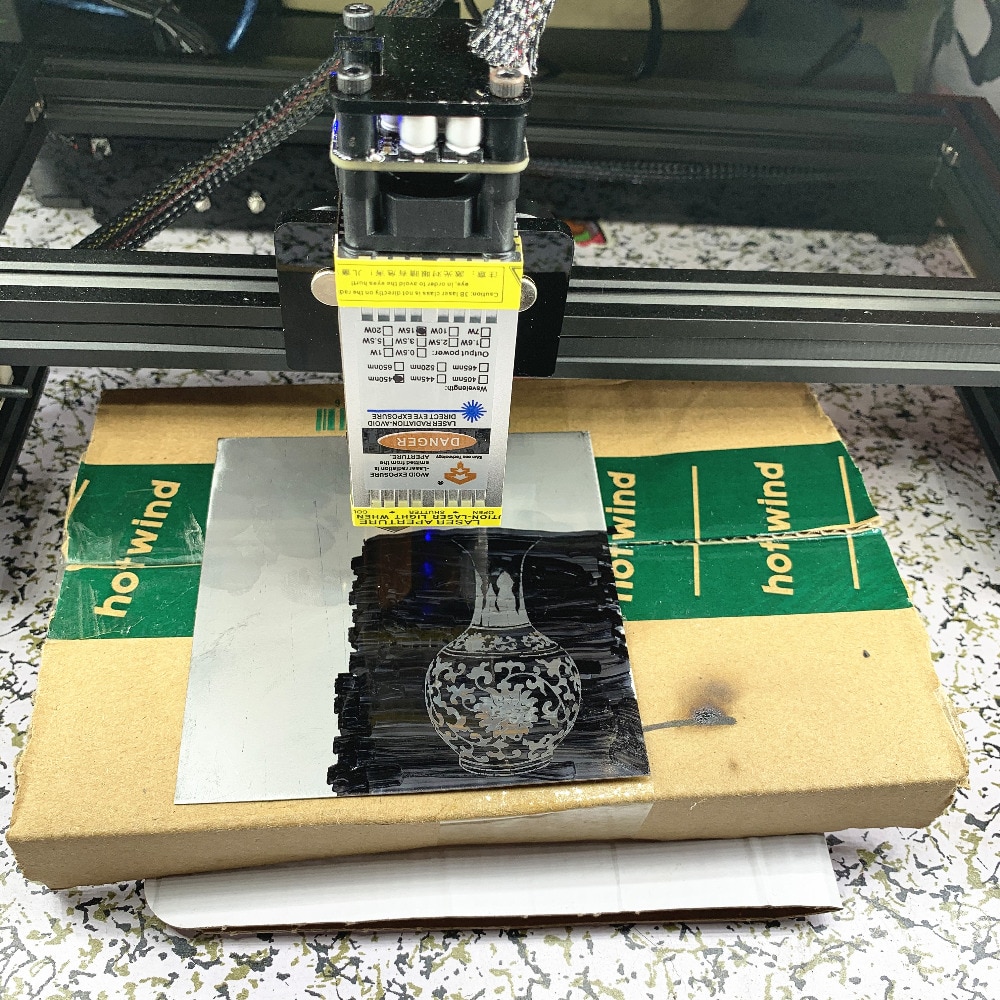

It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,

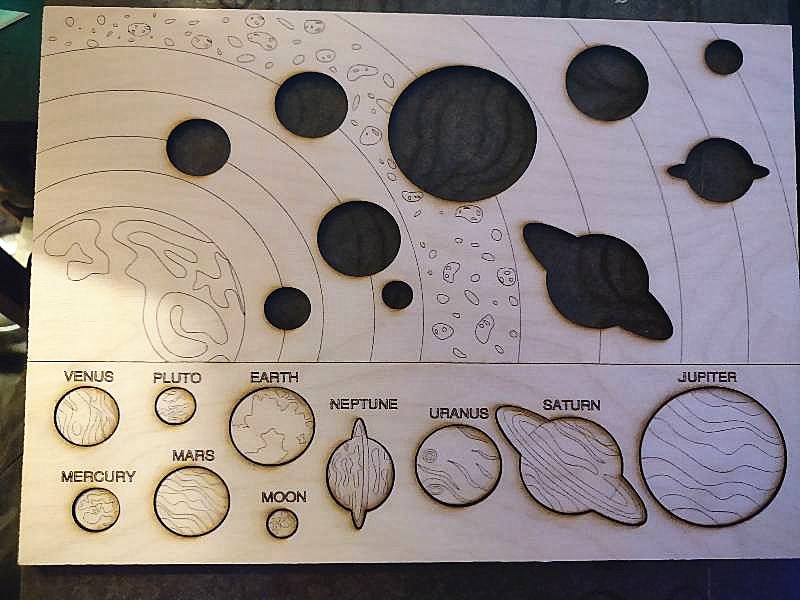

Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.
Engraving must know: Engraving reflective objects must be blacked before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
