Description
- Brand Name: ZRHF
- Certification: RoHS
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Light Output: 90mW
- Operating Voltage: 2.0V
- Operating Current: 115mA
- Monitor Current: 0.25mA
Features
1. Absolute maximum ratings：100mW (CW)
2. TO-18 (Φ5.6mm) packaged, cap window with flat Pb-free lens.
3. Built-in photo diode for monitoring laser diode.
4. Operating Temperature:-10 to +70℃
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:785nm(±10nm) Typ.
Optical Output:90mW
Threshold Current:35mA
Operating Current:115mA
Operating Voltage:2.0V
Monitor Current:0.25mA
Beam Divergence(FWHM)
Parallel:9deg
Perpendicular:17deg
External dimensions(Unit : mm)

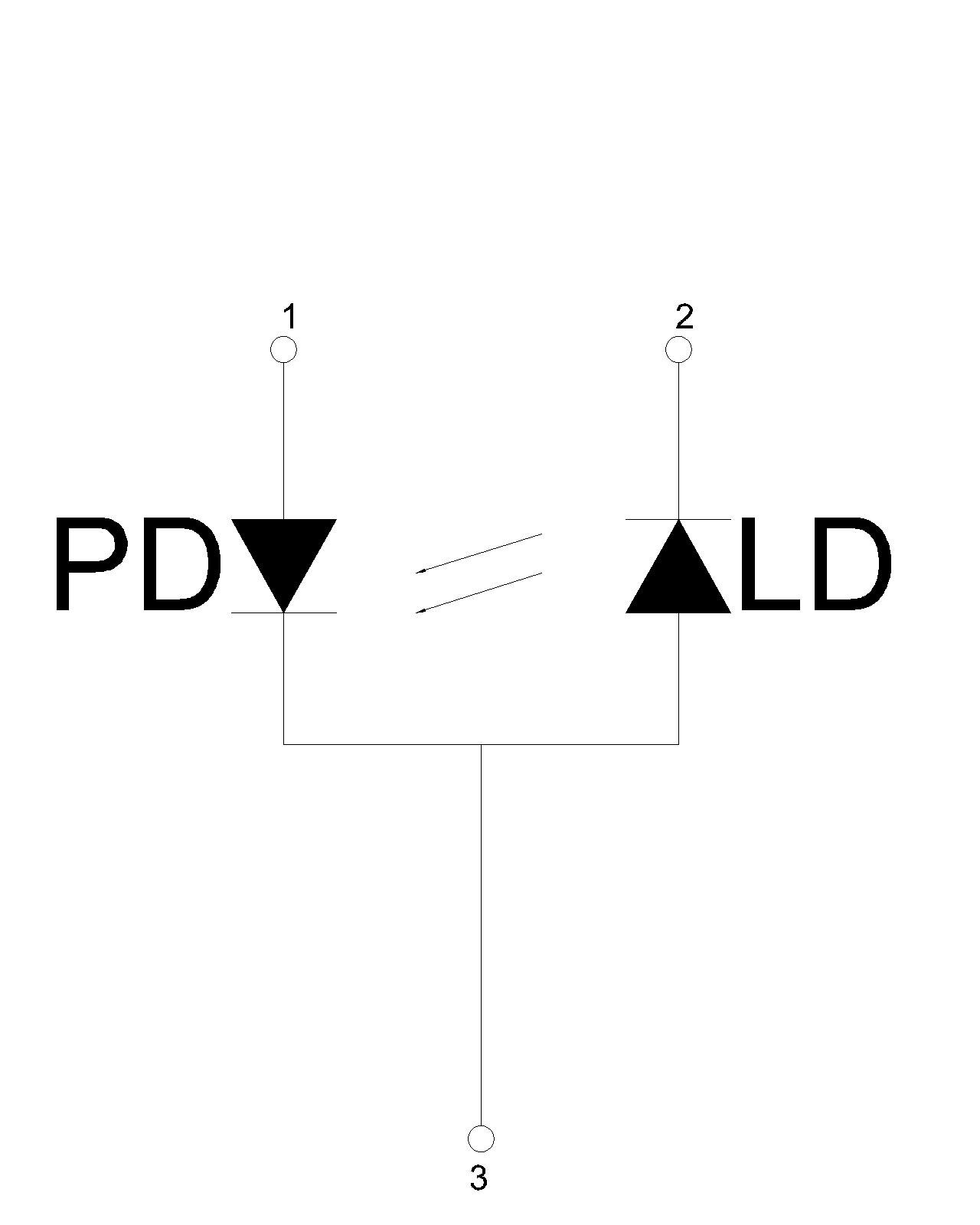

Pin Description
