Description
- Brand Name: laserlands
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 100mw
- Model Number: 16040108
- Voltage: 5V
- Occasion: Home Entertainment
-
Suitable for 100mW-200mW high-power red and green laser diode, as well as for 780nm 808nm laser diode.
-
Circuit control: constant current output
-
Size : 10*19mm (width * length)
-

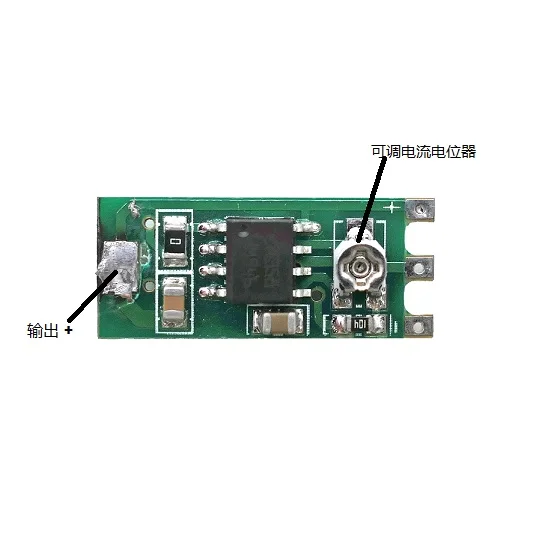

Pin definition description:
Note:
Suggested input voltage: 3-5V
Output current: 125.9mA -406mA
When the input voltage is 2V, the driver board starts to work and micro currents appears; when the voltage input is over 5V, the circuit board starts to heat slightly; when the input voltage exceeds 7V, severe heating occurs.
