Description
780nm 10mw Laser Diode M Type TO5 9.0mm with PD SANYO IR LD Infrared Light 790nm 785nm
- Certification: RoHS
- Origin: JP(Origin)
- Item Type: Stage Lighting Effect
- Light Output: 10mW
- Operating Voltage: 1.9~2.4V
- Operating Current: 60mA
Features
1. Absolute maximum ratings：20mW (CW)
2. TO-can Φ9.0mm package
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:780nm(±10nm)
Optical Output:10mW
Threshold Current:40mA
Operating Current:60mA
Operating Voltage:1.9V~2.4V
Operating Temperature:-10 to +50℃
Beam Divergence(FWHM)
Parallel:10deg
Perpendicular:25deg

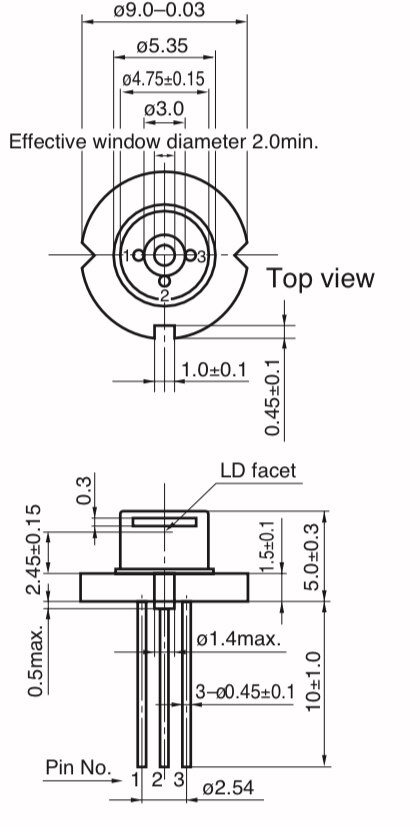

External dimensions(Unit : mm)
Pin Description
Pin1 LD Anode
Pin2 LD Cathode,PD Cathode(case)
Pin3 PD Anode
