7000mw 10000MW 15000MW desktop diode Laser Module 450NM Focusing Blue Laser Head Laser Engraving Machine Tools Laser Tube

$704.70$1,104.30

SKU: 4000322679055 Category:

Description

  • Certification: CE
  • Certification: NONE
  • Origin: CN(Origin)

7000mw 10000MW 15000MW desktop diode Laser Module 450NM Focusing Blue Laser Head Laser Engraving Machine Tools Laser Tube



7W power 450nm laser module

Specification parameters:

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: 7W

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

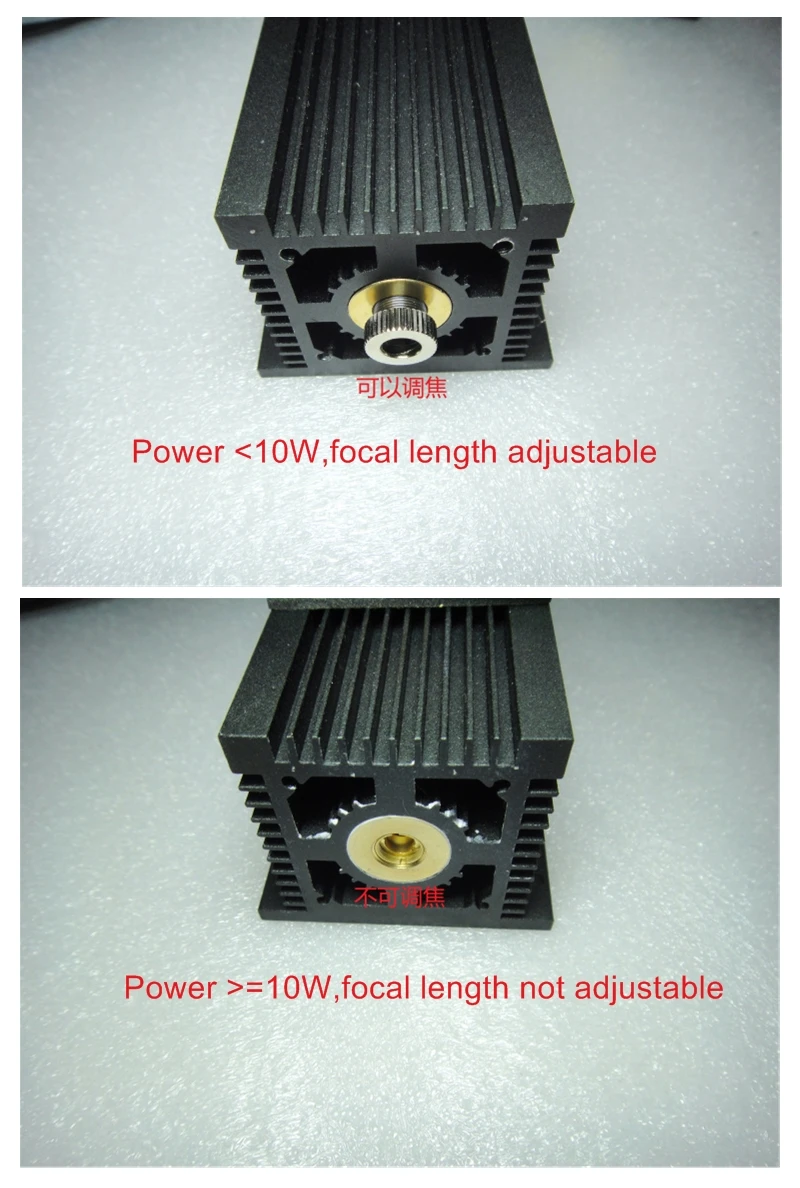

Focal length: adjustable

Working temperature: 15 ℃ ~ 45 ℃

————————————————————————————————–



Pulse 10W power 450nm laser module

Specification parameters:

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: pulse 10W averages 5.5-6.5w

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

Focus: not adjustable

Working temperature: 15 ℃ ~ 45 ℃

————————————————————————————————–



Pulse 15W power 450nm laser module

Specification parameters:

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: pulse 15W average 8W

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

Focus: not adjustable

Working temperature: 15 ℃ ~ 45 ℃



(RE:Due to batch difference,maybe PCB board color maybe little different with picture,but module is correct power,if mind don’t buy please,or will cause unnecessary dispute.)

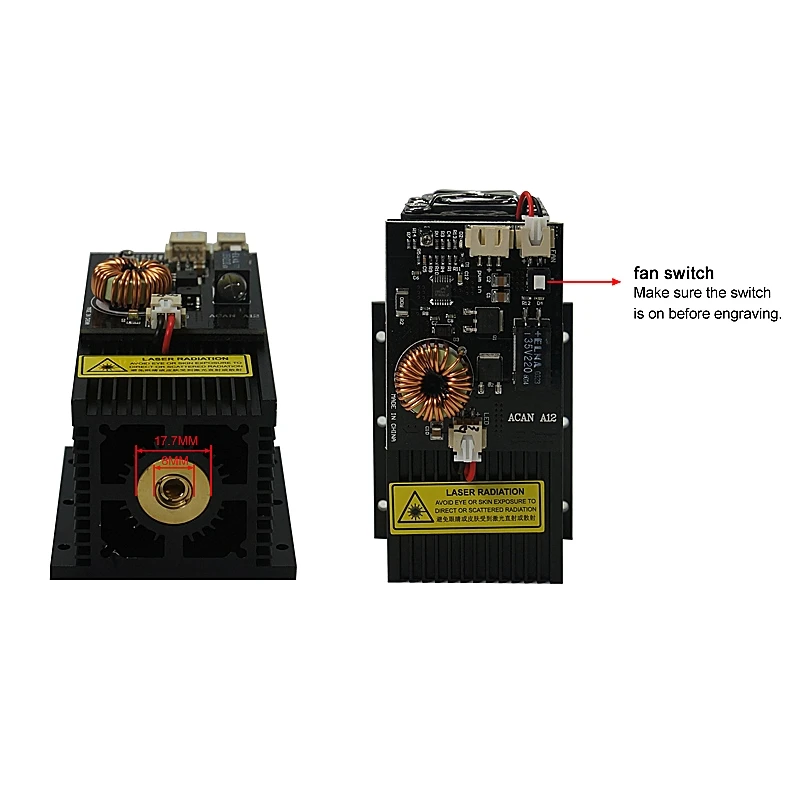

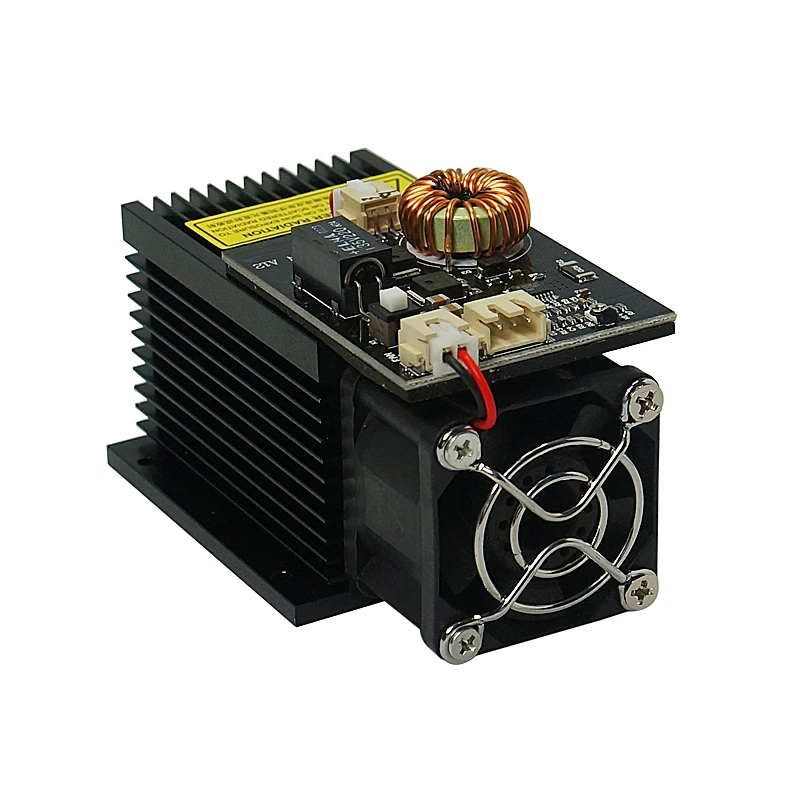

diode  laser head (1)diode  laser head (2)diode  laser head (3)diode  laser head (4)
