6mm 850nm 1mw 5mw 10mw IR Dot Laser Module Industrial Grade APC Driver

  • Home
  • 6mm 850nm 1mw 5mw 10mw IR Dot Laser Module Industrial Grade APC Driver

6mm 850nm 1mw 5mw 10mw IR Dot Laser Module Industrial Grade APC Driver

$70.65$94.65

SKU: 32869318133 Category:

Description

  • Origin: CN(Origin)
  • Model Number: S63850XD-CU01A
  • Wavelength: 850nm
  • Lens: PMMA
  • Spot: Dot
  • CW Operating Current: 15~35mA
  • Operating Temperature: -10℃~ 40℃
  • Mean time to failure: >5000 hrs



850nm

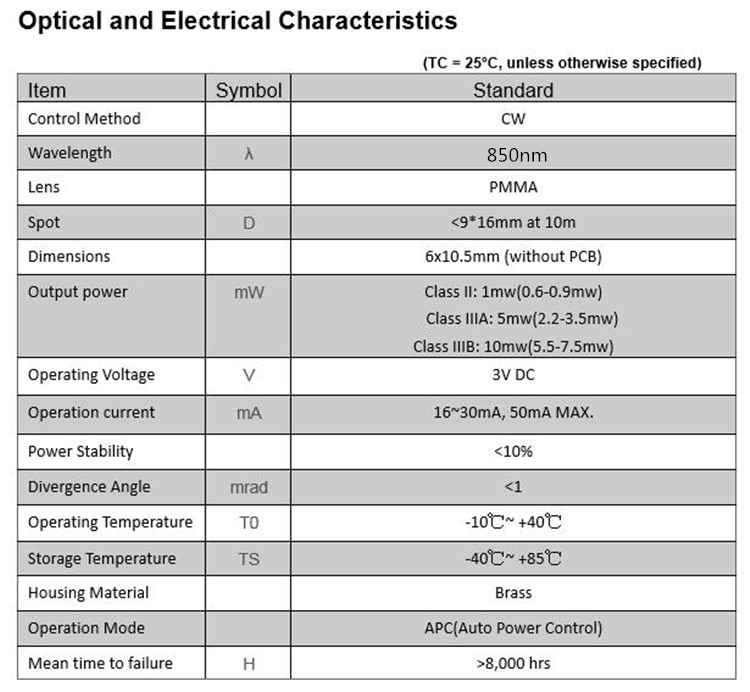

spec1





 Application

  Industrial areas / Medical / Biochemical / Laser Tag

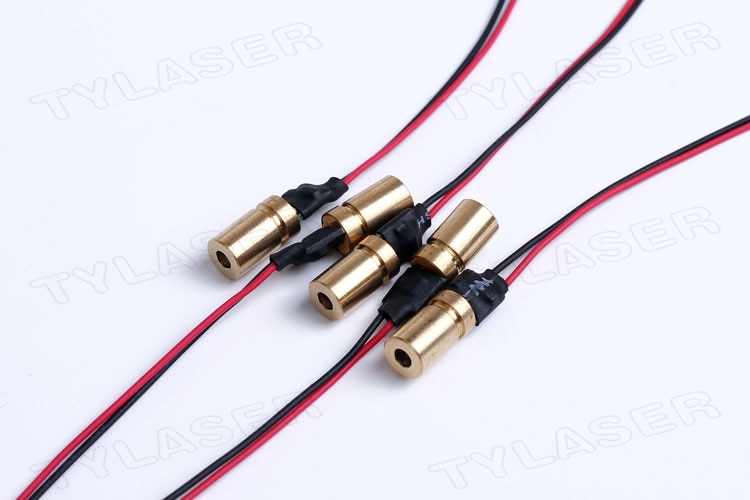

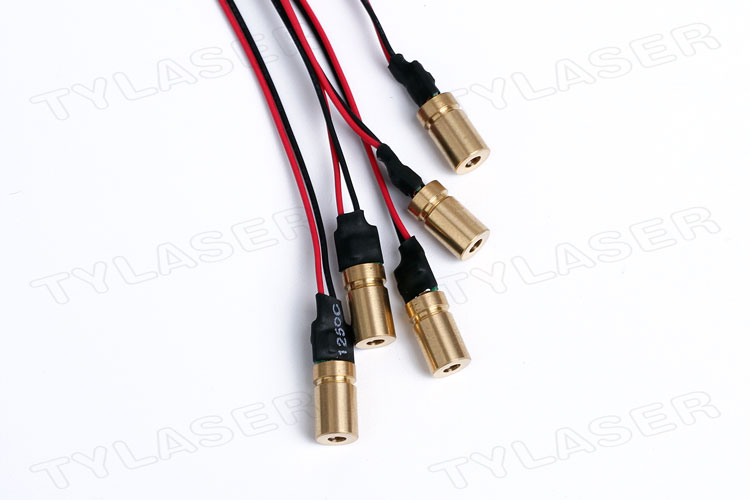

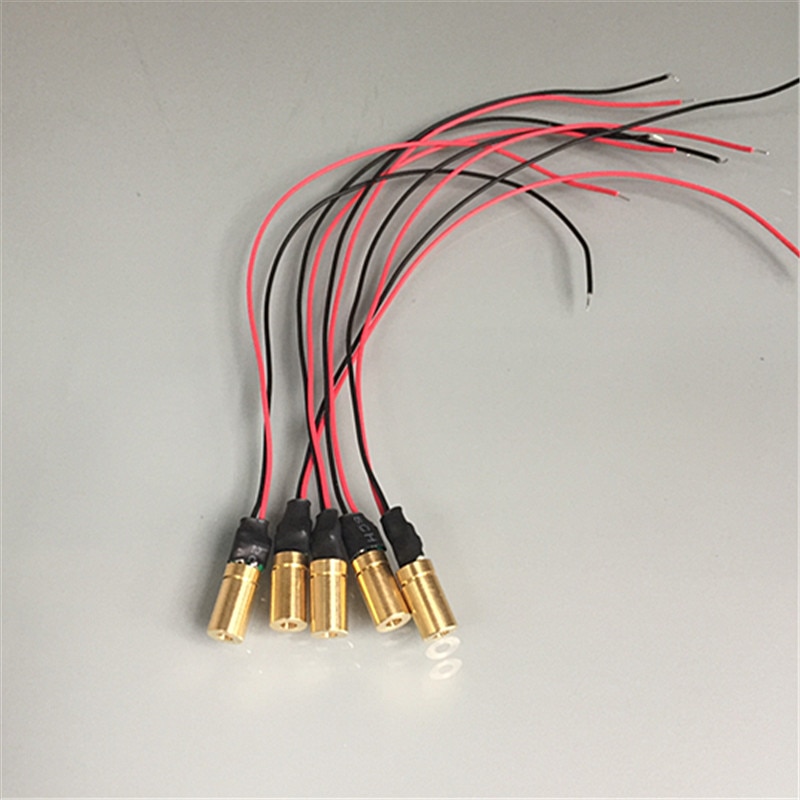

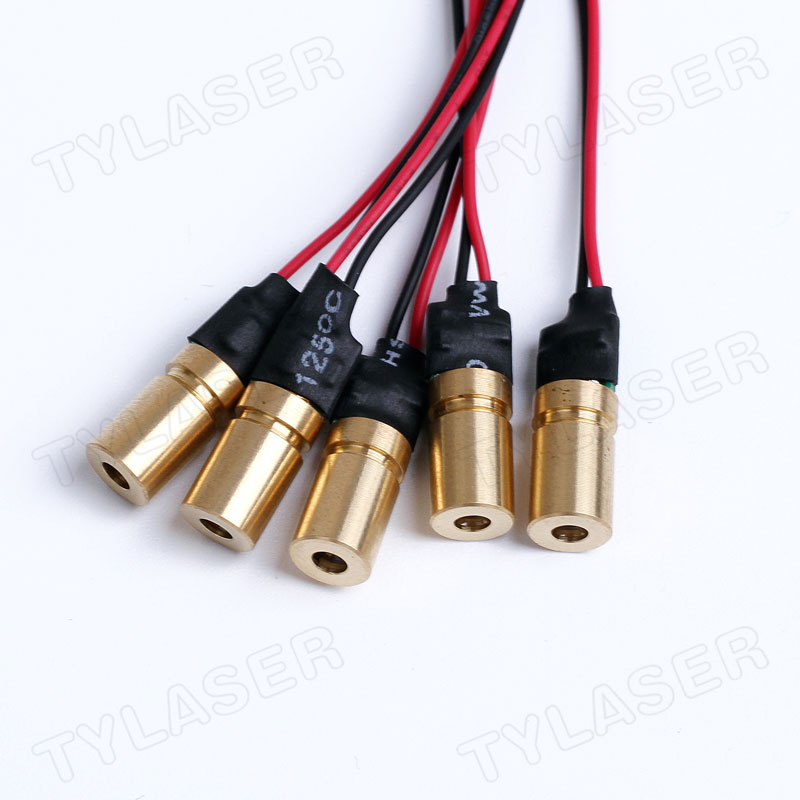

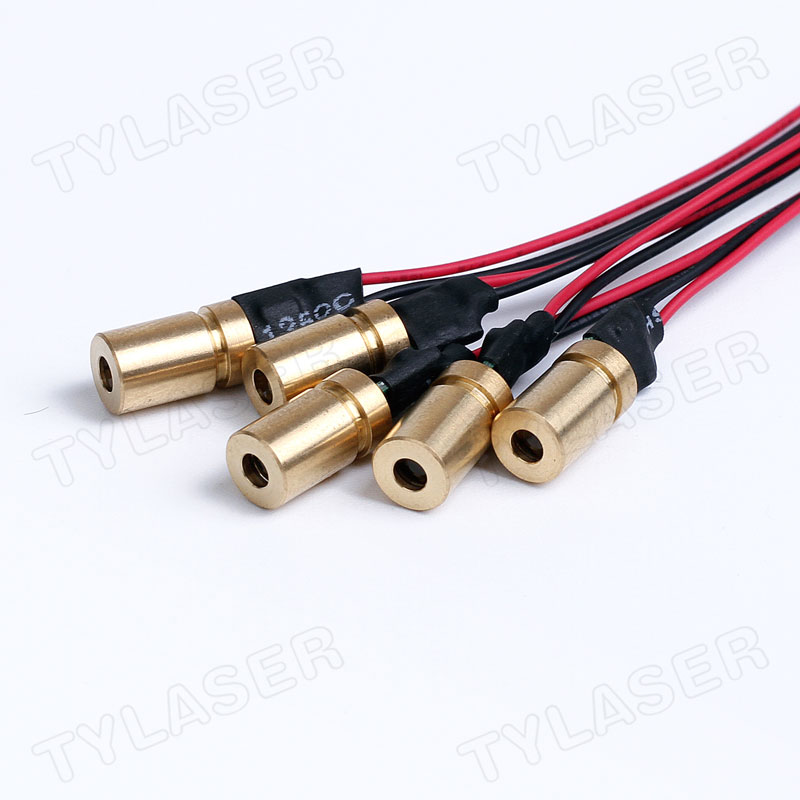

 Item Pictures

750750-2


Cstomized Laser Moudle


laser-modules-photo02


Any part or specification of each module can be modified.



We divide a laser diode module structure into 4 main sections:

– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties



laser-modules-photo03



1. Laser diode:

-Main characteristics of laser diode: wavelength, output power, and operating temperature


laser-modules-photo04



2. Optical Lens:

– Main characteristics for the beam collimation: divergence angle, laser spot size

– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE


DOE



Spot size:  The laser spot size has a direct relationship to the distance of projection.


    laser-modules-photo06


3. Laser Driver Circuit:



The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).

An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.

An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.



4. Optical and mechanical properties:

-Main characteristics for mechanical requirements: dimension requirements, boresight or called coaxial angel accuracy of laser module.



laser-modules-photo08
