Description
- Brand Name: LanYuXuan
- Type: Hand Tool Parts
- Origin: CN(Origin)
- Warranty: 12 Months, 1 Year
- Customized support: OEM, ODM
- Place of Origin: Chongqing, China
- Brand Name: KJ
- Model Number: DRJ00600P
- Size: 126.5x79x52mm
- Wavelength: 1535nm
- Divergence Angle: 0.5mrad
- Re-frequency: 1Hz
- Objective Len Dia.: 32mm
- Magnification: 7X
- Output interface: RS232 series port
- Weight: 420g
- Power Supply: DC 5V

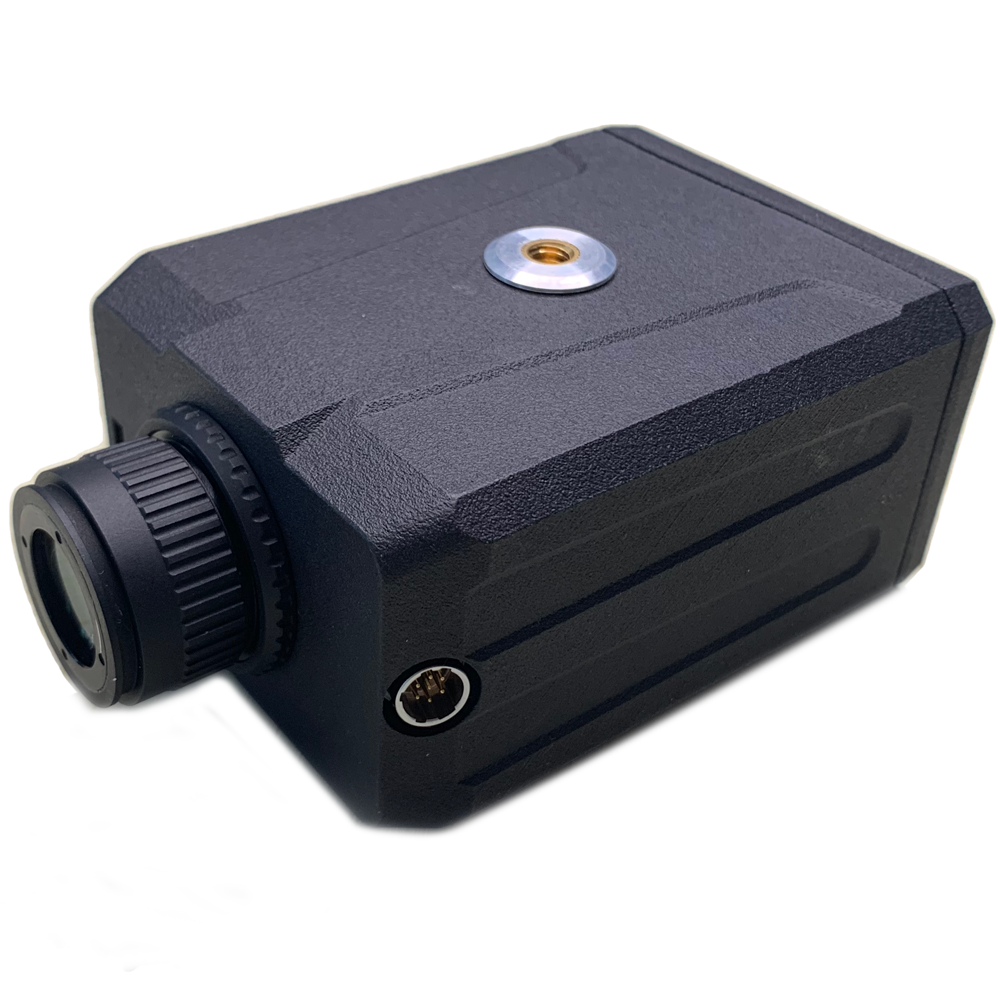

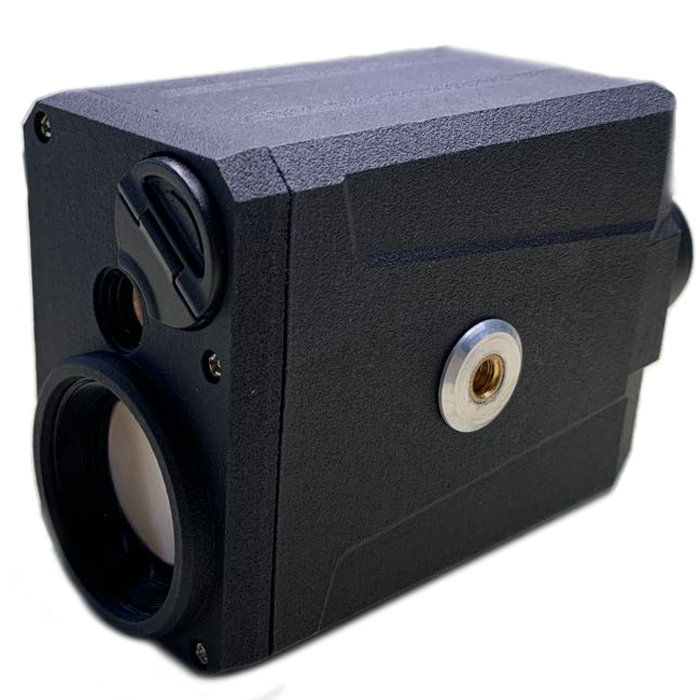

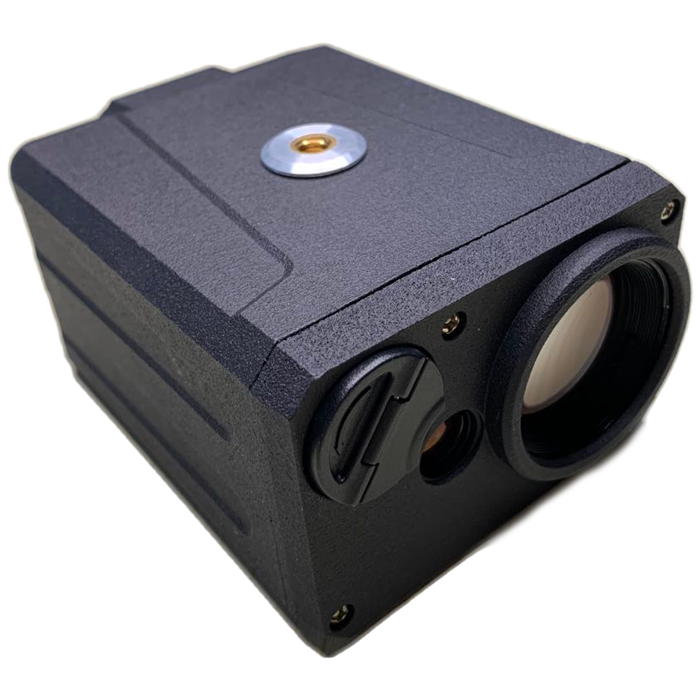

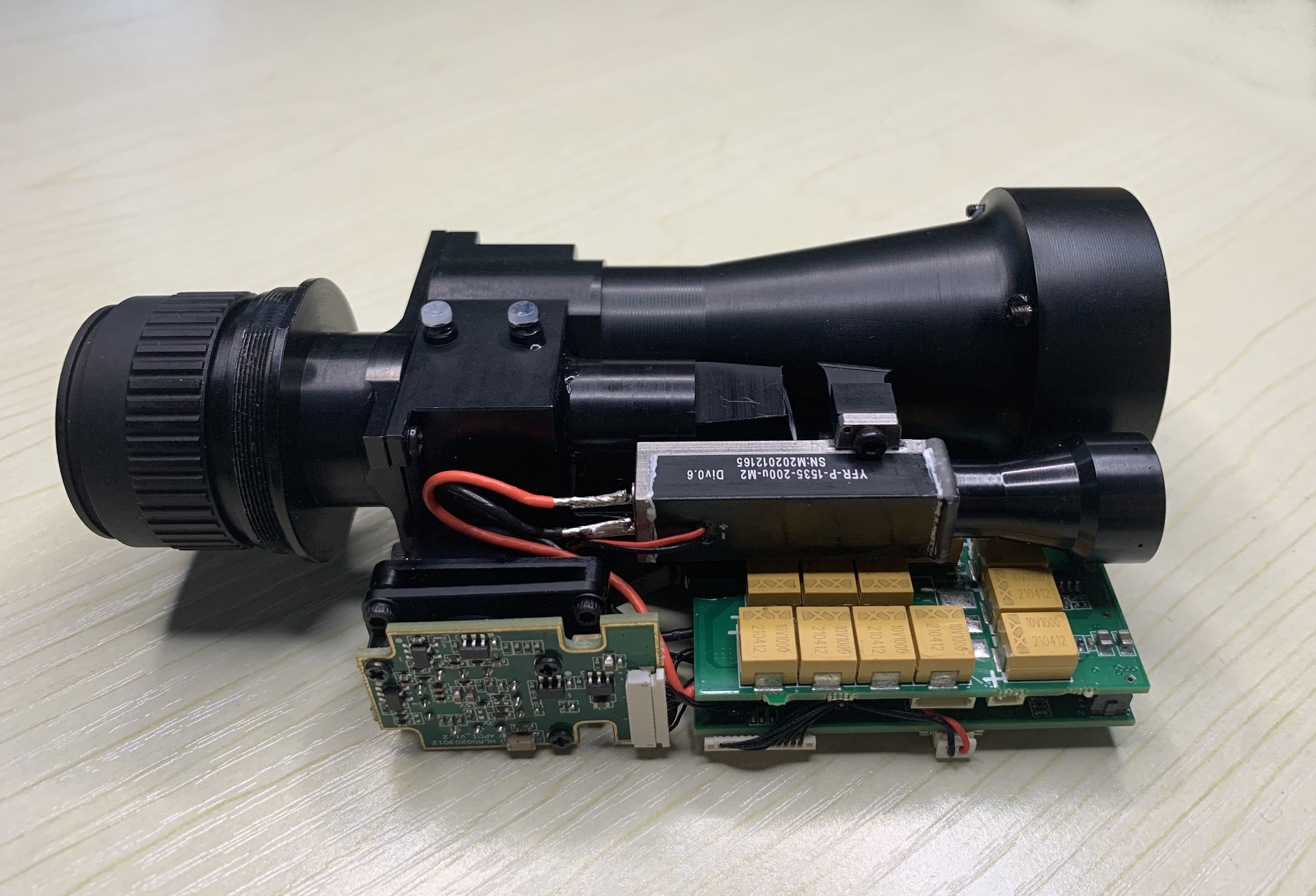

Products Appearance
Front | Back |
![]() |
![]() |
Products Specification
Technical Index | Details: |
Wavelength | 1535nm |
Range(For Nature Targets) | 30~6000m/8000m/12000m(options) |
Accuracy | ±1m(Full scale) |
Divergence Angle | 0.5mrad |
Accurate Rate | ≥98% |
Re-Frequency | 1Hz |
Display | Built-in LED display in Eyepieces |
Angle Range | Azimuth: 0~359°, Pitch: ±90 |
Angle Accuracy | 1° |
Objective Len Dia. | 32mm |
Magnification | 7× |
Field of View | 6° |
Diopter Range | ±5D |
Power Supply | External power supply DC 5V/CR123*2/CR2*2 |
Series Port | RS232 |
Weight | 420g |
Dimension | 126.5x79x52mm |
Working Temperature | -40~+55℃ |
Storage Temperature | -50~+60℃ |
Main Functions | Single-point ranging; Two-point ranging; Angle measure |

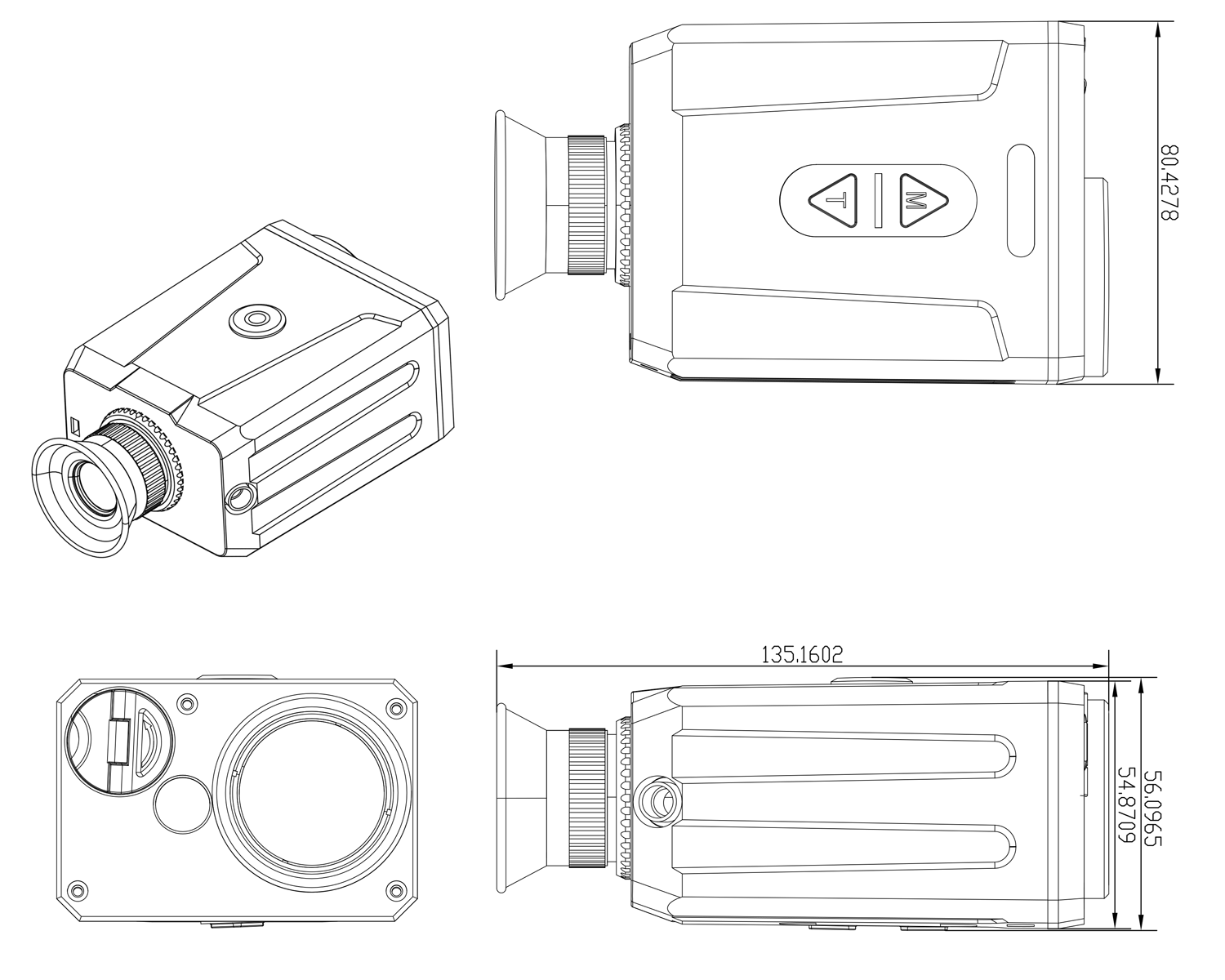

Products Description
![](https://www.laserse.com/wp-content/uploads/2022/05/Ha730d880200e41adacd5a20635d9a811R.png?width=1500&height=1200&hash=2700)
![]() |

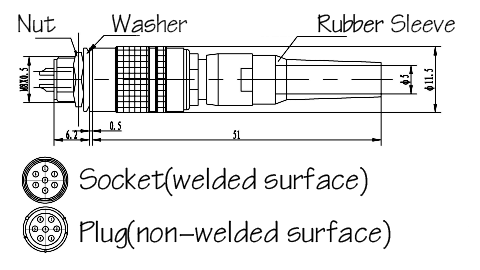

Pin No. & Function 1: Signal Ground 2: +VDD 3: Trigger 4: TXD 5: RXD 6: Charging Port |
Products Application
Application to: Fire control system, Border Security, Law Enforcement, Patrol, Mission, Target Search, Maritime, Military, Army, Airforce, Navy, Personal Security, Hunting, Counter-terrorism, Search & Rescue, Outdoor, Shooting, Terrain, Geophysics, Mining, Oil field, Ports, Railway stations, Airports, City buildings, Roads, Water conservancy project, Transmission line survey, Tracking moving targets, Vehicle automatic control, Automobile safety alarm, Industrial control.

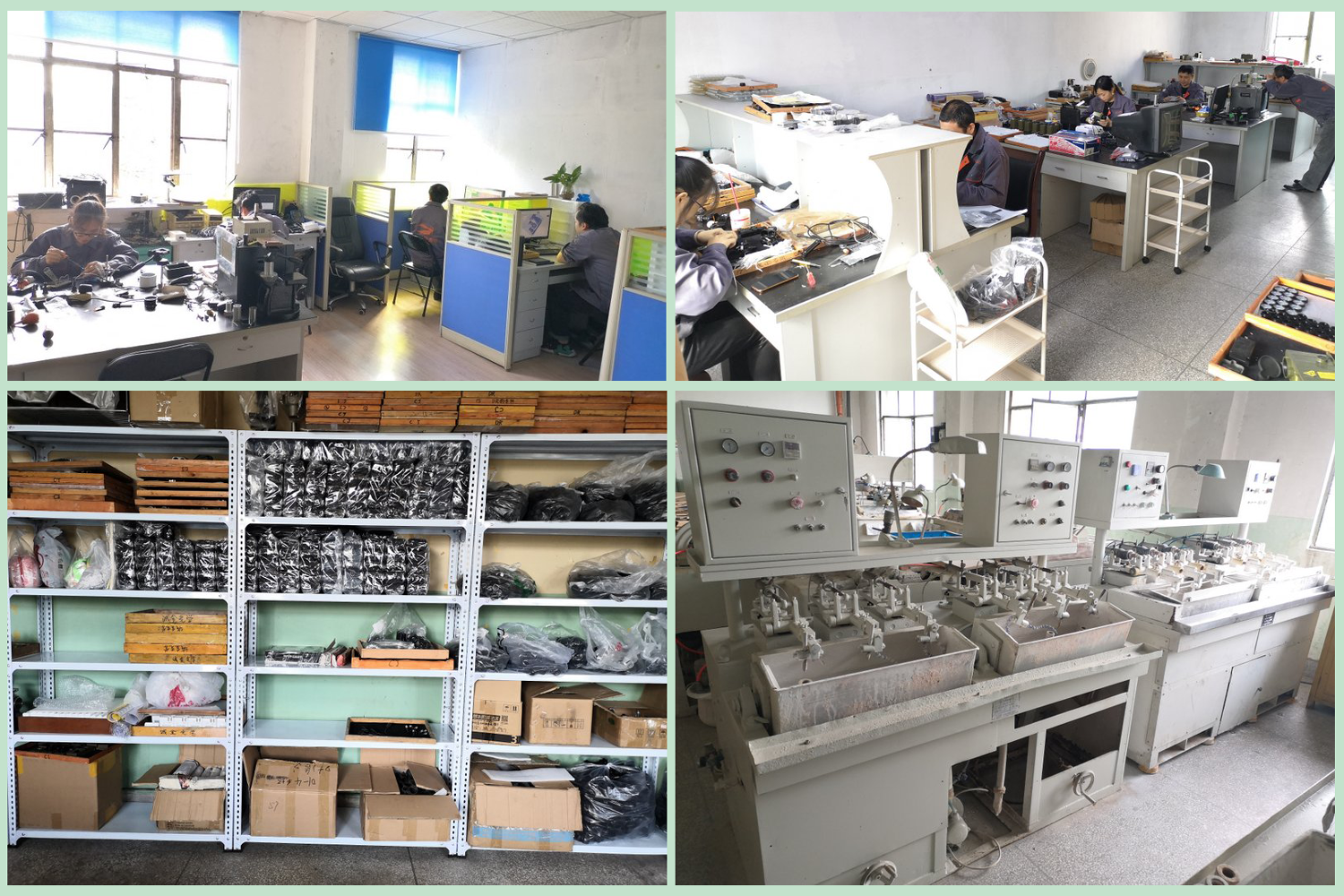

Company Introduce
Established in 2008, Chongqing Diaoran Photoelectric S & T Co., Ltd. is a company specializing in professional optical design and production of various lasers and laser range finder (instrument) development.
Our company and domestic large and medium-sized military enterprise, military research institutes, military colleges, local colleges and universities, Europe, Israel, Russia, the Middle East, and the US have good cooperation relationships.
Our Company adheres to the “integrity, efficiency excellence and innovation” to win the trust of customers, we are continuing to provide customers with high-quality products and services. and keep long-lasting good cooperation with customers and industry colleagues, to promote the development of the industry.
