Description
- Brand Name: Jolooyo
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 675MD-3.5-1235-BL
- Voltage: 3.7V
Specifications:
Parameters:
1.

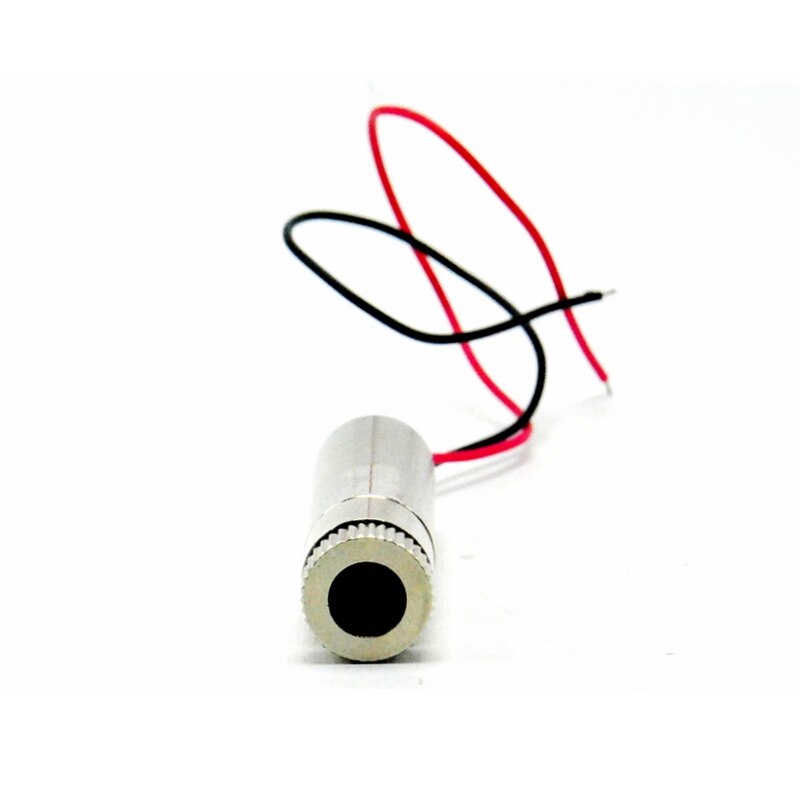

Model: 675MD-3.5-1235-BL–DOT
Output wavelength 675 nm
Output power 3.5 mW
Power supply voltage 2.7-3.7 VDC
Working current ≤ 50 mA
Spot mode Red light dot
Spot size adjustable
Divergence angle 1m＜φ1mm 10m＜5mm
Working temperature -10℃-50℃
Storage temperature -20℃-85℃
Working medium Semiconductor laser
Laser method Electrically excited
Operation mode Continuous laser red positive black negative
Service life ＞6000 H
Lens material imported acrylic
Laser class CLASS ⅢA (5-500mw ⅢB)
Dimensions φ12*30 mm
Appearance color silver
Material Copper
Net weight 12-13g
2.

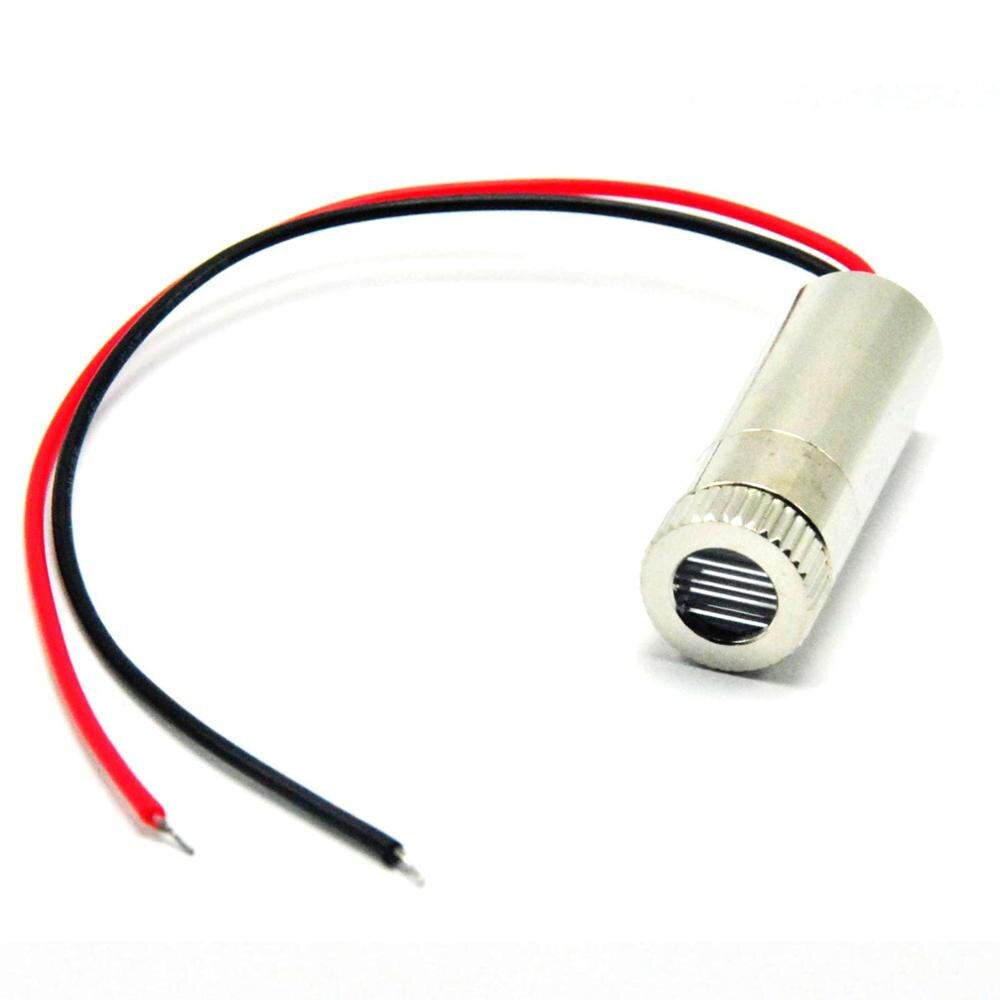

Model: 675ML-3.5-1235-BL–LINE
Output wavelength 675nm
Output power 3.5 mW
Supply voltage 2.7-3.7 VDC
Working current ≤ 50 mA
Spot pattern Red light line shape
Spot size adjustable
Divergence angle 30° 45° 60° 90° 120°
Working temperature -10℃-50℃
Storage temperature -20℃-85℃
Working medium Semiconductor laser
Laser method Electrically excited
Operation mode Continuous laser red positive black negative
Service life ＞6000 H
Lens material imported acrylic
Laser class CLASS ⅢA (5-500mw ⅢB)
Dimensions φ12*35 mm
Appearance color silver
Material Copper
Net weight 12.5-15g
3.

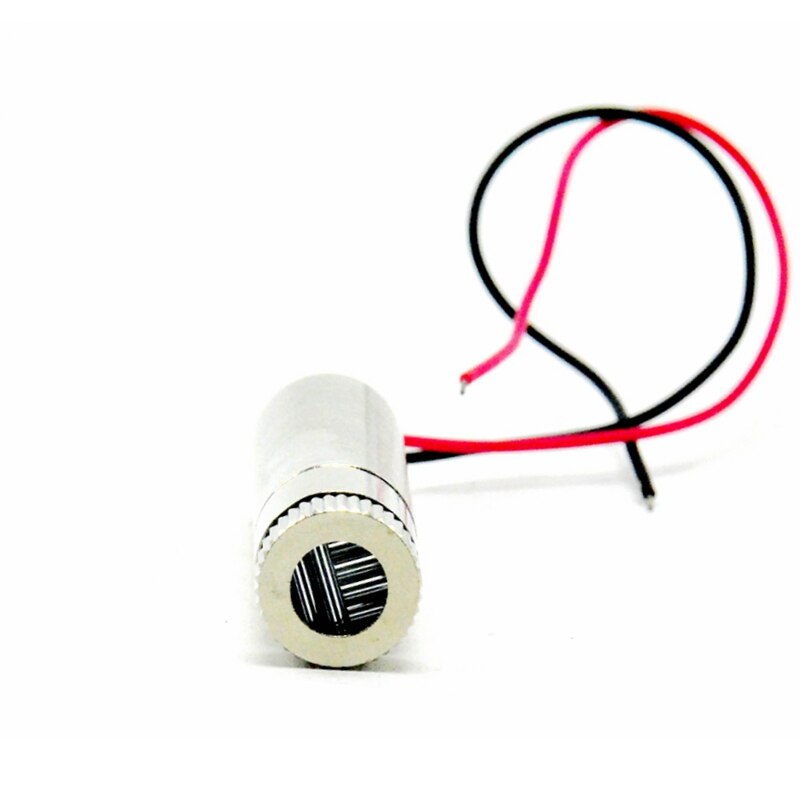

Model: 675MC-3.5-1235-BL–CROSS
Output wavelength 675 nm
Output power 3.5 mW
Power supply voltage 2.7-3.7 VDC
Working current ≤ 50 mA
Spot pattern Red light cross line
Spot size adjustable
Divergence angle 60°
Working temperature -10℃-50℃
Storage temperature -20℃-85℃
Working medium Semiconductor laser
Laser method Electrically excited
Operation mode Continuous laser red positive black negative
Service life> 6000 H
Lens material imported acrylic
Laser class CLASS ⅢA (5-500mw ⅢB)
Dimensions φ12*35 mm
Appearance color silver
Material Copper
Net weight 12.5-15 g
Feature:
1.This 675nm laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.
2.It is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.Please wear 675nm laser protection goggles when you work on it.
Red wire “+” pole; black wire “-” pole.
Package:
1x 1pc 675nm 3.5mw Red Laser Diode Module Dot Point Lasers 12x35mm
