Description
- Brand Name: laserlands
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Model Number: 16040104
- Voltage: 6V
- Occasion: Home Entertainment
2. Parameters
Circuit control: Buck circuit, constant current, to ensure stable output after 5.8-12V power supply

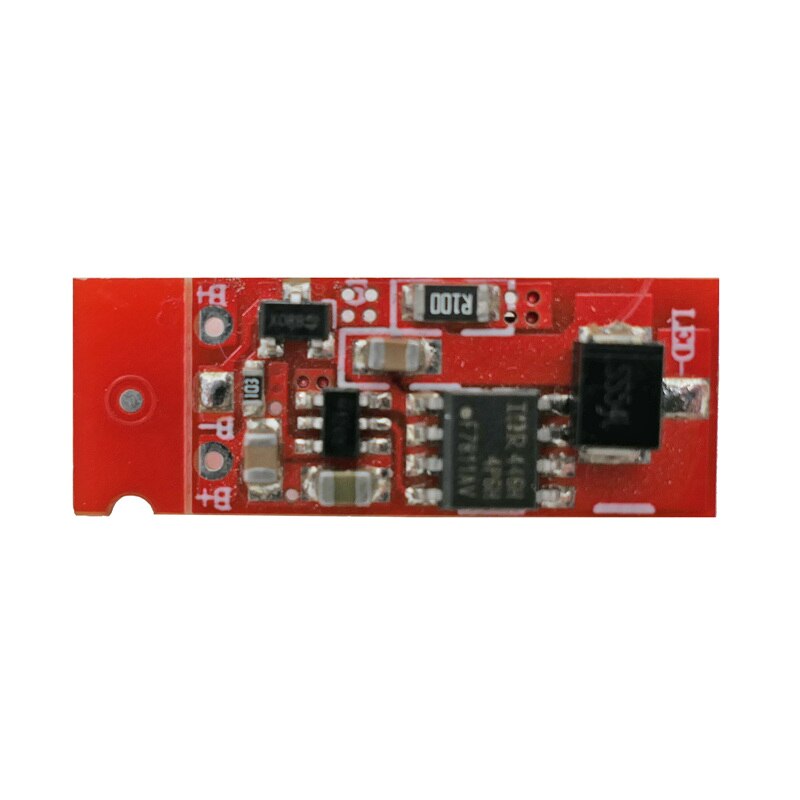

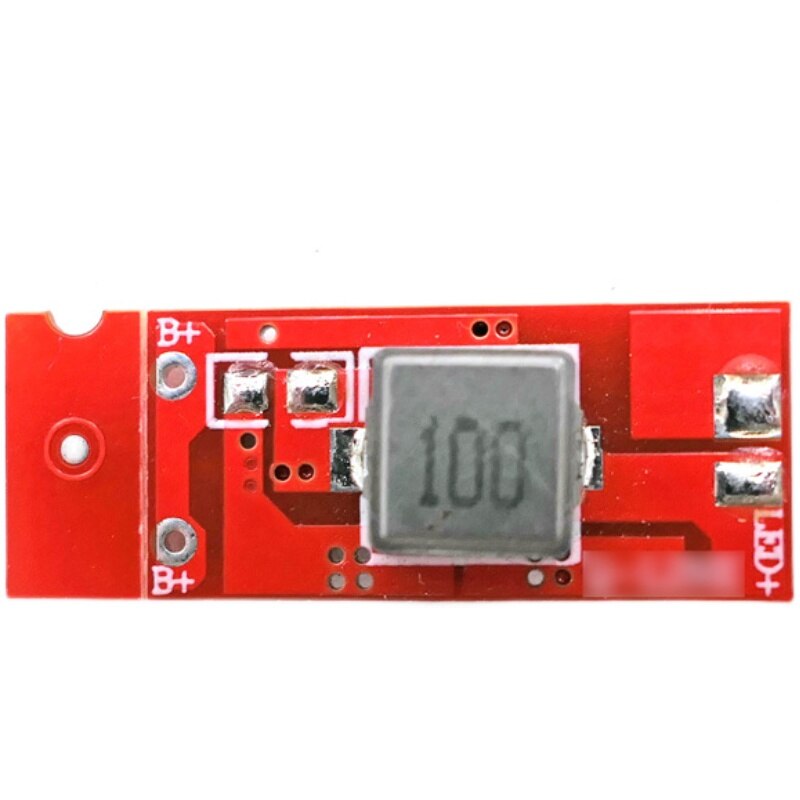

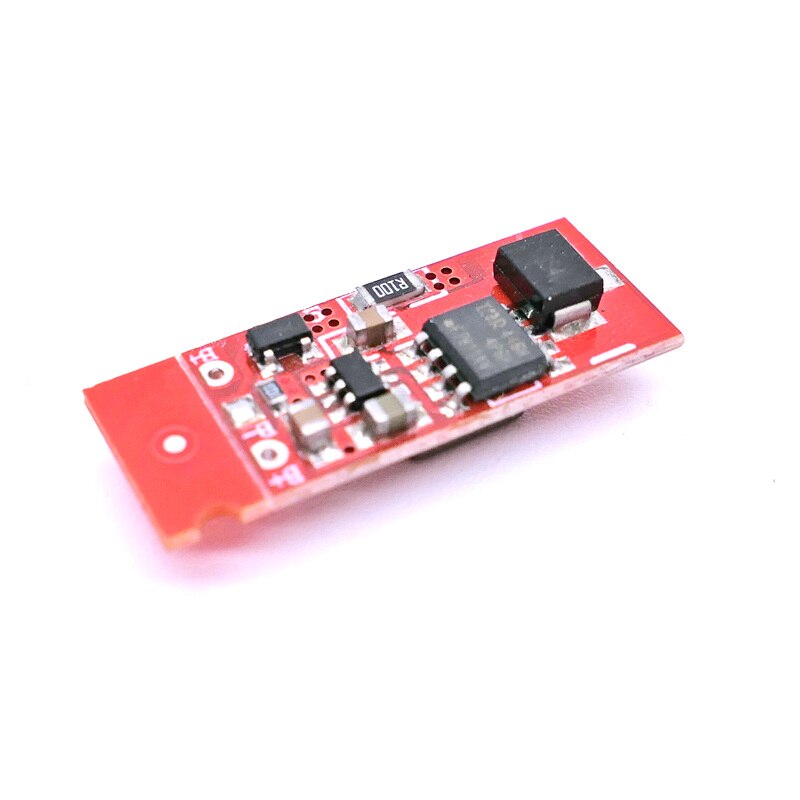

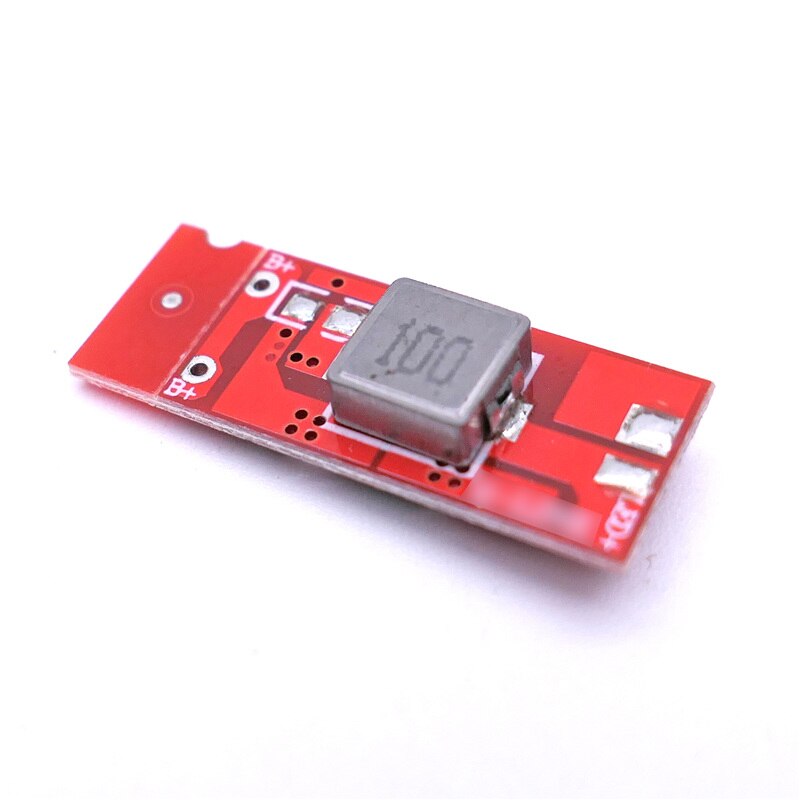

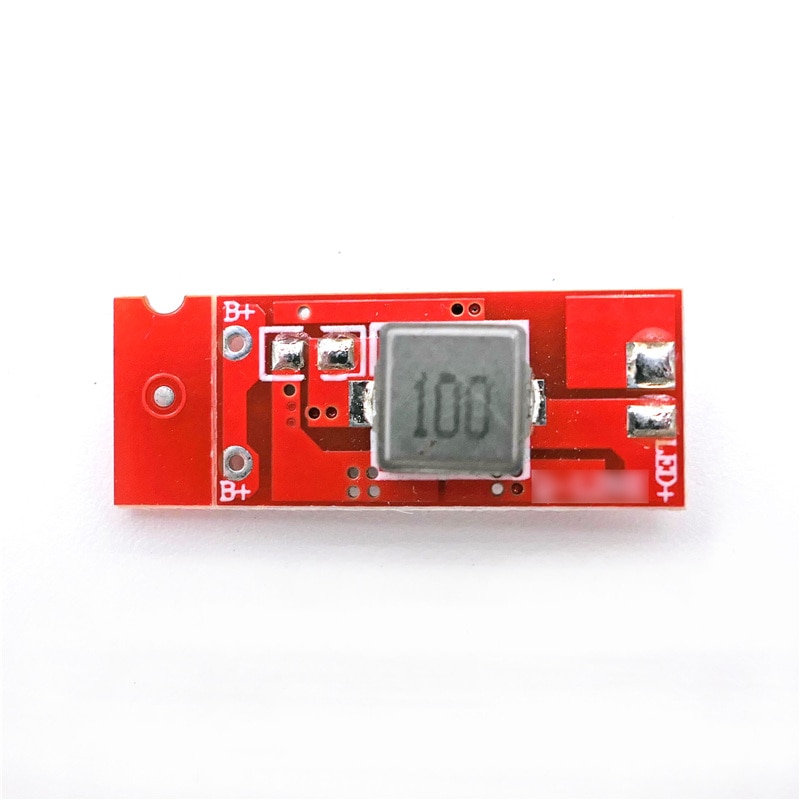

Dimensions: 10.3*22mm*6.1mm (width*length*height) (PCB thickness 1.0mm, total height 6.1mm)
Output current: default 280mA ( If output current is 2A, 1R0 resistance needs to be reduced)
Reverse connection protection: because the input terminal is protected, the reverse connection is not energized.
Pin definition: The pad is specially designed for the 658nm driver board. You only need to arrange the pins in a triangle and solder them naturally.
Application: Mainly used for high-end laser tube drivers with 12V input, such as 12V car laser lights, optical instruments, etc.
