65*50 40W Laser Machine PWM Control TTL,CNC Laser Carving Machine 15W/30W Laser Engraving Machine, 65*50 Work Area

  • Home
  • 65*50 40W Laser Machine PWM Control TTL,CNC Laser Carving Machine 15W/30W Laser Engraving Machine, 65*50 Work Area
Awaiting product image

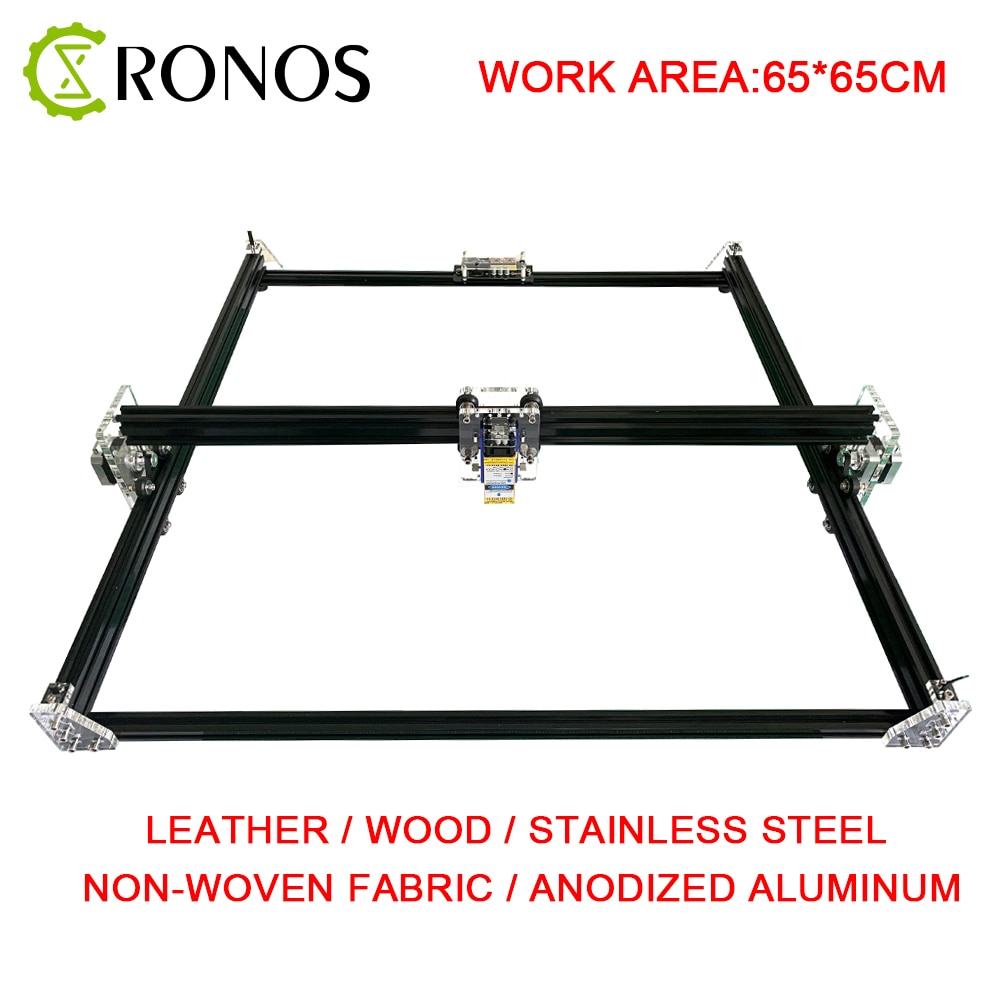

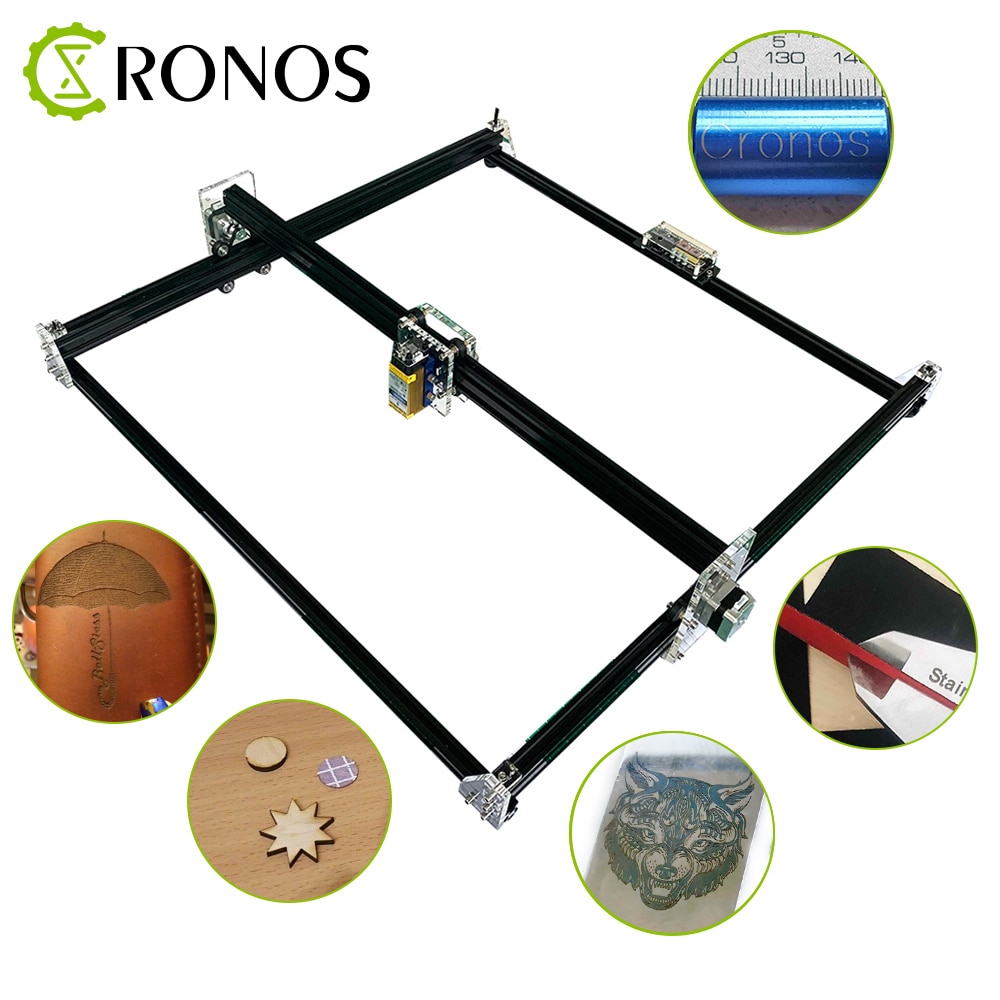

65*50 40W Laser Machine PWM Control TTL,CNC Laser Carving Machine 15W/30W Laser Engraving Machine, 65*50 Work Area

$1,065.60 – $1,156.86

SKU: 4001226184425 Category:

Description

  • Brand Name: CRONOS
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 2500mW
  • CNC or Not: CNC
  • Is Smart Device: No

  • Brand:Cronos

  • Model:65*65CM

  • Control Board:2 Axis

  • Stepper Motor:42H34S-1304A

  • Power Input:AC100-240V

  • Sysytem Support:Win XP/7/8/10

  • Supported Formats:jpg,dxf

  • Working Voltage:DC 12V

  • Working Current:DC 2.5A

  • Laser Power:15W/30W/40W (Fixed Focus,can adjust power by software)

  • Control Software System:LaserGRBL

  • Engraving Accuracy:0.01mm

  • Engraving Area:65x50cm 1 25.59 x 19.68inch (maximum)

  • Package Weight:7.5 kg

15W Fixed Laser :

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:48MM*60MM*94MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:7.5W

  • Electric Power:15W

  • Wavelength:450NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM (repeatedly)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0℃ -60℃

30W Fixed Laser :

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:40MM*40MM*70MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:15W

  • Electric Power:30W

  • Wavelength:445NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM (once)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0 ℃-60℃

40W Fixed Laser :

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:48MM*60MM*94MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:15W

  • Electric Power:40W

  • Wavelength:450NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM(once)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0 ℃-60℃

Engraving distance 2cm

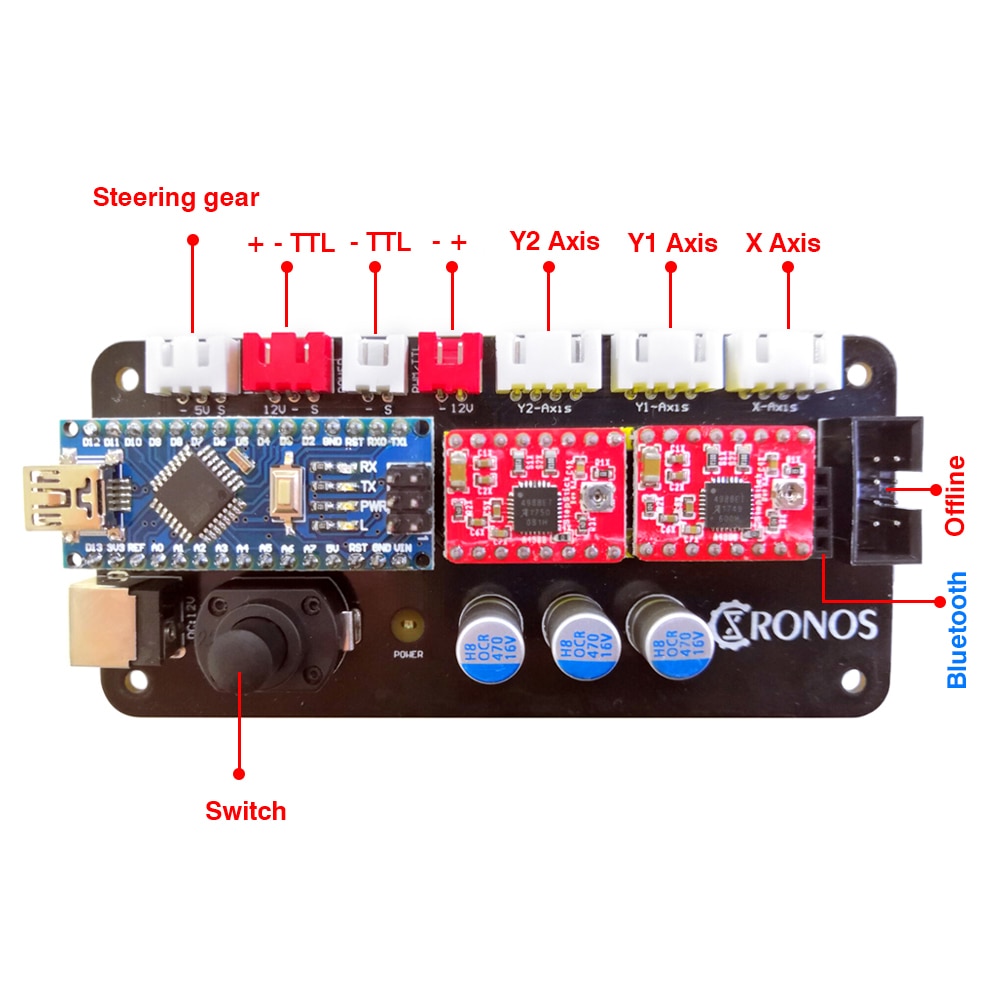

Control Board–GRBL 2 Axis:

Wiring Diagram:

Free software:
