Description

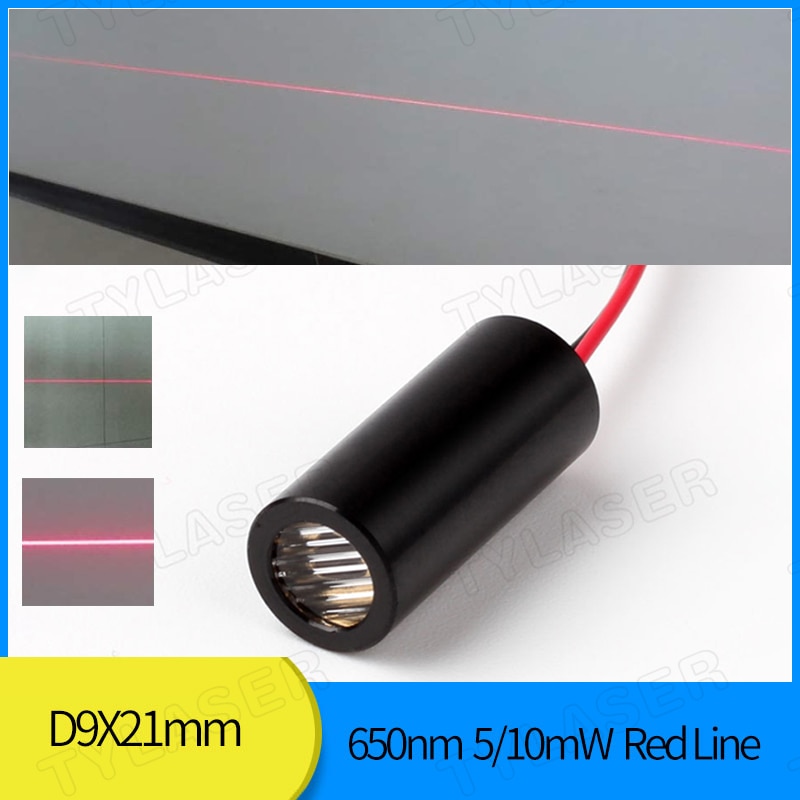

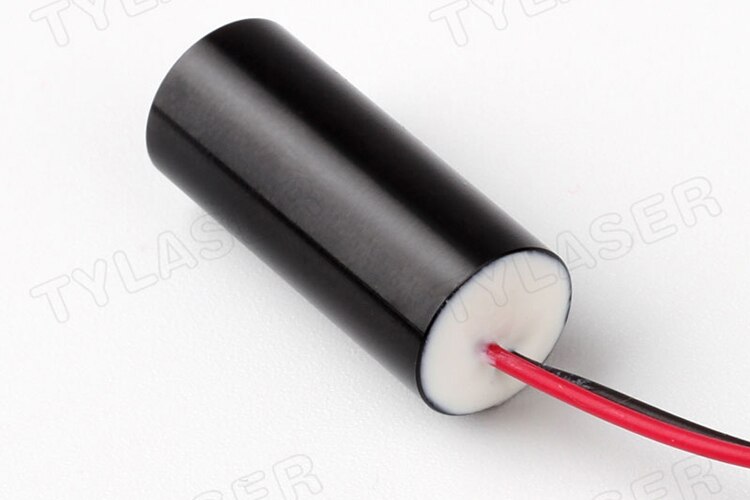

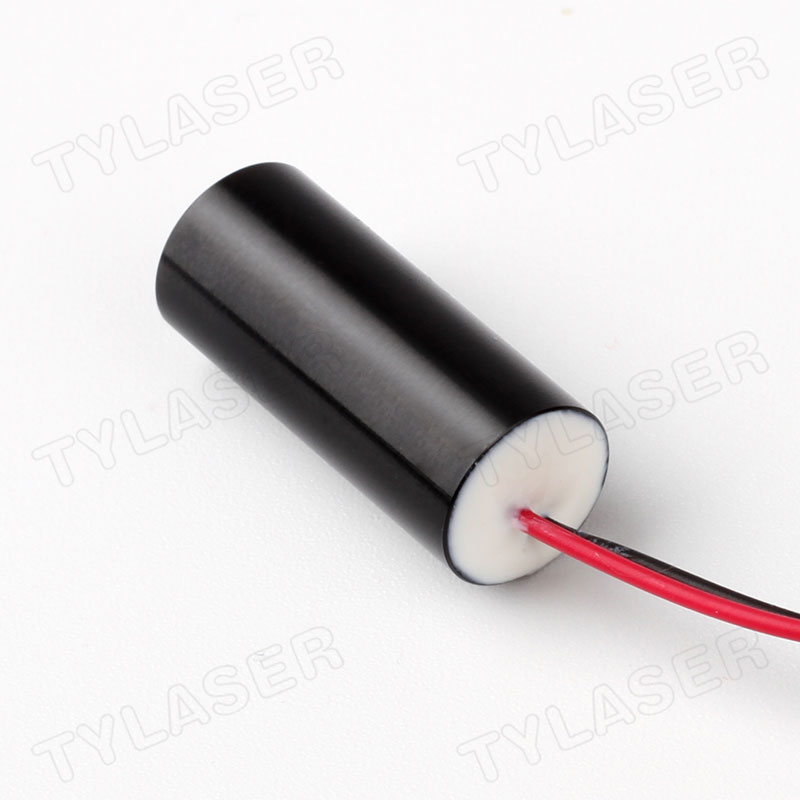

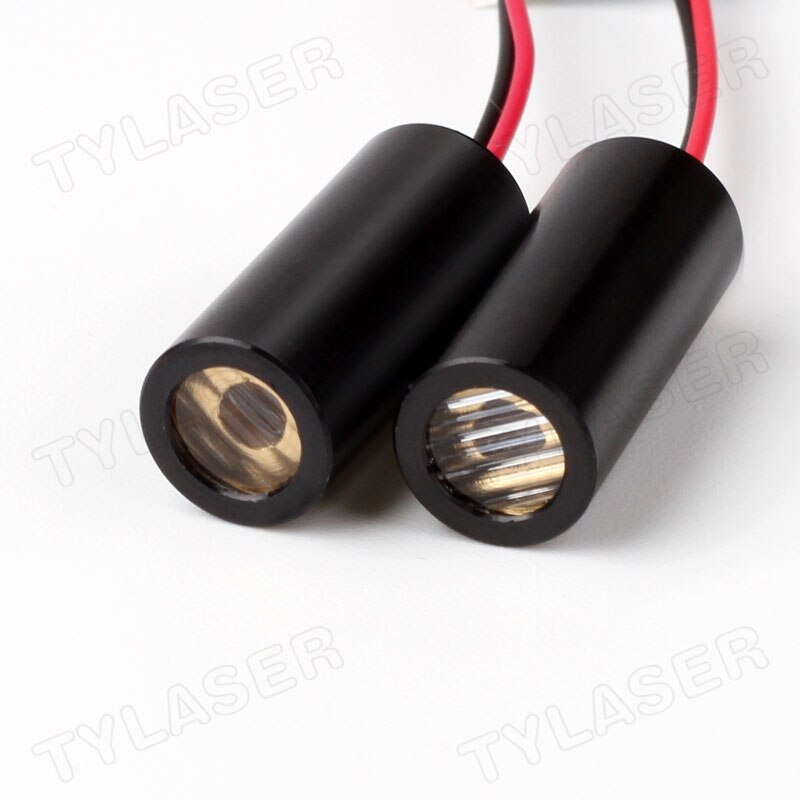

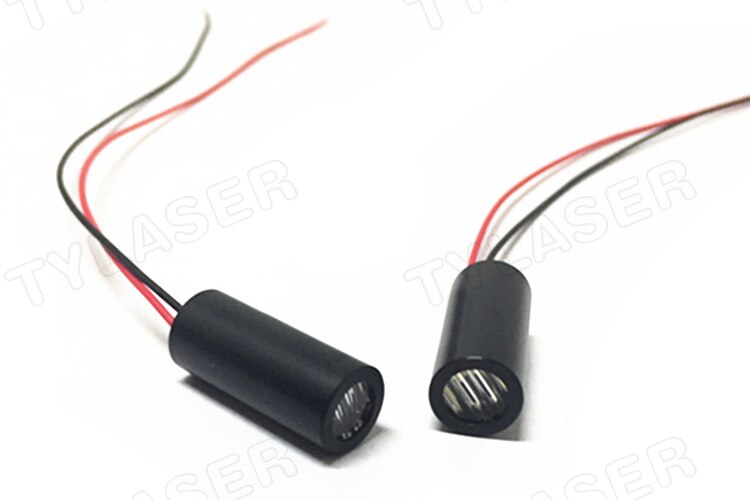

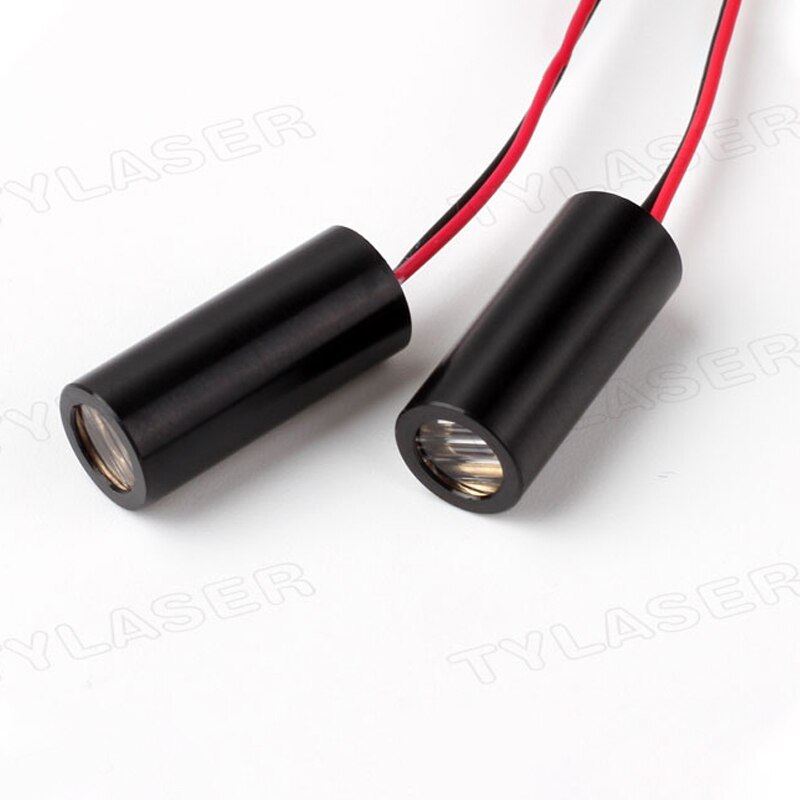

650nm Red Line Laser Module D9x21mm 5mW 10mw Laser Collimator PMMA Lens Laser Diode Head Industrial Grade APC Driver

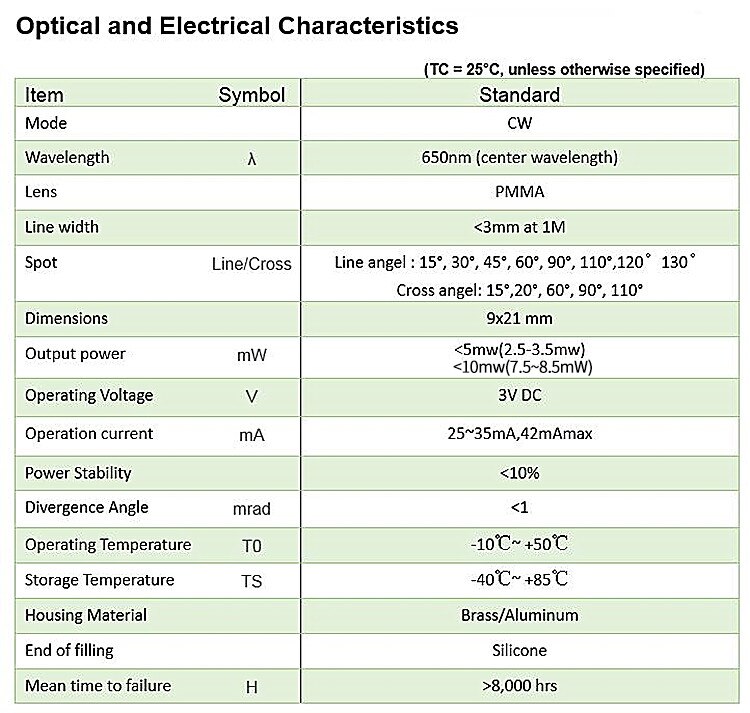

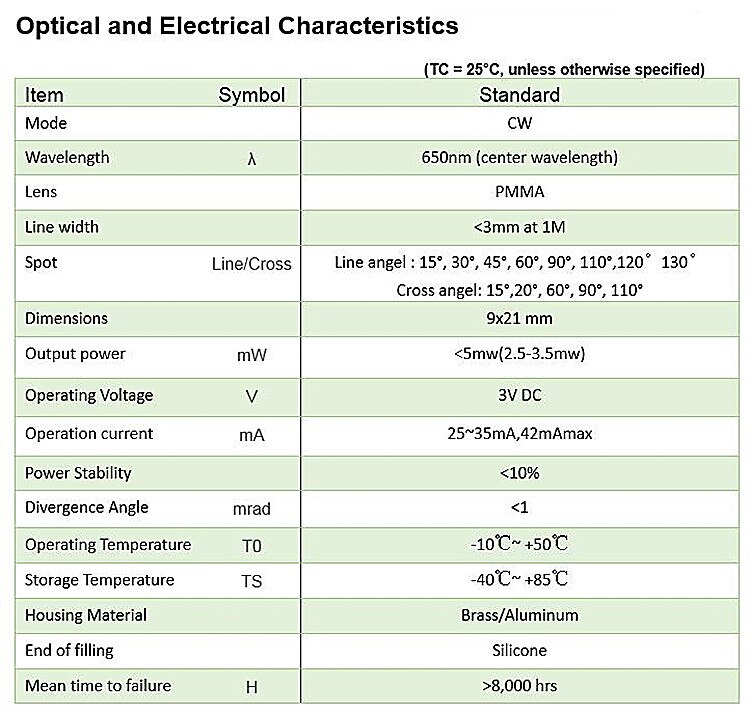

- Wavelength: 650nm
- Lens: PMMA
- Spot: line
- CW Operating Current: 15~35mA
- Operating Temperature: -10℃~ 40℃
- Mean time to failure: >8000 hrs
- Housing Material: Brass/Aluminum
- Operating Voltage(DC): 3V / 5V
processing industry, wood / stone cutting, paper cutters, metal cutting machines and
other areas requiring high precision positioning.
Notice: This item is not a laser pen. Laser modules are not supposed to be used for
commercial use like normal laser pointers.
Application
Industrial areas / Medical / Biochemical / Laser Tag
Any part or specification of each module can be modified.
We divide a laser diode module structure into 4 main sections:
– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties
1. Laser diode:
-Main characteristics of laser diode: wavelength, output power, and operating temperature
2. Optical Lens:
– Main characteristics for the beam collimation: divergence angle, laser spot size
– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE

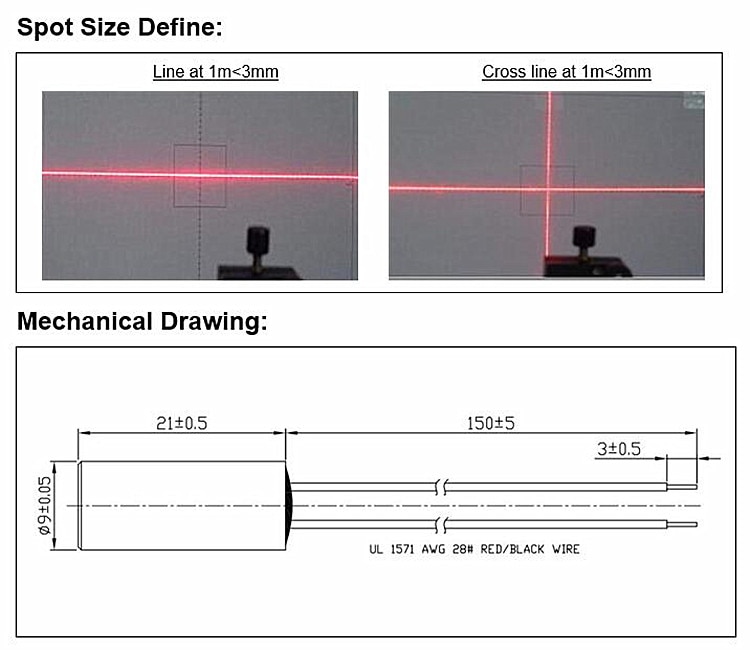

Spot size: The laser spot size has a direct relationship to the distance of projection.
3. Laser Driver Circuit:
The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).
An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.
An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.
4. Optical and mechanical properties:
