Description

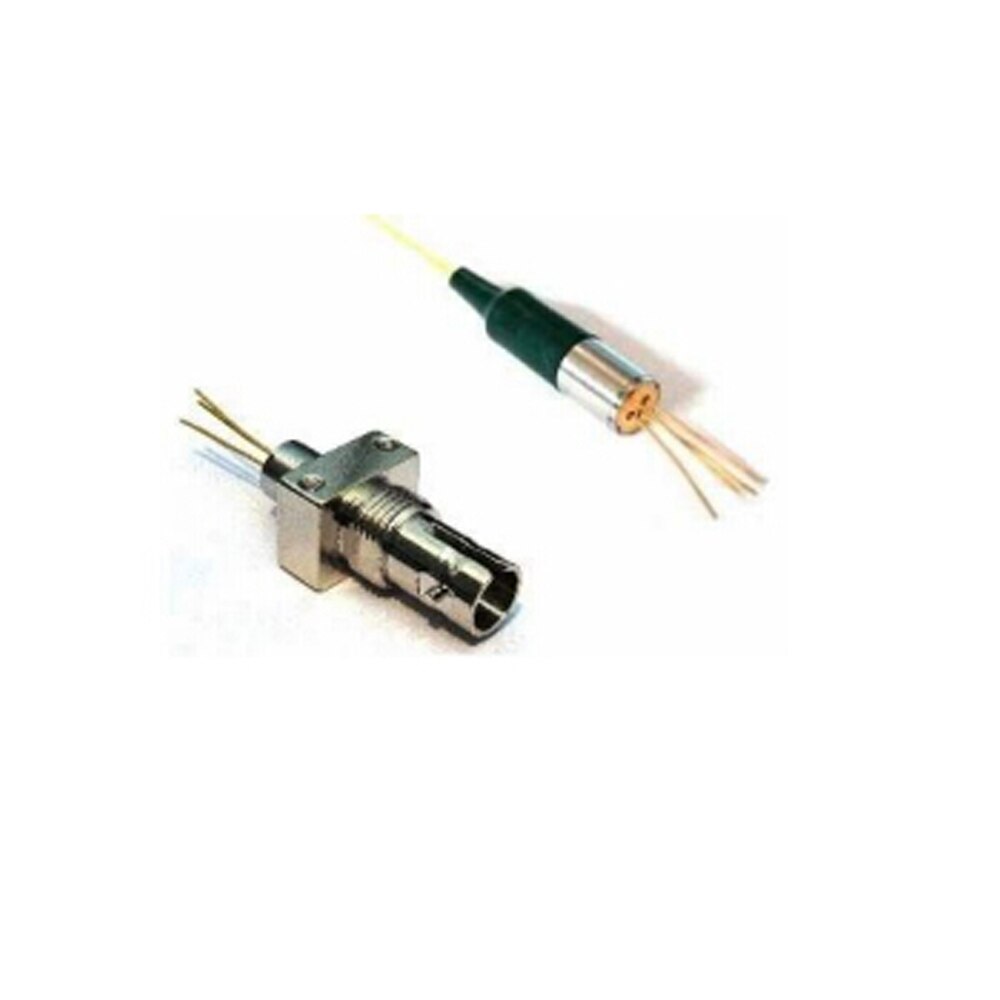

650nm FP Laser Diode Laser Fiber Output Power 3mW Laser Module Customizable Interface

Main Performance:
Center Wavelength: 650nm
Fiber Output Power: 3mW
Threshold Current: 10mA
Working Current: 40mA
Operating Voltage: 2.2- 2.6 V
Operating temperature : -10～+40 ℃
Storage temperature : -40～+85 ℃

Features:
Built-in monitoring detector, low threshold current, low operating current, high stability, imported chips, etc.

Application:
1. Industrial Automation Control 2. Optical Sensing 3. Optical Communication
4. Optical Positioning System 5. Scientific Analysis and Experiment 6. Test and Measurement Instruments

The Cautions：
1:The suitable ESD protection is required in storage, transportation and using 2: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling facet is clean before connecting it to opto-circuit

Package:
1*650nm laser diode
