Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: DB-RI TXB
- Voltage: 5V
Product features:
Dimensions: 10x20mm
Power Supply: DC4-5V
Output Current: 80-430mA constant current (Adjustable)
Note:
Power can continuous output or TTL modulation signal output
If don’t use TTL, it needs to short circuit 5V ” ” and TTL ” “, that is continuous working

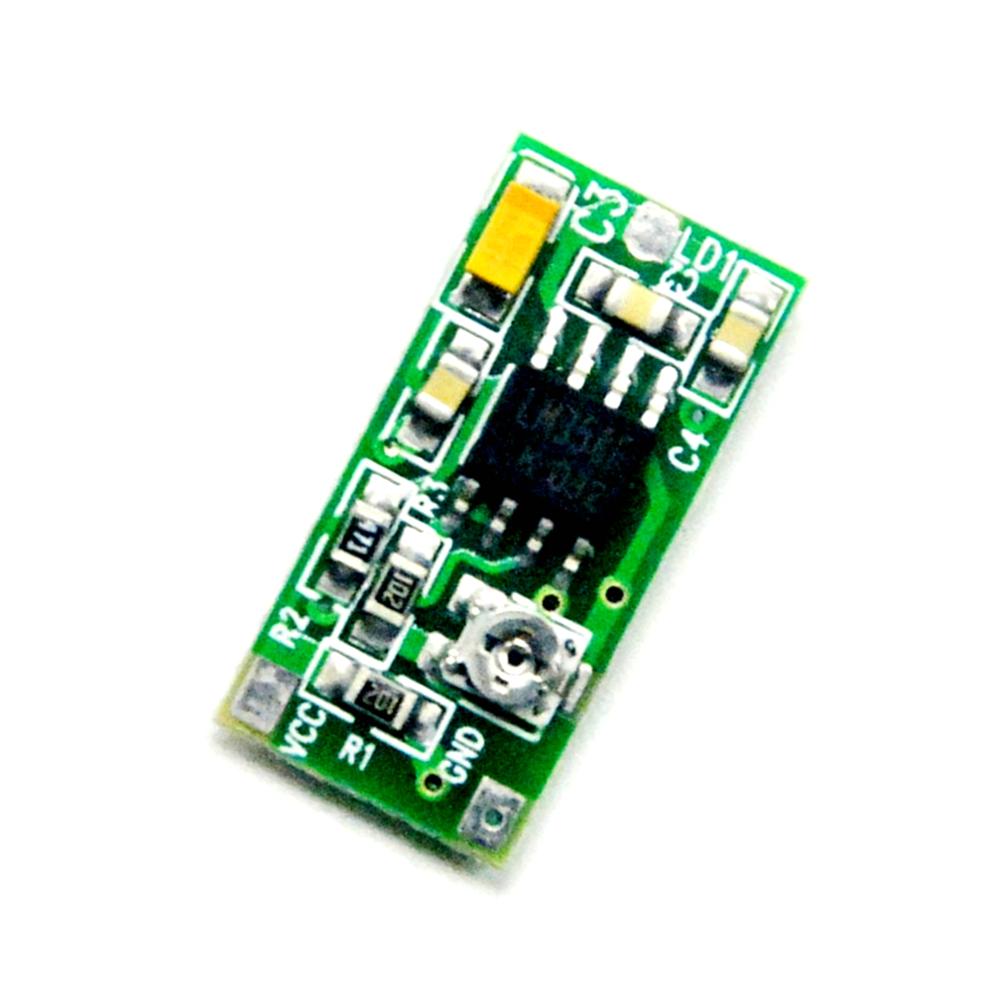

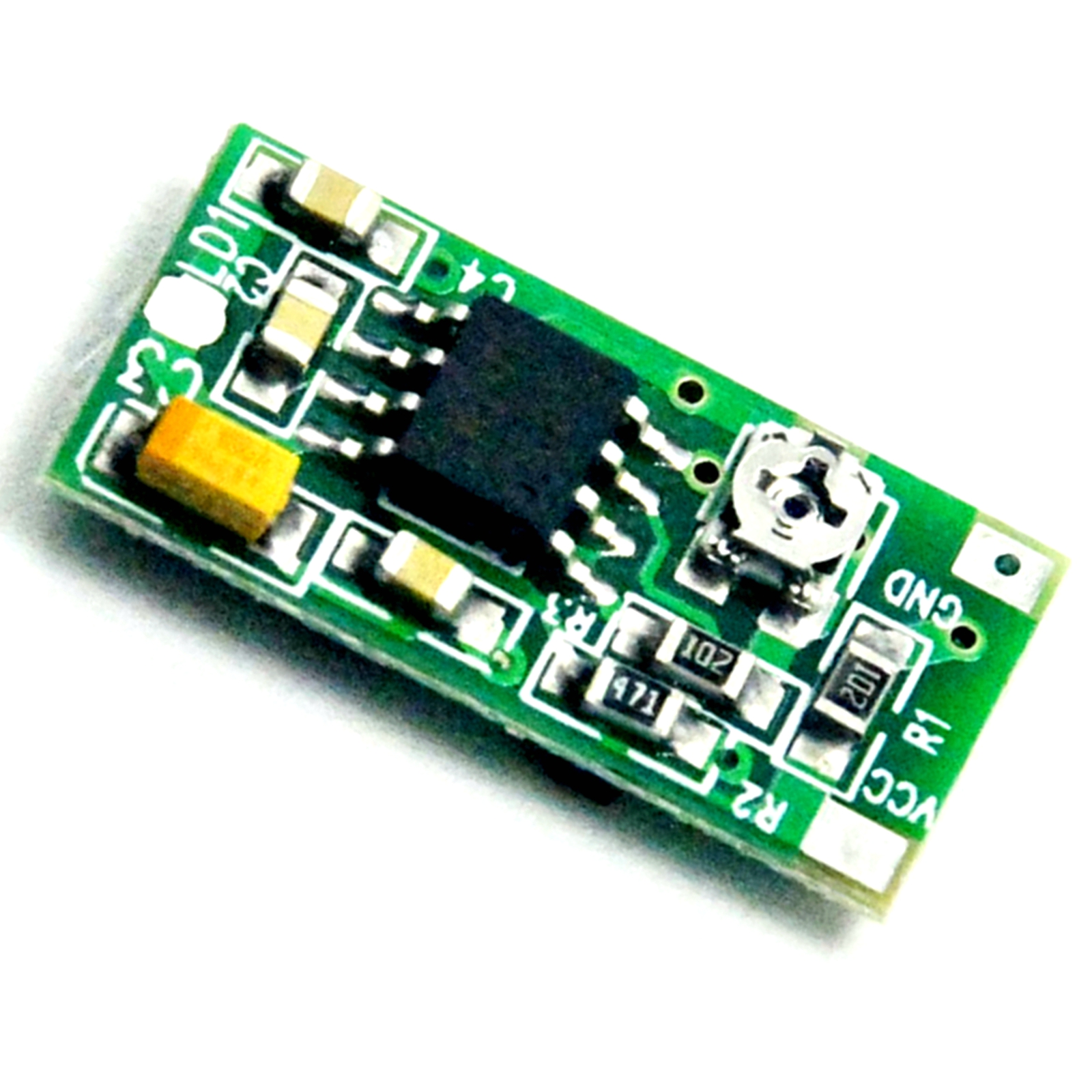

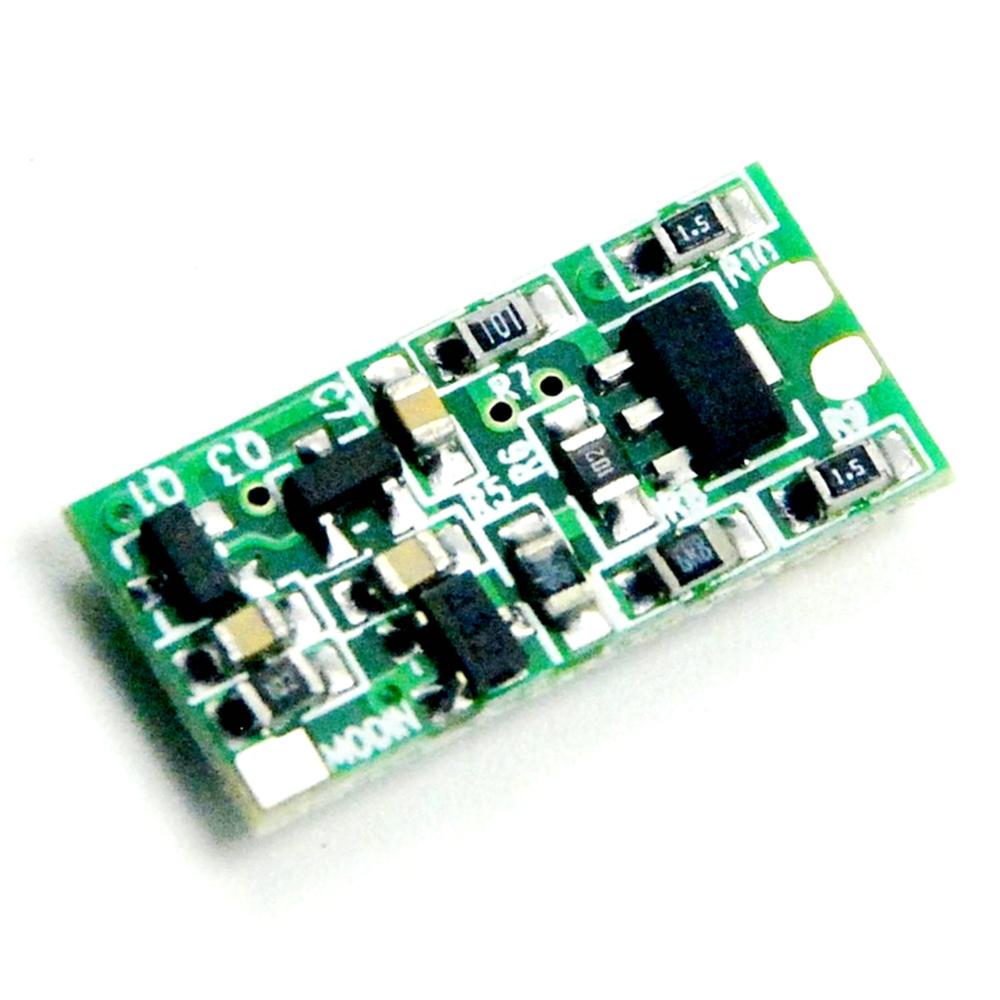

This is a power driver Circuit Board commonly used for 650nm-660nm 808nm 980nmnm Laser Diode!
Package:
1pcs 650nm 660nm 808nm 980nm TTL laser diode driver board
