Parameter

Suitable wavelength (nm): 635 650 780 808 980 nm
Input voltage (DC) V: 2.7-4.5v
Output current (mA): Resistance adjustment, no resistance at the resistance position, purchased by professionals
Output voltage (V): 1.5-3.0
Product size (mm): 6*8
Connection method: with line red positive and black negative
Operating mode :

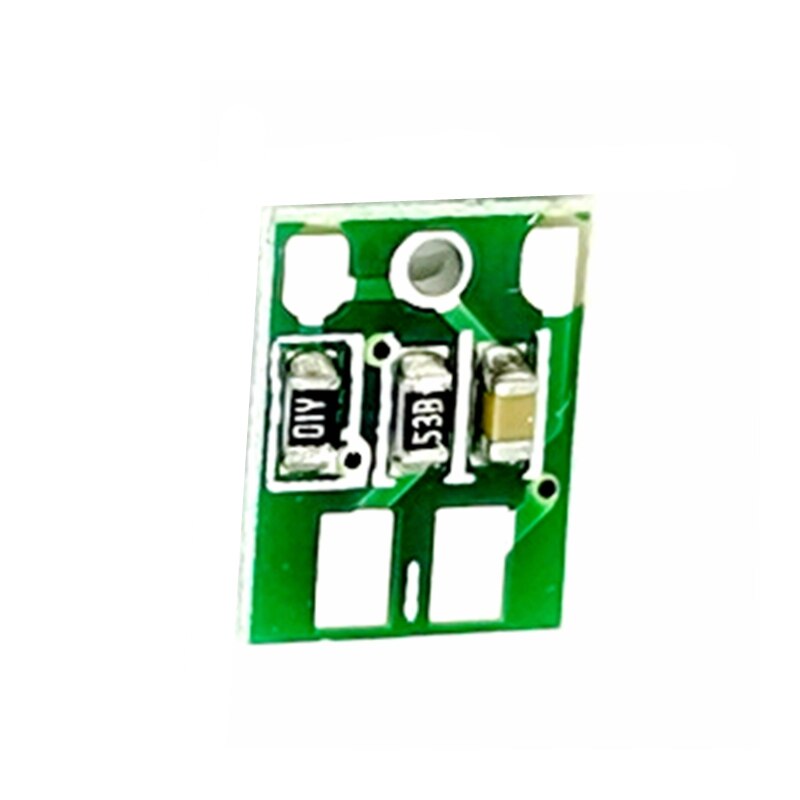

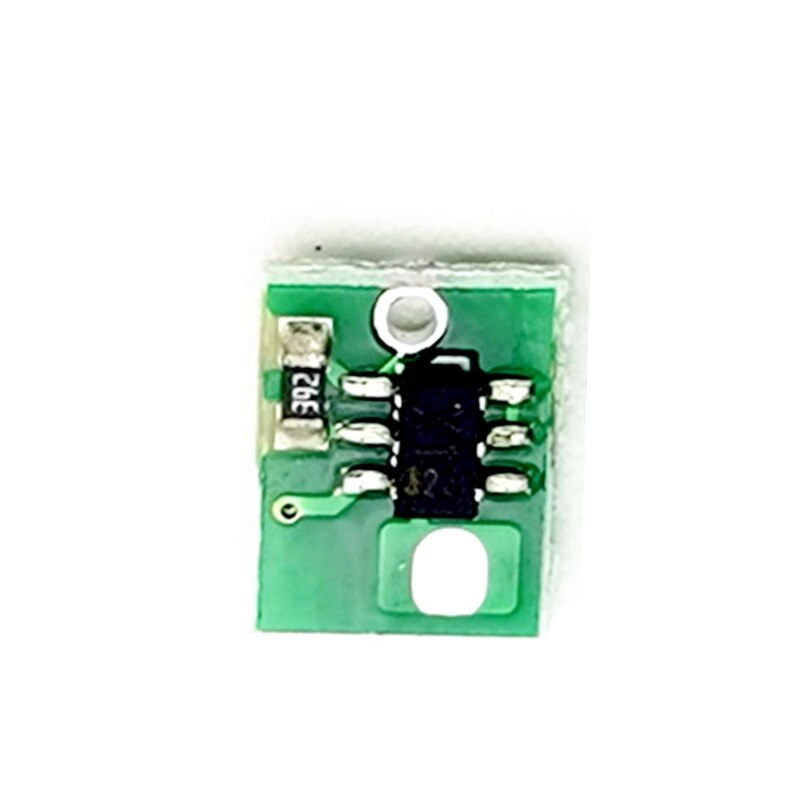

N type pin APC constant power laser diode driver board

Notes：

SMD laser diode, extend the laser diode into the PCB, solder the three pins, lead out the positive and negative poles on the PCB, connect 3-5V direct current, VCC positive, use the potentiometer to adjust the laser diode light power, if it is a small current The tube must be energized when the potentiometer is adjusted to the minimum current, and adjusted to the required light output power.

The laser diode needs to have good heat dissipation to ensure the normal operation of the laser tube. The circuit will automatically control the output power of the laser tube.

Package:

1pc 650nm 635nm 780nm 980nm N-type Pin Constant Power Laser Diode Driver Board 1-20mw
