Description

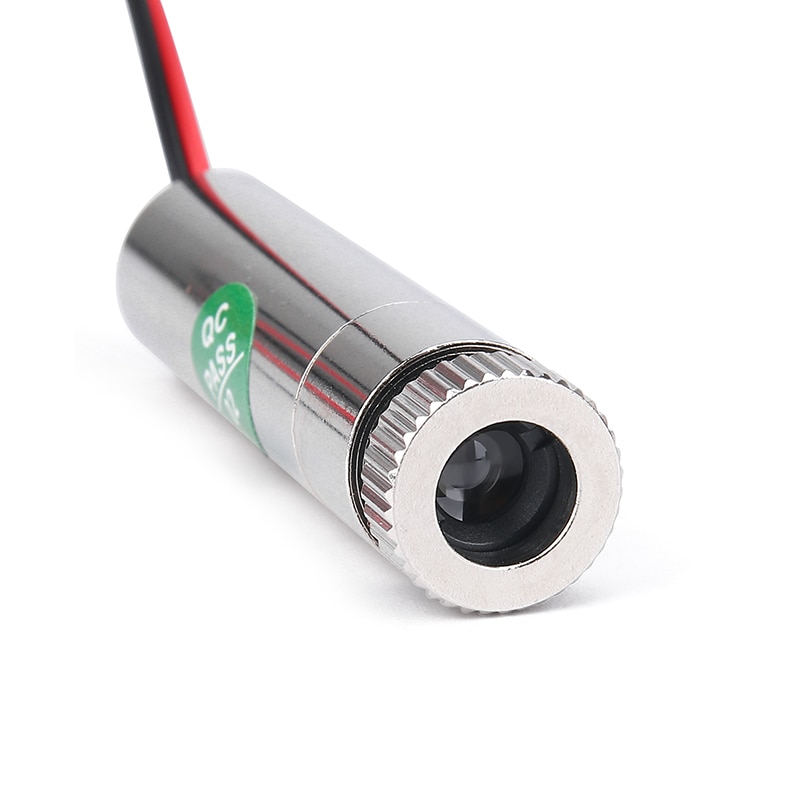

650nm 250mw Red Laser Dot Module High Power Laser DIY Laser Module Focusing DIY Engraving Machine Laser Head
- Model Number: 250MW laser
- Laser: 650nm 250mw Red Laser Dot Module
- Type: Laser Head
Technical Parameters:
Model: LD-F650G03
Wavelength: 650nm (red laser)
Optical power: 220 ~ 250 mW (measured power)
Voltage: 3 ~ 5VDC (can use mobile phone battery or three dry batteries, etc.)
Current: less than 300 mA
Shell: copper (nickel plated)

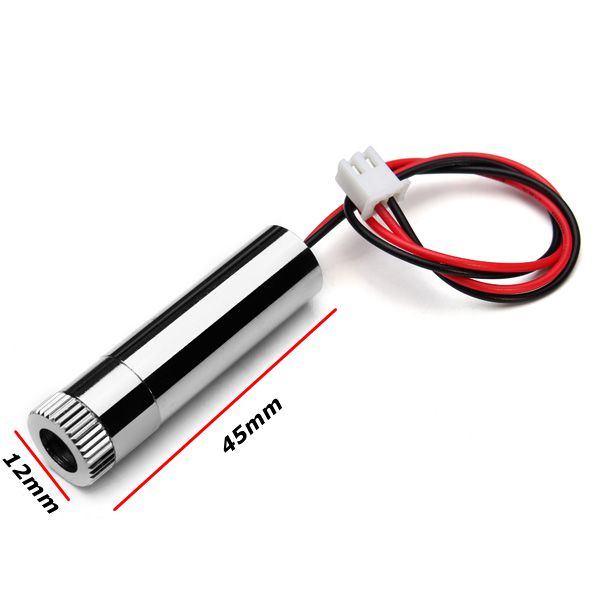

Size: diameter 12 mm length 45 mm
Wiring method: orange is positive and blue is negative
Please Note:
1.The output power of this laser module is relatively large. It is strictly forbidden to illuminate the eyes during testing. It is strictly forbidden for children to use.
2.It is forbidden to use in places with flammable objects and gases to avoid fire and explosion.
3.It is forbidden to play for children.
4.Do not open the module to avoid damage. Work for a long time, if you feel the head is very hot, please stop and cool before working.
