Description
- Brand Name: Q-BAIHE
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 650ML-120-2280-AC H A
- Wavelength:: 650nm
- Output Power:: <120mW
- Operating Voltage:: DC 2.8-5.2V
- Operating Current:: <150mA
- Operating Temperature:: -10°~ 40°
- Storage Temperature:: 10°~ 40°
650nm 120mW Adjustable Red Line Laser Infrared Diode Laser Positioning Module DIY
|
Title： |
650nm 120mW Adjustable Red Line Laser Infrared Diode Laser Positioning Module DIY |
||
|
Wavelength: |
650nm |
Output Power: |
≤120mW |
|
Operating Voltage: |
DC 2.8-5.2V |
Operating Current: |
≤150mA |
|
Operating Temperature: |
-10°~+40° |
Storage Temperature: |
+10°~+40° |
|
Mean time to failure: |
>10000H |
Divergence angle: |
0.5-0.8mrad |
|
Output band: |
visible laser |
Operation mode: |
continuous laser |
|
Structural features: |
laser tube + lens + heat dissipation shell |

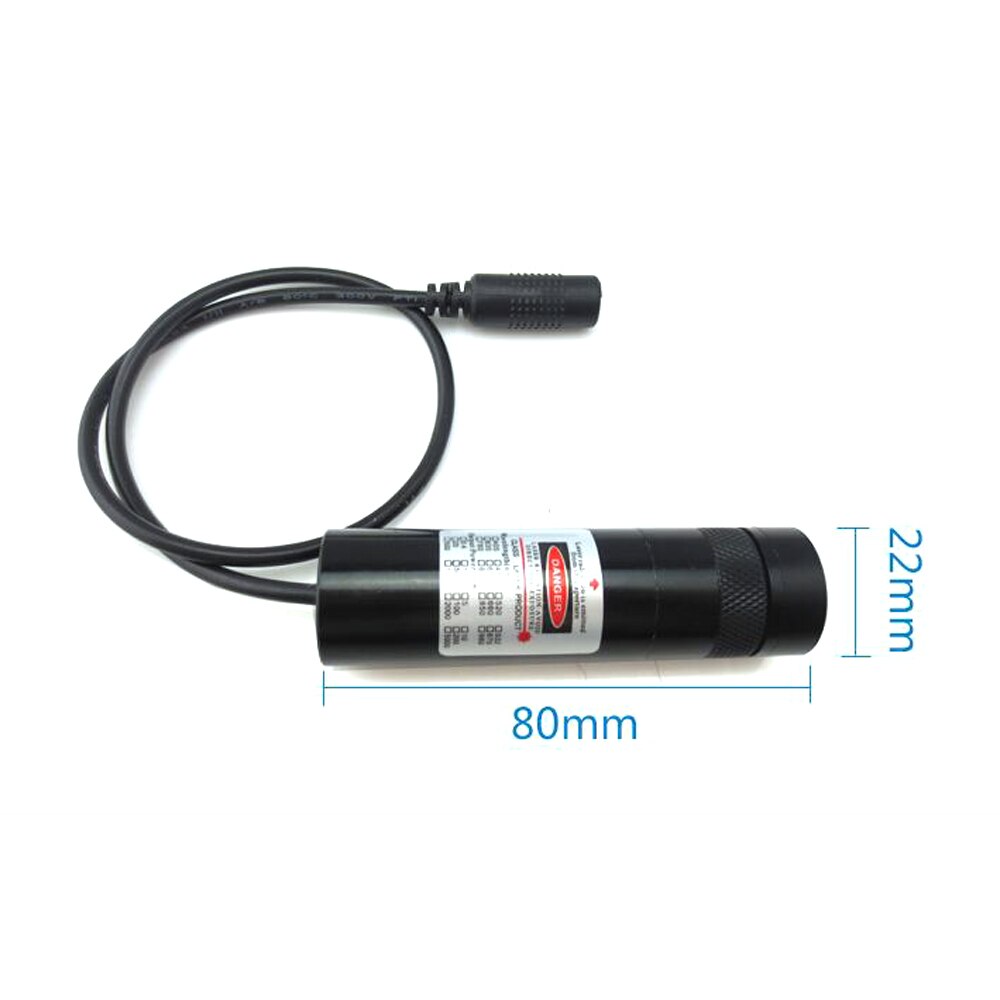

Size: |
22x80mm |
|
Driver circuit: |
ACC |
Working medium: |
semiconductor laser |
|
Working distance: |
The indoor working environment can reach 10 meters The working environment can reach 5 meters in semi-outdoor (not direct sunlight) Installation height 0 meters-5 meters can be used |
||
|
Package: |

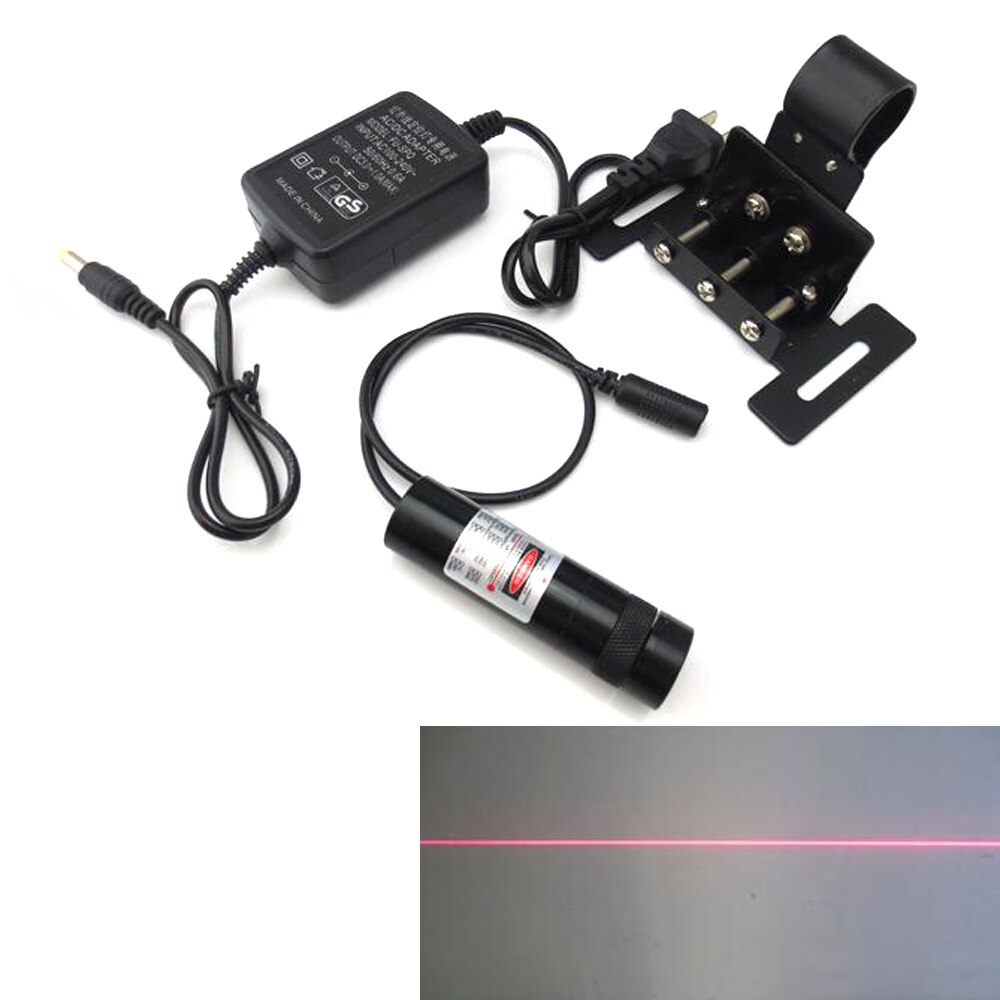

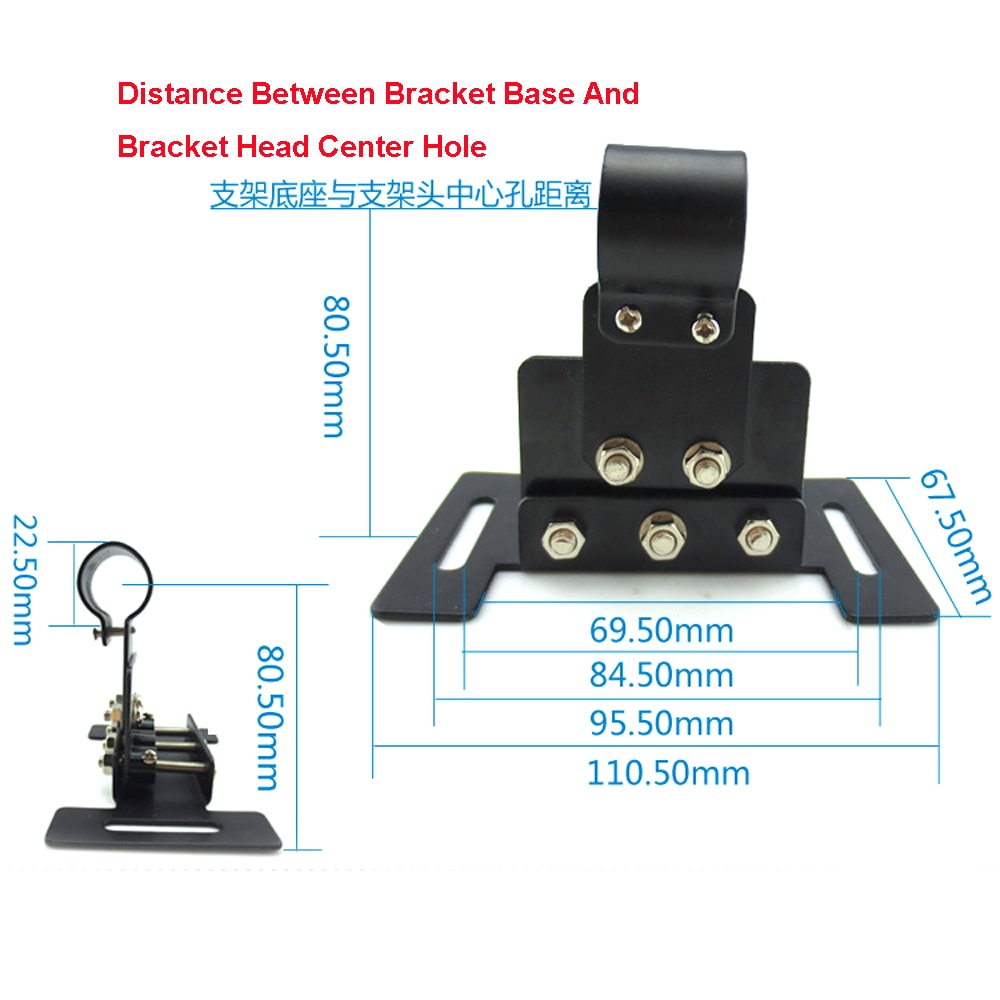

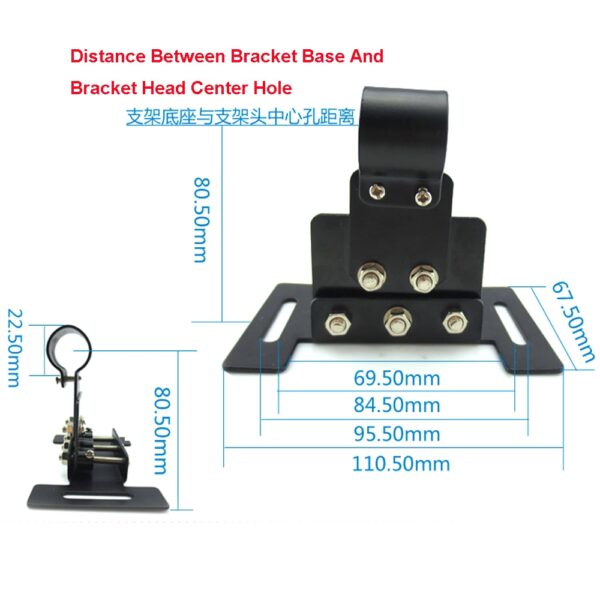

1* Laser Module 1*Bracket 1*Adapter |
||
