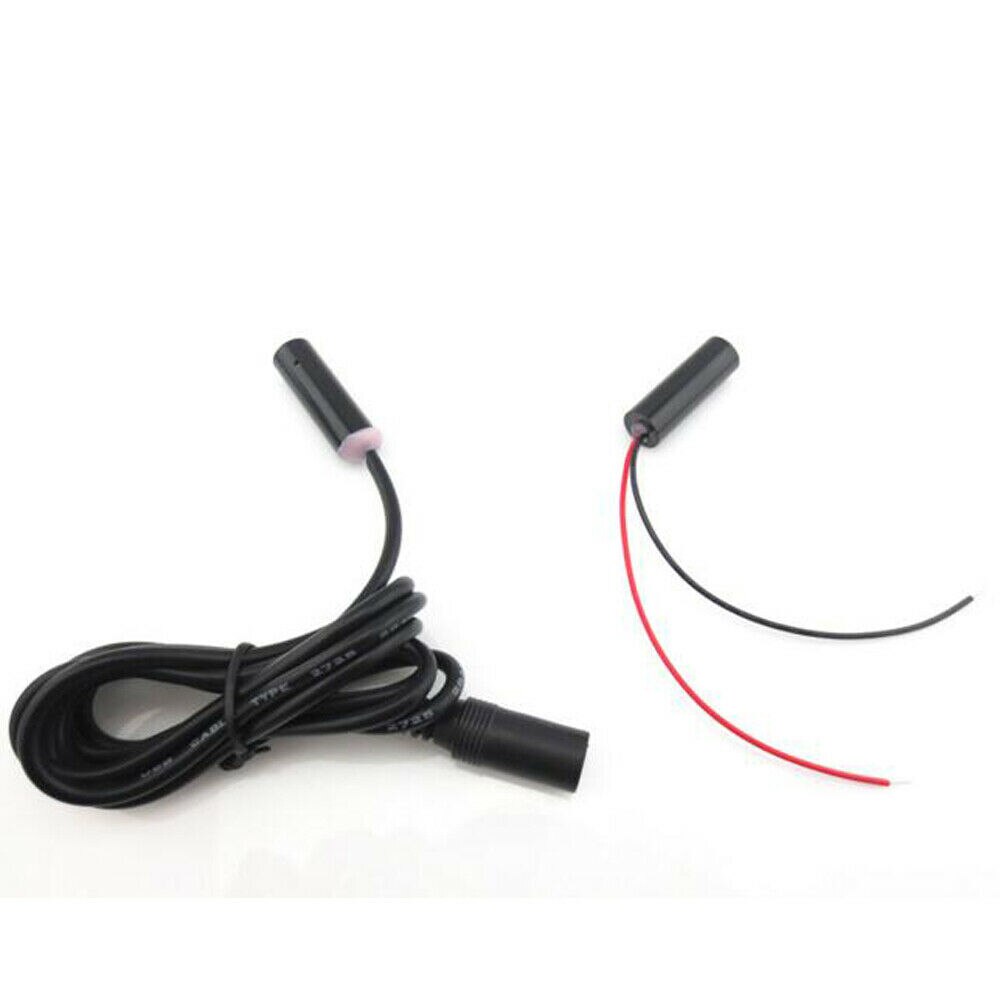

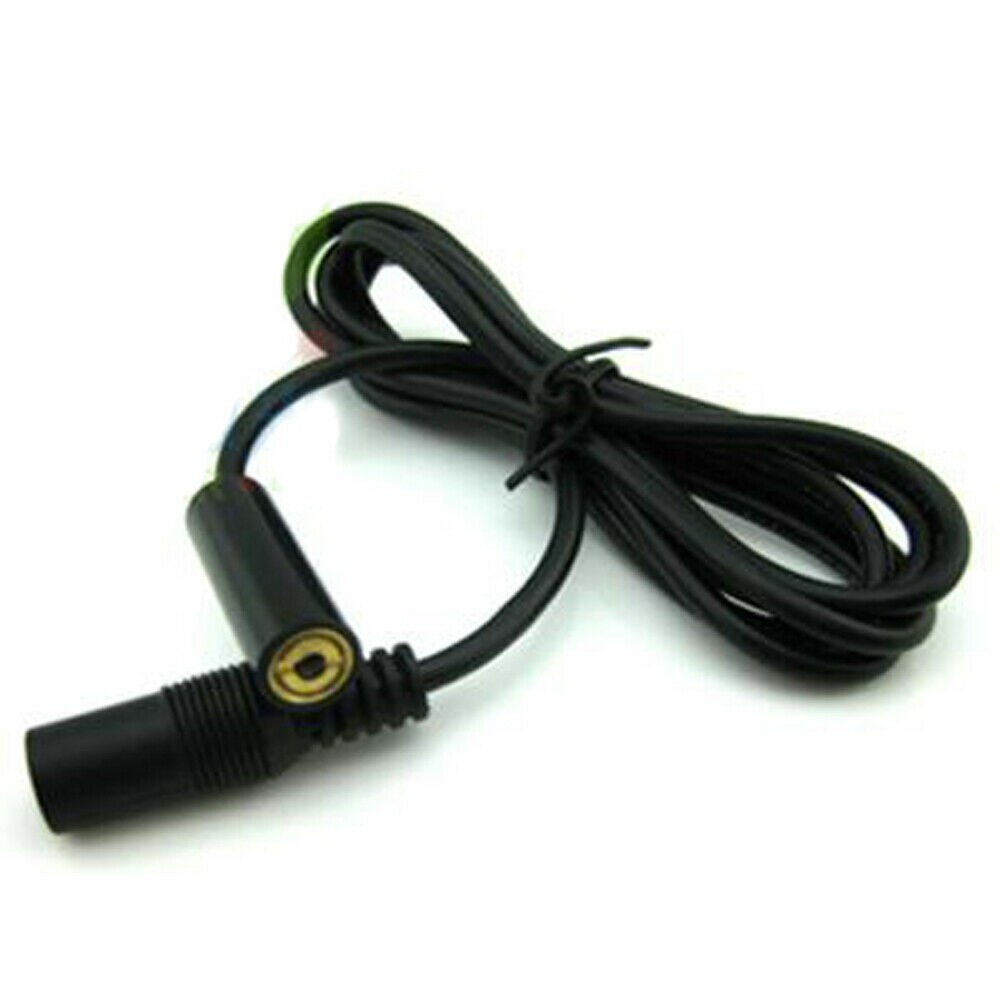

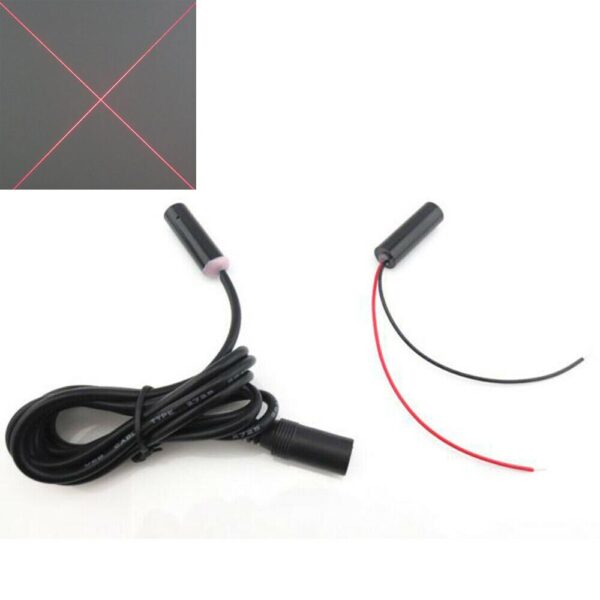

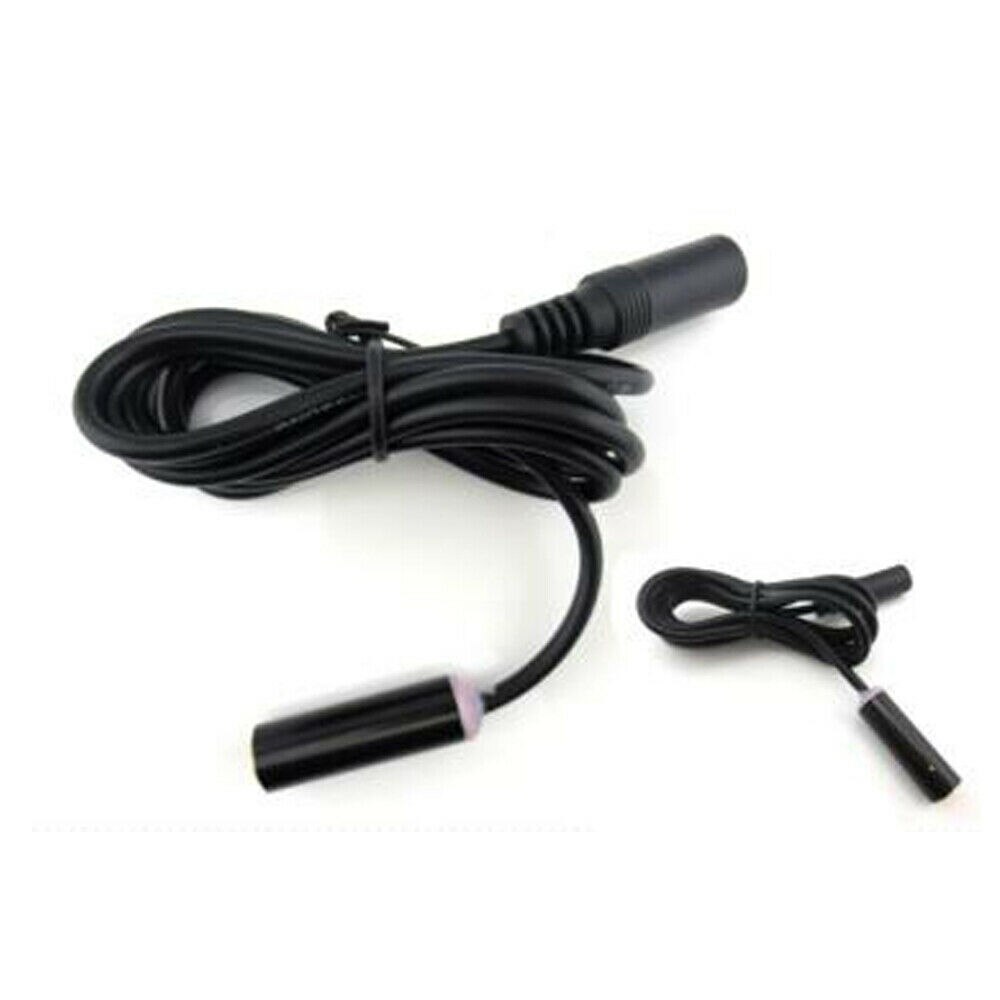

650nm 100mW-200mW Red Cross Laser Positioning Light Diode Laser Module DIY

  • Home
  • 650nm 100mW-200mW Red Cross Laser Positioning Light Diode Laser Module DIY

650nm 100mW-200mW Red Cross Laser Positioning Light Diode Laser Module DIY

$99.14 – $192.83

SKU: 1005002191564762 Category:

Description

  • Brand Name: Q-BAIHE
  • Certification: CE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: 650MC-100-200-1030-AC-CAB
  • Wavelength:: 650nm
  • Output Power:: ≤10mW,20mW,30mW,50mW,100mW,200mW
  • Operating Voltage:: DC 2.8-5.2V
  • Operating Current:: ≤60mA,80mA,100mA,120mA,150mA,260mA
  • Operating Temperature:: -10°~ 40°
  • Storage Temperature::  10°~ 40°

650nm 100mW-200mW Adjustable Red Cross Laser Infrared Diode Laser Positioning Module DIY

Title：

650nm 100mW-200mW Red Cross Laser Positioning Light Diode Laser Module DIY

Wavelength:

650nm

Output Power:

≤10mW,20mW,30mW

≤50mW,100mW,200mW

Operating Voltage:

DC 2.8-5.2V

Operating Current:

≤60mA,80mA,100mA

120mA,150mA,260mA

650nm 10mW：

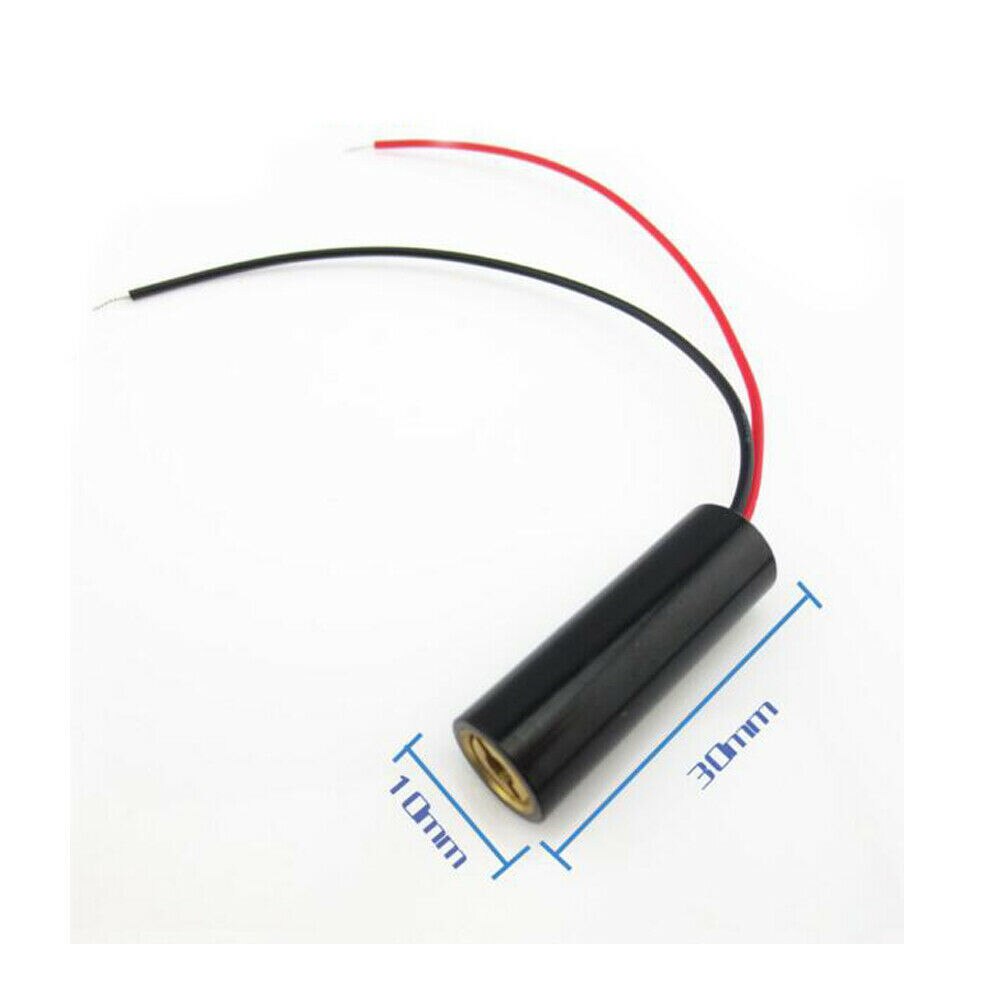

Dimensions: 10*30mm
Power: 10mW
Working voltage: DC 2.8-5.2 (V)
Working current: ≤60mA
Working distance:
You can hit 0-200 meters indoors during the day
You can hit 0-80 meters outdoors during the day
Can hit 0-500 meters in the dark

650nm 20mW：

Dimensions: 10*30mm
Power: 20mW
Working voltage: DC 2.8-5.2 (V)
Working current: ≤80mA
Working distance:
You can hit 0-300 meters indoors during the day
You can hit 0-100 meters outdoors during the day
Can hit 0-800 meters in the dark

650nm 30mW：

Dimensions: 10*30mm
Power: 30mW
Working voltage: DC 2.8-5.2 (V)
Working current: ≤100mA
Working distance:
You can hit 0-400 meters indoors during the day
You can hit 0-120 meters outdoors during the day
Can hit 0-1000 meters in the dark

650nm 50mW：

Dimensions: 10*30mm
Power: 50mW
Working voltage: DC 2.8-5.2 (V)
Working current: ≤120mA
Working distance:
You can hit 0-800 meters indoors during the day
You can hit 0-200 meters outdoors during the day
Can hit 0-1200 meters in the dark

650nm 100mW：

Dimensions: 10*30mm
Power: 100mW
Working voltage: DC 2.8-5.2 (V)
Working current: ≤150mA
Working distance:
You can hit 0-1200 meters indoors during the day
You can hit 0-300 meters outdoors during the day
Can hit 0-2000 meters in the dark

650nm 200mW：

Dimensions: 10*30mm
Power: 200mW
Working voltage: DC 2.8-3.2 (V)
Working current: ≤260mA
Working distance:
You can hit 0-2000 meters indoors during the day
You can hit 0-500 meters outdoors during the day
Can hit 0-3000 meters in the dark

Package:

1* Laser Module

1*Bracket

1*Adapter
