Description
Laser module:
Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.
Specification parameter:

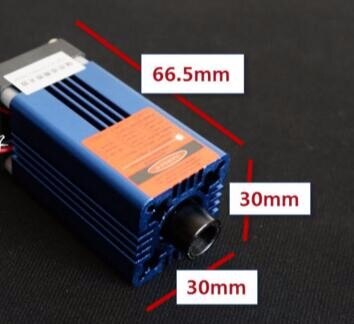

Host size: long 66.5mm* wide 30mm* high 30mm

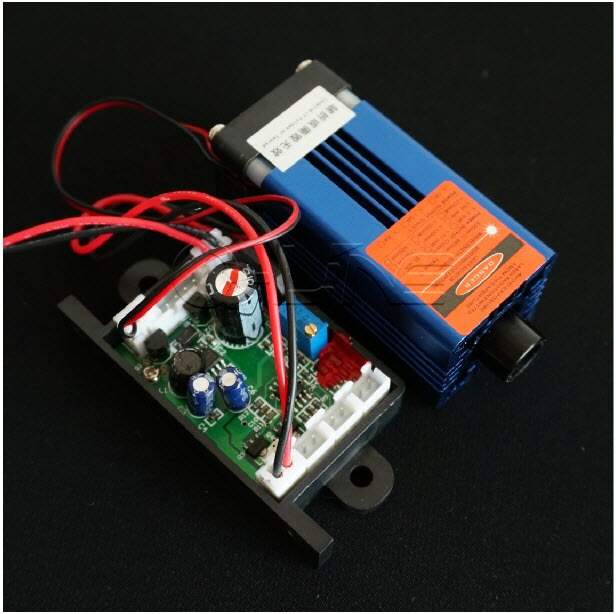

Circuit size: long 75mm* wide 35.5mm* high 20mm
Output wavelength: 638 NM
Output power: 300mW and 500mW optional
Cooling mode: aluminum cooling
Modulation frequency: adjustable
Job characteristics: continuous work
Surface treatment: Blue
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic recognition of positive and negative poles
Working voltage: DC=12V
Working current: I<450mA 500mW; I<800mA 300mW
Preheating time: no
Working temperature: of-10 DEG C 40 C
Storage temperature: -10 ~ 40 C
Structure features: laser tube + lens + heat sink
Note: the power is external.
