Description

Features:                                                                           .

Country of Origin: Japan

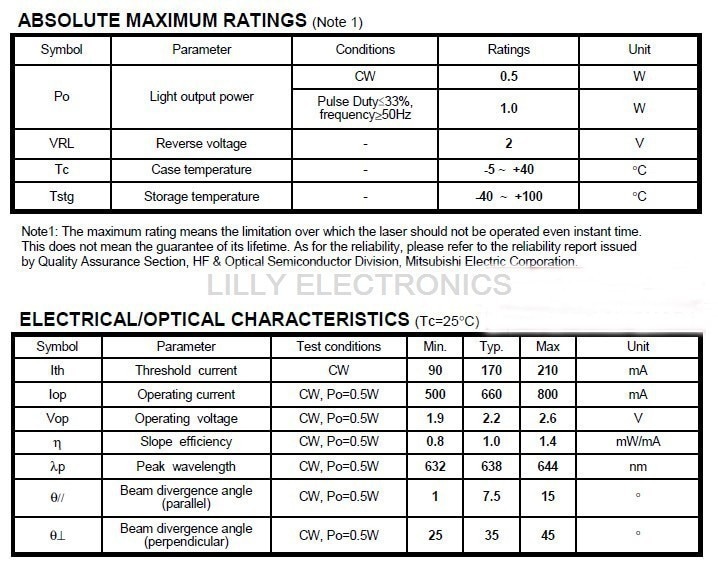

Output power: CW = 500mW
Pulse power:> 1000mW
Typical wavelength: 638nm
Operating Current: <800mA
Working voltage :1.9-2 .6 V
The impulse conditions: pulse duty ratio ≤ 25%, pulse frequency ≥ 50Hz
Operating temperature: -5 degrees C ~ +55 degrees C
Storage Temperature: -40 degrees C ~ +100 degrees C

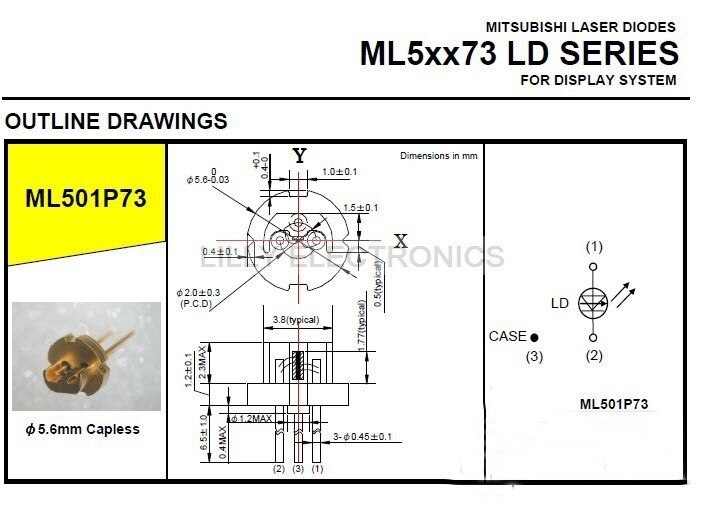

Package: T018 (5.6MM)
Service life: more than 10,000 hours

Details:

This kind of Laser diode at wavelength 638nm & output power 500mW is used for ultra-compact color projector; with distinctive red color and high visibility.
The focus range of image: the greater depth of field, the greater the range.
For lasers around 640nm, when the wavelength is shorter by 5nm, the laser visibility (brightness) is  increased by about 25%.

Package:

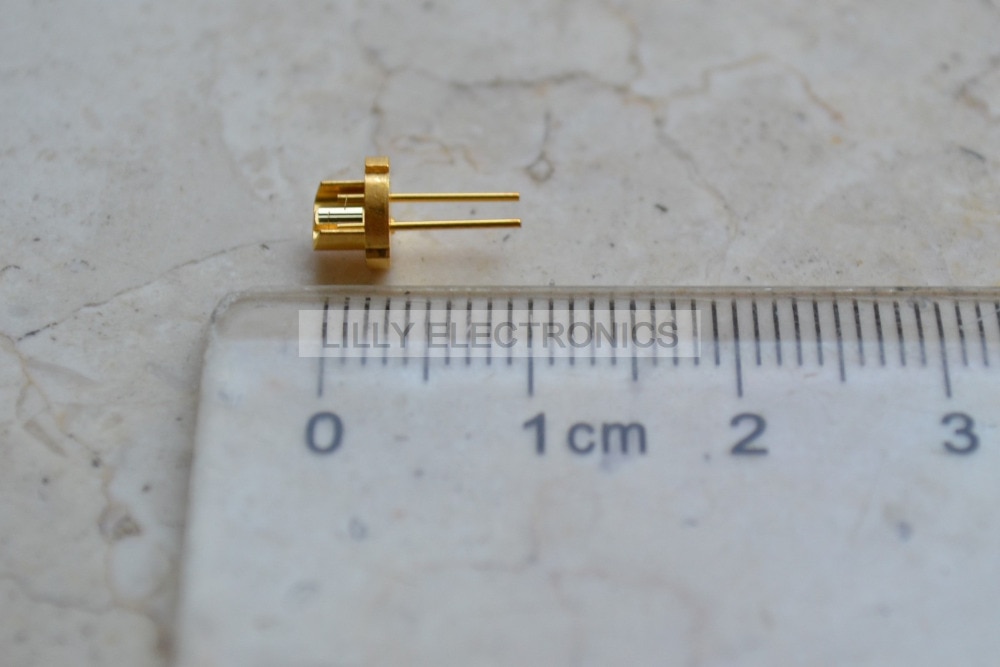

1X 635nm 638nm 500mw Orange Red Laser Diode LD Mitsubishi ML501P73 New
