Description
- Brand Name: Jolooyo
- Item Type: Stage Lighting Effect
- Model Number: LD-ML501P73
Parameter:
Model:ML501P73
Wavelength: 635nm 638nm (Orange Red)
Output power(mw): CW = 500
Pulse power(mw): > 1000
Laser compnent
Voltage: 1.9-2.6V
Current: <800mA
The impulse conditions:
pulse duty ratio ≤ 25%
pulse frequency ≥ 50Hz
Operating temperature: -5 ~ +55 ℃
Storage Temperature: -40 ~ +100 ℃
Service life:more than 10,000 hours
T018 (5.6MM)
Feature:
This kind of Laser diode at wavelength 638nm & output power 500mW is used for ultra-compact color projector; with distinctive red color and high visibility.
The focus range of image: the greater depth of field, the greater the range.
For lasers around 640nm, when the wavelength is shorter by 5nm, the laser visibility (brightness) is increased by about 25%.
Package:

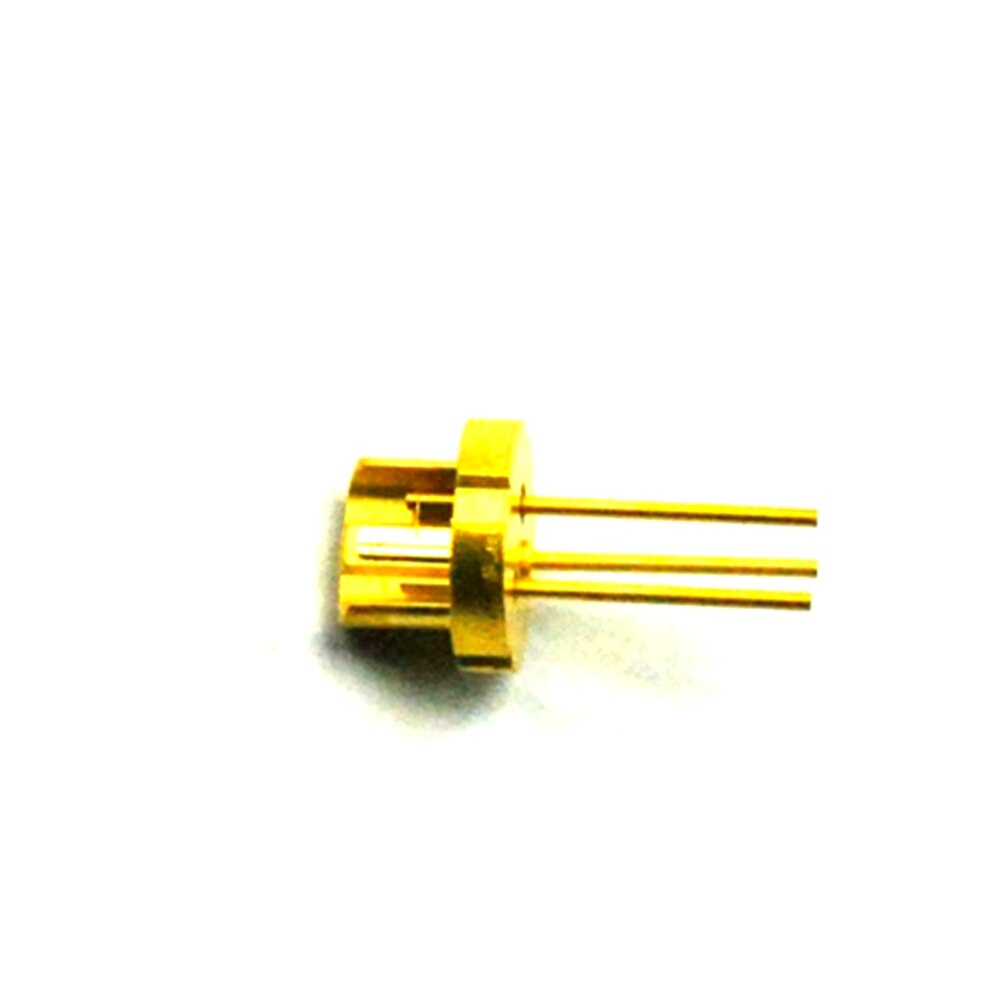

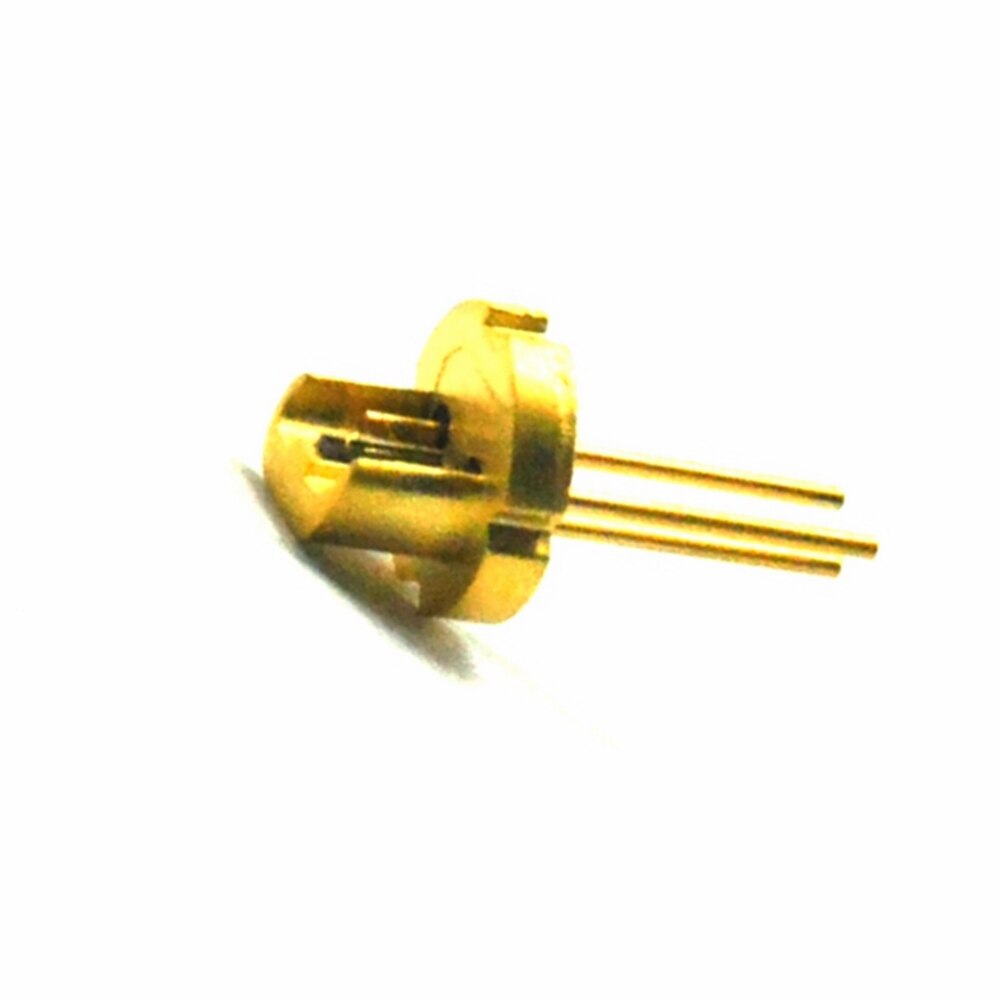

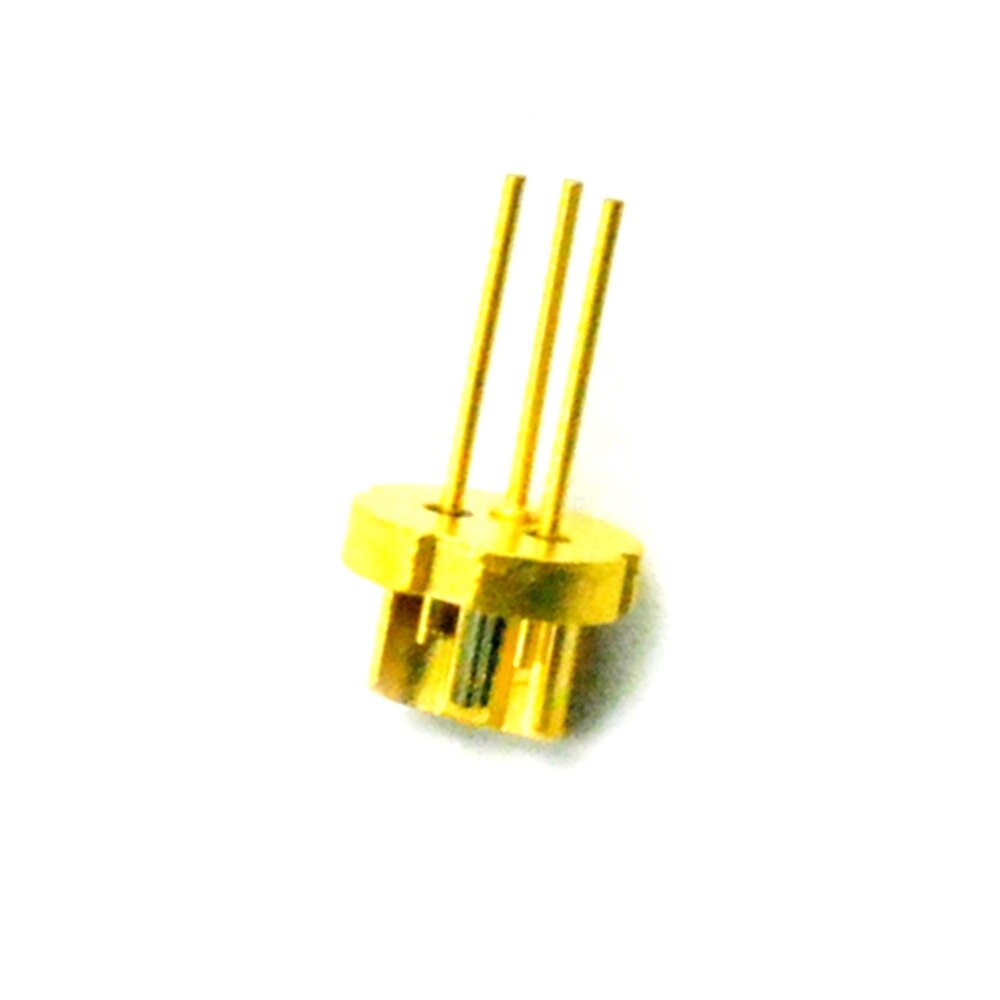

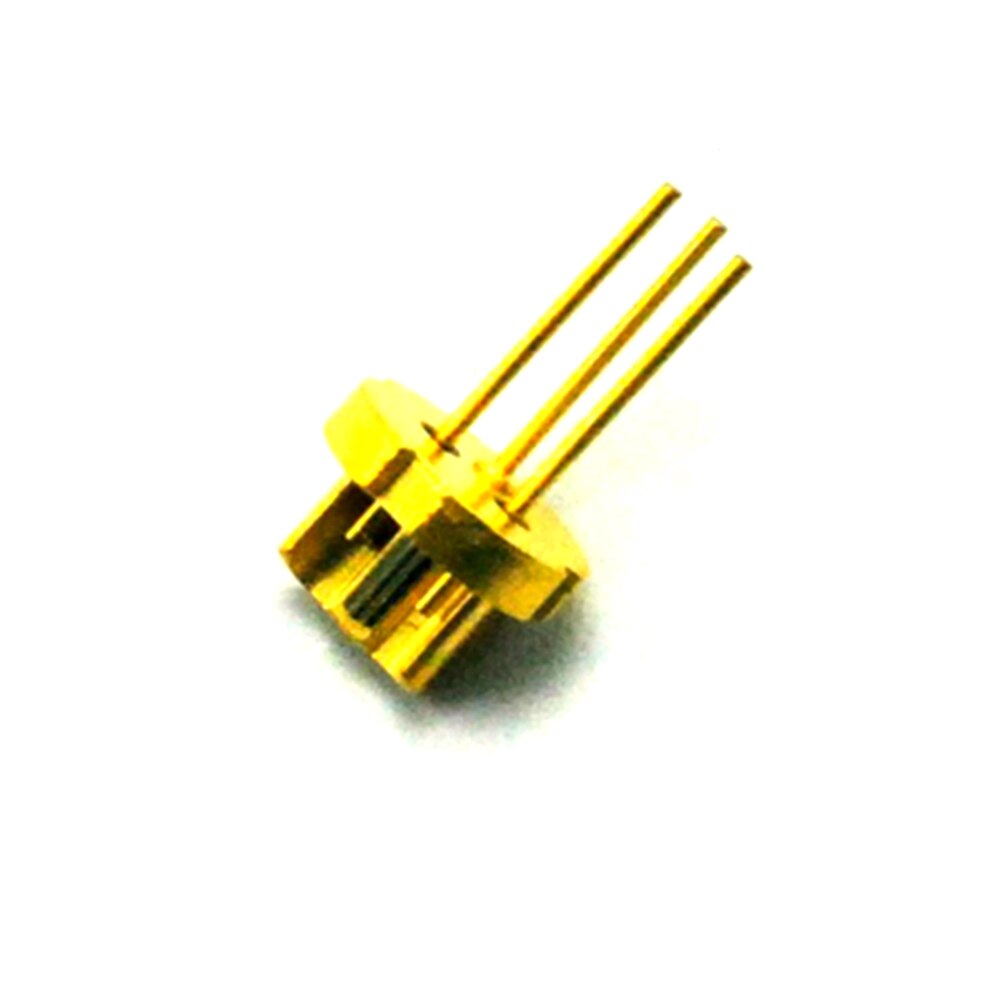

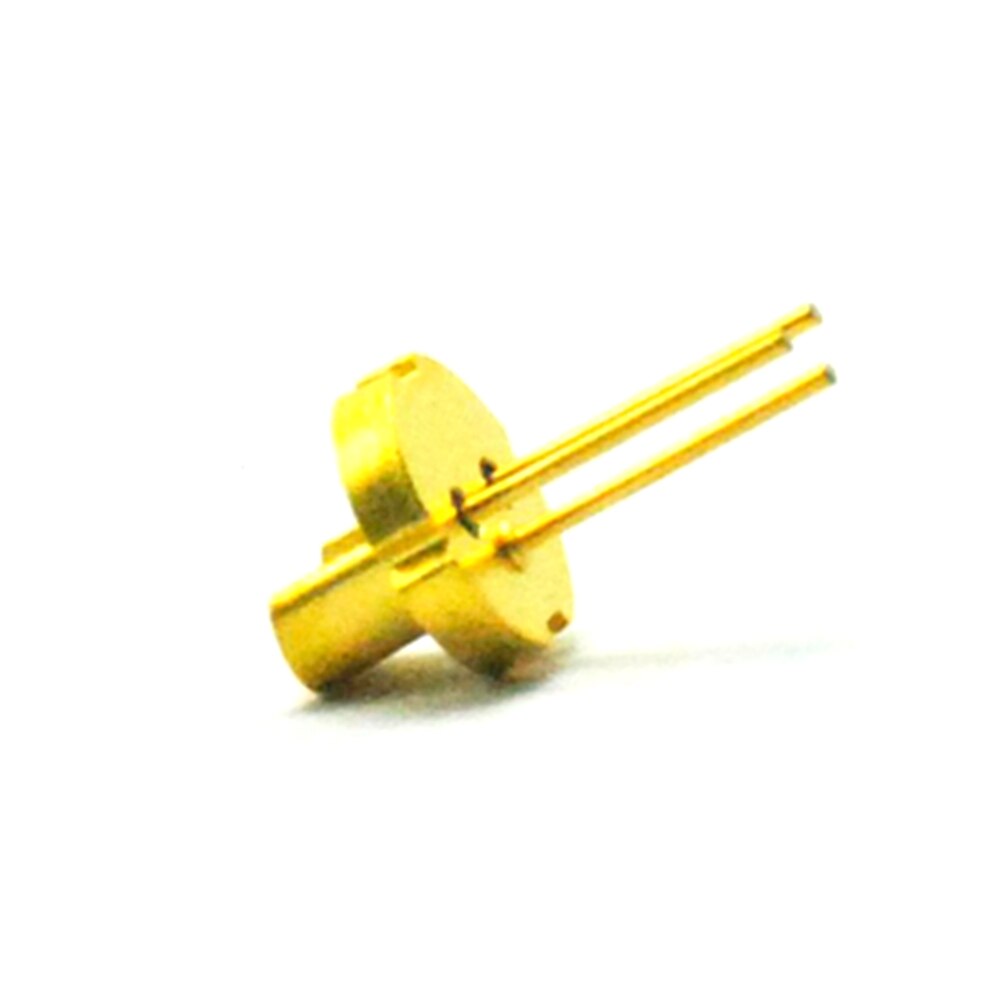

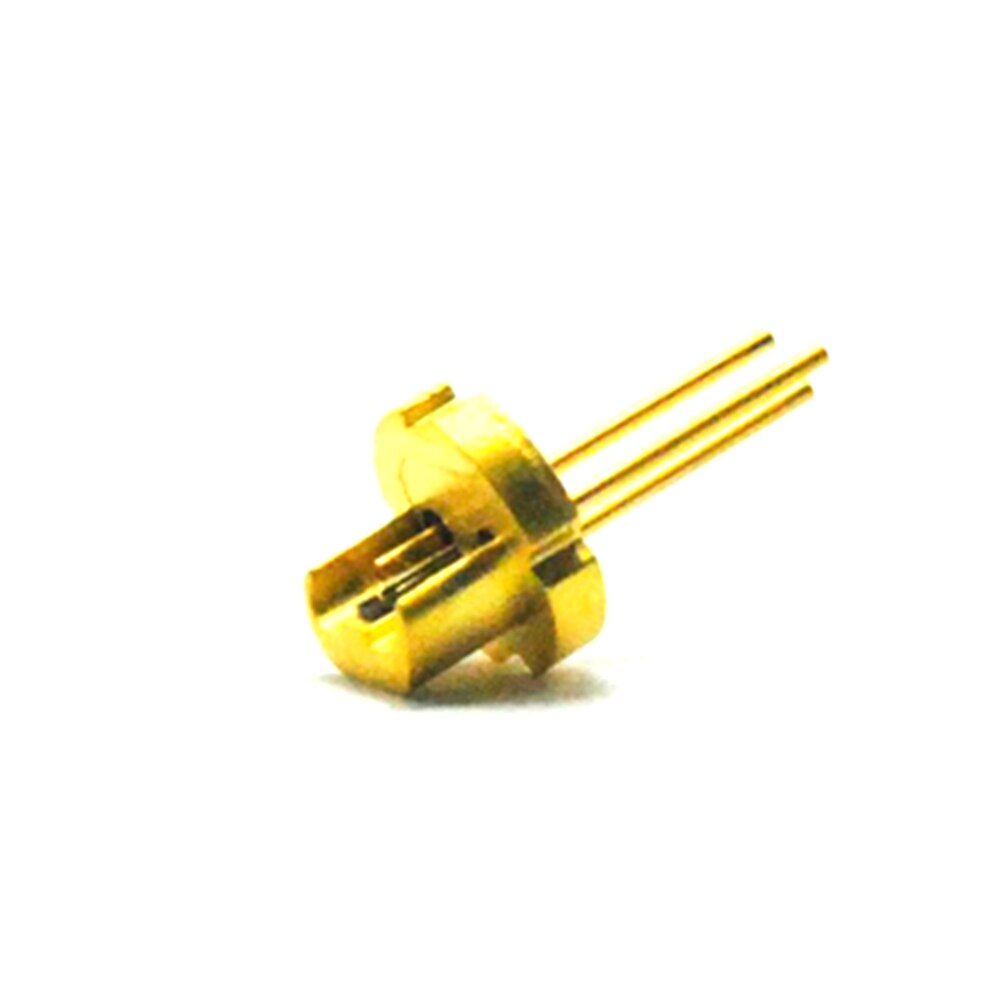

1pc New 635nm 638nm 500mw Orange Red Laser Diode LD ML501P73
