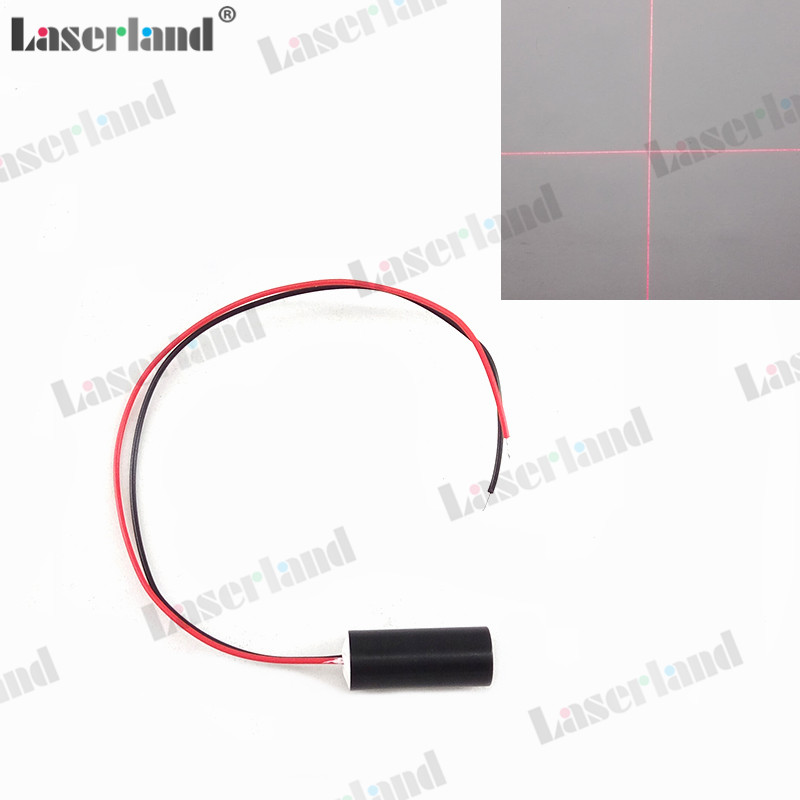

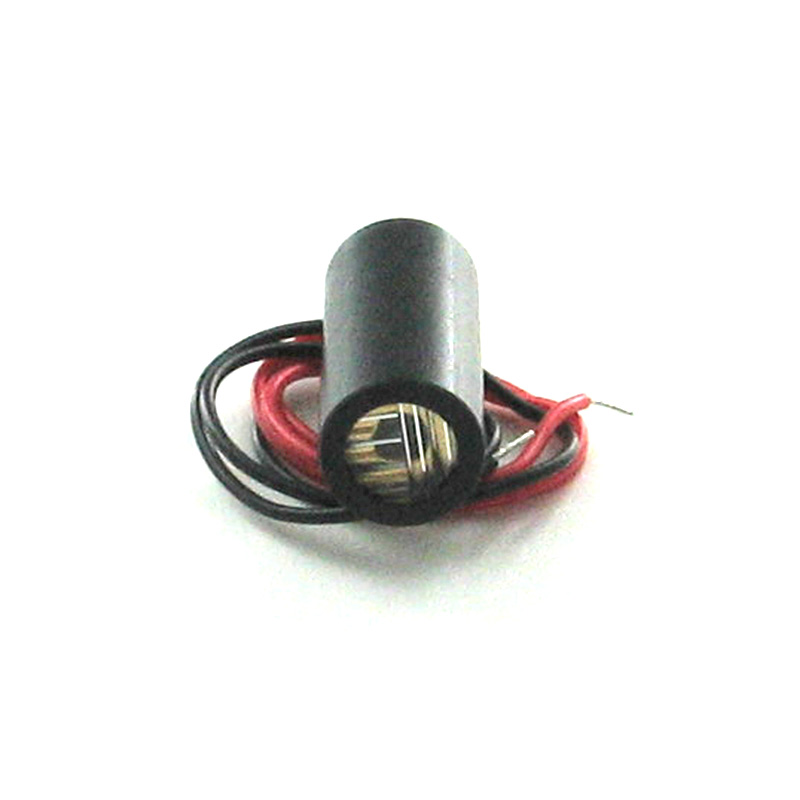

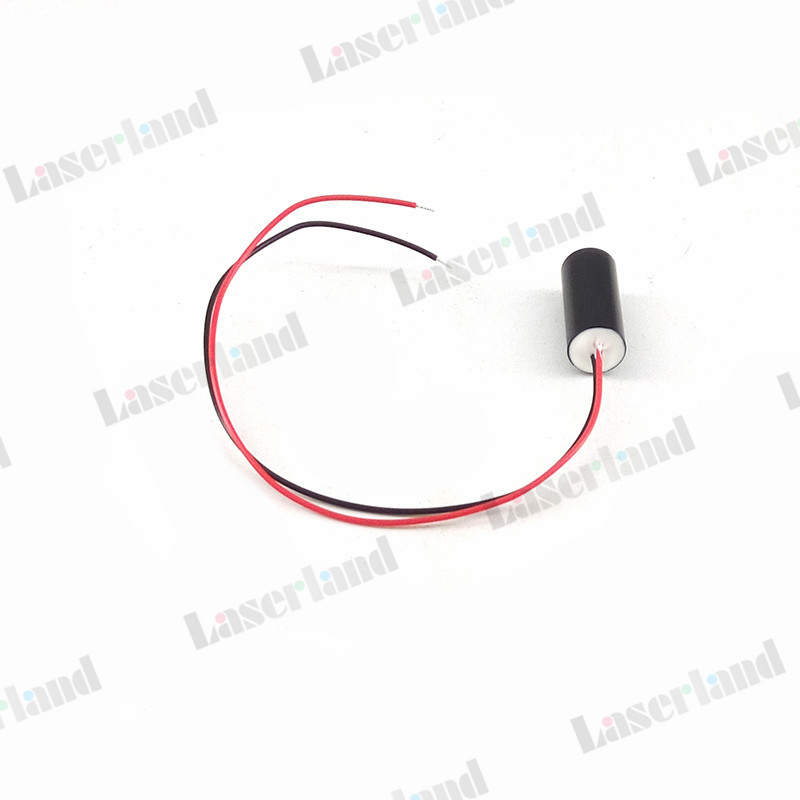

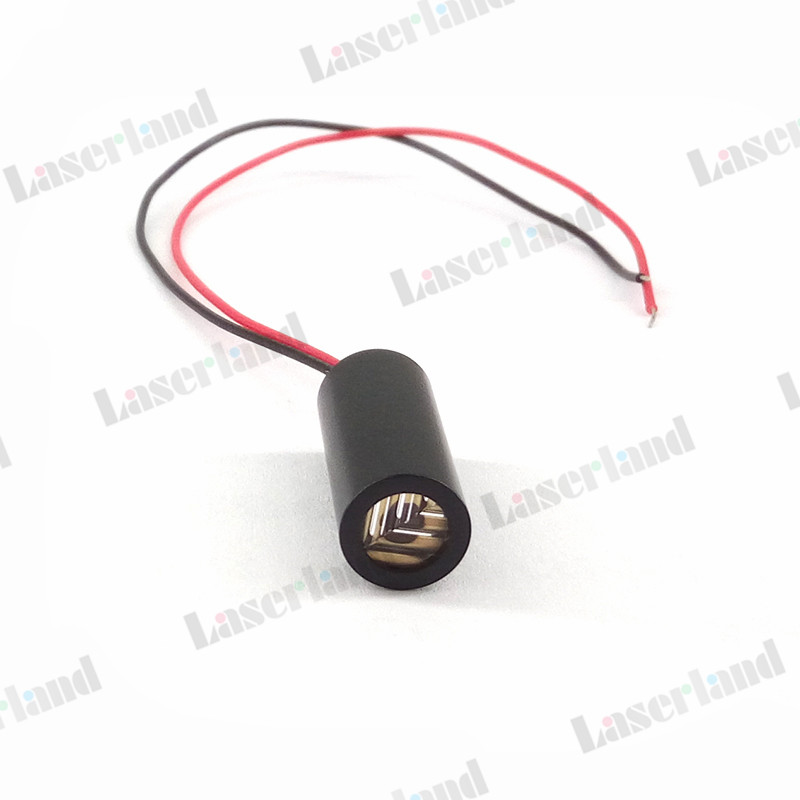

635nm 1mw Red Cross Laser Module DC 3V

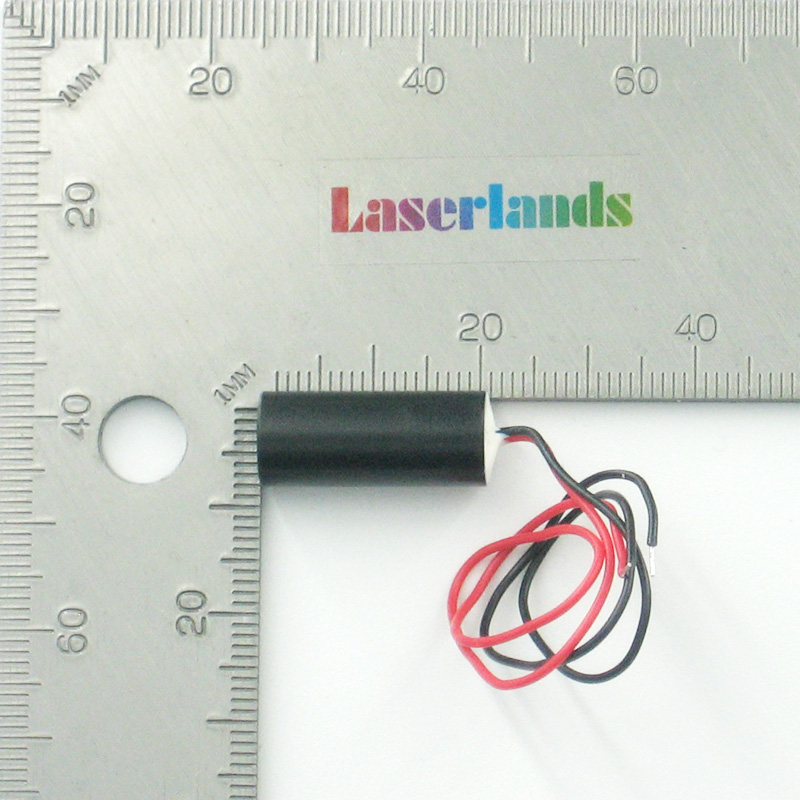

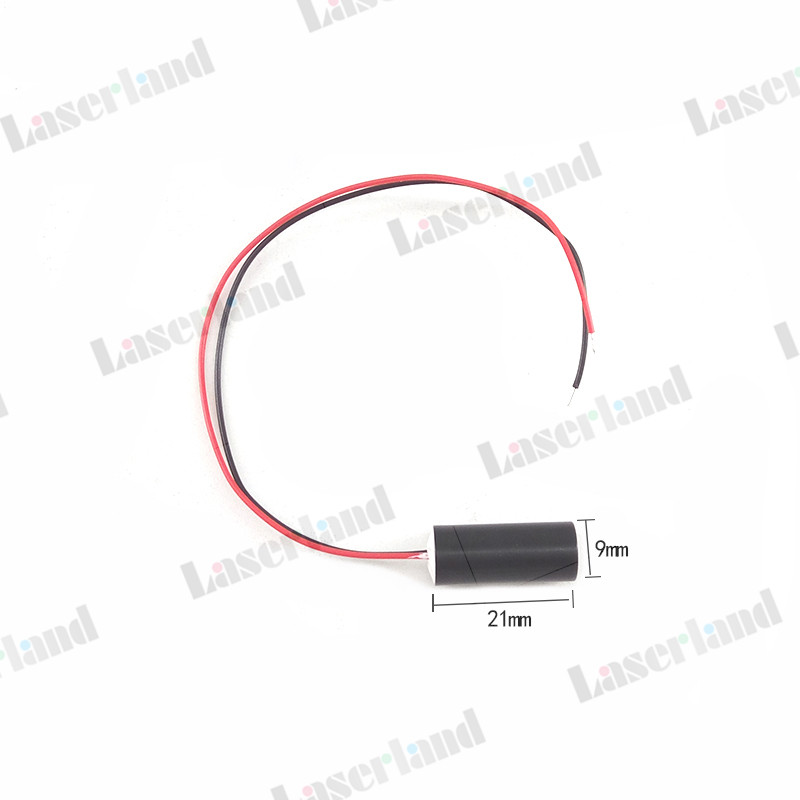

Size: φ 9 × 21mm(we have other size, contact us for it.)

Material: Copper/Aluminum (send at random)

Surface Treatment / Color: Copper/ Black

Life: continuous output and life> 10,000 hours

Output wavelength: 635nm / ± 5nm

Output power: <1mw

Range: 25m

Spot shape / Diameter: cross 50 degree

Circuit control:  APC circuit

Operating Voltage: DC  3V

Working Current:  <50mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +40 °C

Storage temperature: -20 °C ~ +60 °C



Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.
