Description
- Certification: NONE
- Origin: CN(Origin)
- Model Number: 450nm 60W
- Wavelength: 450nm
- Features: Fixed focus
- Lifetime: over 10000 hours
- Warranty: 1 year

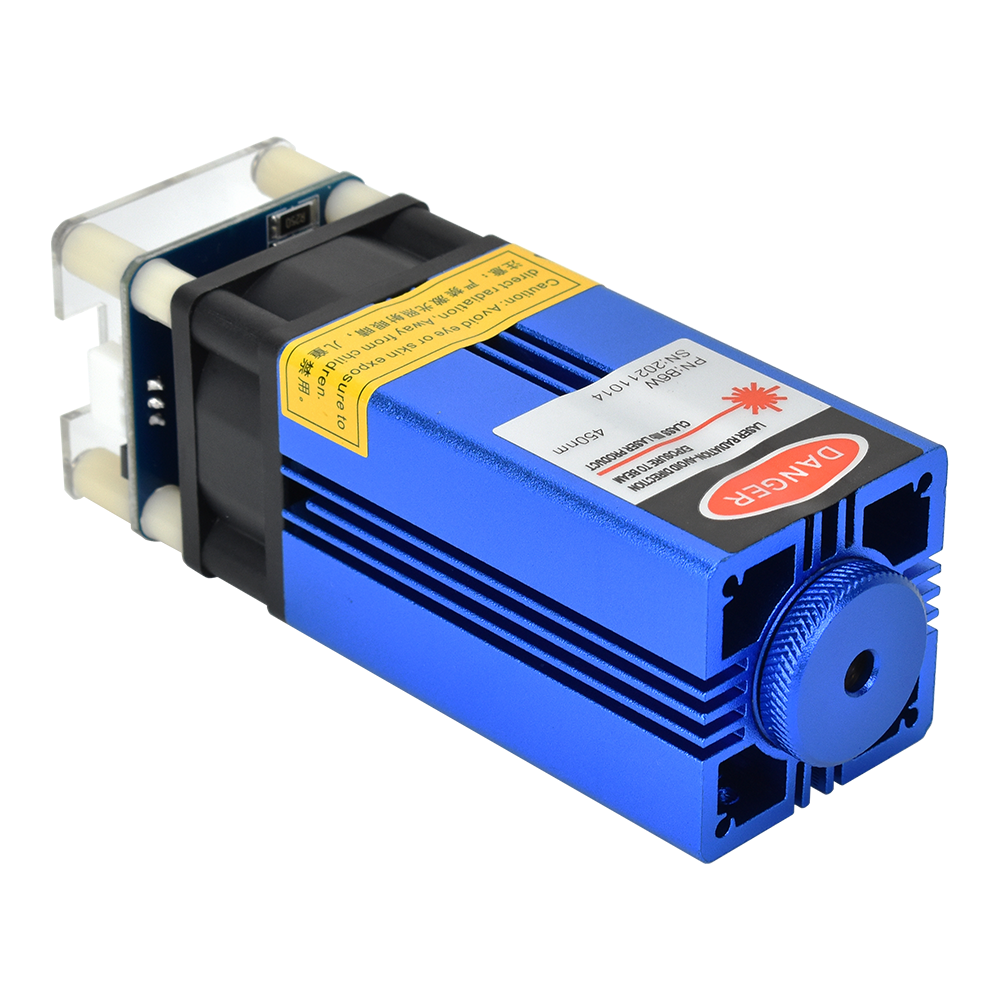

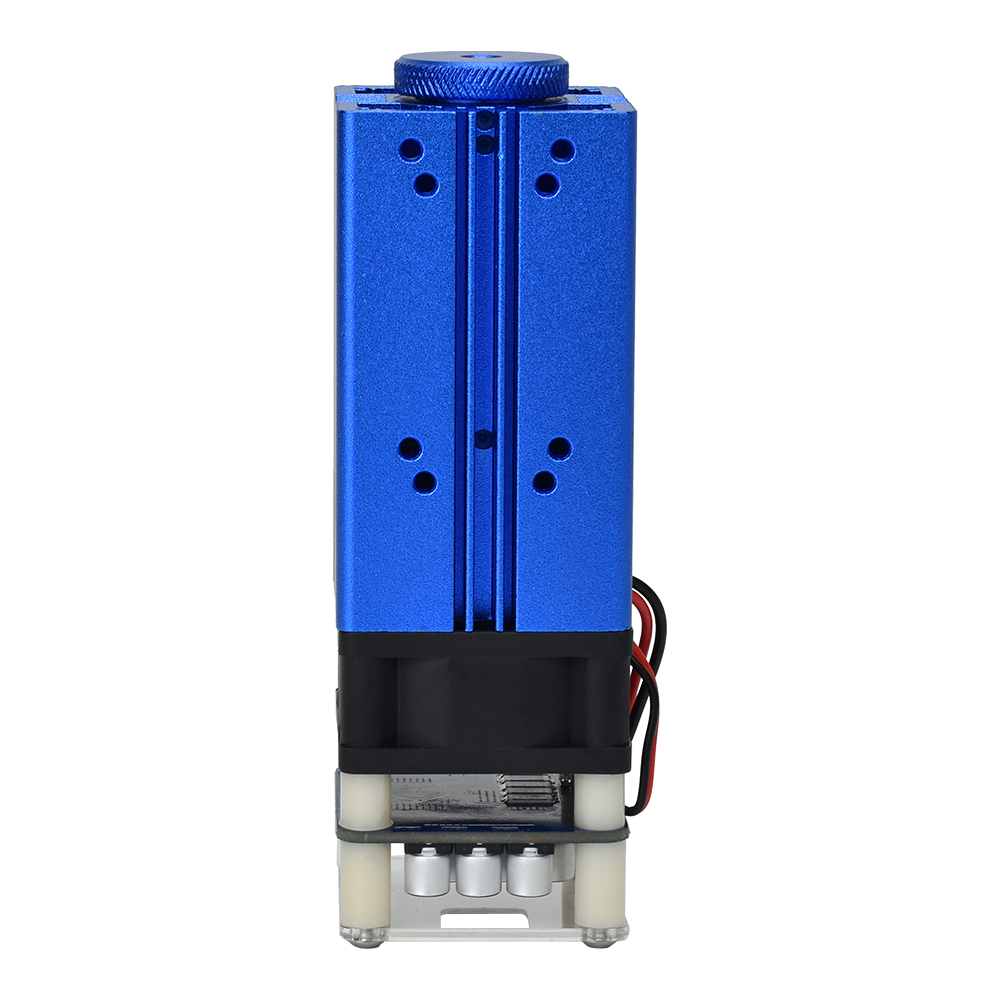

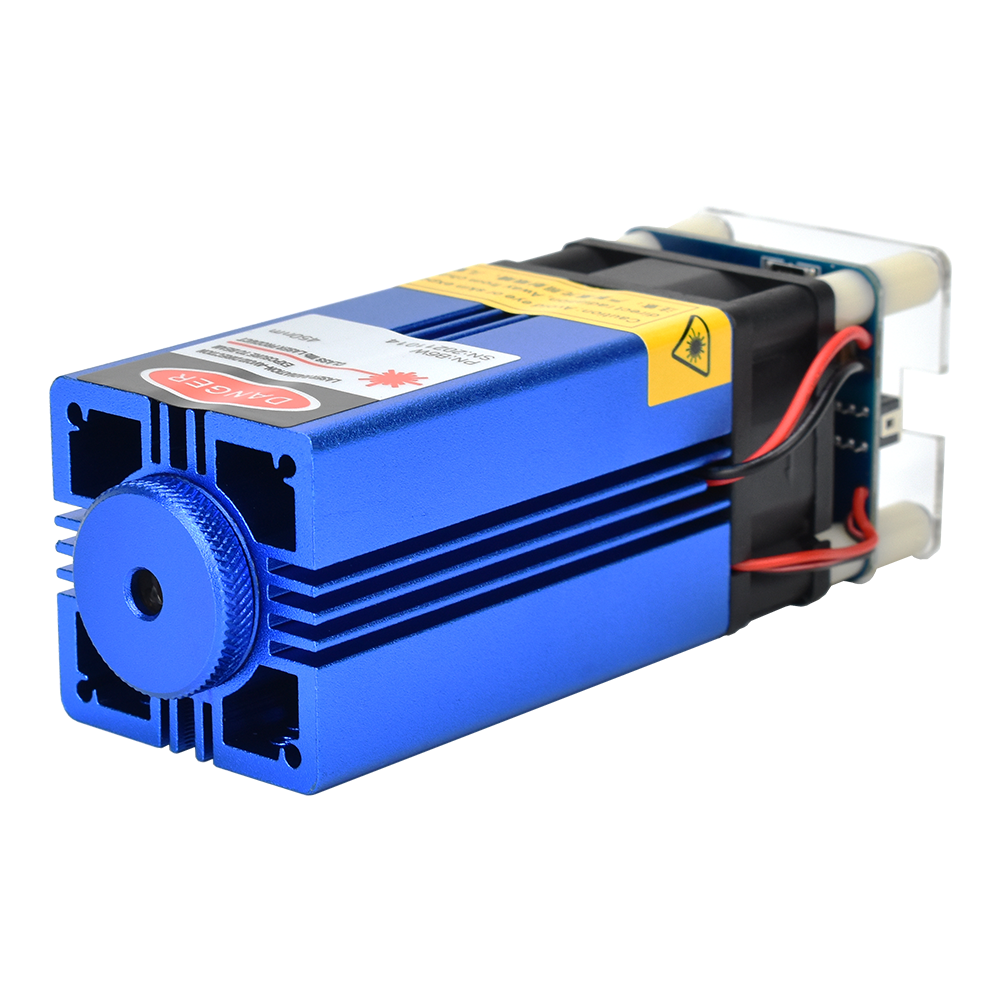

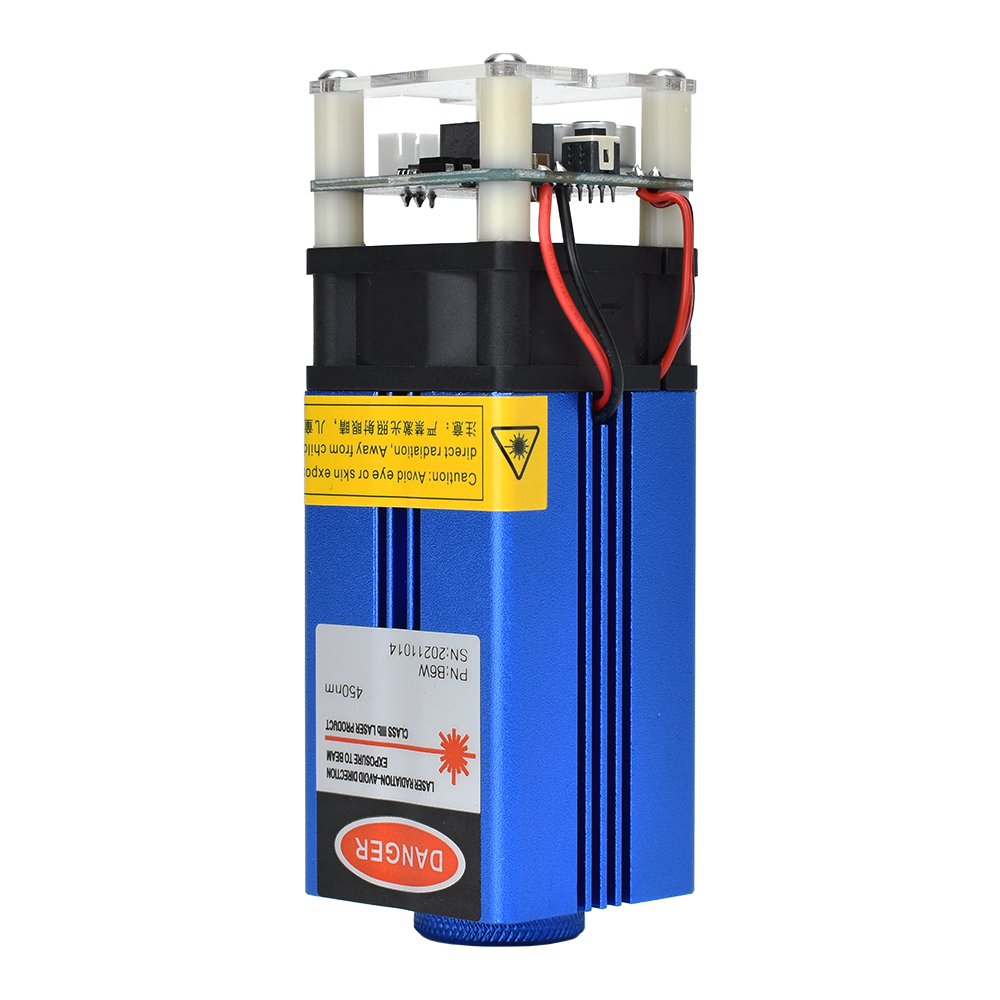

60W Fixed-focus Laser Module Laser Head for CNC Laser Engraver Cutting Engraving Writing Machine New Compressed Spot Technology
Features：
– Designed for Laser Engraver, CNC Mill, DIY Engraving and Cutting.
– Fixed Focus, no need to focus, easy to use.

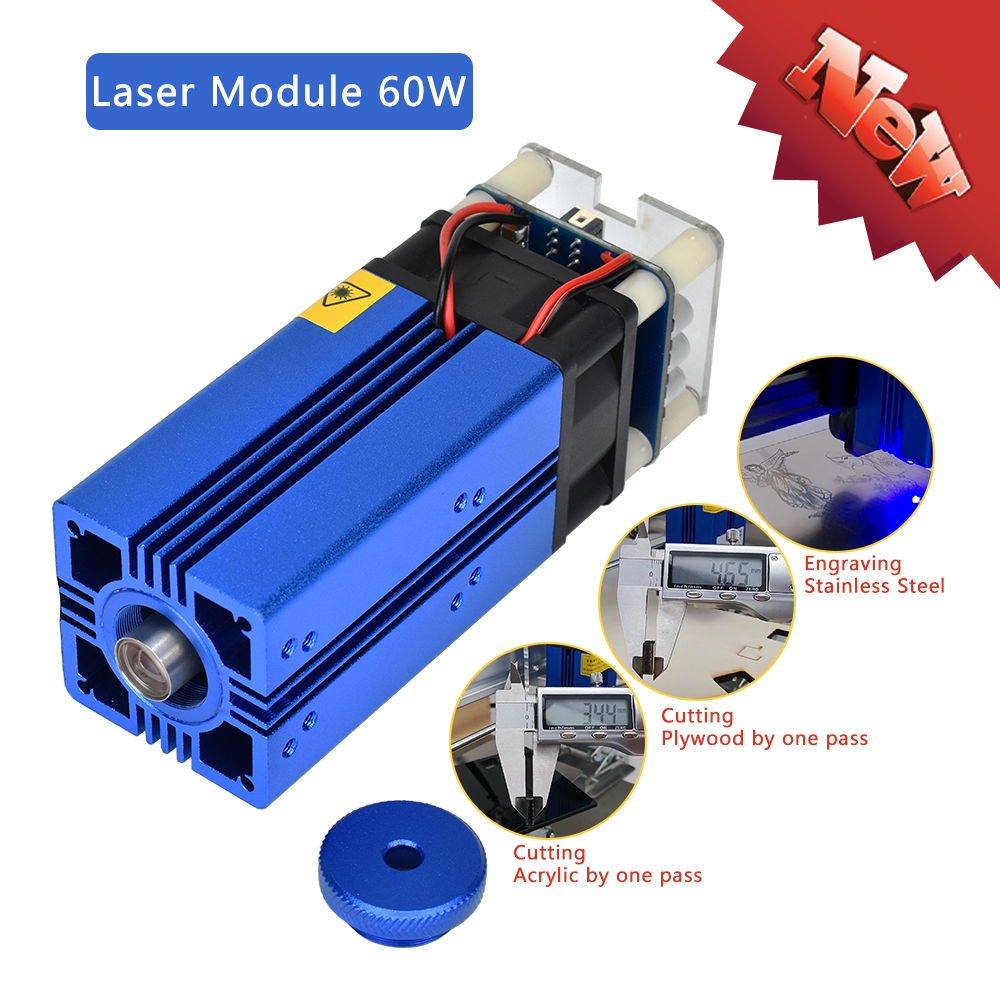

– Can engrave mirror stainless steel directly.
– Can cut 4-5mm Plywood by one pass.
– Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel
– Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board
– 60W Effect Unique Spot Compression, Longer service life.
General Specifications:
Model：450nm Laser
Heatsink Material：Aluminum
Luminous Color：Blue

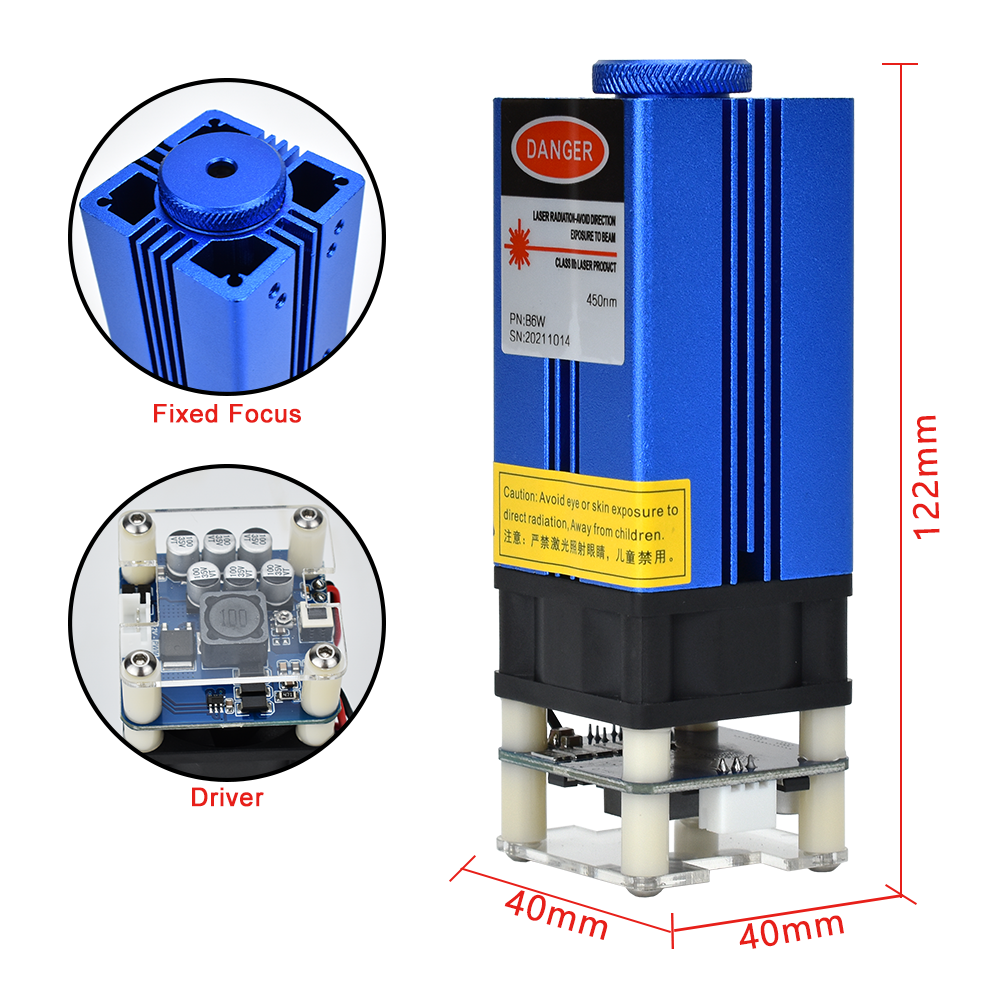

Housing Size：40mm x 40mm x 70mm
Cooling Mode：12V 10000 rpm 40mm cooling fan
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Technical Parameters：
Electric Power：19.2-21.6W
Optical power output：>6W
Effect power output: 60W
Laser Wavelength：450-460nm
Beam Shape：Dot, Square( Not Focusable )
Operating Voltage：DC 12V
Working Current：1.6-1.8A
PWM/TTL Input：DC5-12V

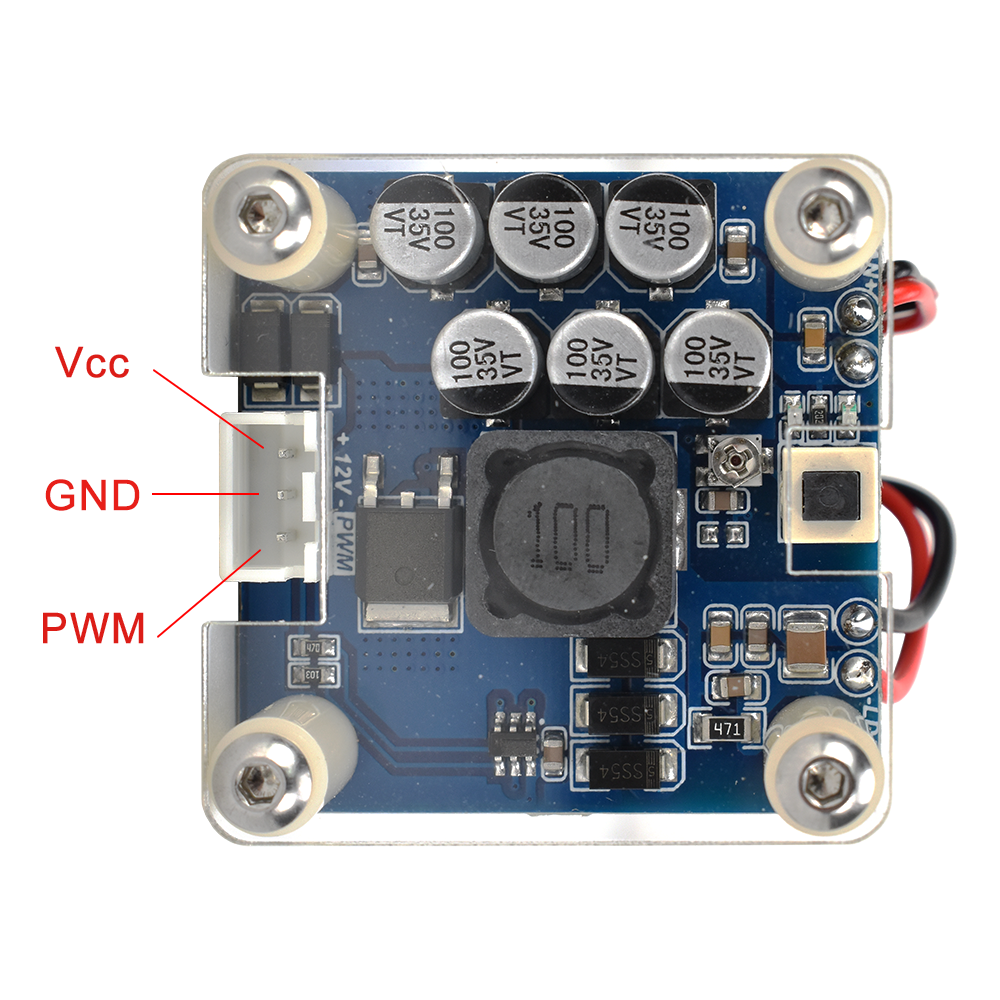

Input Interface：PH2.0-3Pin (+,-, PWM/TTL)
Safe temperature range：<60 ℃
Life Time：over 10000 hours
Focus Length: 27mm
