Description
60w Co2 Laser Cutting/Engraving Machine Power Supply HY-T60 supply for 50/60/70w tube Significantly extend the life of the laser
Model：
T60
Product Features
1.Strong universality：
T series laser power supply is the largest amount and the most widely used field of laser power supply at present ,they are the Best-selling domestic and foreign for decades.
2.Good compatibility
Perfect Match 30W-150W CO2 laser.
3.
TA Series：
TA Series：
（1）Can be equipped with liquid crystal display：the number can shows the magnitude of current, the light indicator, the optical signalwater protection signal indicates signal normal and fault. Integrated potentiometer manually adjusts the current..
（2）The install hole are of the same size：The hole`size of LCD and the original pointer ammeter are the same, no need to drill the hole seperately.
4.The laser equipment will be more secure
Power itself has open circuit protection, and can Prolong the life of power significantly.
5.Control the laser power is simple
can use 0~5V analog signal and 5V PWM signal to control power.
6.Cutting and Engraving Compatible
strong cutting power, fast speed, has great effect for engraving and markin, engraving ground smooth.
7.Power has manual light test button
easy to maintenance.
8.With status indicator light
can judge the fault easily.
Application Area:
laser engraving machine, laser cutting machine, laser marking machine,leather cutting machine, cloth cutting machine, shoe pattern cutting machine, Advertising engraving machine, leather engraving machine, glass engraving machine, laser bag opener, laser beam drilling machine.

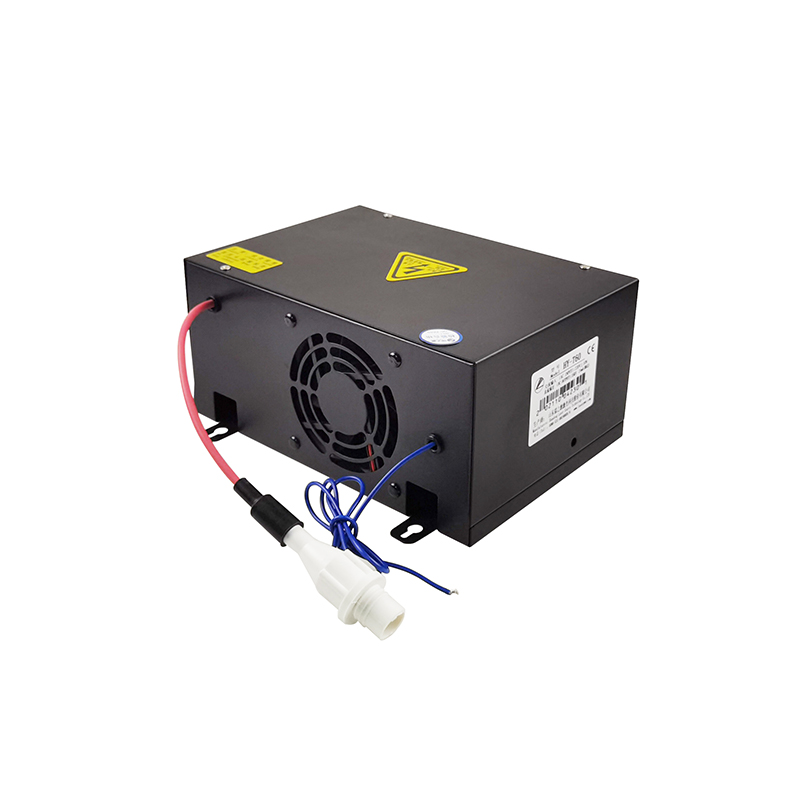

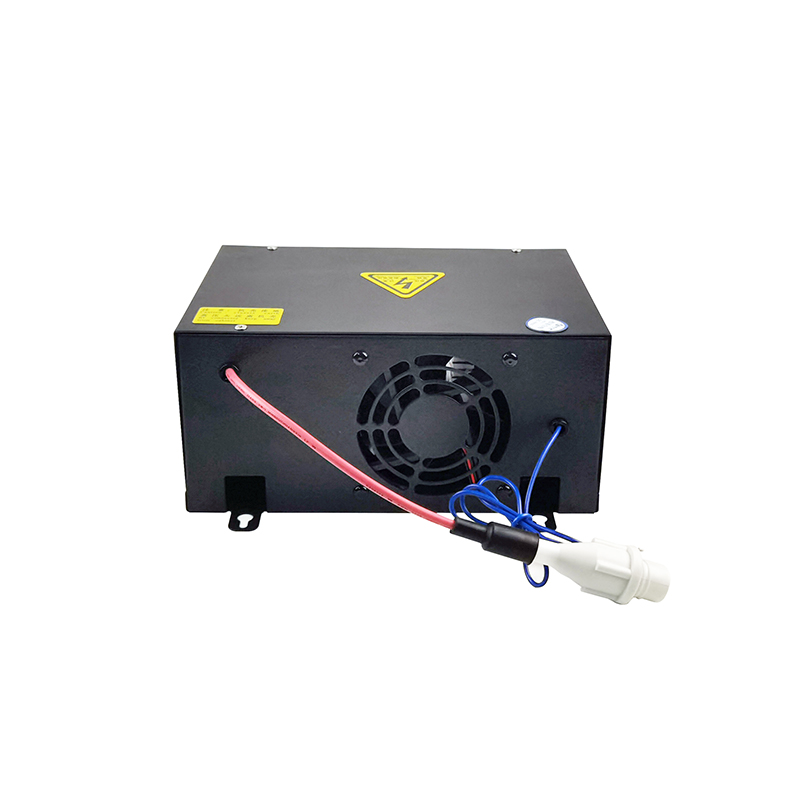

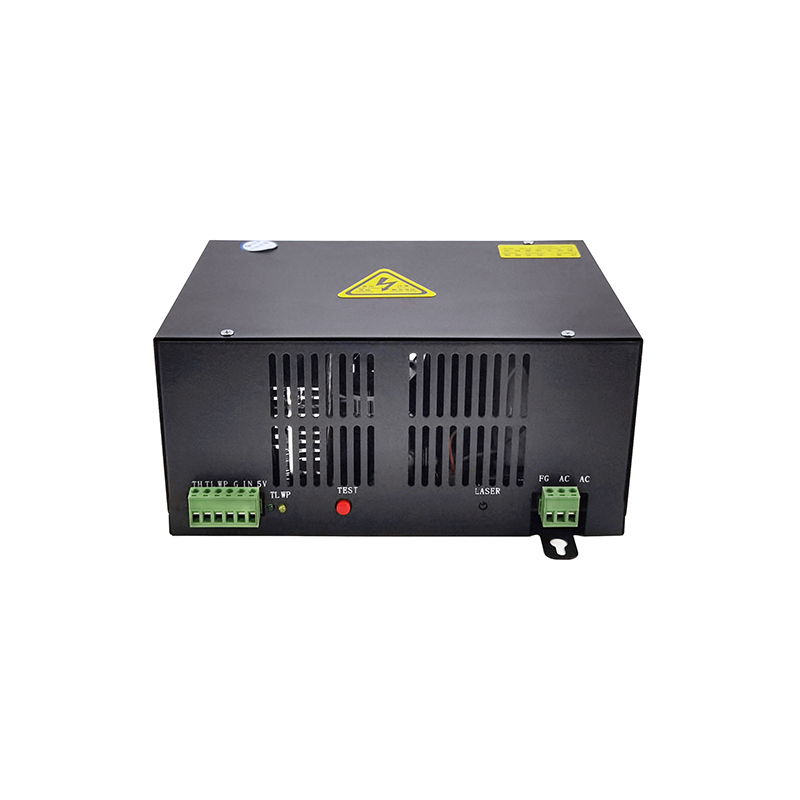

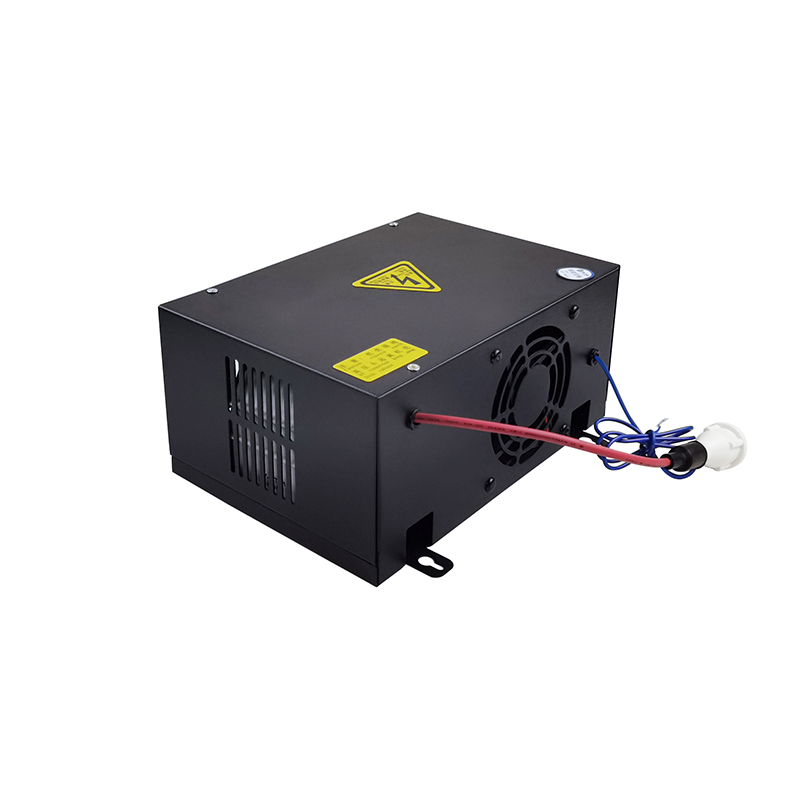

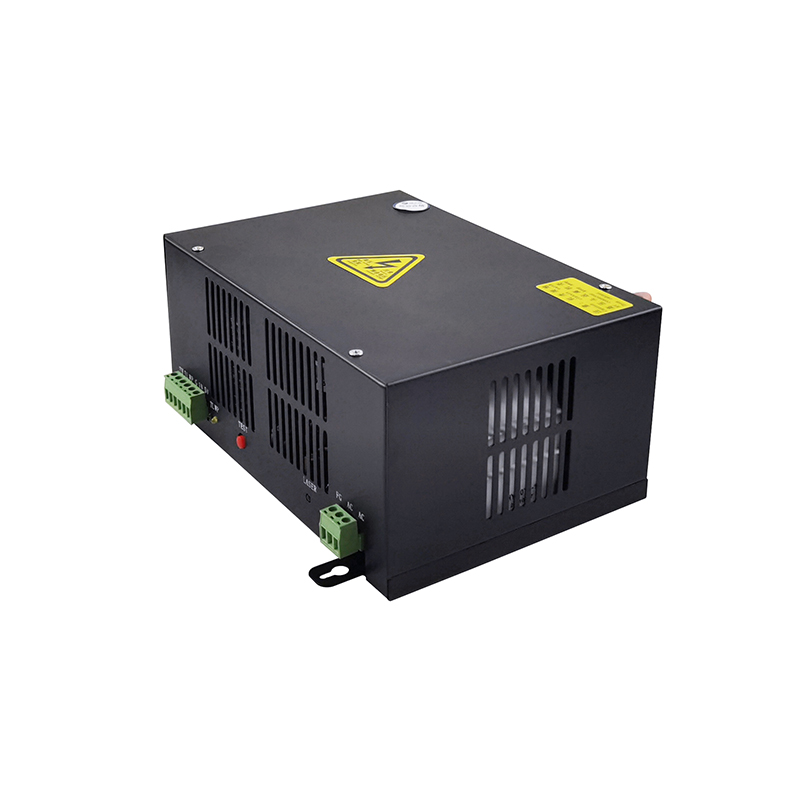

Product Pictures
Product Parameter
|
Model
|
T50
|
T60
|
TA100
|
TA150
|
TA150-BL
|
||||
|
Input Voltage
|
AC220V（110V can be customized）
|
||||||||
|
Frequency
|
47—440Hz
|
||||||||
|
Max Input Power
|
220W
|
350W
|
600W
|
750W
|
750W
|
||||
|
Max Input Current
|
1A
|
1.5A
|
2.7A
|
3.5A
|
3.5A
|
||||
|
Max Output Voltage
|
DC 25KV
|
DC 35KV
|
DC 40KV
|
DC 45KV
|
DC 50KV
|
||||
|
Max Output Current
|
DC 20mA
|
DC 22mA
|
DC 32mA
|
DC 38mA
|
DC 42mA
|
||||
|
Efficiency
|
≥90%（Full Load）
|
||||||||
|
MTBF
|
≥10000 hours
|
||||||||
|
Response Time
|
≤1mS（The time from the switch signal given to the output current rising to 90% of the set current）
|
||||||||
|
Withstand Voltage
|
Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell.
|
||||||||
|
Operation Enviroment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||||||
|
Cooling Method
|
Forced Air Cooling
|
||||||||
|
Matching Laser tube Power
|
30-50W
|
50-70W
|
80-100W
|
100-150W
|
|||||
|
Overall Dimension L*W*H(mm)
|
176*169*97
|
205*178*96
|
283*196*96
|
328*239*101
|
|||||
|
Weight(KG)
|
1.65
|
2.2
|
2.95
|
4.6
|
|||||
|
Shell Color
|
Black
|
||||||||
Install Dimension Drawing
T60 Shell Dimension
