Product description

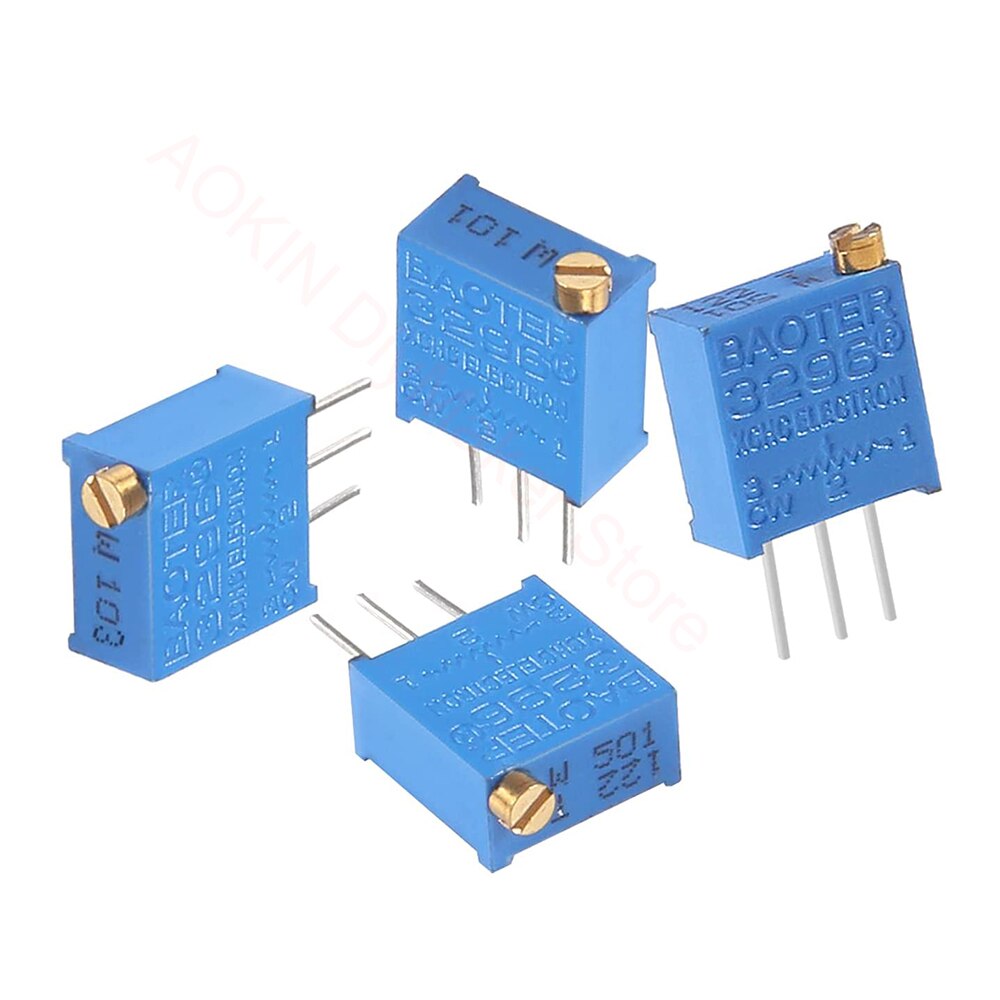

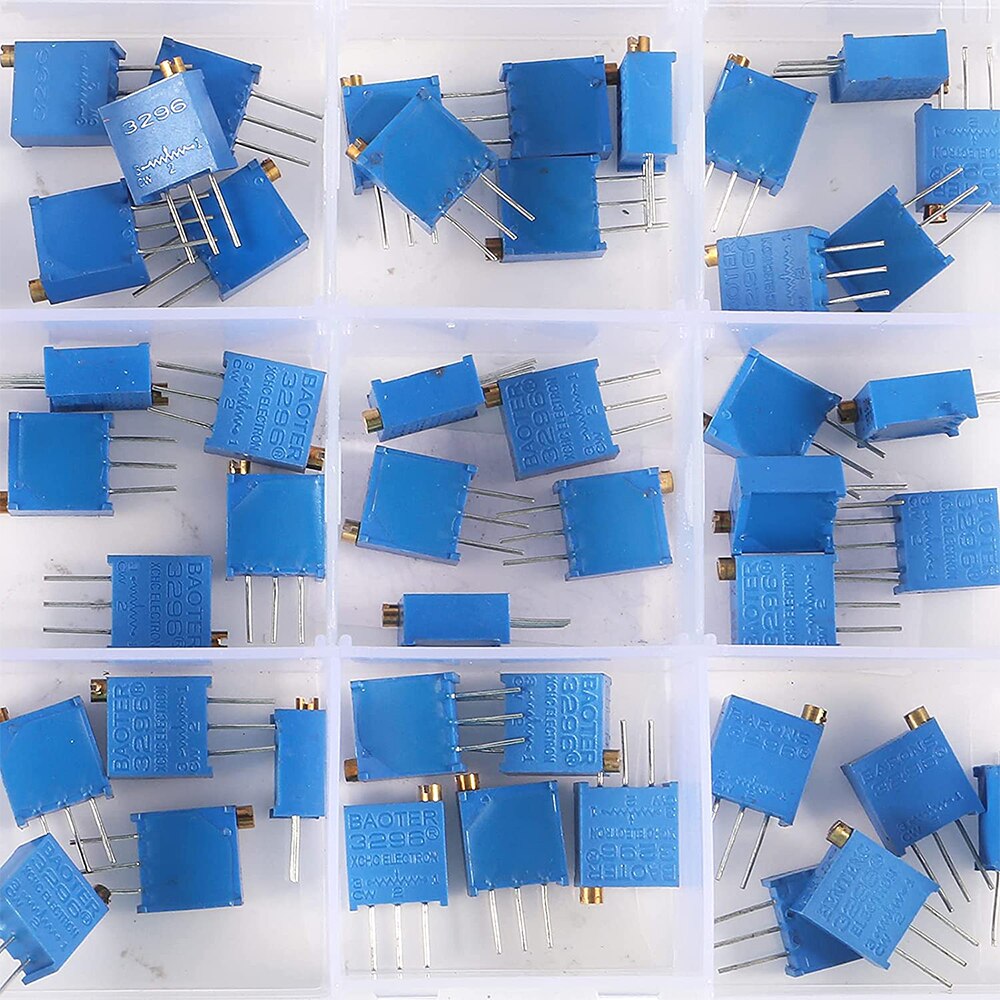

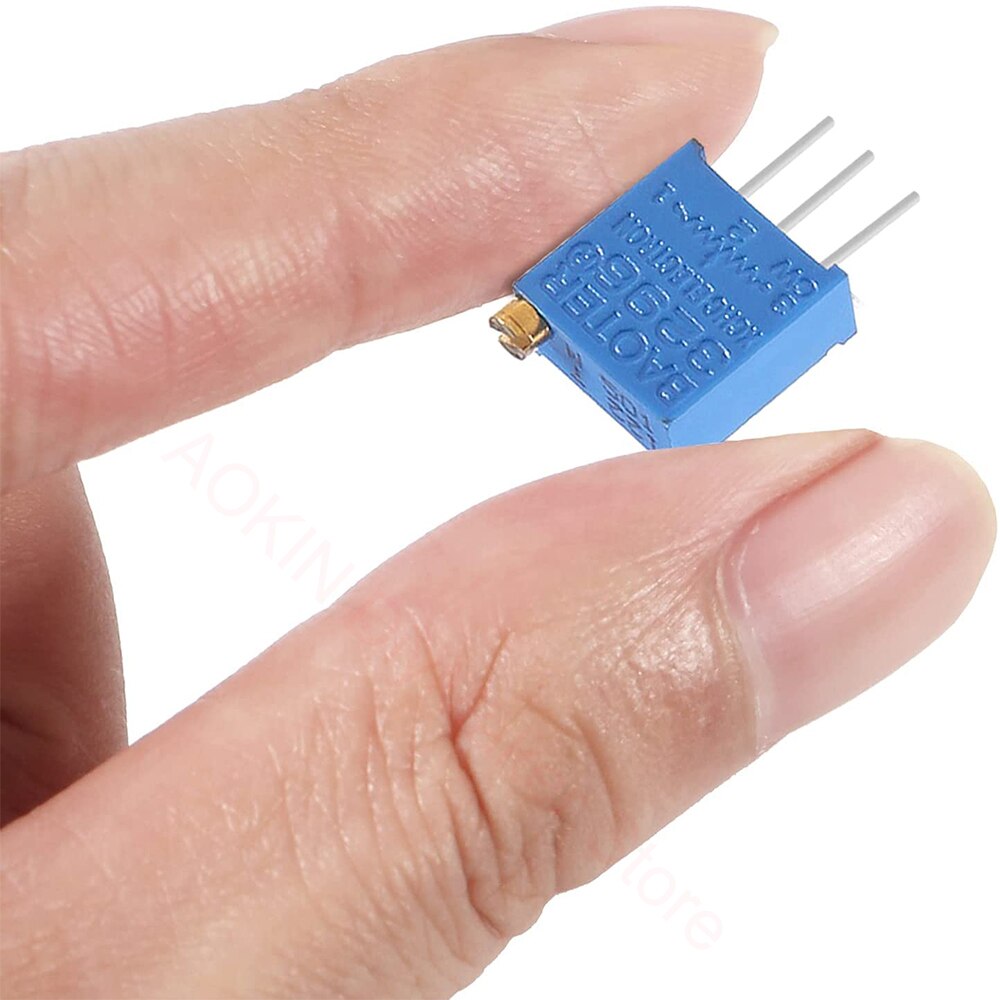

60 pcs High Quality 3296W Multiturn Trimmer Potentiometer Assortment Kit

3296W potentiometer physical characteristics:

Total mechanical properties: 28± 2turns

Starting torque: ≤36mNm

Stop torque: ≥36 mNm

Potentiometer performance:

Resistance range (Ohms): 100~500K

Operating temperature range: -55°C ~+125°C

Temperature coefficient: ±200ppm/°C

Resistance deviation: ±10%

Resistance change characteristics: B

Terminating resistor: ≤1%R or 2Ω

Contact resistance change: ≤3%R or 3Ω

Insulation resistance: R1≥1GΩ

Withstand voltage: 101.3Kpa 600V, 8.5Kpa 250V

Effective electric stroke: 25± 2turns

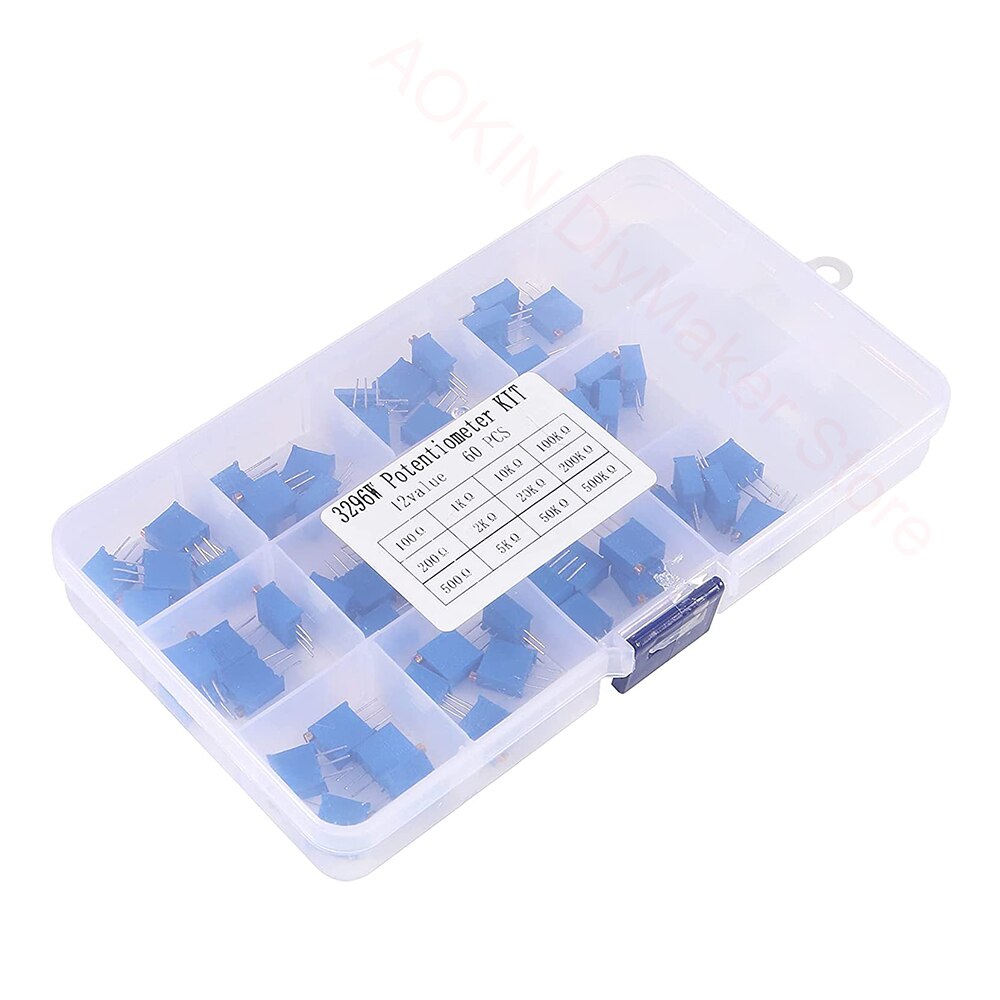

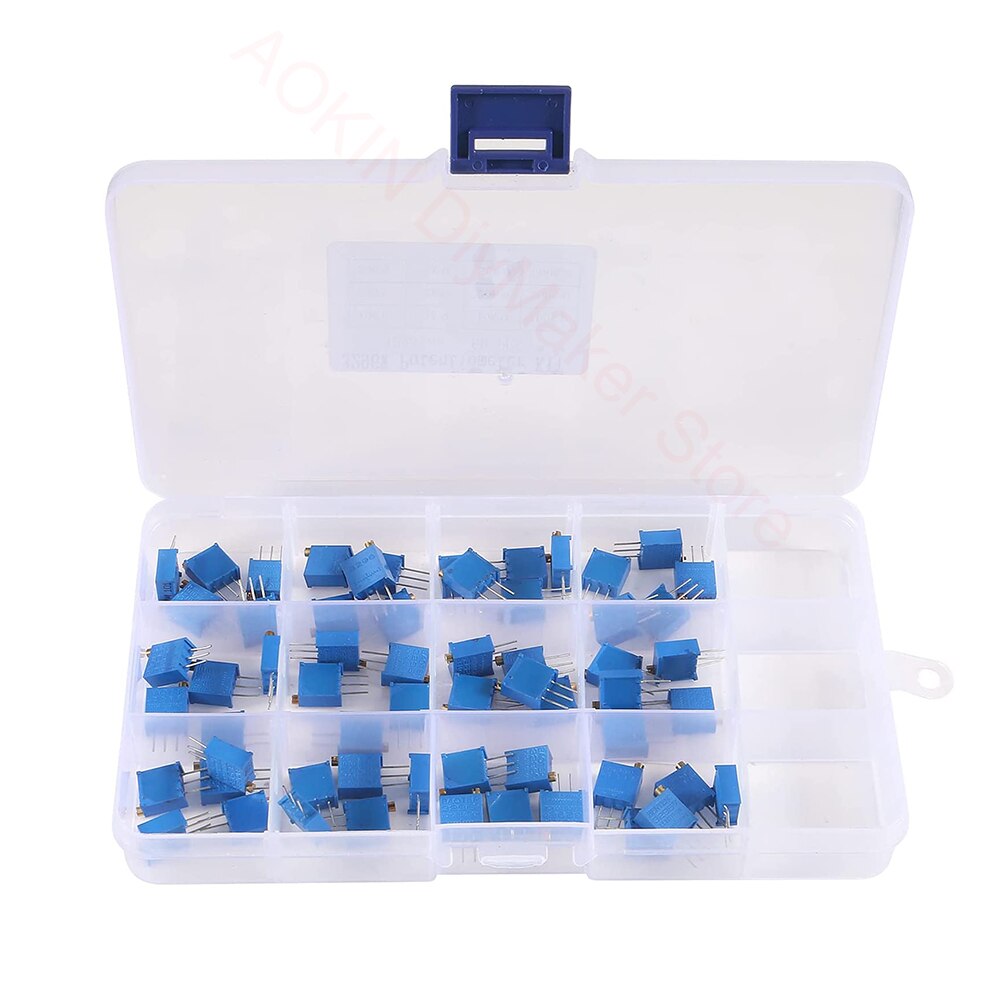

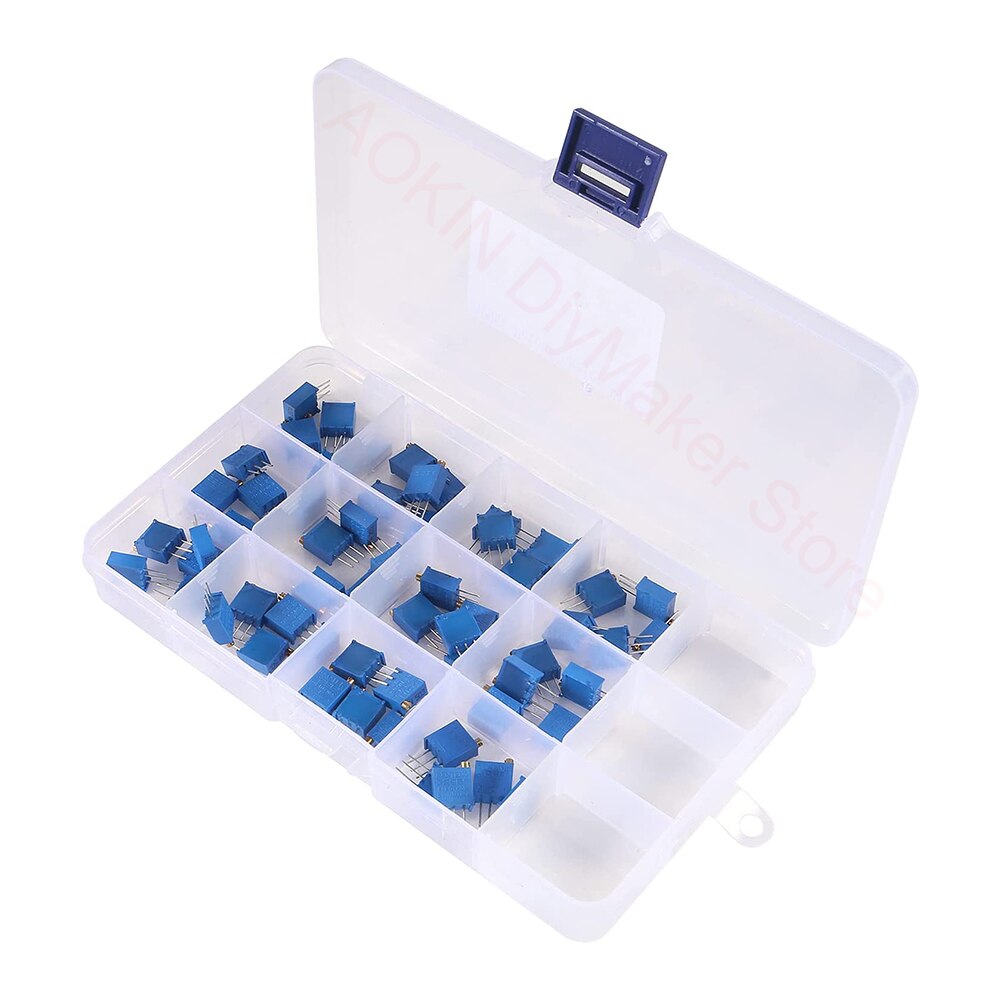

Package Includes:

1. 100Ω (101) – 5pcs

2. 1KΩ (102) – 5pcs

3. 10KΩ (103) – 5pcs

4. 100KΩ (104) – 5pcs

5. 200Ω (201) – 5pcs

6. 2KΩ (202) – 5pcs

7. 20KΩ (203) – 5pcs

8. 200KΩ (204) – 5pcs

9. 500Ω (501) – 5pcs

10. 5KΩ (502) – 5pcs

11. 50KΩ (503) – 5pcs

12. 500KΩ (504) – 5pcs
