Description

This kind of engraving machine has the function of printing carving, cutting (hollowing out function). It is more practical than ordinary engraving machine.

Mobile Phones Bluetooth, Android Mobile Phones and Apple Mobile Phones can connect devices and control them.

Unique red-light positioning design, X and Y axis can project two positioning lines to assist the placement of objects.

Gantry structure design, high strength machine body, wider and thicker base, high precision, high stability and durability

The response of motion instructions can reach the level of delicacy and run faster.

Support no computer operation, no mobile phone operation, just save a picture, connect the power supply, press a button, it can operate.

The three motors work at same time, the X and Y axis are controlled separately, the belt conveys, the noise is low, and the stability is higher.

Adjustable blue laser head, it has fast speed, supporting a variety of materials carving and cutting (hollow)

Wear a pair of protective glasses to protect your eyes from laser damage

Widely used: it can be used for printing, hand tools and industrial processing

Does it include goggles?

Included, each machine is provided with one goggle. Please contact us if you need more.

What about the lifetime of the laser head?

About three months to a year, but it’s also closely related to how you use it. The main factors are: temperature, time intensity, current, voltage, antistatic treatment, etc.

How to judge whether the laser head is faulty.

1.When the machine works, the light is obviously weakened.

2.When the machine is working, the light weakens, scatters and cannot be focused.

3.When the burning time, carving speed, carving material and focal length are all suitable, but no trace can be carved on the object.

Laser head is guaranteed for 6 months:

If the laser head burns out during the warranty period, we will provide a replacement laser head free of charge.

specification:

Main color: black

Material: Aluminum alloy, acrylic

Driving system: stepping motor (stepping accuracy: 0.01mm)

Carving speed: 500-15000mm/min

Cutting speed: 1-1000mm/min

Workspace: 600*700 mm (maximum)

Cooling mode: air cooling

Working temperature: -10-45 degrees

power: 3000mw

Laser wavelength: 450 nm

Image formats: jpg, png, bmp, gif

Image Carving Patterns: Bitmap Carving

Support system: win7/win8/xp/win10

Control software: Easy Engrave software supports adjustable power supply, weak light positioning, origin positioning, arbitrary point positioning and center point positioning.

Power supply voltage: 12V

Power supply current: 5A

Working mode: Continuous optical output, long working time

Optimum focal length: 4-6cm

Product size:

Product weight:

Package size:

Package weight:

note:

1.It can’t engrave metal, acrylic acid or any other flame retardant material.

2.To prevent the laser head from overheating and burning out, please work continuously for 60 minutes and shut down the machine for at least 5 minutes.

3.Please wear professional protective glasses during use

4.Children are prohibited from playing

5.It is suggested that in the case of laser focusing, the power is too high, and the skin should not be illuminated by strong light.

6.Avoid using inflammable materials or gases to avoid fire/explosion

7.Do not update the firmware. The original firmware cannot be changed.

Packing list:

1 engraving machine

1 power cable

1 USB line

1 Inner hexagon spanner

1 one Goggles

1 installation CD

1 User Manual (English)

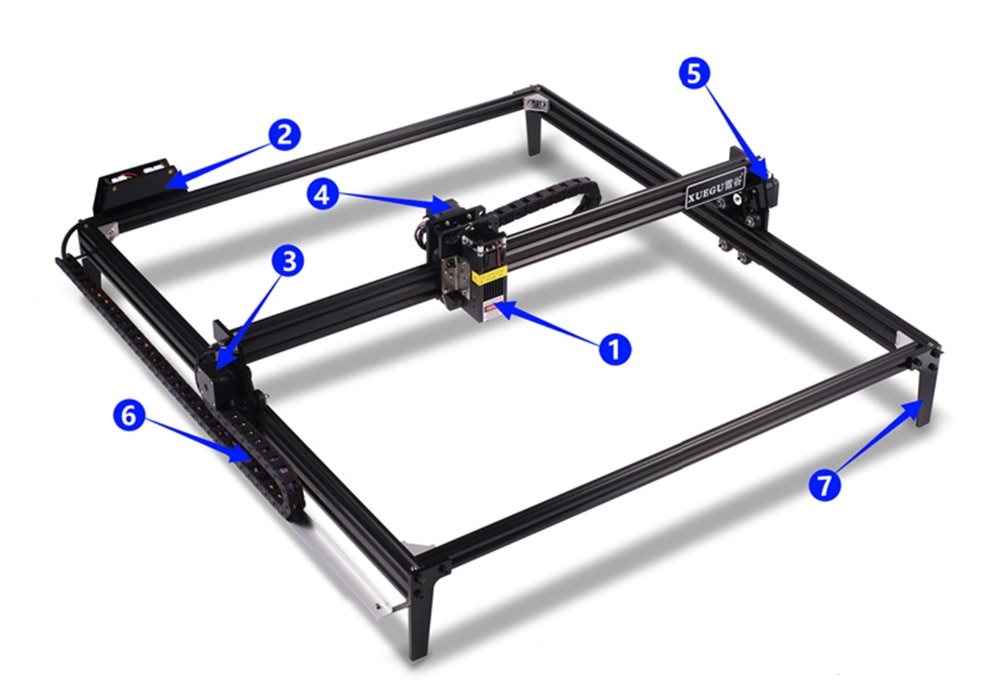

1.Laser module  2.A main board   3.Y-axis 42 stepper motor (1)  4.X-axis 42 stepper motor



5.Y-axis 42 stepper motor (2)       6.drag chain             7.12cm high acrylic leg

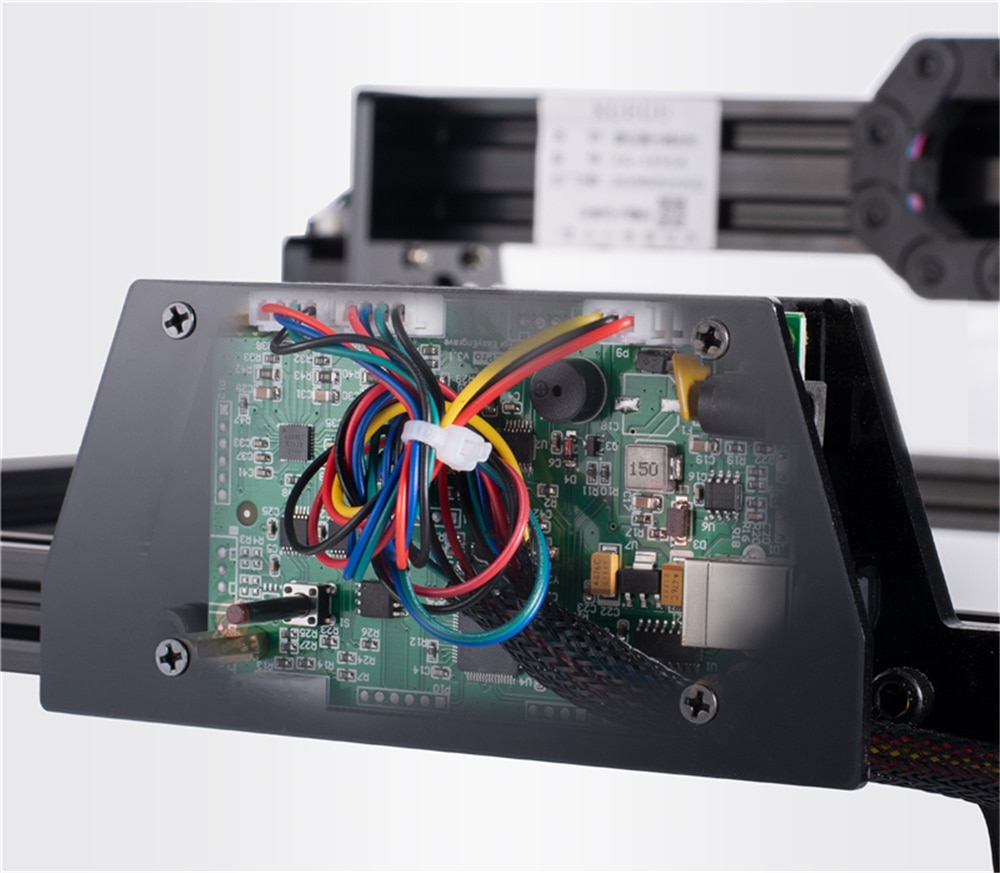

New upgrade motherboard

Imported ARM32 control chip motion instructions can reach subtle level accordingly

1. Precise algorithm: the movement instruction can reach the subtle level accordingly

2. Faster speed: engraving speed is 2-3 times faster than the old model

3. Higher precision: the effect is clear and beautiful, which is more than 2 times higher than the old model

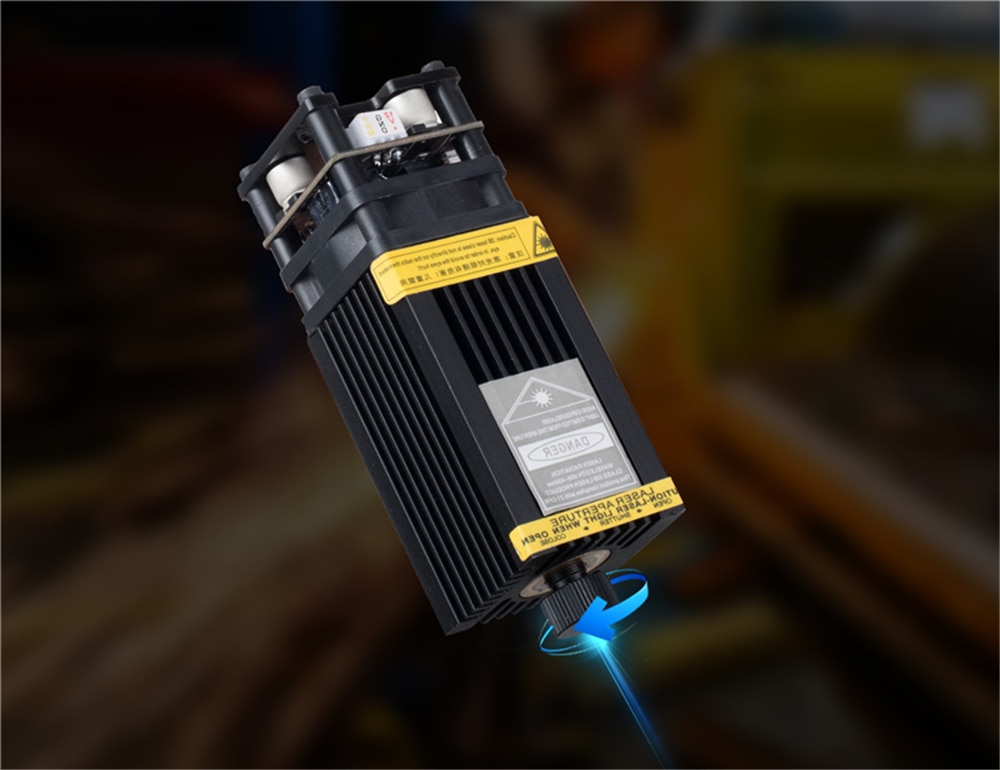

Focusing laser head

Only after going out of the warehouse after strict low-light test, to ensure the stability and long-term stability of the laser head

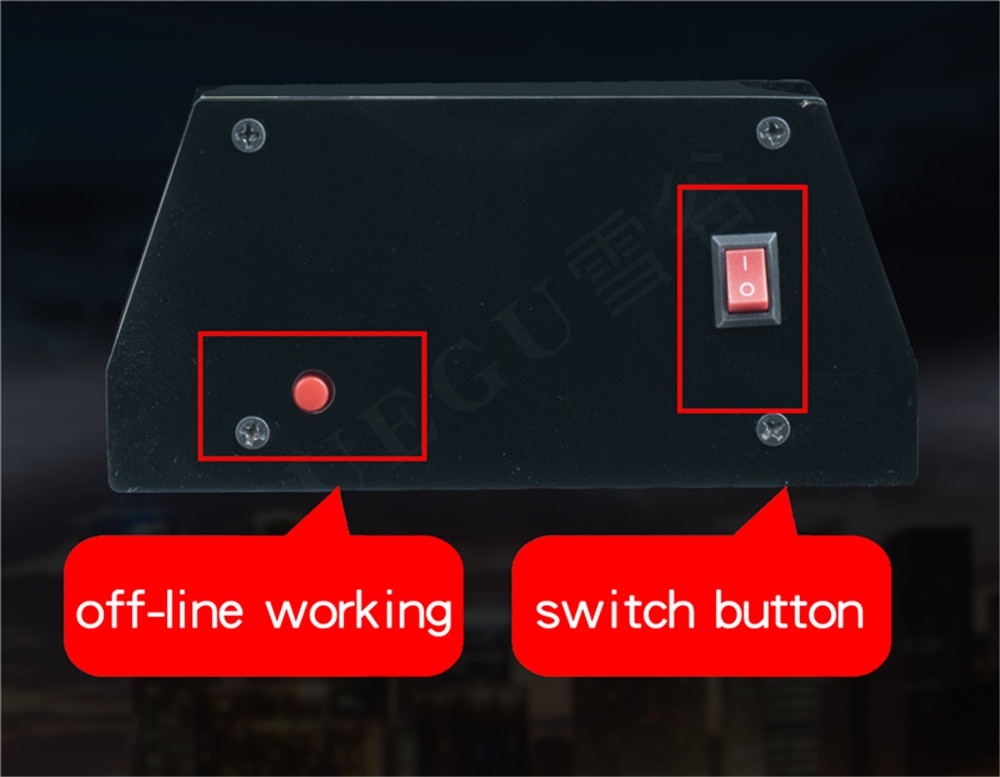

Support one-button offline function

The machine can save a picture. Repeated work does not need to be connected to a computer / mobile phone. It only needs to be connected to the power supply. Short press once to locate and long press the engraving. Switching the machine on and off does not affect the machine’s stored data. After turning on the machine, you can directly press the offline button to start work.

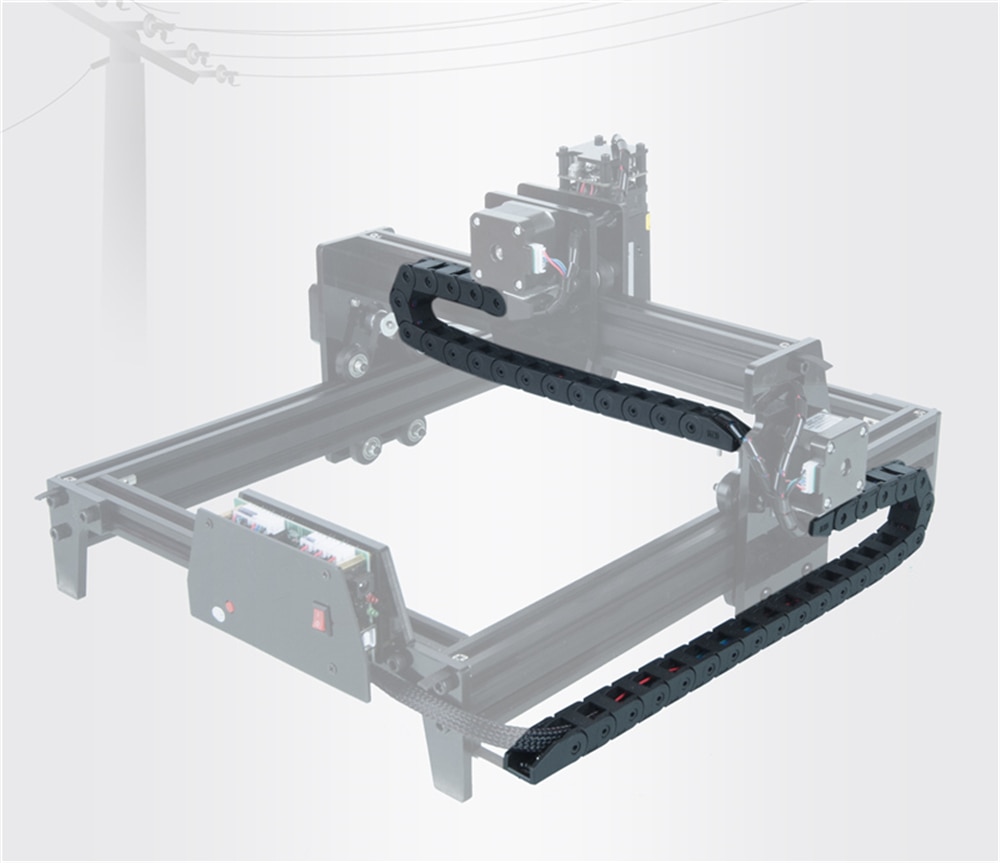

Energy chain wiring + gantry double Y axis.

Use drag chain wiring to prevent collision and stumbling, and truly achieve high speed and stable movement

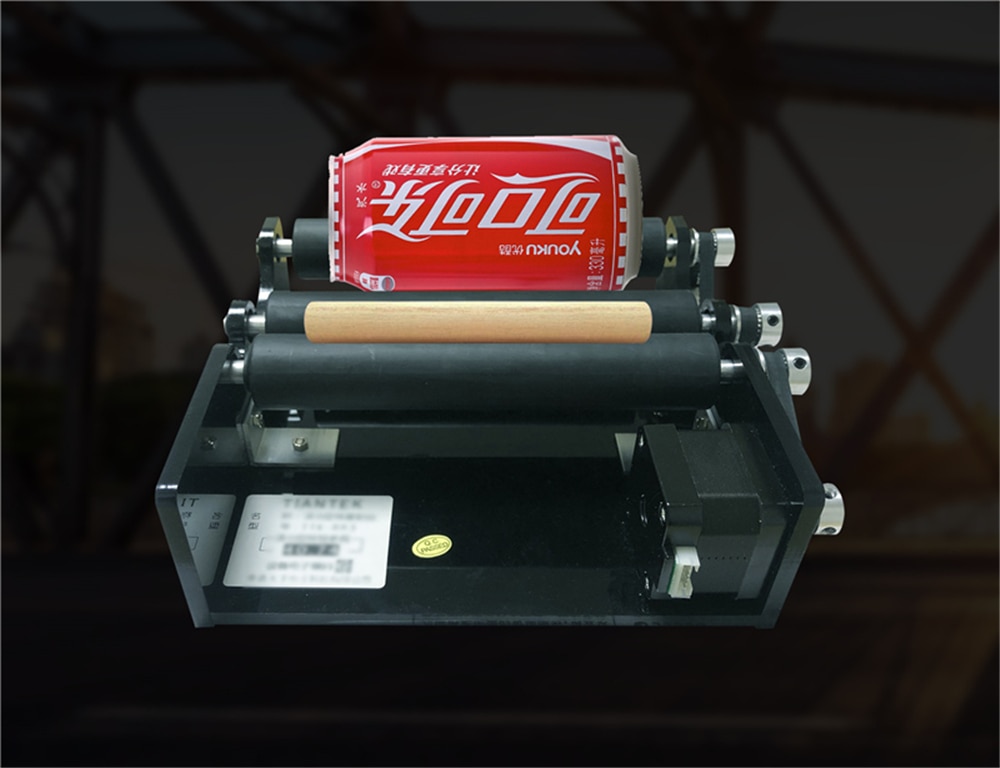

Rotating roller supports cylindrical object engraving 360 °

(Need to buy a package with a roller)

Three axes rotate synchronously, supporting standard cylindrical objects with a diameter of 5mm-200mm

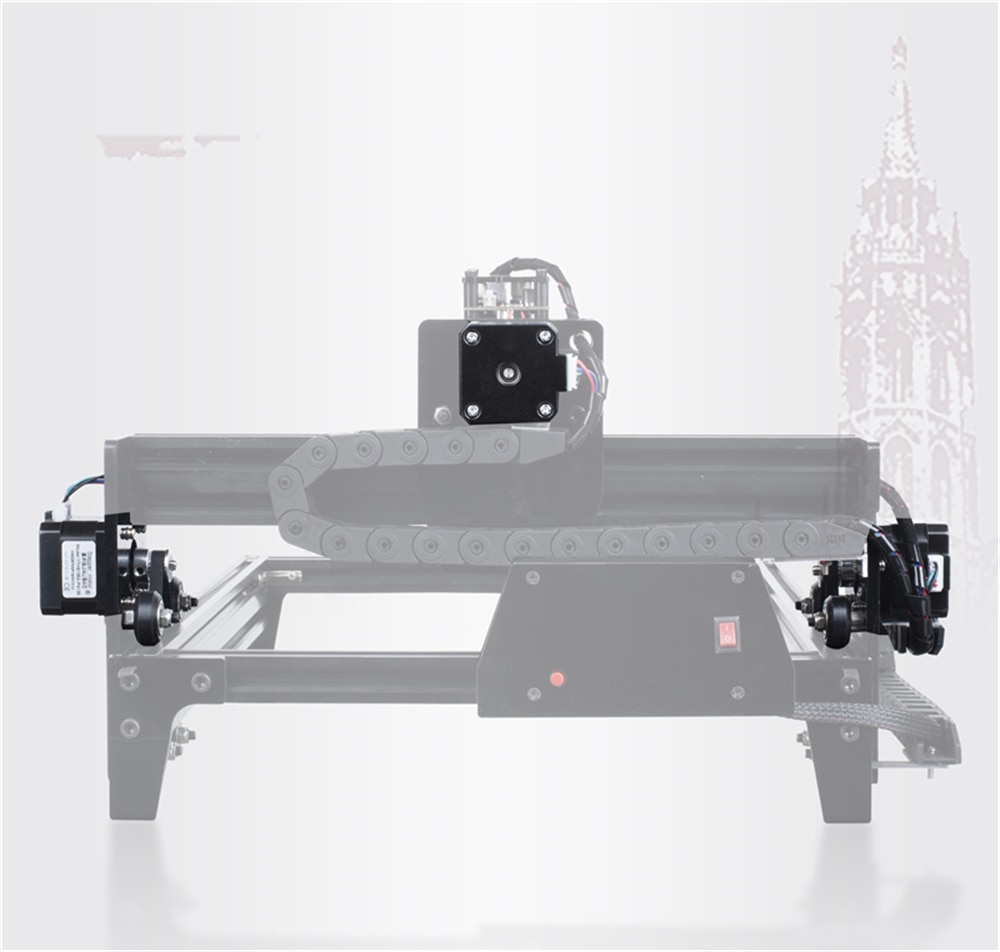

Three motors work simultaneously

High-quality 42 stepper motor, belt transmission, low noise, high stability.

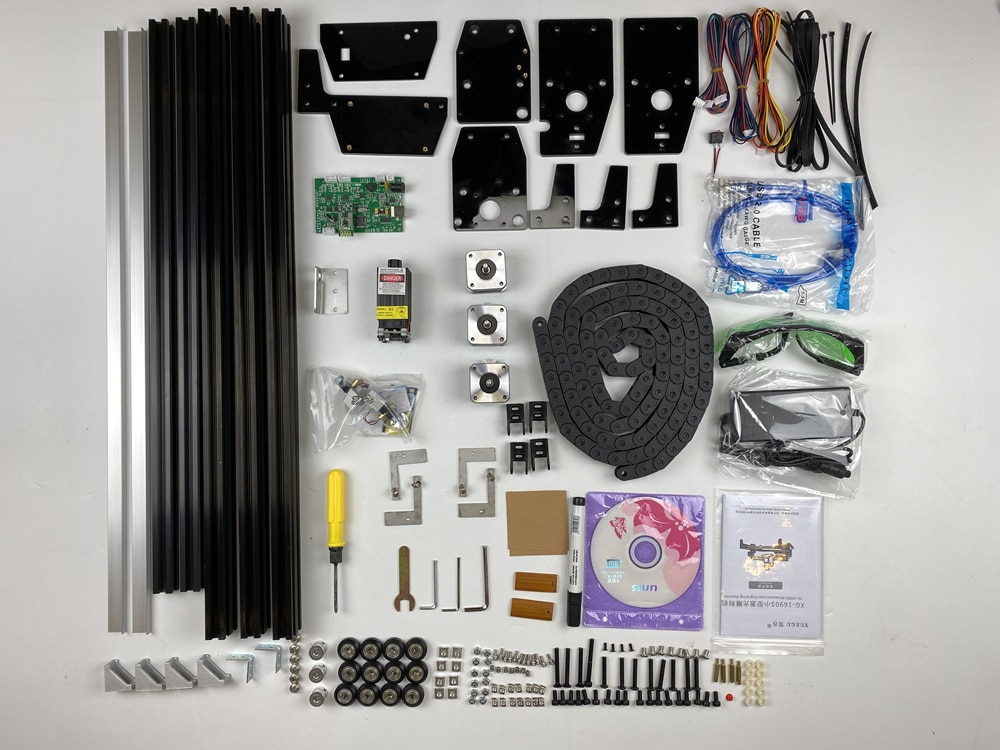

Accessories display

Effect map
