Description
- Origin: CN(Origin)
- Certification: NONE
- DIY Supplies: ELECTRICAL
- Brand Name: BWD
- Model Number: WC808VS600
- Laser Type: Nd: Yag Laser
- Style: PORTABLE
- Feature: Hair Removal
- Application: For Commercial & Home Use
- Certification: ISO
- Item: Hair Removal Machine Spare Parts
- Wavelength: 808nm
- power: 600w
- power per bar: 60w
- Warranty: 18months,no limitation of shots
- Cooling: Water Cooled
- Application1: hair removal
- Application2: epilation device
- Usage: diode laser epilator
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{margin:0;padding:0}#detail_decorate_root .magic-6{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-7{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{width:371px;height:371px;overflow:hidden}#detail_decorate_root .magic-9{position:relative;left:0;top:0;width:371px;height:371px}#detail_decorate_root .magic-10{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-11{width:364px;border-collapse:collapse}#detail_decorate_root .magic-12{padding:5px 10px;overflow:hidden;width:126px;box-sizing:content-box}#detail_decorate_root .magic-13{padding:5px 10px;overflow:hidden;width:197px;box-sizing:content-box}#detail_decorate_root .magic-14{padding:5px 10px;overflow:hidden;width:125px;box-sizing:content-box}#detail_decorate_root .magic-15{padding:5px 10px;overflow:hidden;width:198px;box-sizing:content-box}#detail_decorate_root .magic-16{width:371px;height:320px;overflow:hidden}#detail_decorate_root .magic-17{position:relative;left:0;top:-3px;width:333.9px;height:333.9px}#detail_decorate_root .magic-18{padding:5px 10px;overflow:hidden;width:124px;box-sizing:content-box}#detail_decorate_root .magic-19{padding:5px 10px;overflow:hidden;width:199px;box-sizing:content-box}#detail_decorate_root .magic-20{width:750px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:381.579px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:381.579px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:335px;height:335px}#detail_decorate_root .magic-27{margin-top:-17.091644204851754px;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-30{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-31{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:308.571px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:308.571px}
Specification

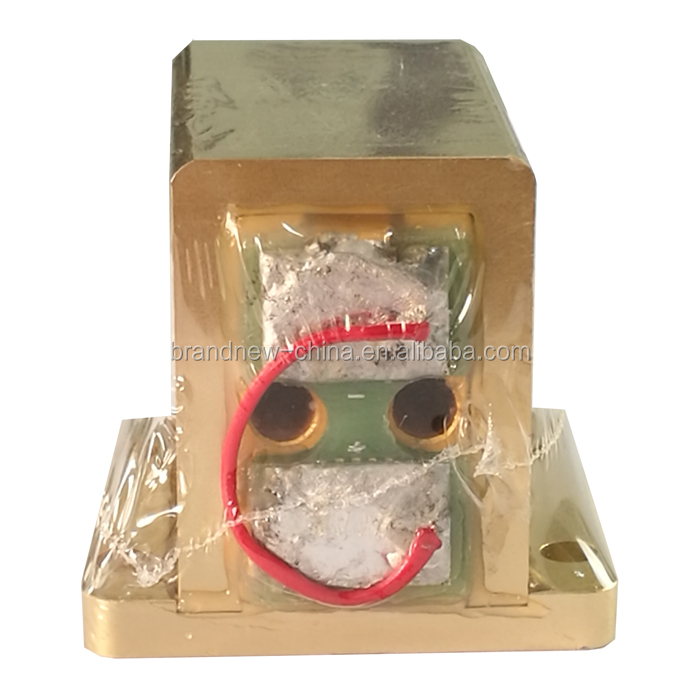

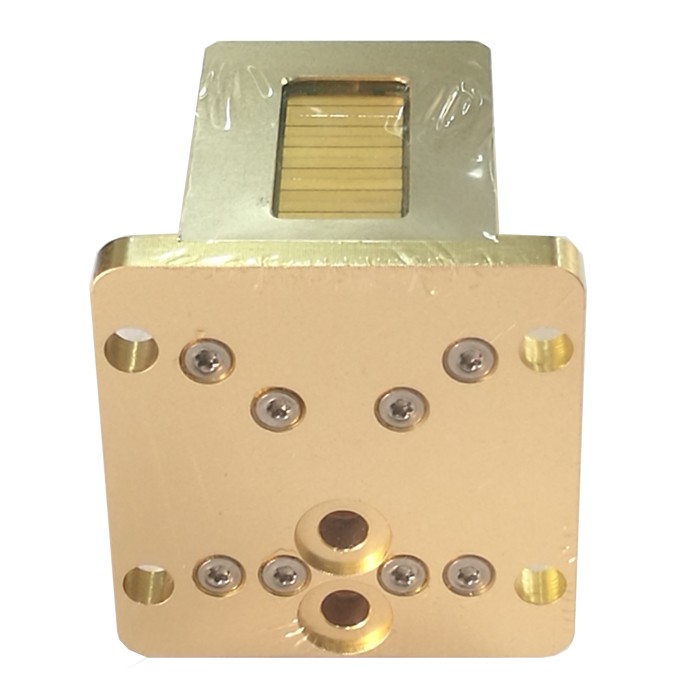

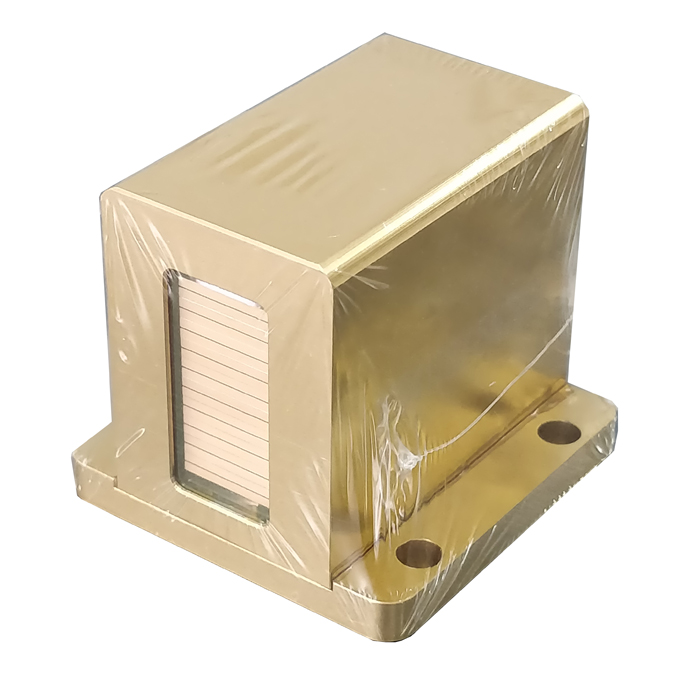

600W 808nm 10Bars Water Cooled Diode Laser Bar Stack for Hair Removal Machine
|
Item no.
|
Item No.: WC808VS600
|
|
Wavelength
|
808nm
|
|
Working Mode
|
QCW
|
|
Power per Bar
|
60W
|
|
Number of Bars
|
10
|
|
Bar to Bar Space
|
2mm
|
|
Fast Axis Divergence(FWHM)
|
38degree
|
|
Slow Axis Divergence(FWHM)
|
12degree
|
|
Polarization Mode
|
TE
|
|
Operating Current
|
55~60A
|
|
Threshold Current
|
11~13A
|
|
Operating Voltage
|
19~21V
|
|
Power Conversion Efficiency
|
48%
|
|
Operating Temperature
|
15~30℃
|
|
Storage Temperature
|
0-55℃
|
Application

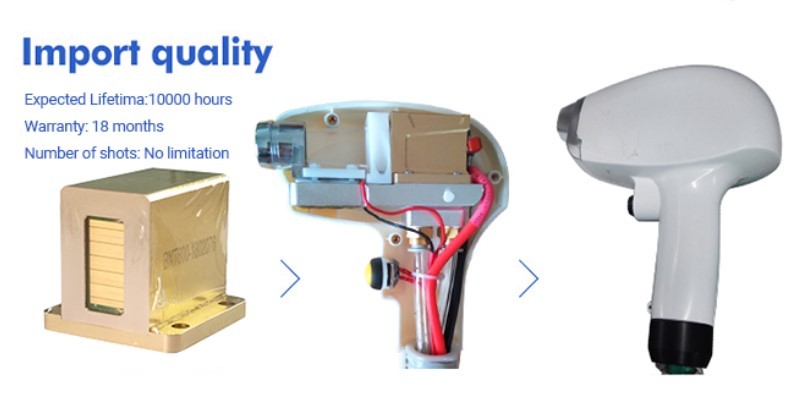

Warranty
BrandNew Technology use United States imported chip and Japanese heat sink material, then mounted in our own lab.
So our quality must be top on the market.
Warranty is 18 months, no limitation of shots.

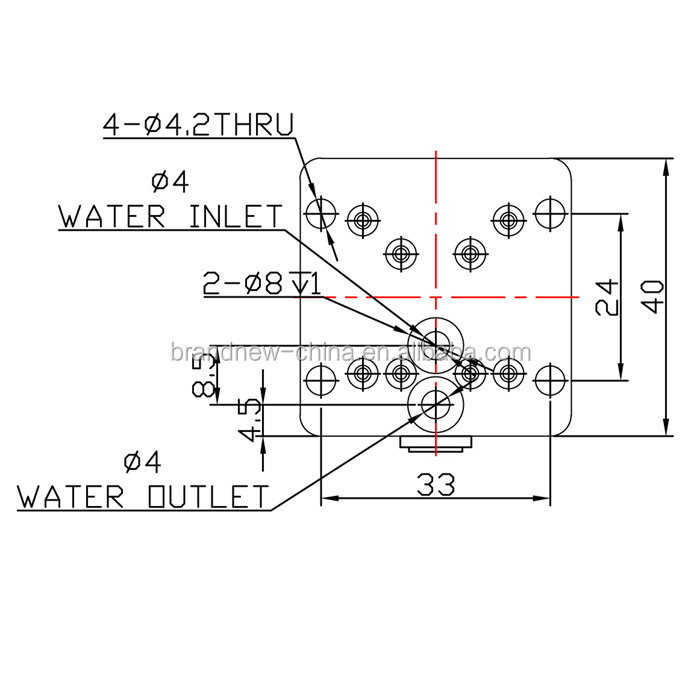

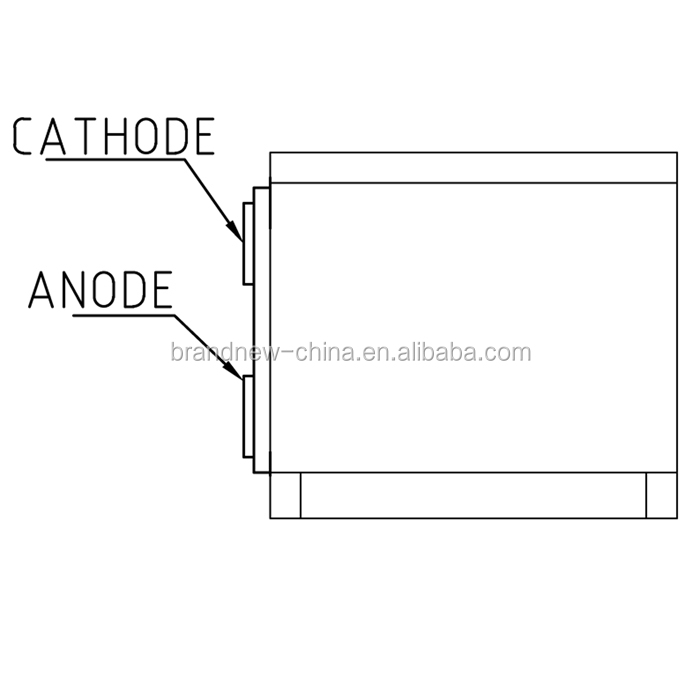

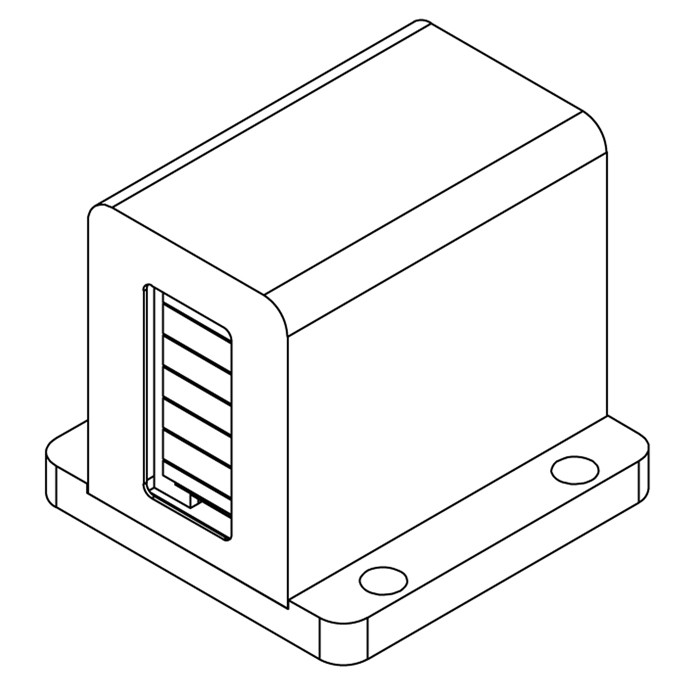

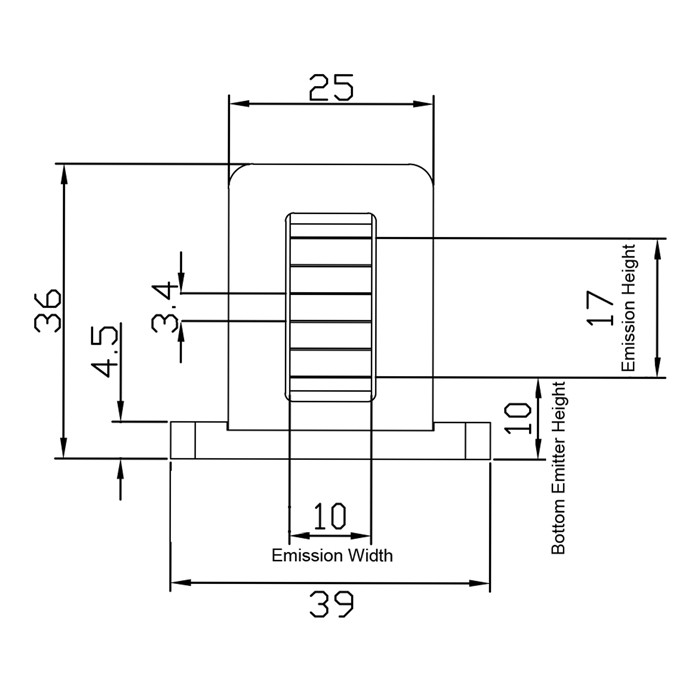

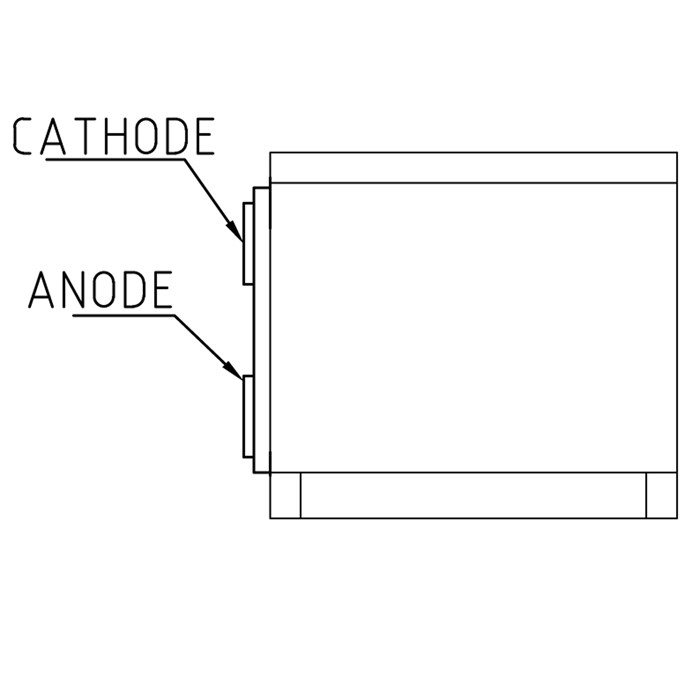

Drawing
After Sale Service
Some Customer send the broken handle piece to our company.We will do the repair process as below:
1. Check→2.change the bar→3.assemble the stack→4.test the stack→5.assemble the handle →6.test the handle→7.clean the handle
