Description
- Brand Name: Starry
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 5W
- Model Number: W5000
- Voltage: 120-240V
- Occasion: Professional Stage & DJ
- Laser Sources: Diodes
- Laser colour: R G B
- Laser Wavelength: R:638nm G:520nm B:445nm
- Output Power: R:1.5W G:1.0W B:2.5W
- Laser Modulation: Analog, >100KHz
- Beam Divergence: 1.1mRad
- Input stability: ±5%
- Input voltage: 12V
- Ambient temperature: -10~40℃
- Lifetime: 10000h
- N.W.: 760g
Detailed description
Wavelength: R:638nm G:520nm B:445nm Output power: R:1.5W G:1.0W B:2.5W Beam Divergence : 3.5*6mm 1.1mRad Laser Modulation : TTL/Analog Input stability: ±5% Input voltage :12V Ambient temperature: -10~40℃ Lifetime :10000h Size :100*65*32mm N.W.:760g

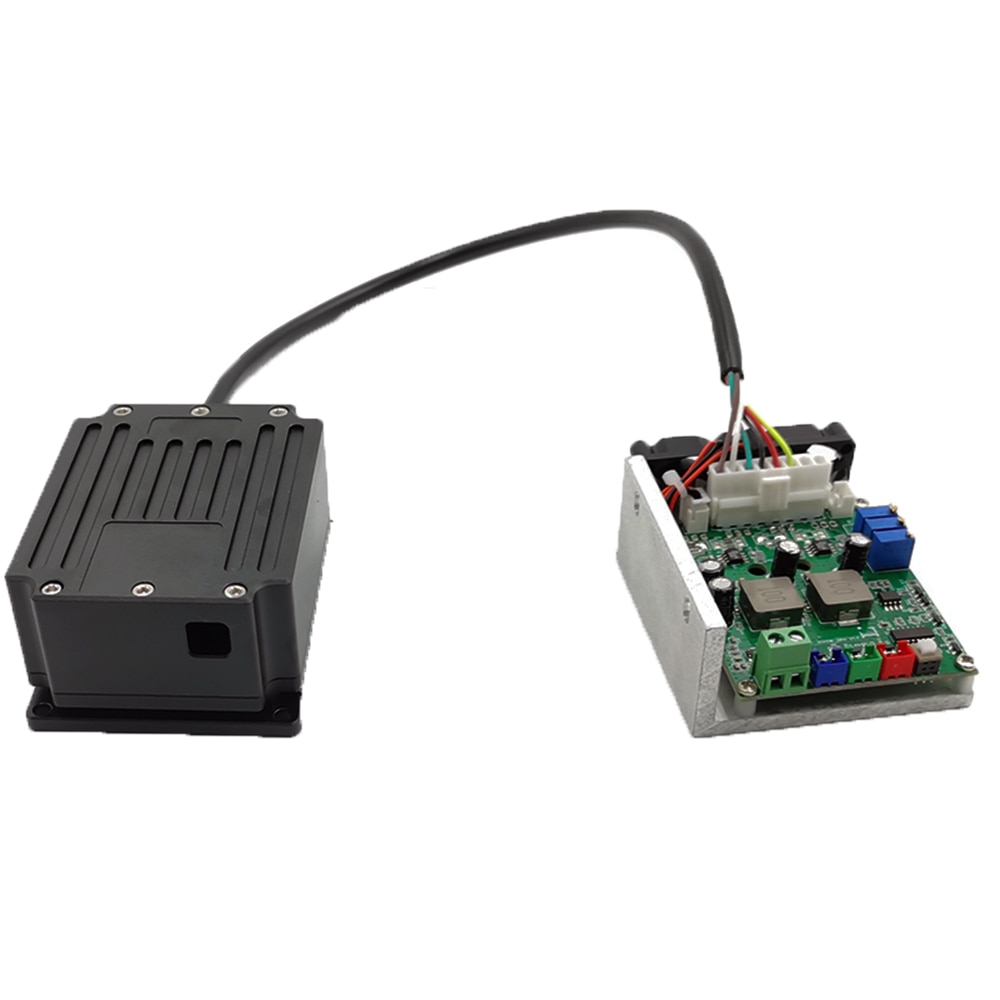

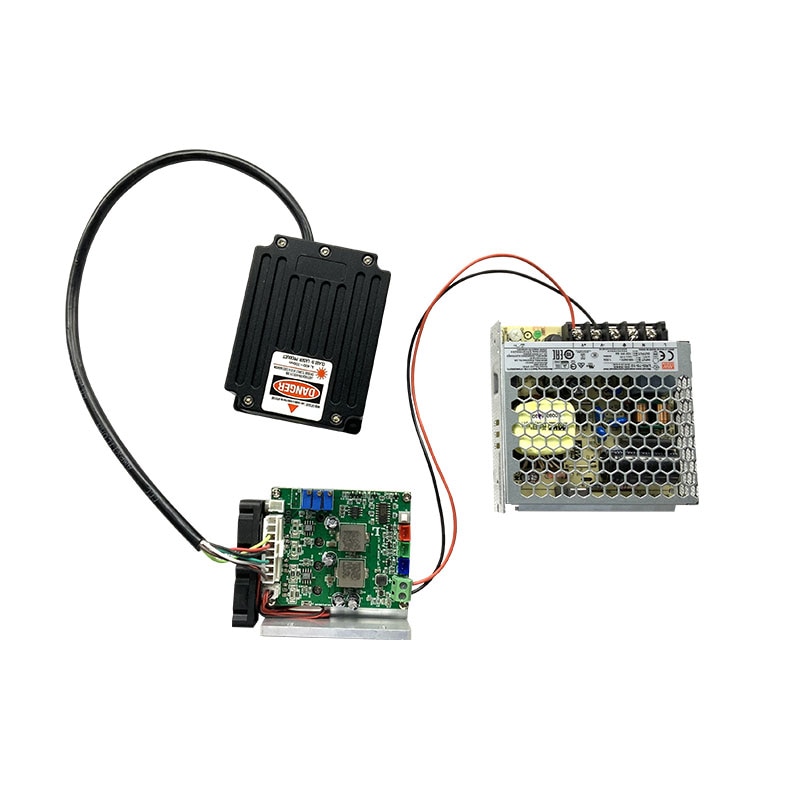

There are red, green, and blue color laser diodes installed inside, after connecting to the analog modulation board it could give off million of different colors. The whole set includes: 1pcs laser module, 1pcs modulation board, 1pcs 120V~240Vac input 12Vdc output power supply (include 1 pair 10cm red and black color cables.)
The Whole Package
The package includes 1pcs 12V power supply, we could offer 15USD's discount if you don't need it. Please contact us to offer 15USD's discount if it is not required.
Modulation (Analog Defaulted)
There is a modulation switch for changing the modulation mode between Analog and TTL, the default factory mode is "Analog Modulation" and the inside indicator LED is in GREEN color; if the modulation is changed to TTL, the LED will be in RED color. The laser is defaulted NON-WORKING in factory mode, it means the laser will not give off light after we connect the whole set to the AC source, the laser only gives off lights after receiving modulation signal.
Dimensions
Module size
The 5W module is the same dimension of 3W and 4W RGB module, but the 5W module has a better white balance.

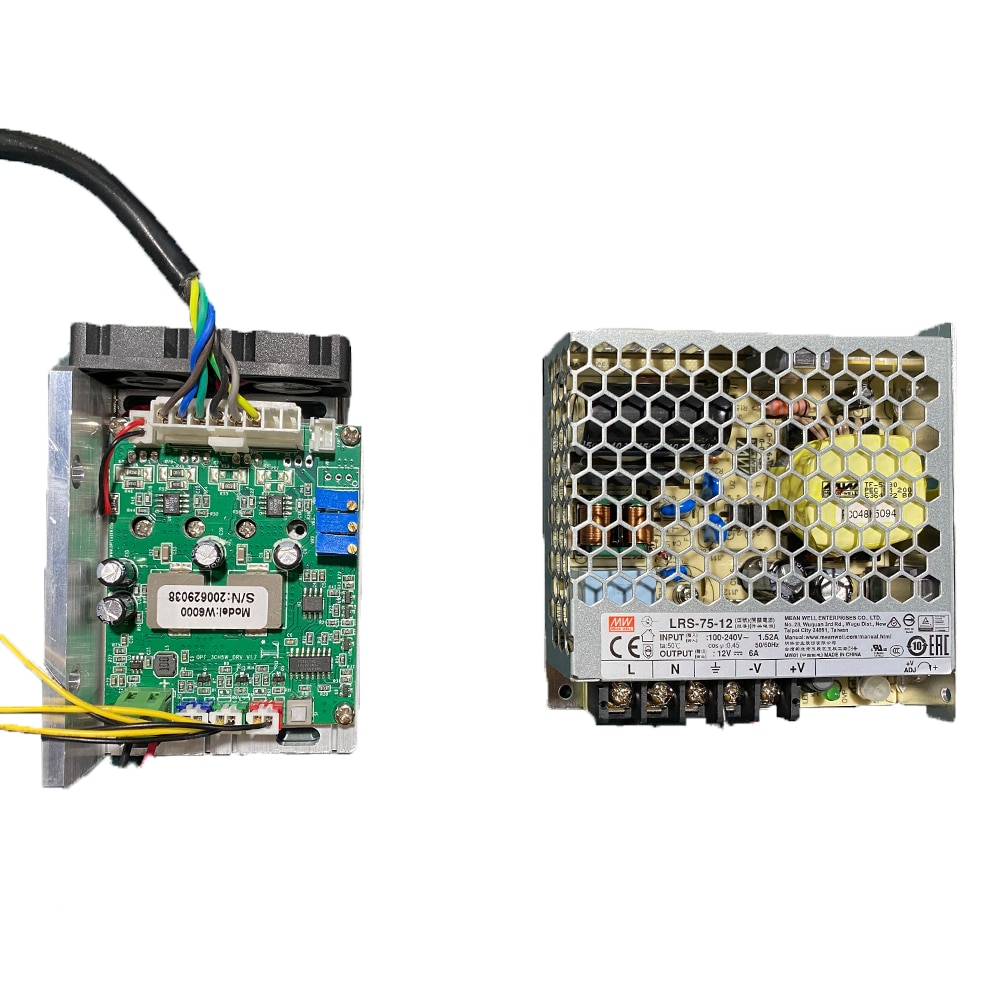

Modulation board size
All the 3W, 4W, and 5W RGB modules have the same size power modulation board. Pls install the module on the metal plate or another heat sink for faster heat dissipation.
12V Power Supply
Stage Laser Effects
