Description
- Certification: ROHS
- Certification: ce
- Type: Asynchronous Motor
- Protect Feature: Totally Enclosed
- Phase: Single-phase
- Model Number: CBB60
- Frequency: 50/60Hz
- AC Voltage: 450V
- Efficiency: NONE
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Feature:
CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.
1) Very small dissipation factor,small inheterent temperature rise.
2) High insulation resistance.
3) Good capacitance stability.
4) Excellent self-healigh property.
5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill.
6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.
7) Special requirment can be made at the request of customers.

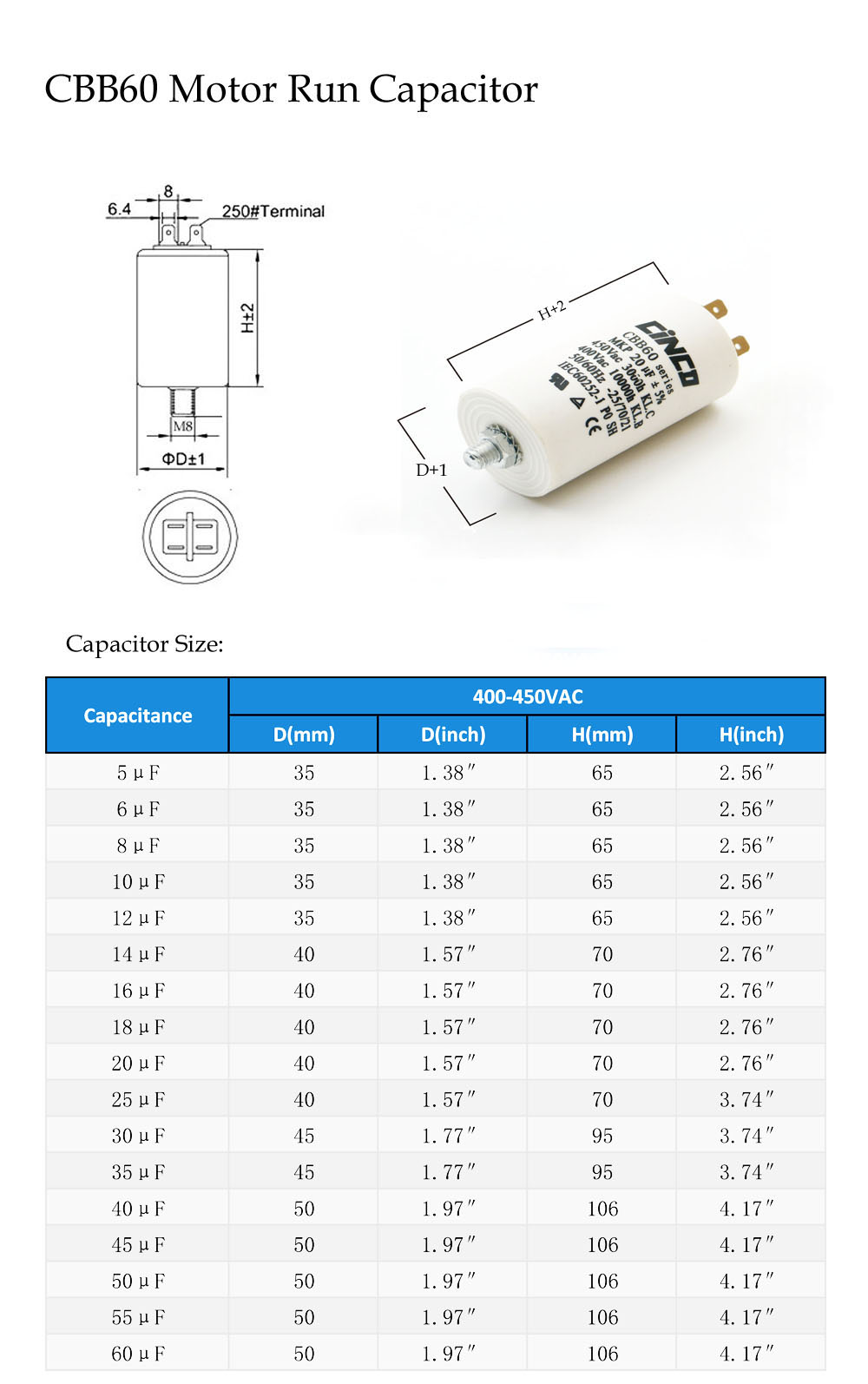

| Capacitance Range | 1μF—100μF |
| Capacitance Tolerance | ±5% , ±10% |
| Rated Alternate Voltage | 250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC |
| Rated Frequency | 50/60 Hz |
| Dissipation Factors | ≤0.002(1KHz,20°) |
| Operating Temp. | -40° ~ +85° or -40° ~ +70° |
| Case Material | PBT, PP, Aluminium, Flammability Class – UL 94 V -2, 750C (RTI) |
| Dielectric | Polypropylene with self healing SH |
| Insulation Resistance | ≥3000S |
| Weather Category | 40/85/21, 25/70/21 |
| Withstand voltage(Terminal to Terminal) | 2 X Rated Voltage |
| Withstand voltage(Terminal to Case) | Minimum 2000 V AC for 1 Min. |
| Ref. Standard | IEC60252-1:2001,GB/T3667.1-2005,UL810 |
| Quality System | ISO 9001:2008 |
| Approvals | CQC,CE,VDE,UL,RoHS |
| Application | Electrical motor, pump, washing machine, Power saver |
Packing:

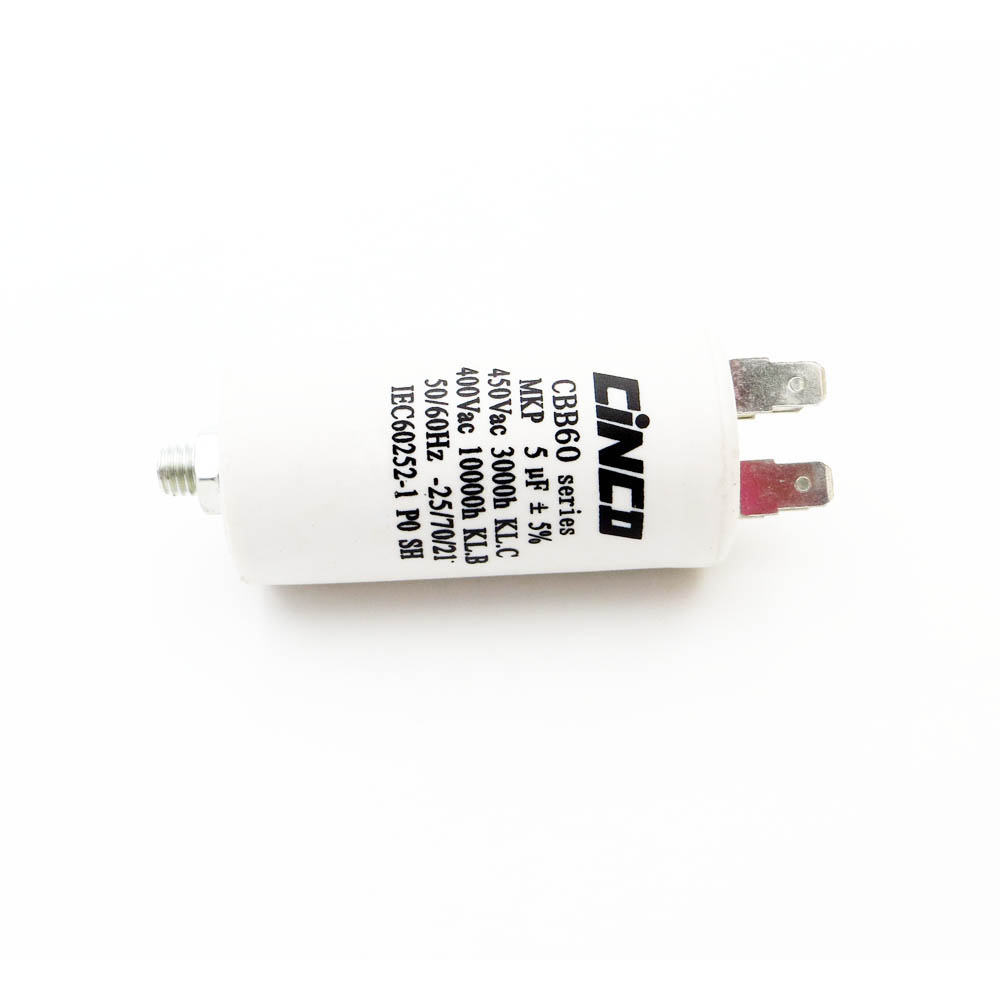

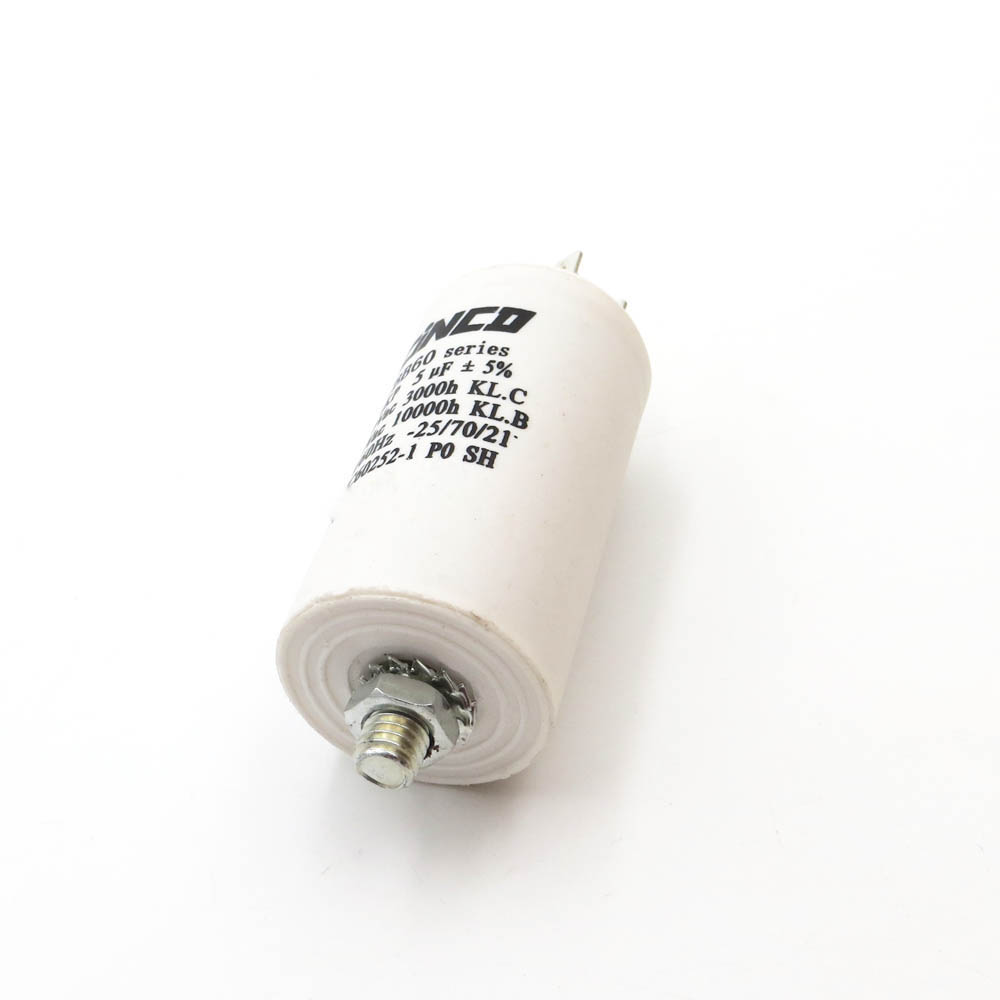

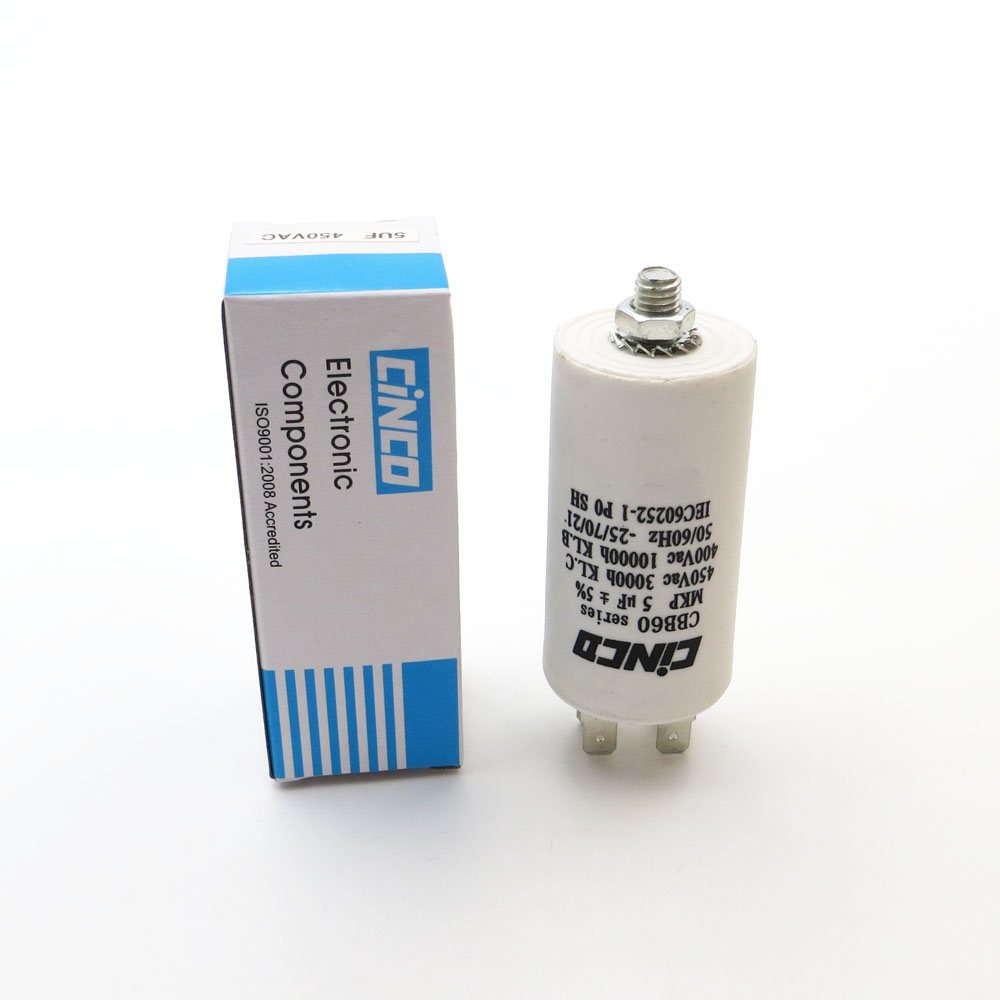

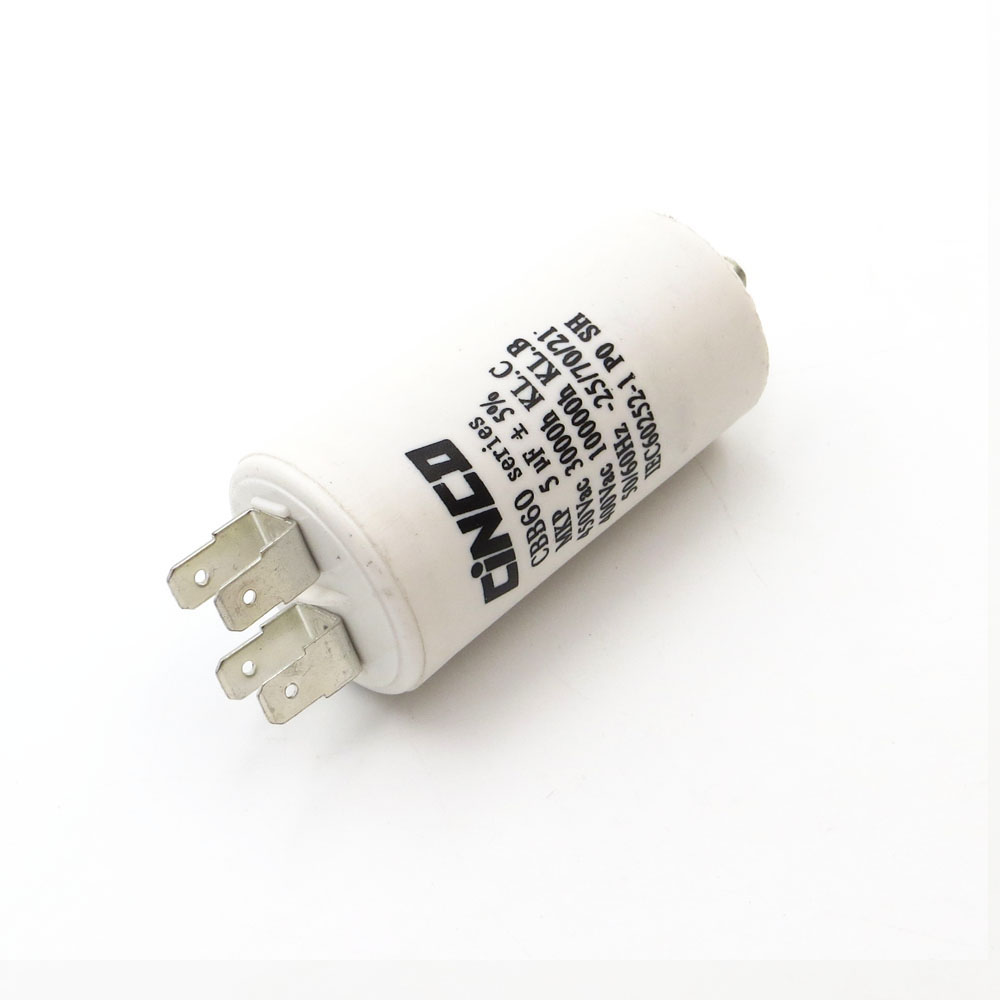

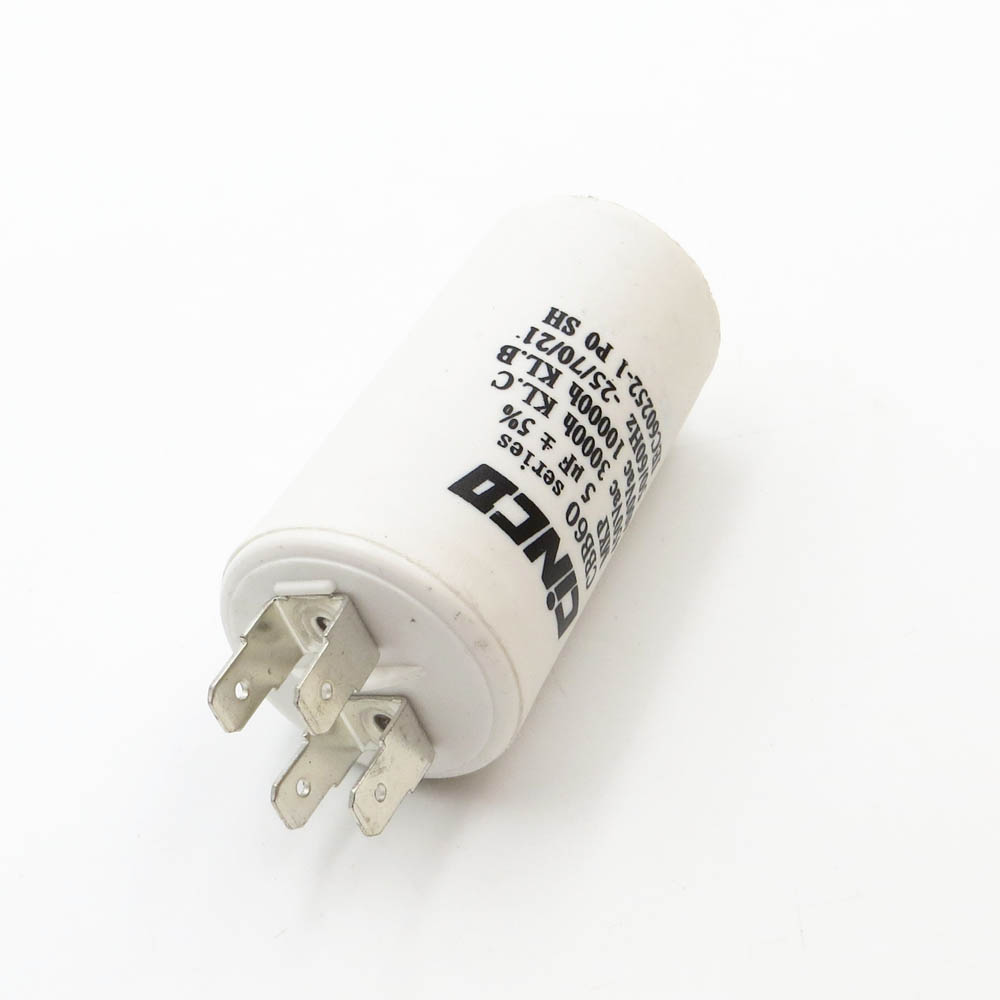

1pc x 5uF 450V CBB60 Capacitor with color box
1pc x M8 Screw
1pc x Washer
