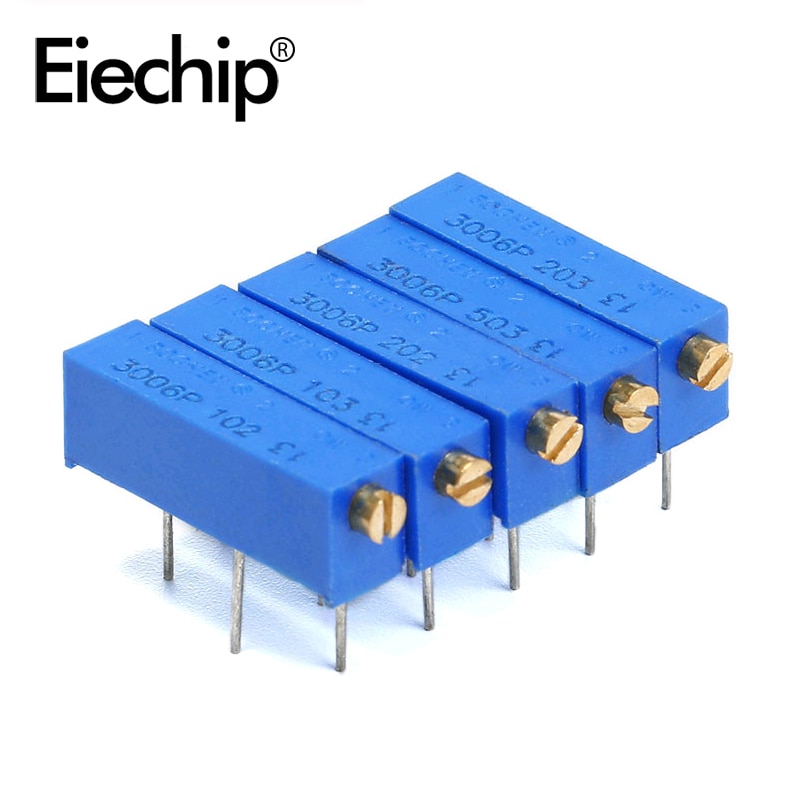

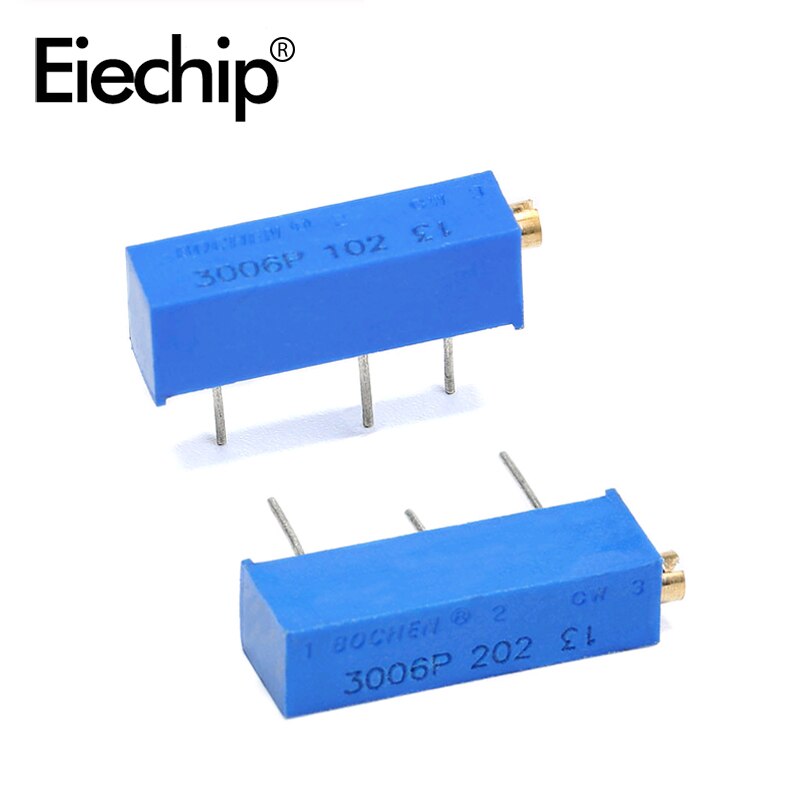

3006 series technical parameters
(Electrical Characteristics)

(Standard Resistance Range)…………..10 to 5 megohms (see standard resistance table)
(Resistance Tolerance)……………….±10 % std. (tighter tolerance available)
(Absolute Minimum Resistance)………………………1.0 % or 2 ohms max. (whichever is greater)
(Contact Resistance ……1.0 % or 1 ohm max. (whichever is greater)
(Adjustability …………±0.01 %
(Resistance) ………………………….±0.05 %
(Resolution)……………………………….Infinite
(Insulation Resistance) …………….500 vdc. 1,000 megohms min.
(Dielectric Strength Sea Level) ………………………….1,000 vac
80,000 Feet………………………….250 vac
(Adjustment Angle) ………….15 turns nom.

(Environmental Characteristics)

(Power Rating) (400 volts max.)
70 C ………………………………..0.75 watt
125 C …………………………………..0 watt
(Temperature Range) …………..-55 C to +125 C
(Temperature Coefficient) …………±100 ppm/C
(Seal Test)…………………….85 C Fluorinert
(Humidity)………………..MIL-STD-202 Meths (3 % ΔTR, 20 Megohms IR)
( G (2 % ΔTR 2 % ΔVR)
(Shock)…………….50 G (2 % ΔTR 2 % ΔVR)
(Load Life) ………1,000 hours 0.75 watt 70 C (4 % ΔTR)
(Rotational Life) …………..200 cycles (3 % ΔTR 1 % or 1 ohm, whichever is greater, CR

(Physical Characteristics)

(Torque) …………………………5.0 oz-in. max.
Mechanical Stops ………………Wiper idles
(Terminals)…………………….Solderable pins
(Weight) …………………………………../>Marking……………………….Manufacturer’s
trademark, resistance code,
terminal numbers, date code,
manufacturer’s model number
and style
(Wiper) ………………..50 % (Actual TR) ±10 %
(Flammability)……………………….U.L. 94V-0
(Standard Packaging)……25 pcs. per tube
(Adjustment Tool) ………………………….H-90
