Description
- Origin: Mainland China
- Model Number: FZ3385
- Item Type: TFmini Plus Lidar Range Finder Sensor
- Operating Range: 0.1-12m
- Distance resolution: 5mm

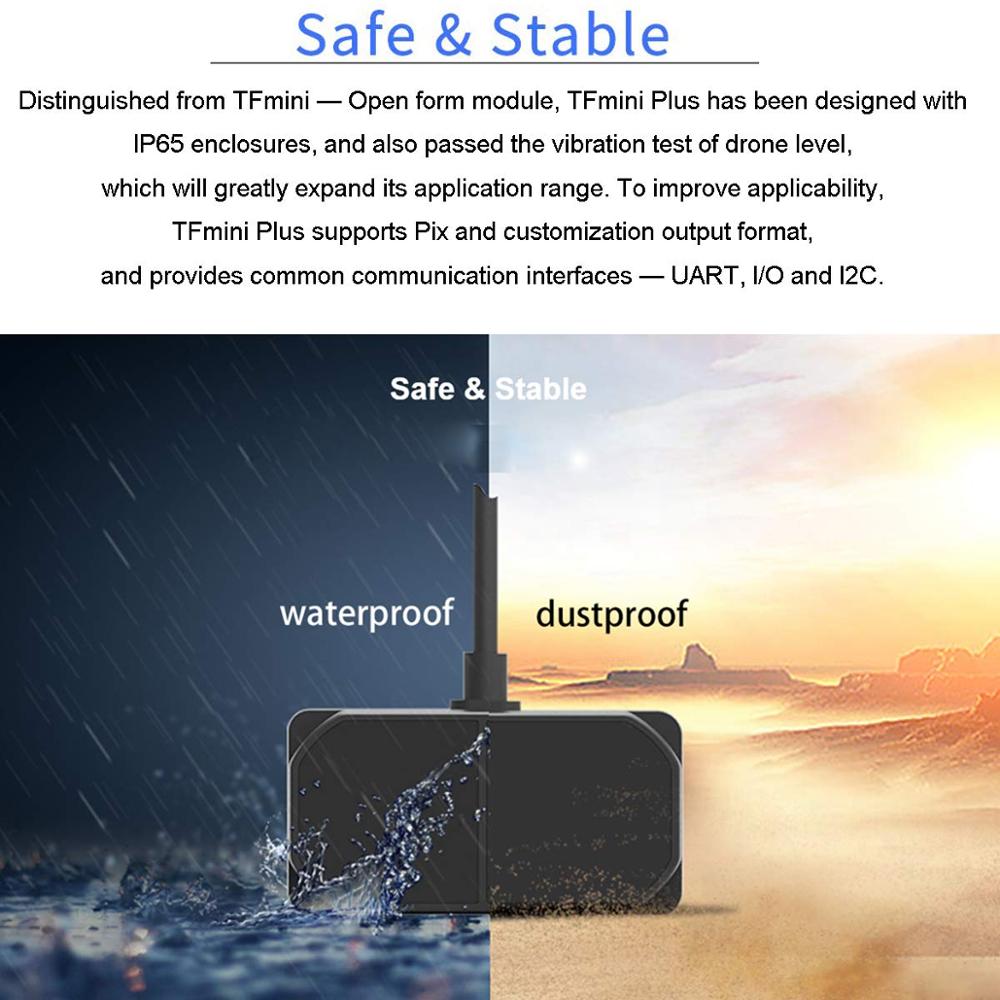

- Enclosure rating: IP65
- Supply voltage: 4.5-5.5V
- Power consumption: 550mW(low power mode 85mW)
- Communication level: UART,I2C,I/O
- Peak current: 500mA
- Quantity: 5PCS
5pcs Benewake TFmini Plus LiDAR Module, IP65 Waterproof Dustproof Short-range Distance Sensor, Single-point Micro UART& IIC Range Finder Sensor FZ3385
Descriptions:

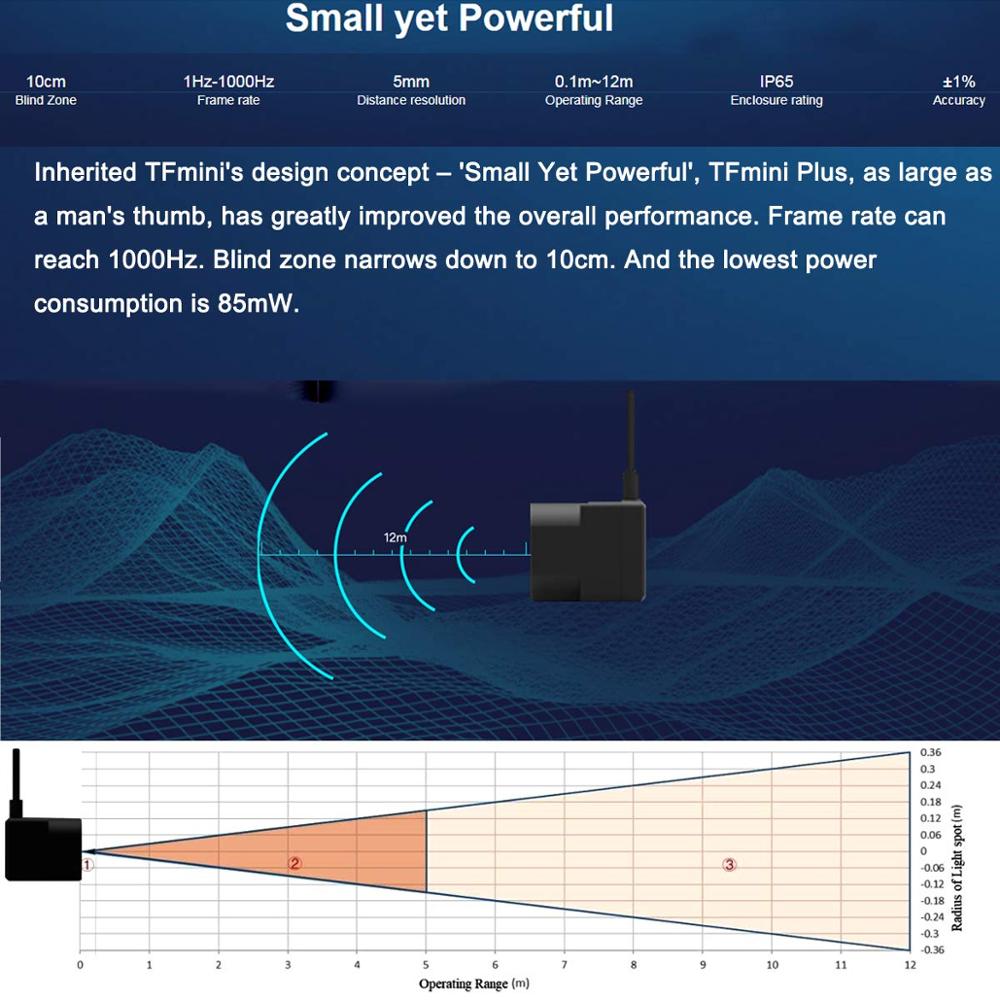

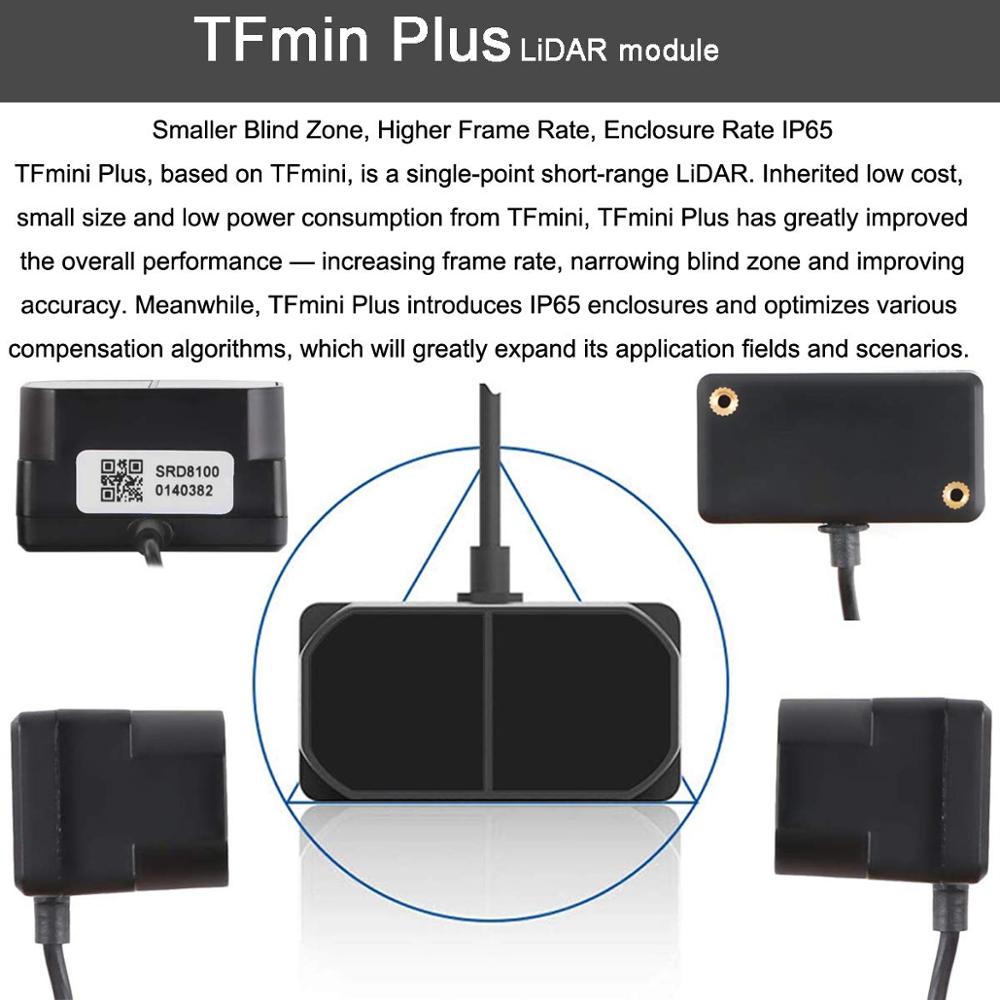

TFmini Plus, based on TFmini, is a single-point short-range LiDAR. Inherited low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved its performance — increasing the measurement frequency, reducing blind zone and improving accuracy. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.

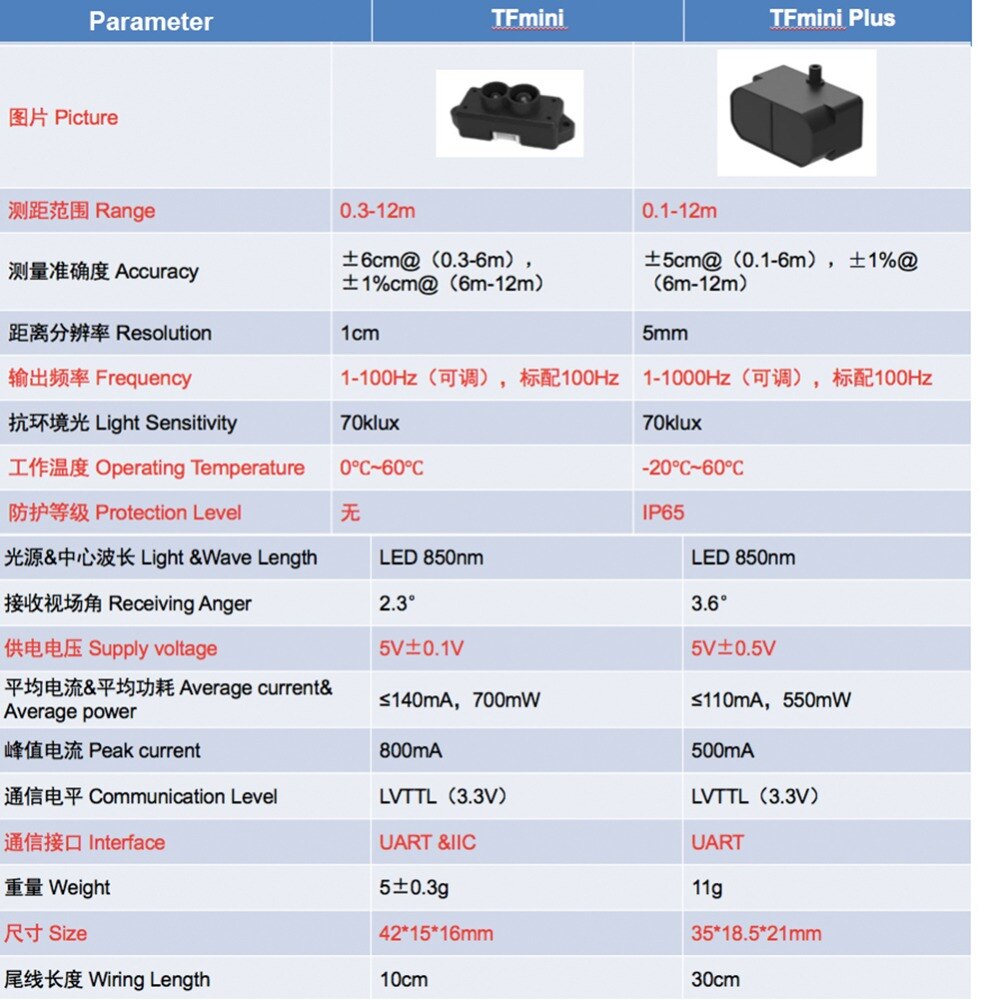

Specification :
Range: 0.1-12m
Accuracy: ±5cm@（0.1-6m），±1%@（6m-12m）
Resolution: 5mm
Frequency: 1-1000Hz, standard is 100Hz
Light Sensitivity: 70klux
Operation temperature: -20℃~60℃
Waterproof: IP65
Light and Wave length: LED 850nm
Receiving Anger: 3.6 degree
Supply Voltage: 5V±0.5V
Average current: 110mA
Average Power: 550mW
Peak Current: 300mA
Communication Level: LVTTL(3.3V)
Interface: UART
Cable length: 30cm
Package Includes:
1 X TFmini Plus
