Description
- Brand Name: HALIC
- Origin: Mainland China
- Certification: CE,RoHS
- Usage: Switching,air humidifier,Air Purifiers,Refrigerators,Vacuum Cleaner,Electric Tool,TV Receivers,Set-top Boxes,Speaker,Monitors,CD Player
- Output voltage: 5V
- Connection: Plug In
- Output Type: DC
- Model Number: EU
- Input: 90~265Vac
- Isolation: 3000Vac
- Operating temp.: -25~60
- Waterproof standard: IP65
- Pin dimension: 5mm
- Voltage regulation: -0.2
- Long-term reliablity: >100000 hours
- Size: 57*33*22.5mm

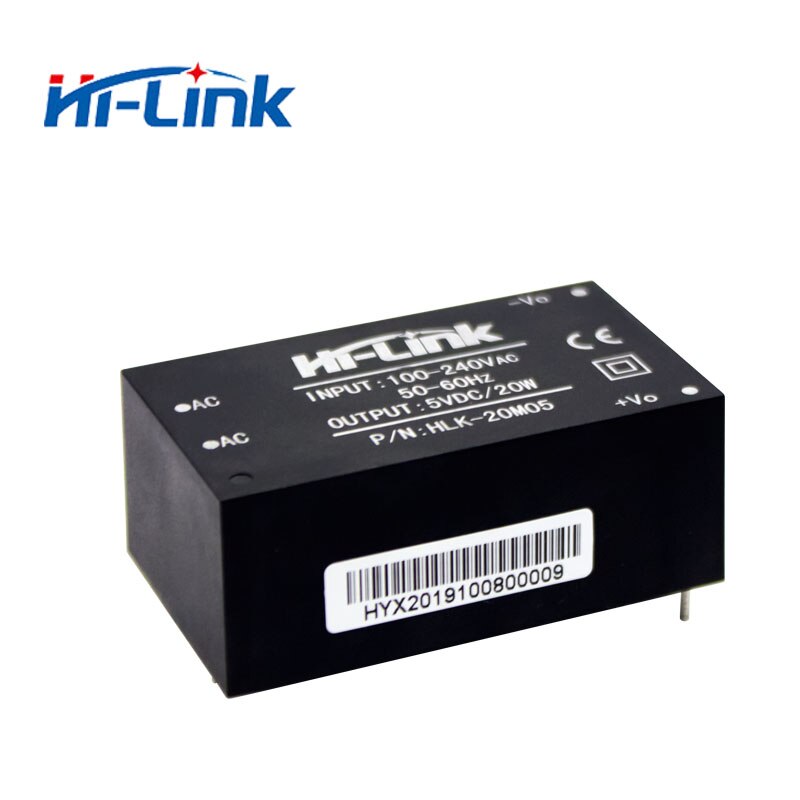

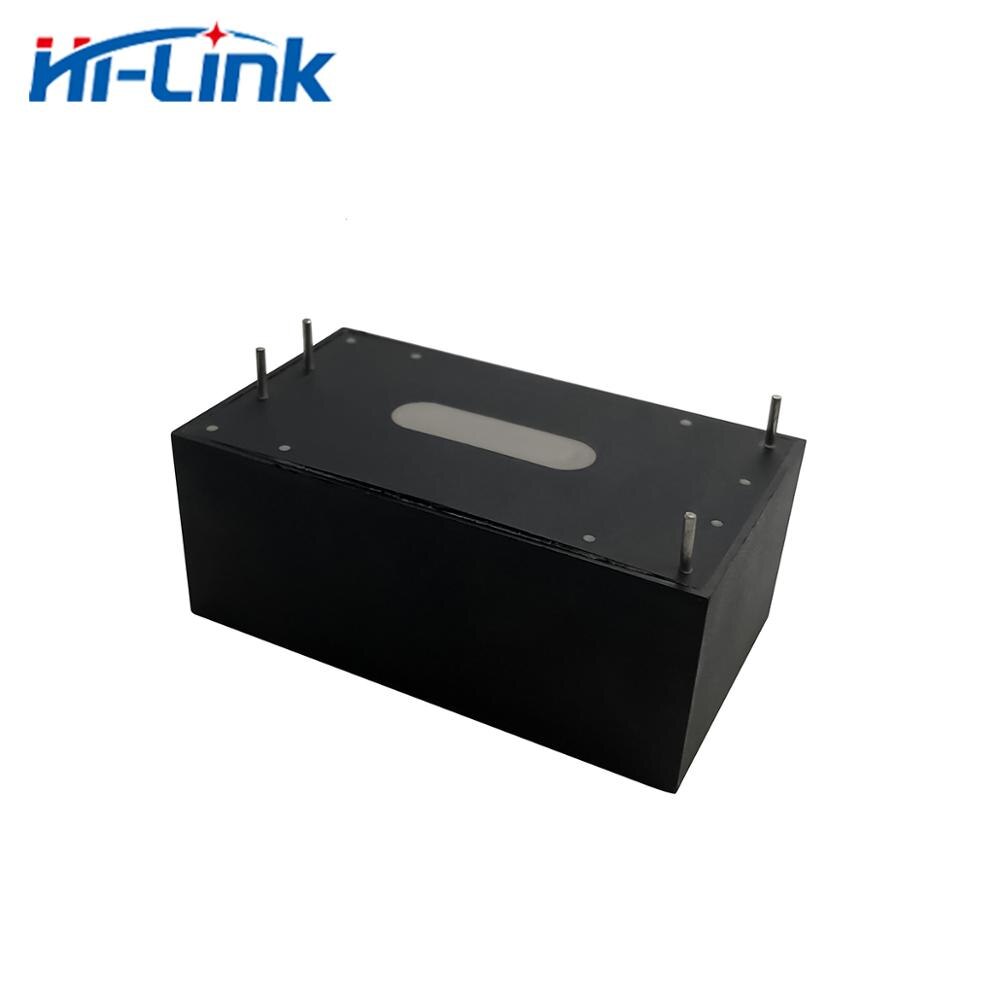

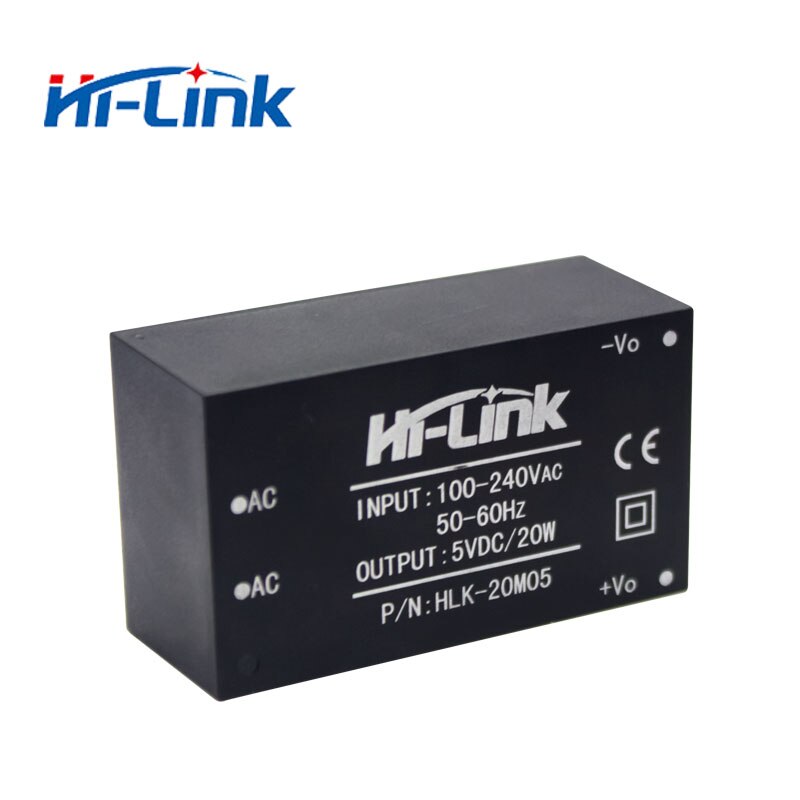

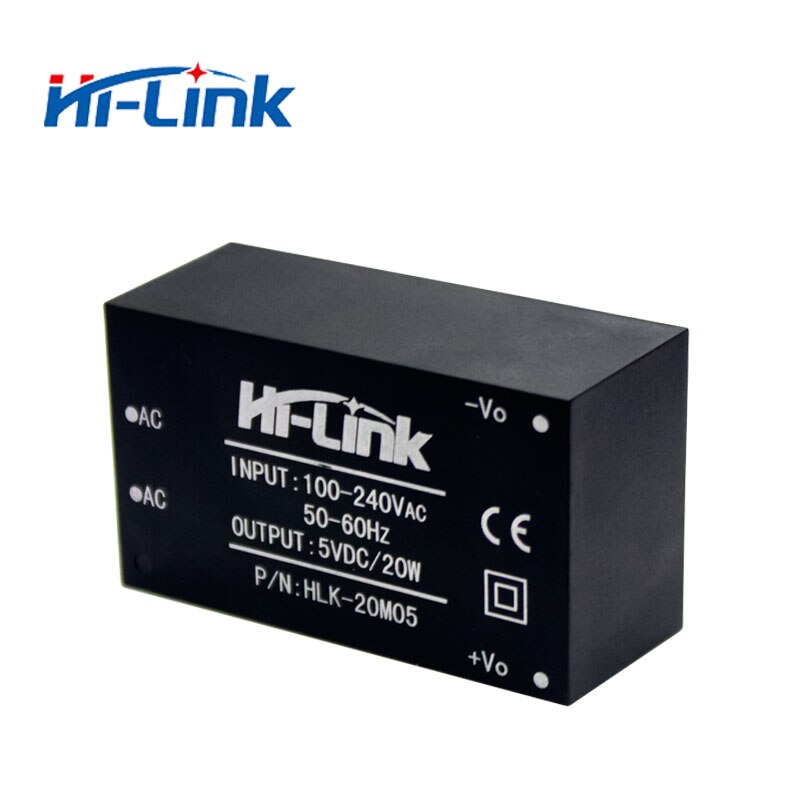

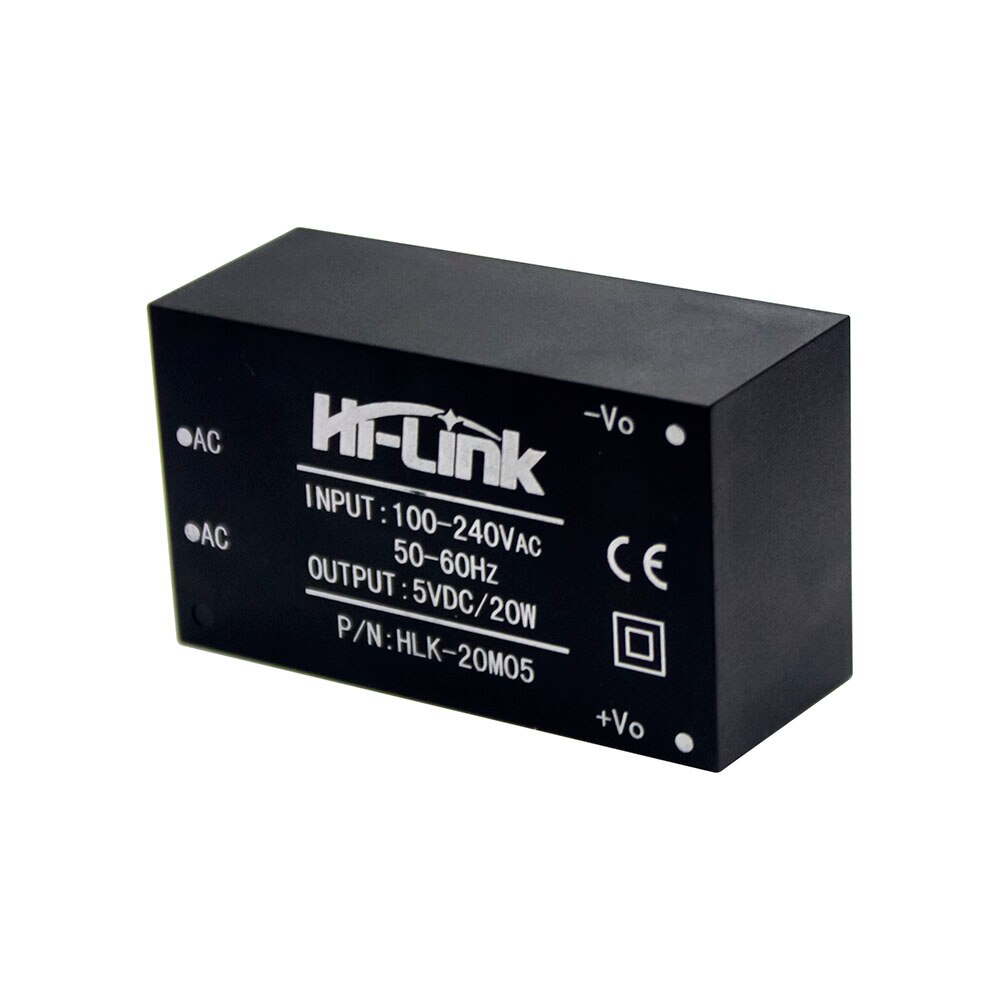

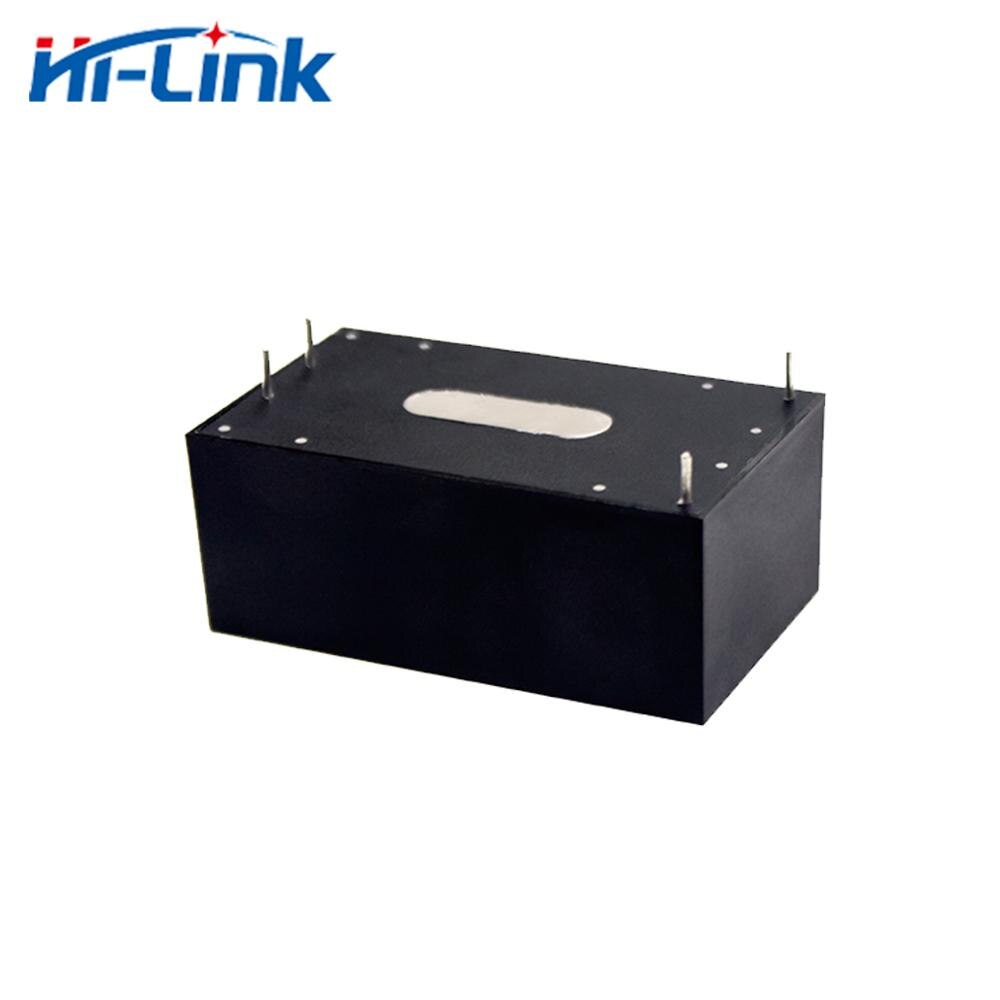

5pcs/lot isolated 220v to 5v 4000ma power supply module free shipping
Product Features
|
Project Name |
Technical Critical |
Unit |
Note |
|

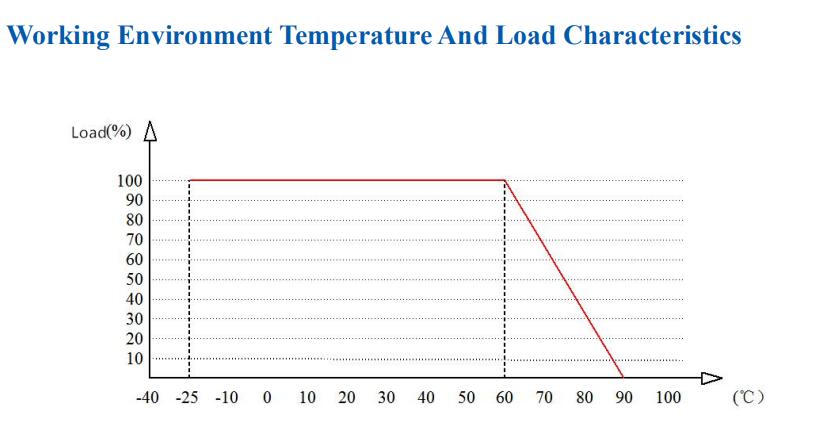

Working temperature |
-25—+60 |
℃ |
|
|
Storage temperature |
-40—+80 |
℃ |
|
|
Relative humidity |
5—95 |
% |
|
|
Heat dissipation mode |
natural cooling |
|
|
|
Atmospheric pressure |
80—106 |
Kpa |
|
|
Sea level elevation |
≤2000 |
m |
|
|
Vibration |
Vibration coefficient: 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
|
Meet the requirements of secondary road transportation |
|
Model |
Dimension (mm) |
Output power (W) |
Output Voltage (V) |
Output Current (mA) |
|
HLK-20M03 |
57*33*22.5 |
20 |
3.3 |
6100 |
|

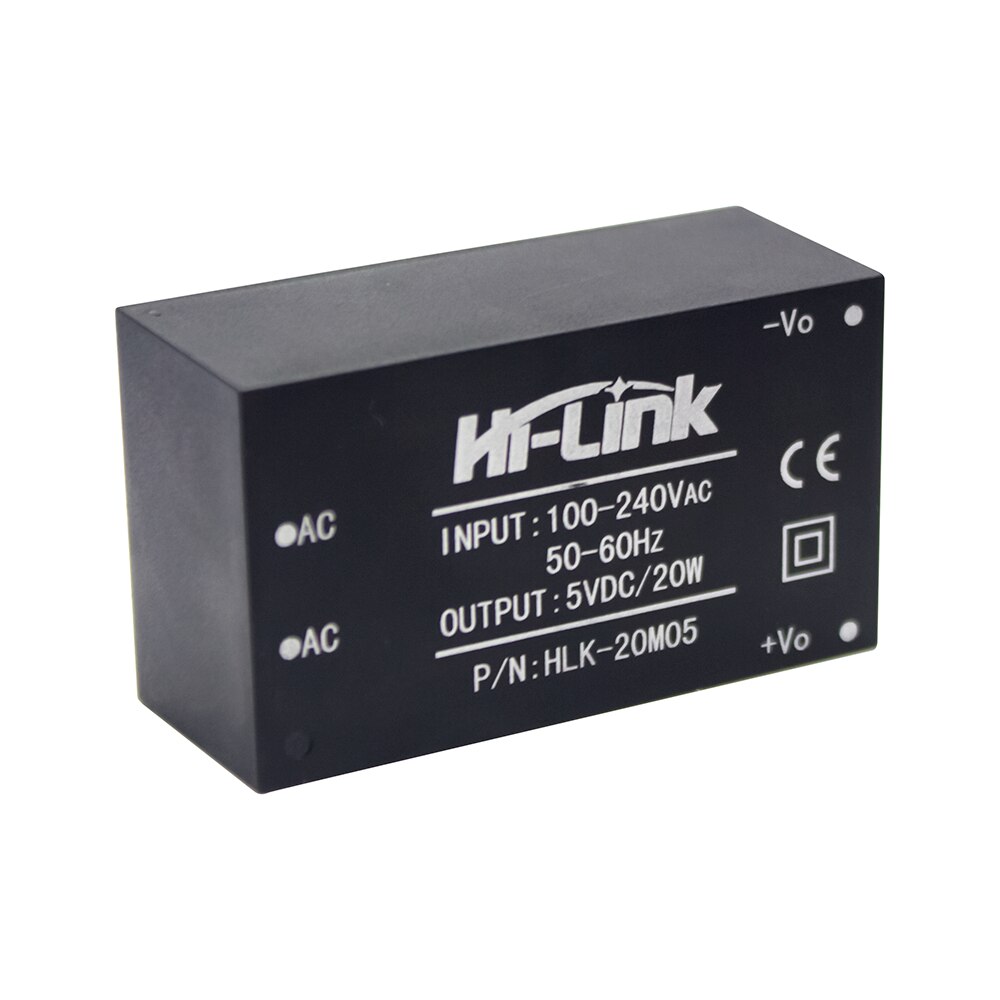

HLK-20M05 |
|
|
5 |
4000 |
|
HLK-20M09 |
|
|
9 |
2200 |
|
HLK-20M12 |
|
|
12 |
1600 |
|
HLK-20M15 |
|
|
15 |
1300 |
|
HLK-20M24 |
|
|
24 |
830 |

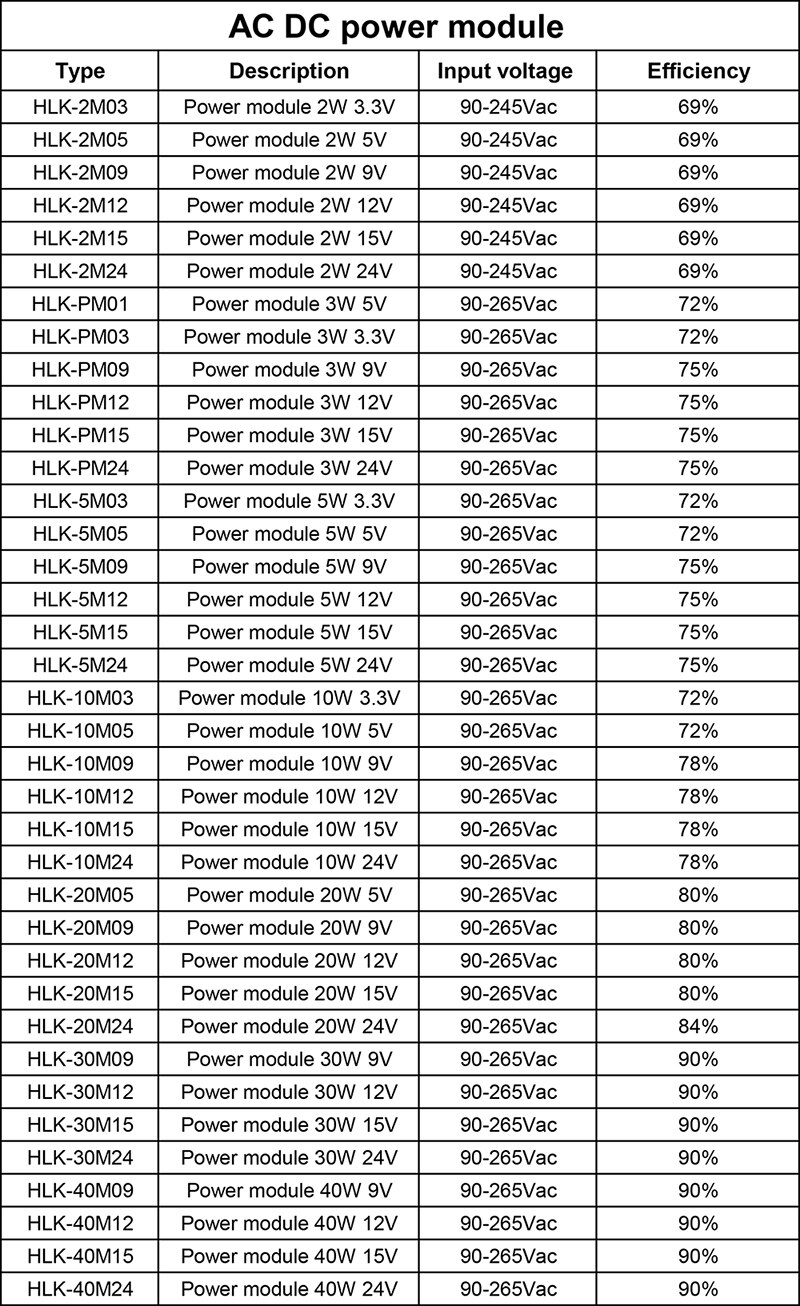

Other Types of power module ac to dc
Besides 20W, we also get 2W 3W 5W 10W 12W 30W 40W for standard.
More please leave message to me for more details, my e-mail: Bonnie(@)hlktech.com
