Description

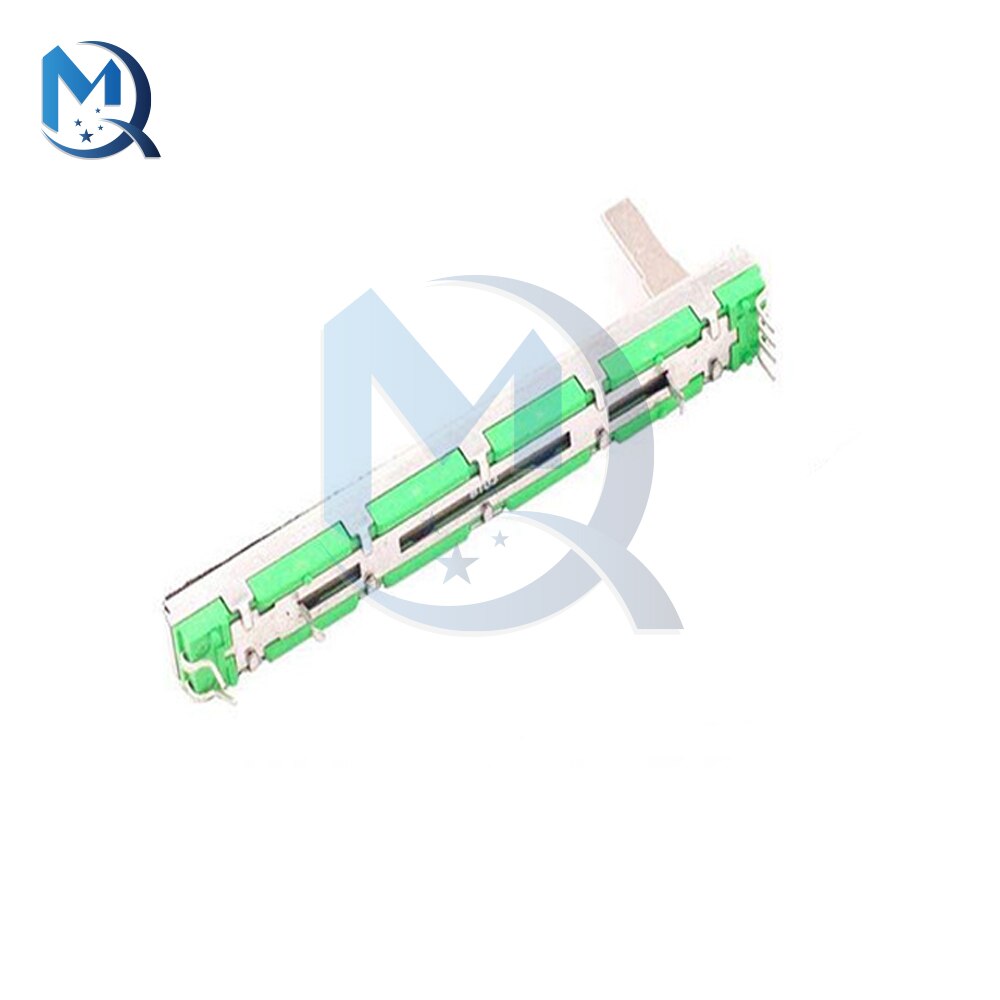

5Pcs/lot B103 75mm Dual Channel Fader Straight Slide Liner Potentiometer Mixer Fader Variable Resistors for Dimming Tuning

Specification:

Model: B103 (B type Linear Potentiometer)

Resistance Value: 10k Ohm

Adjustment Type: Slide

Body Size: 75 * 9 * 6mm / 2.95 * 0.35 * 0.24″(pin not included)

Shaft Size: 15*4*1.2mm (L* W*T)

Mounting hole diameter: M2

Terminals Number: 6

Channel: Double Channel

Rated Power: 0.25W

Resistance Tolerance: ±20%

Sliding Noise: Less than 68mV

Resolution: 100%

Zero Resistance: 2Ω

Contact Resistance: 5Ω

Insulation Resistance: 100MΩ

Package Included:

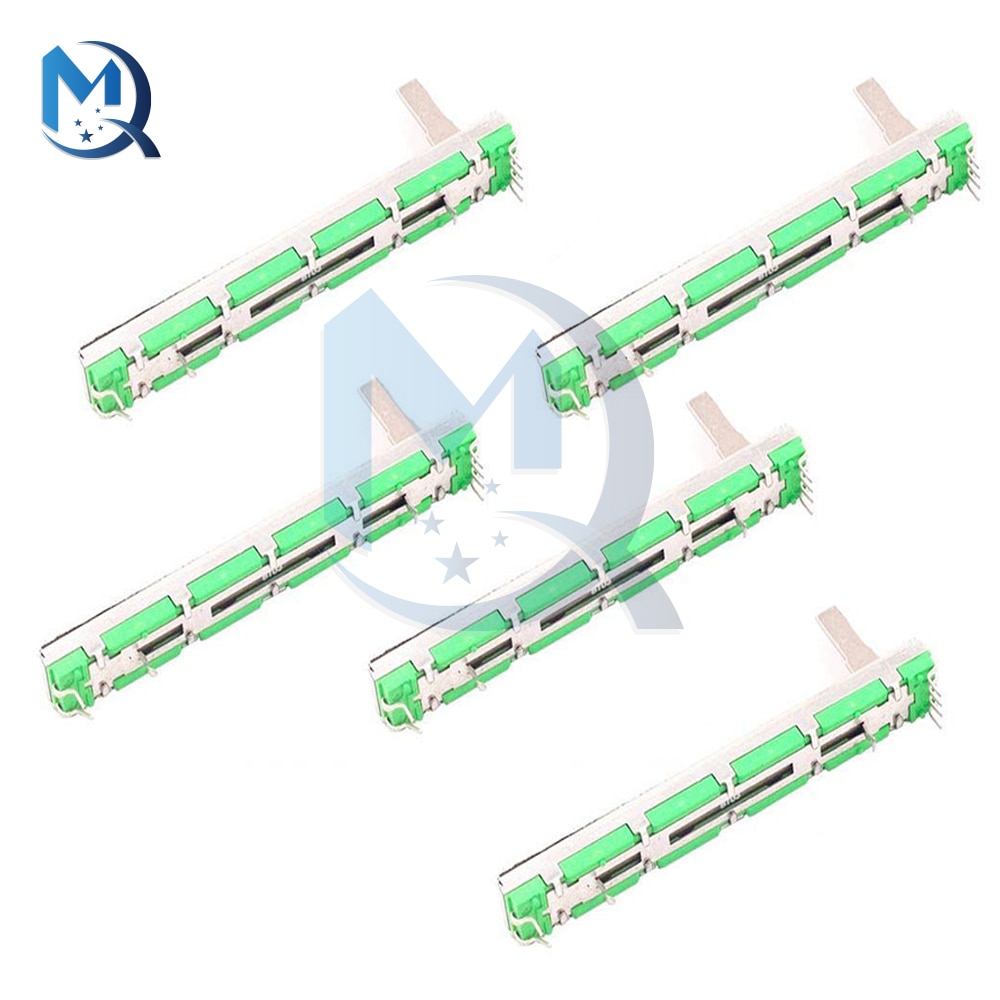

5 x B103 10K Straight Slide Potentiometer
