5PCS/lot 20mm EC11 Rotary Encoder Potentiometerr with switch 5 Pin digital potentiometer D type handle

$9.90

9972 in stock

SKU: 4001289610322 Category:

Description

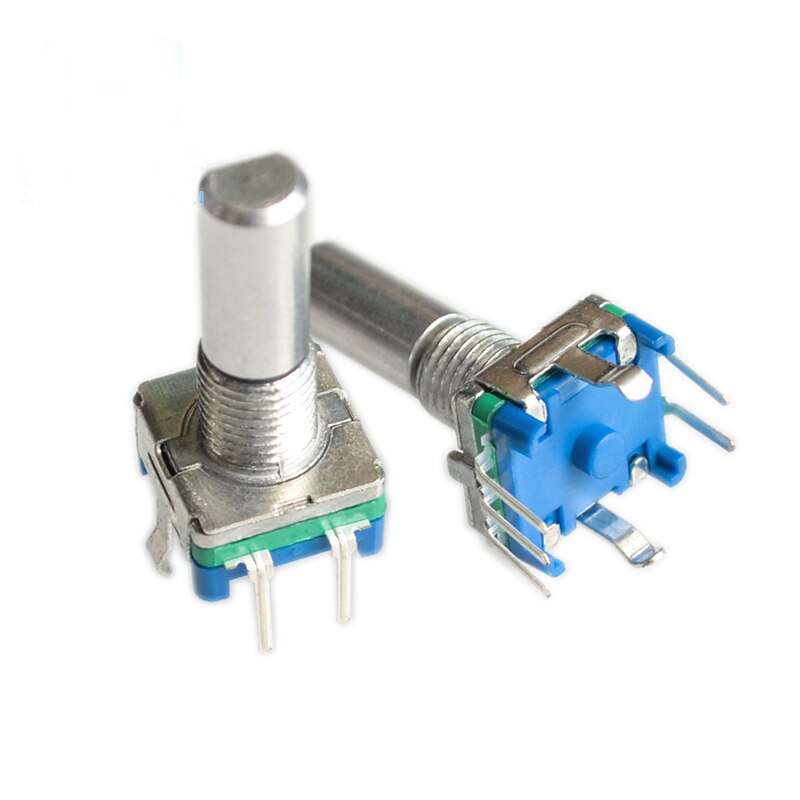

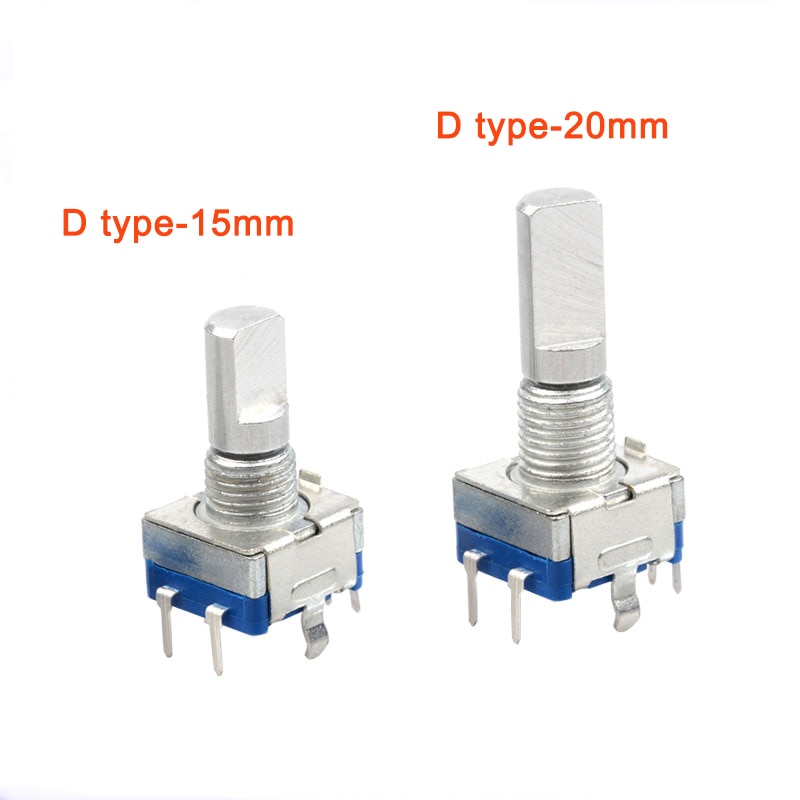

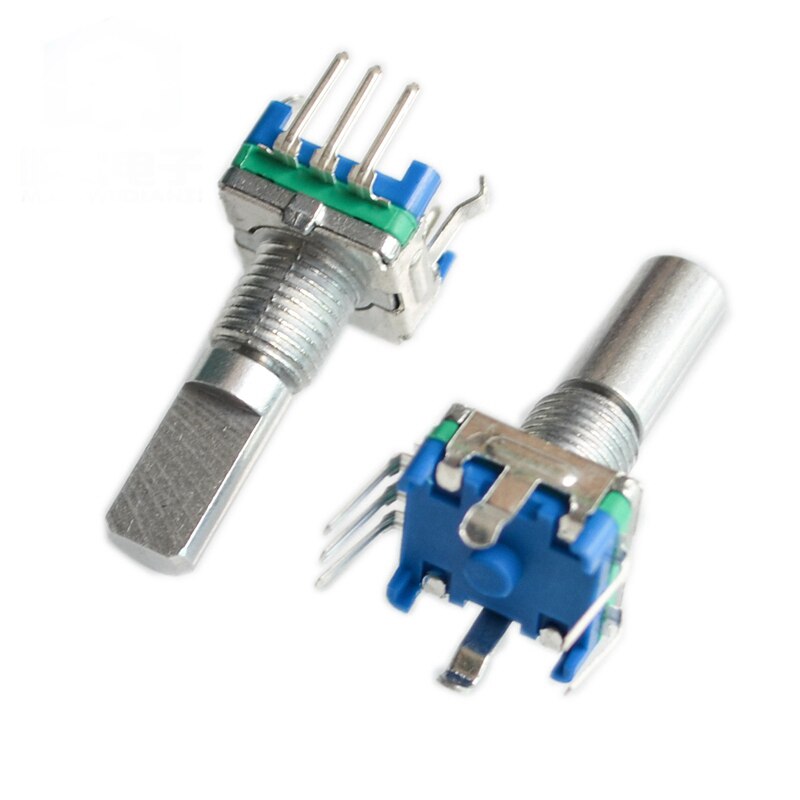

5PCS/lot 20mm EC11 Rotary Encoder Potentiometerr with switch 5 Pin digital potentiometer D type handle

  • Condition: New
  • Resistance Tolerance: standard
  • Technology: Carbon Film
  • Type: Rotary Potentiometer
  • Operating Temperature: standard
  • Size: 6pin
  • Max. Operating Voltage: standard
  • Model Number: EC11 20mm
  • Rated Power: standard
  • encoder: digital potentiometer EC11
  • encoder1: EC11 rotary encoder coding switch
  • encoder2: EC11 20mm encoder
  • encoder3: EC11 Rotary Encoder Potentiometer



EC11 encoder SMD encoder, switch encoder, rotary encoder, car encoder, etc. EC11 encoder has 20 pulses and 20 positioning points, adjustment shaft half shank/threaded shank and other types, and the shaft length interval is 20mm

EC11 series encoders are mainly used in automotive electronics, multimedia audio, instrumentation, household appliances, smart home, computer peripherals, medical equipment and other fields.
Please note that the encoder should not be stored in hot, humid and corrosive places, and the unused products after unpacking should be stored in a moisture-proof and anti-virus environment.

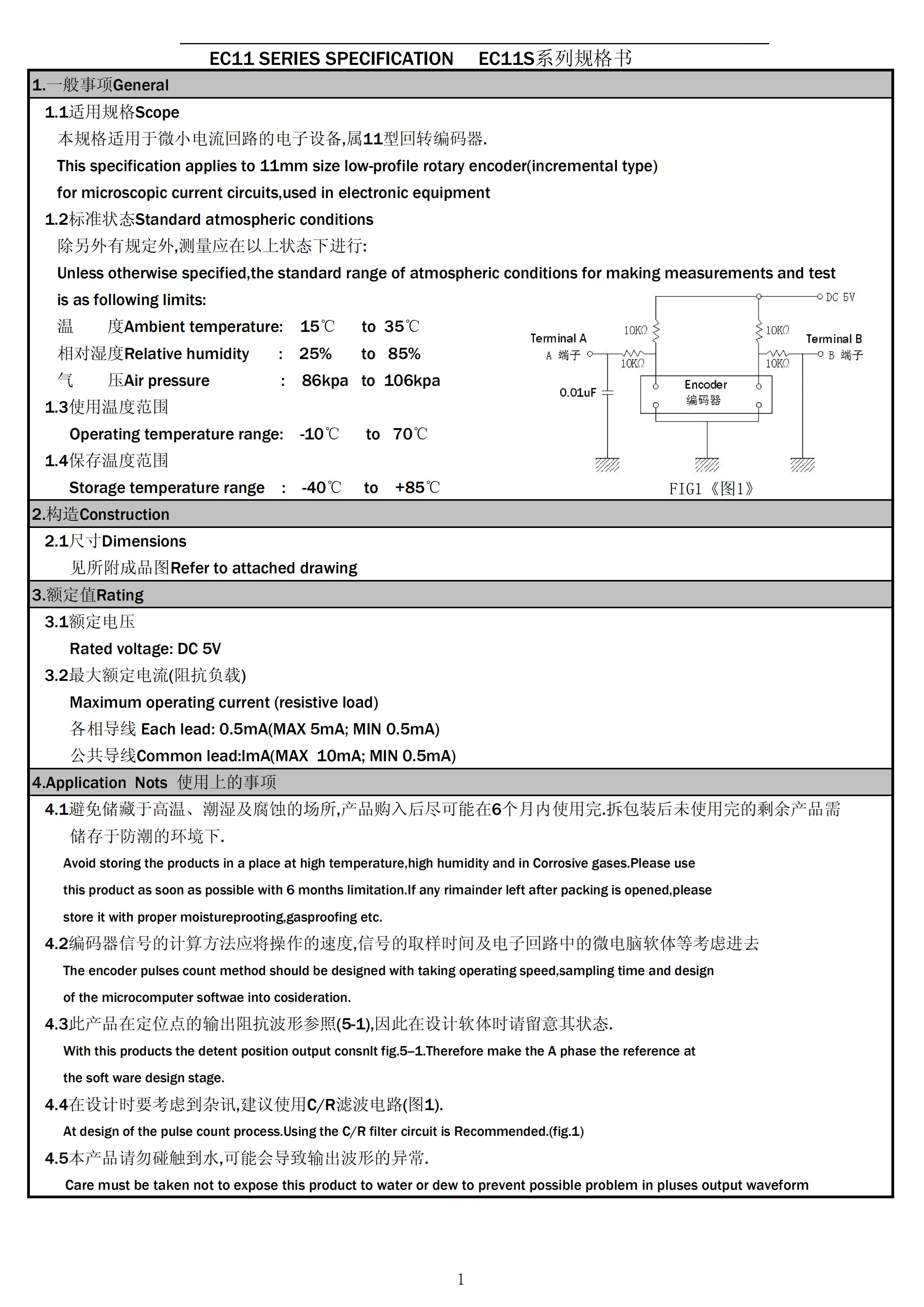

Product parameter
Operating temperature range: -30℃ to+80℃
Storage temperature range: -40℃ to+85℃
Rated voltage: DC 5V
Full rotation angle: 360 degrees (no stop point)
Rotation life: 30000+200 Cycles
Contact resistance: ≤100mΩ
Insulation resistance: above 100MΩ
Oscillation: ≤10mS press
Life: 20,000±200 times. (0.5 stroke)
          15,000±200 times. (1.5 stroke)
