Description

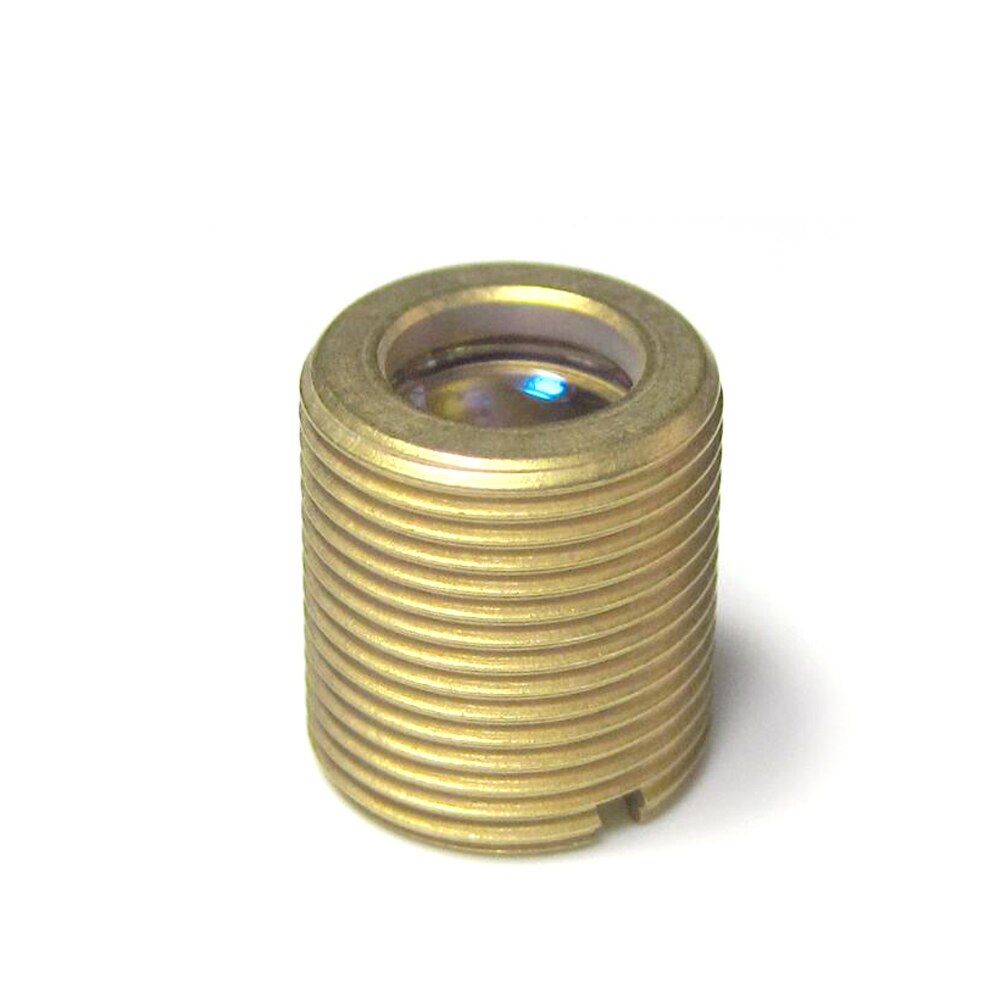

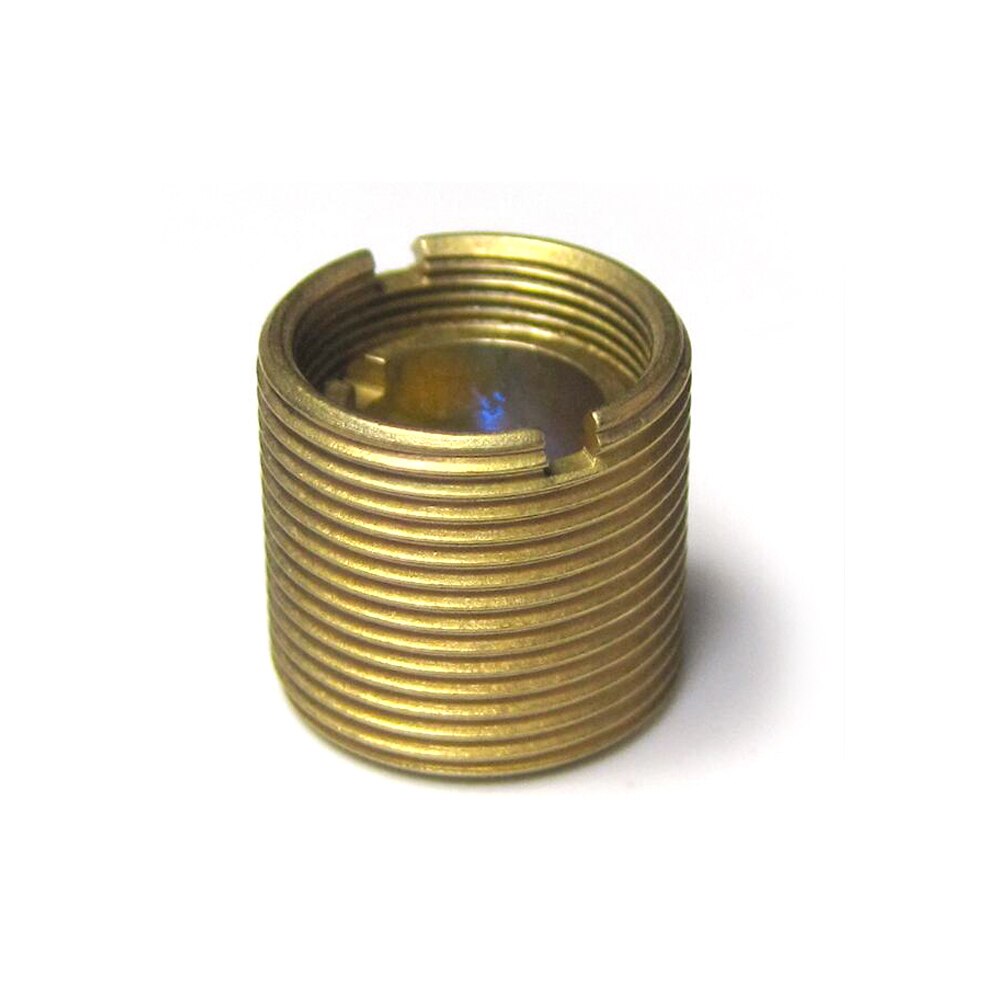

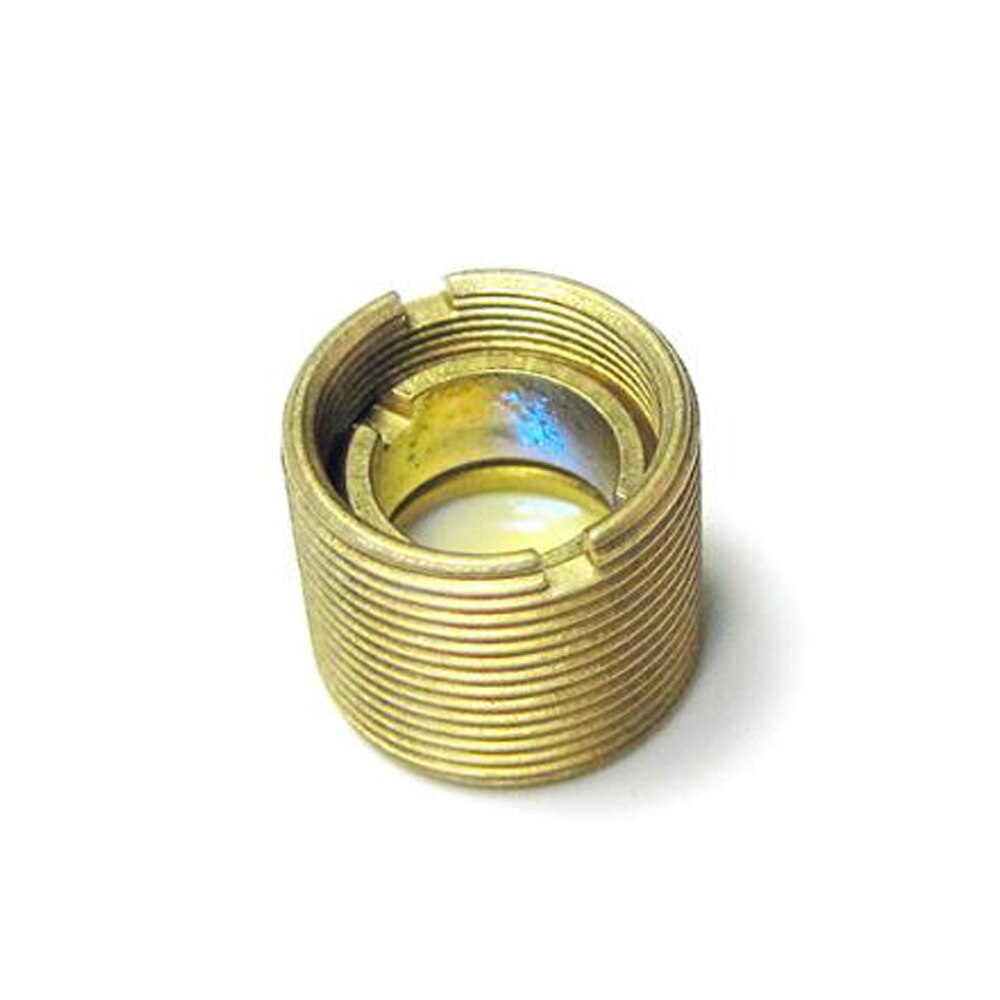

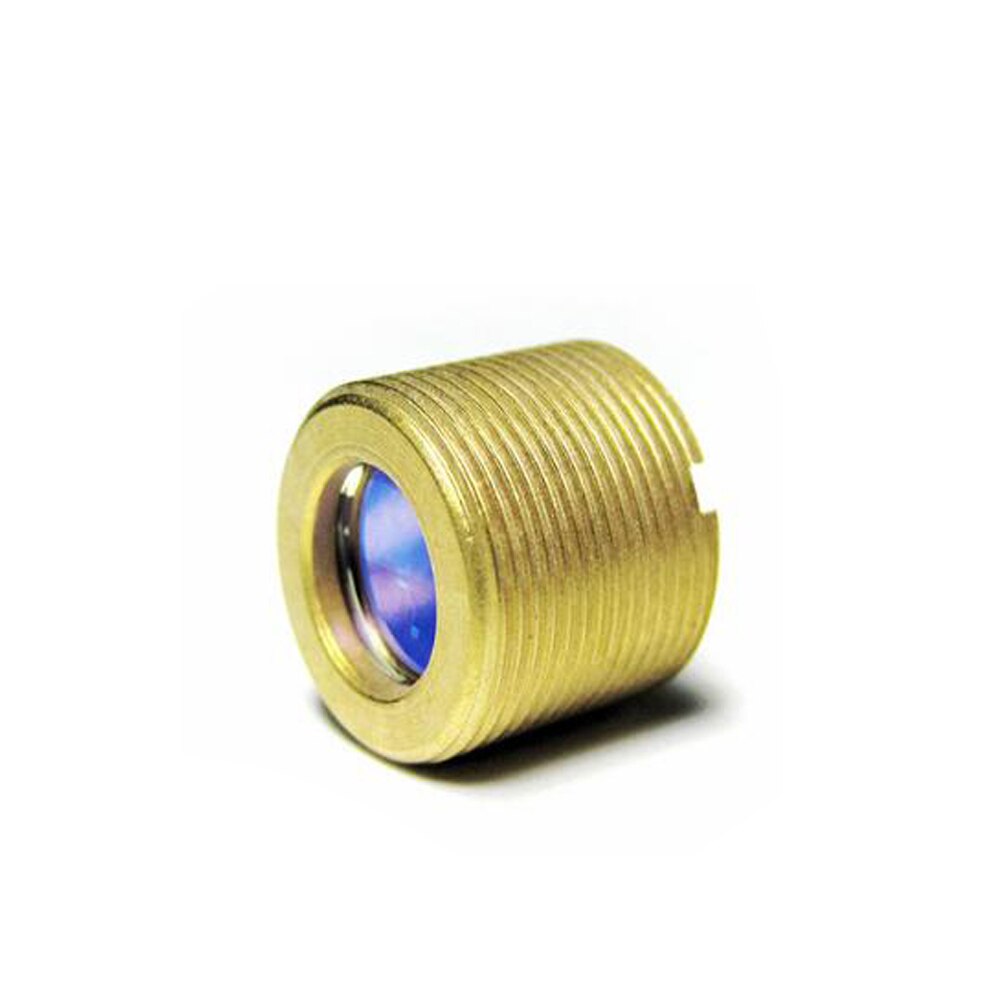

High Quallity L-BAL42 Material Lens 6.35mm 780nm ± 20nm Aspherical Laser Collimating Lens DIY



Title：	L-BAL42 Material Lens 6.35mm 780nm ± 20nm Aspherical Laser Collimating Lens DIY
M (Thread Diameter):	M9 × P0.5	ET (Thread Height):	8 mm
Lens Outer Diameter:	6.35mm	Lens Material:	L-BAL42
Design Wavelength:	786nm	EFL (Effective Focal Length):	10mm
SD (Diode To Lens Distance):	8.3mm	NA (Numerical Aperture):	0.17mm
CA (Effective Aperture):	3.5/3.0mm	Use Wavelength:	780nm ± 20nm
Application:	Laser manufacturing, aerospace, optical communication, laser welding, laser cutting, laser polishing
Package:	1*6.35mm Aspherical Laser Collimating Lens



---
