Parameter

Wavelength: 650nm
Output Power: 30mW
Working Voltage: 3 – 5V
Working Temperature: -10 ℃~+40 ℃
Laser Shape: Line
Focusable: Yes
Material and Color: Metal
Divergency: ≤Φ1(mm) at 1m
Dimensions: 12*12*35mm(Sometimes 12*12*45mm)

We also have 30°, 45°, 60° and 90°. Please leave us a message for your requirement. If there is no message, we will send 120° laser line module as default.

Care Instruction:
Red wire “+” pole; black wire “-” pole.
Please keep the lens clean to make the laser beam clear and bright.
Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
Be sure the operator has experience in optics DIY or testing

Package

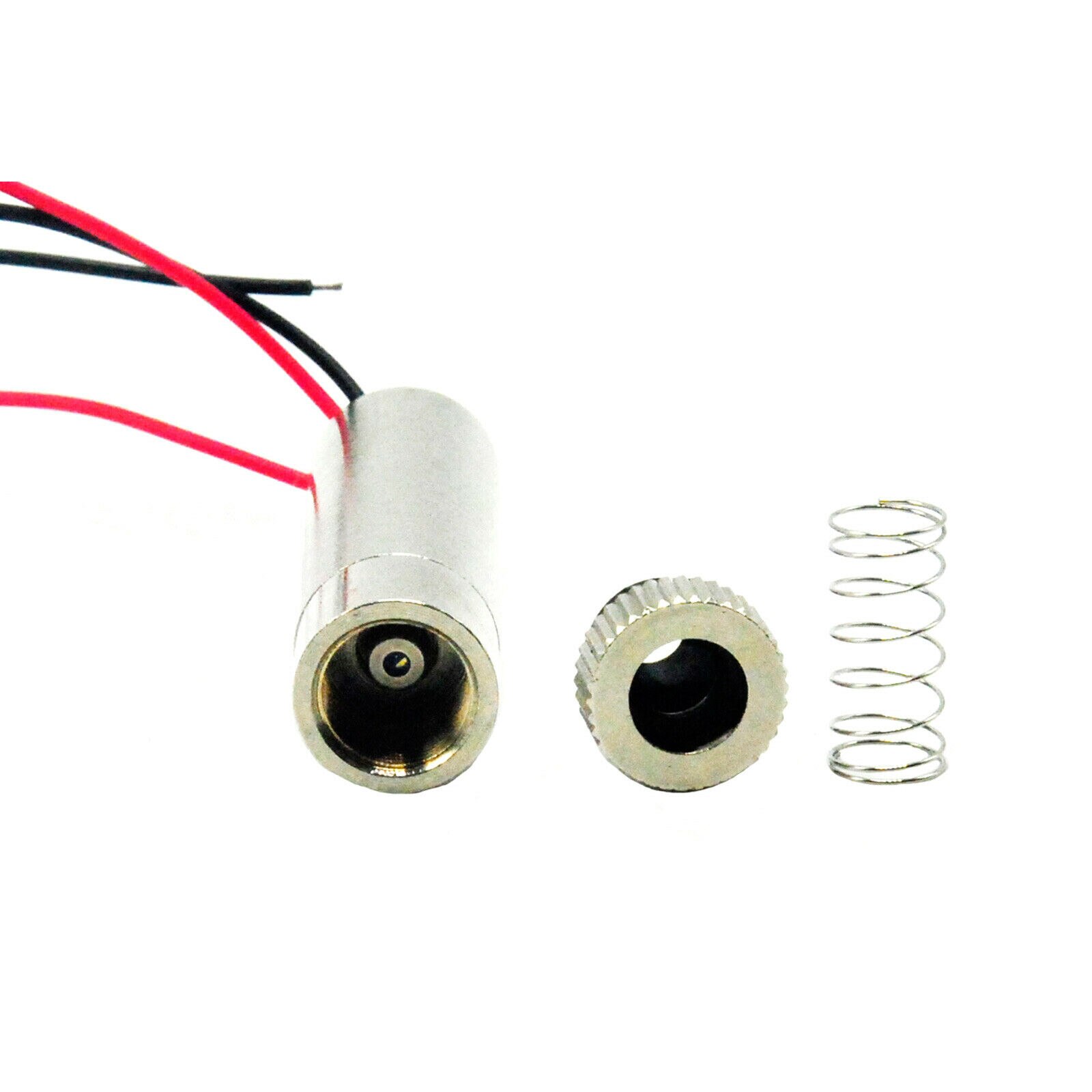

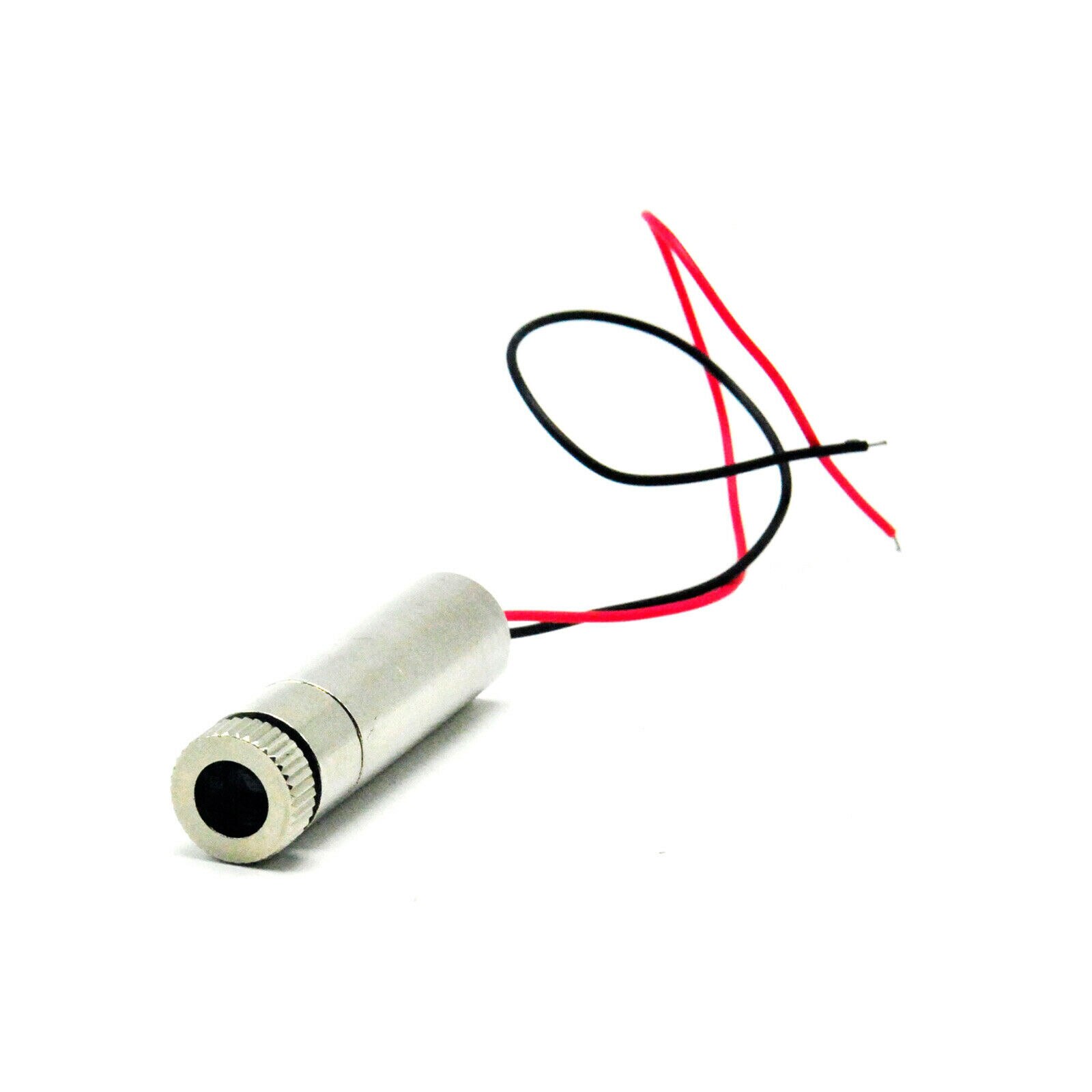

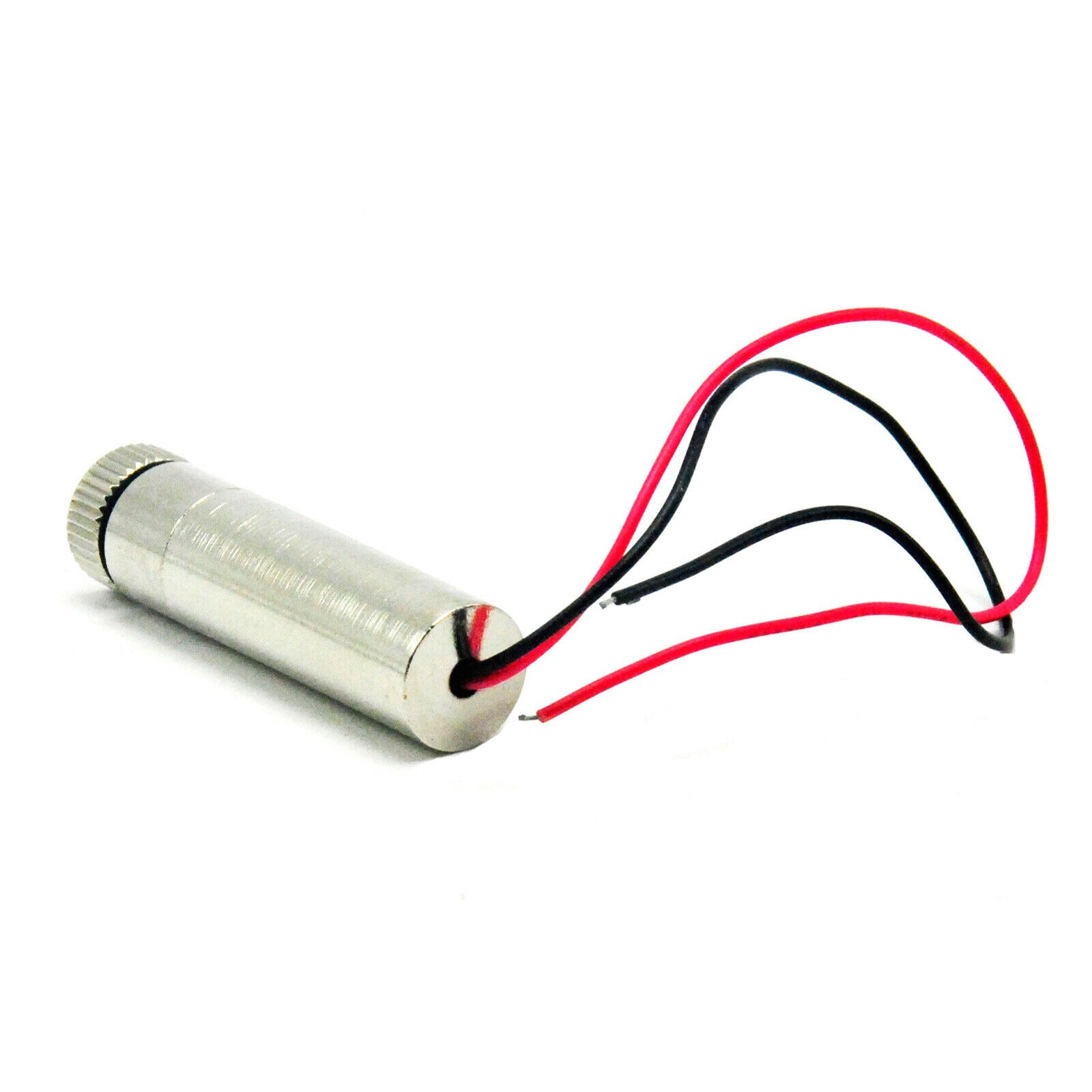

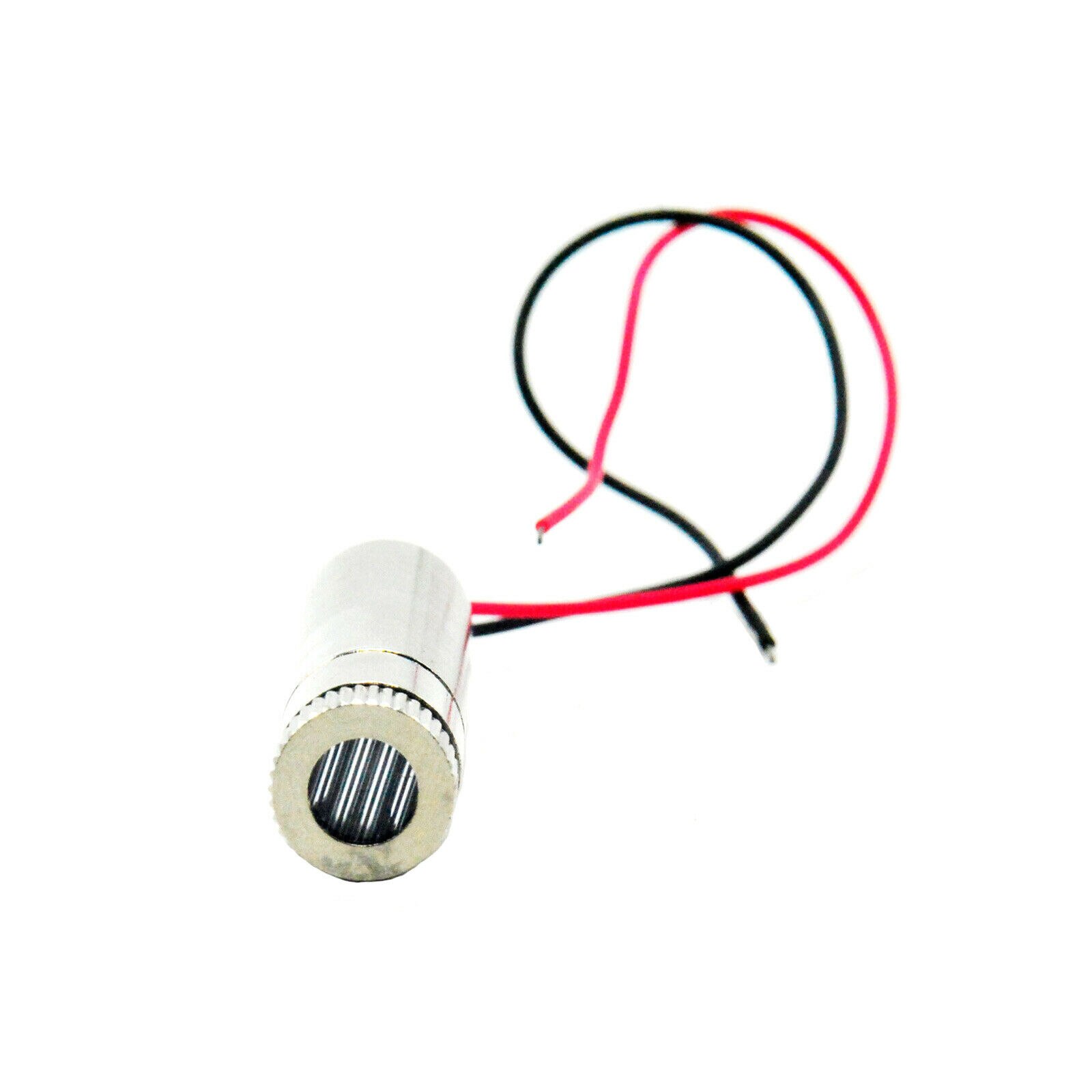

5pcs 650nm30mW Line Red Laser Module
