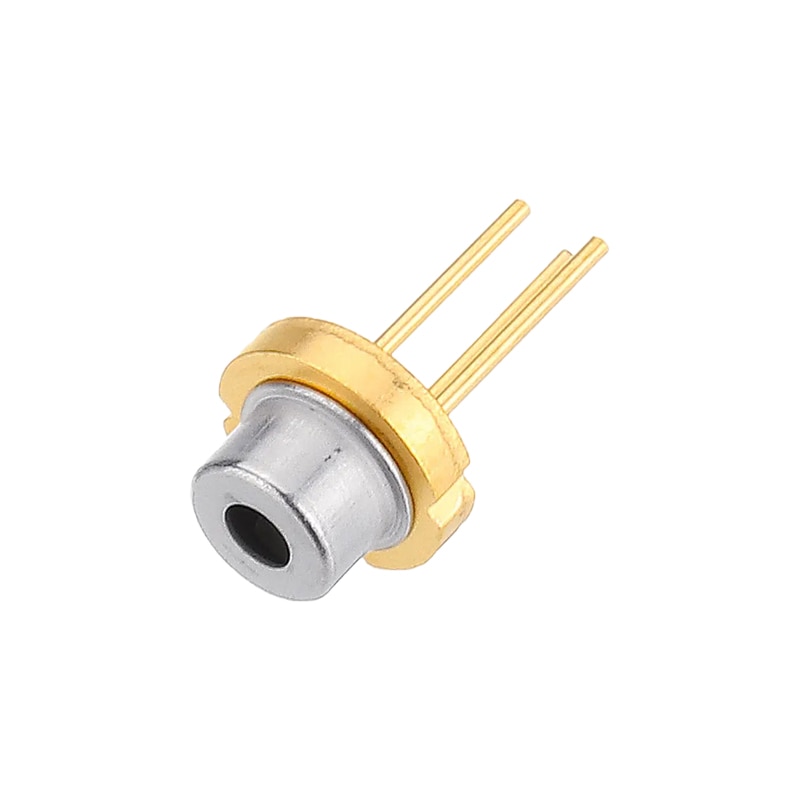

DL-3147-060 650nm 655nm 5mW CW 5.6mm TO-18 Red Laser/Lazer Diode LD



Red Laser Diode

DL-3147-060



Features

• Wavelength : 650 nm (Typ.)

• Low threshold current : Ith = 20mA (Typ.)

• High operating temperature : 5 mW at 70°C

• TE mode





Applications

DVD-ROM/PLAYER

Laser module

industrial instrument



Model: Sanyo DL-3147-060

Wavelength: 650nm/+5nm

Output: 5mW

Voltage: 2.3V DC

Current: <45mA

Working Temperature: – 10 ℃ ~ + 70 ℃

Storage Temperature: – 40 ℃ ~ + 85 ℃

Package: Sanyo DL-3147-060 diode



Note:

1. only for professionals.

Note:

1. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

2.  Be sure the operator has experience in optics DIY or testing.

3.  Don’t operate when the power is connected.
