5pcs Coated Glass Lens 405nm 445nm 450nm 473nm Viole Blue Laser Diode M9/P0.5 Frame

Description

Collimating Coated Lens for 400-500nm violet and blue Laser

three layers of lens w/ high permeability coat

more lasers, please contact us at via message.

This coated laser lens is a high permeability optical component used for as Industrial testament, Lab, DIY.

Please keep the lens clean to make the laser beam clear and bright. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Specification

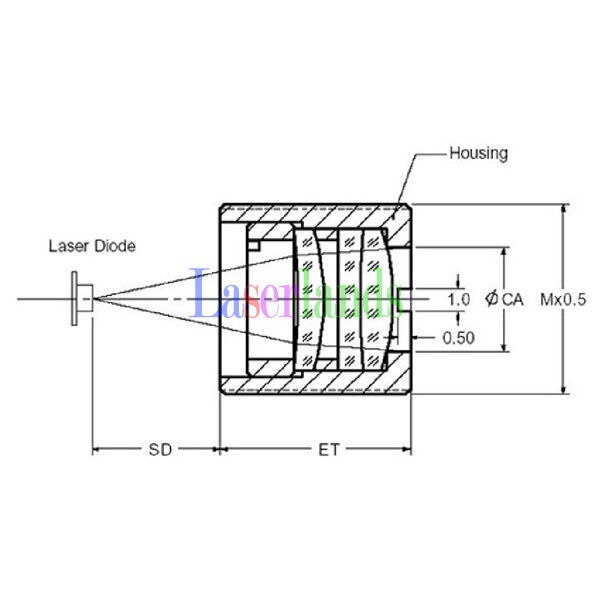

Name: Optical glass spherical (three-piece combination) collimating lens

Model: M9P051043

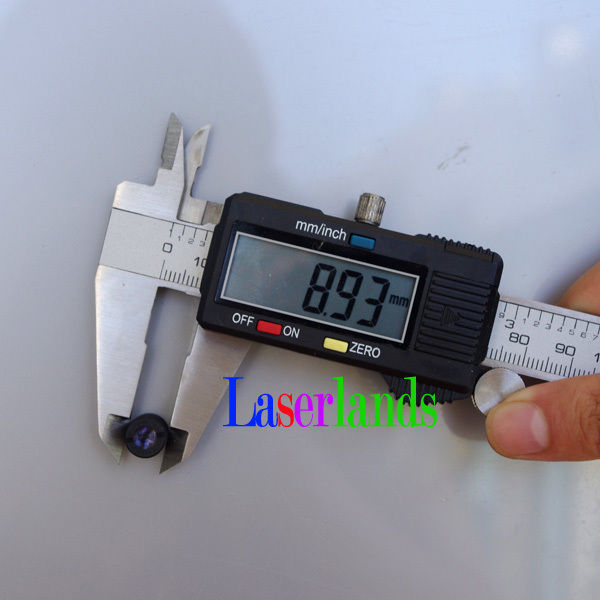

M (outer thread): M9XP0.5 mm

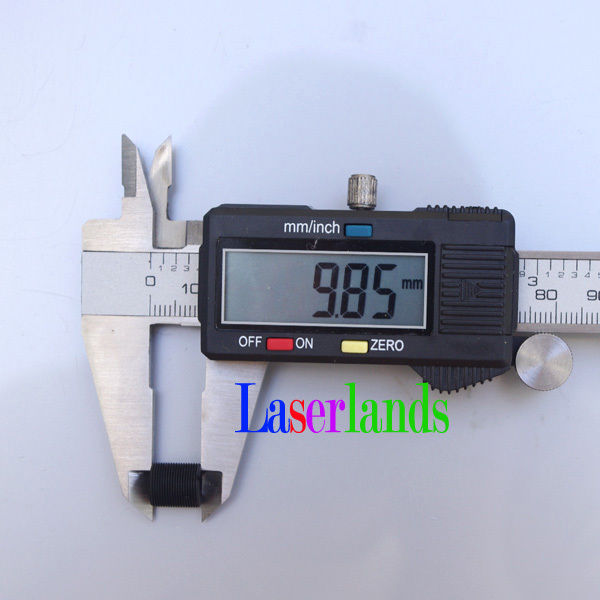

ET (height): 10 mm

EFL (effective focal length): 9.8 ± 0.08 mm

SD (diode to lens distance) :6.8 mm

NA (numerical aperture): 0.3

CA (Effective Clear Aperture): 5.0 mm

Collimation: ≥ ± 0.74mrad

Transmission: ≥95%

Coating: 405nm ~ 450nm
