Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: B10K
- Technology: Carbon Film
- Type: Slide Potentiometer
- Operating Temperature: B10K Ohm Potentiometer
- is_customized: Yes
- Size: 3pin
- Max. Operating Voltage: B10K Ohm Potentiometer
- Model Number: B103 B10K Ohm
- Rated Power: SC6080GH
Specification:

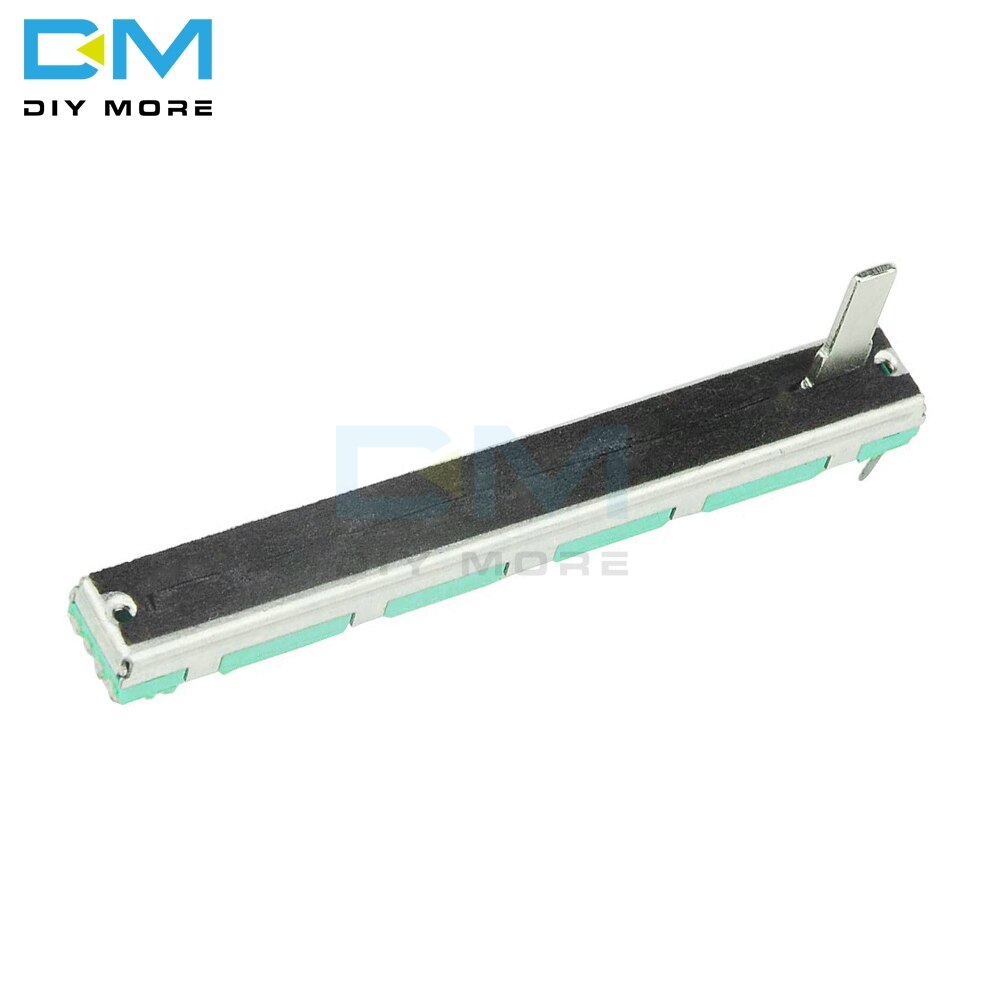

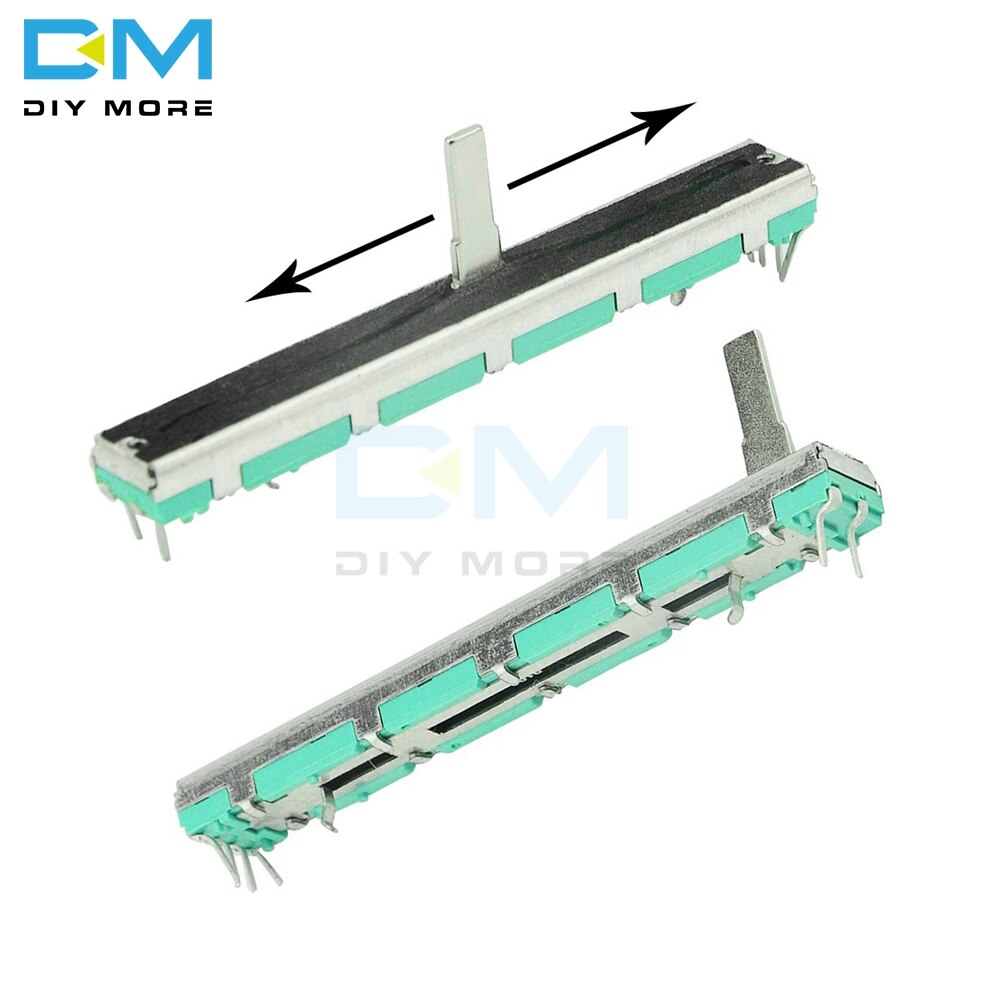

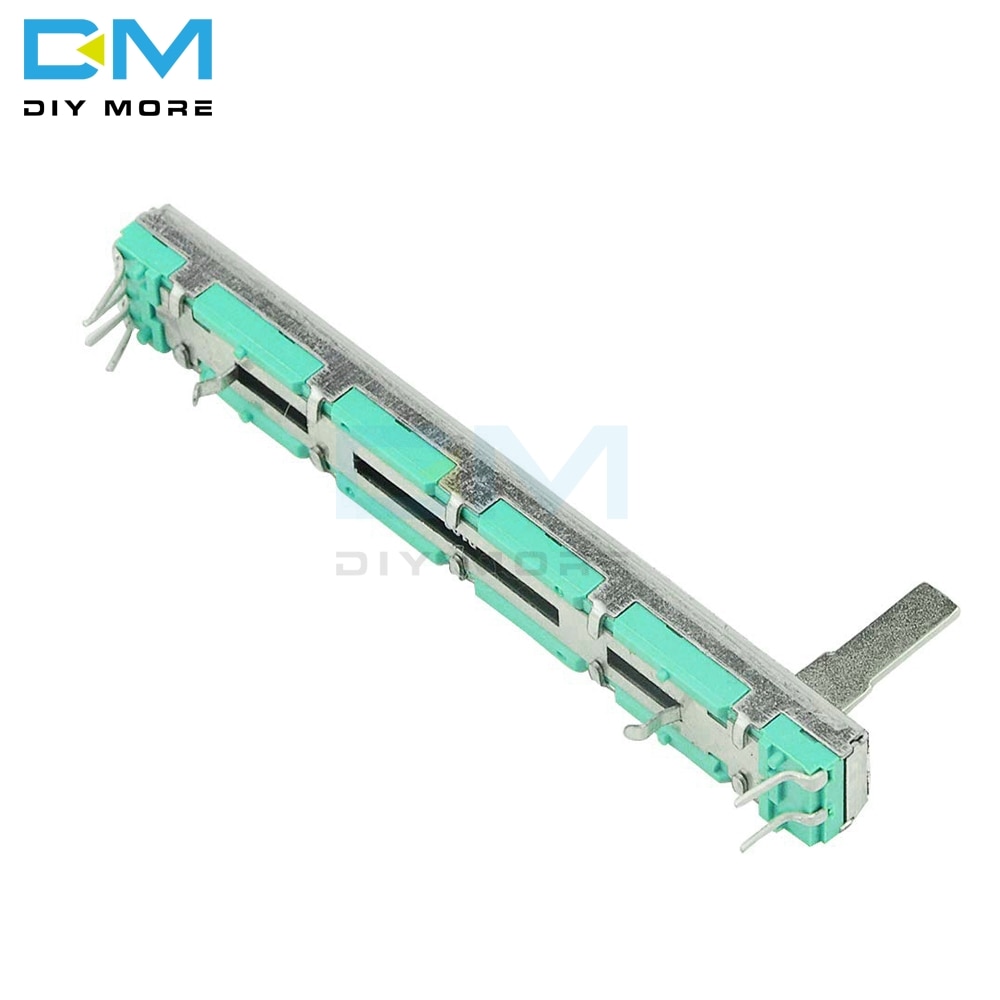

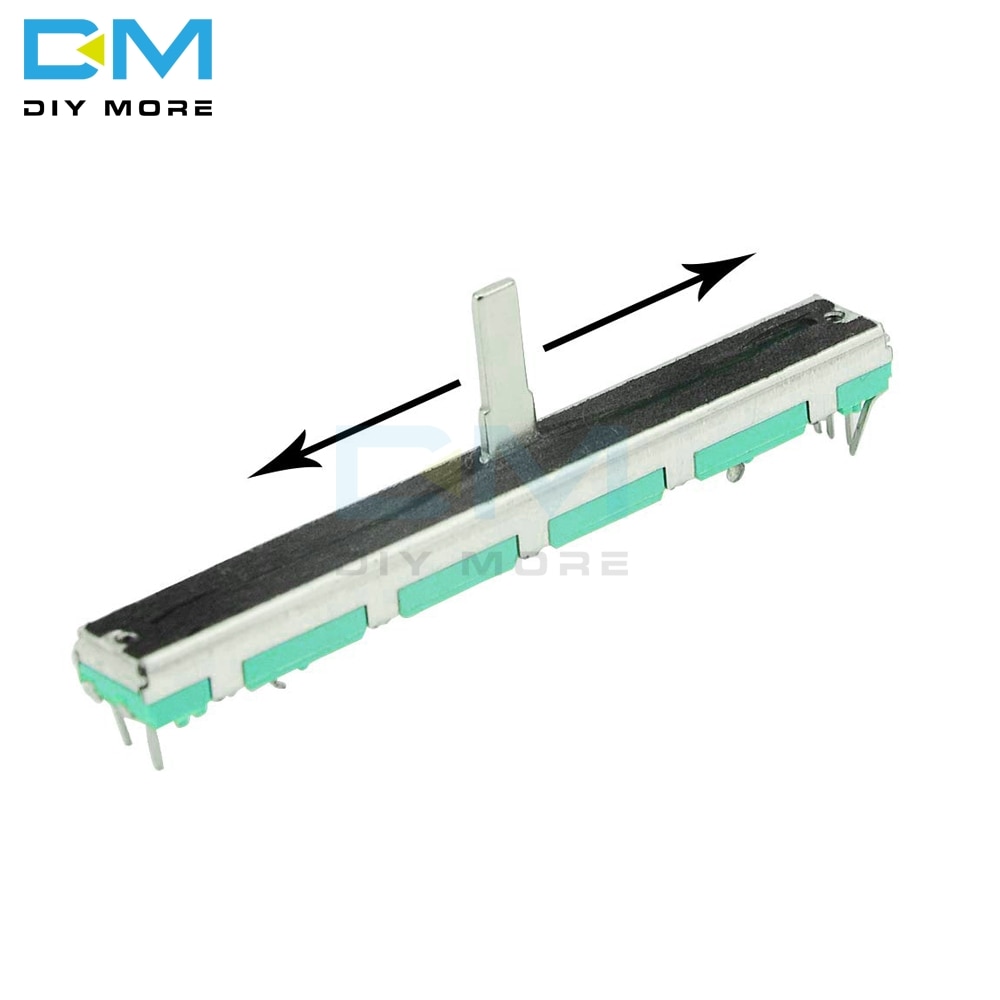

Product Name: Sliding Potentiometer
Resistance Value: 10k Ohm
Model: SC6080GH
Adjustment Type: Slide adjustment
Type: Double rotary
Material: Carbon Film

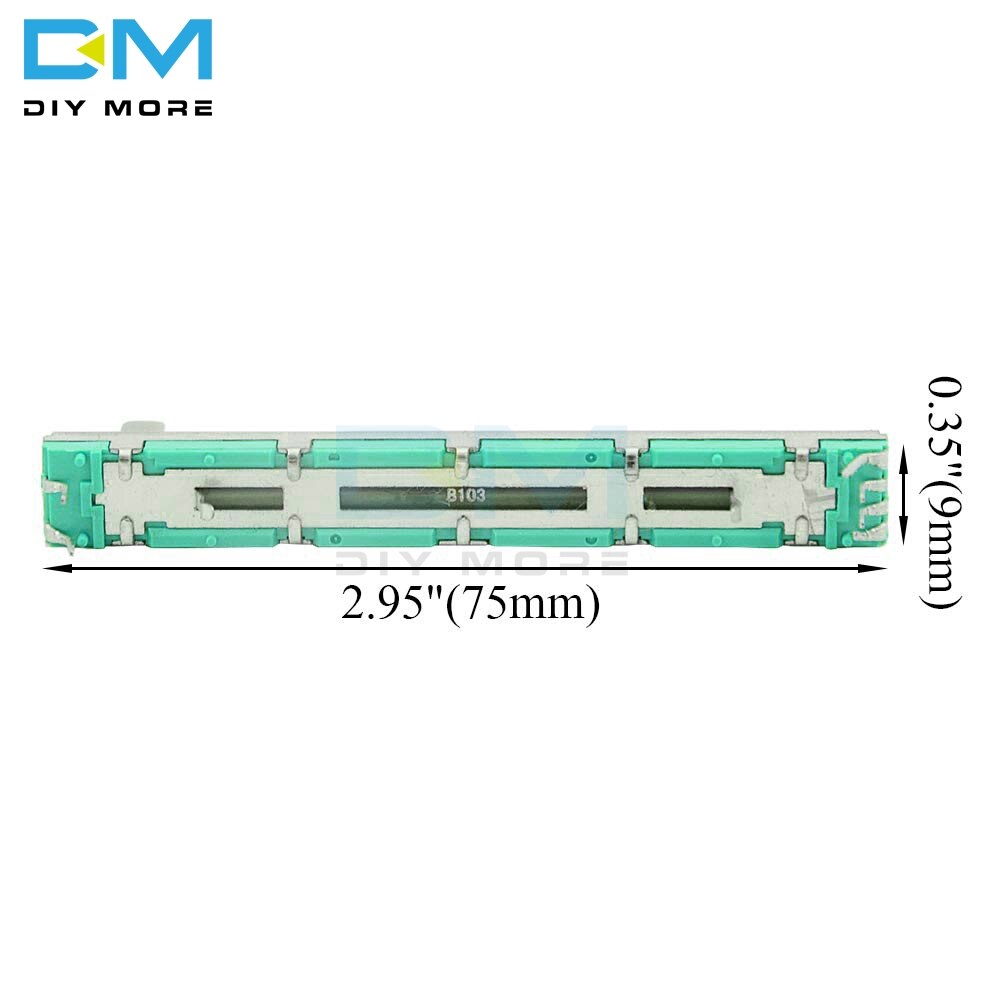

Body Size: 75 * 9 * 6mm/2.95 * 0.35 * 0.24inch(pin not included)
Total Height: 27 mm/1.06inch
Parameter:
Nominal Resistance: 10K
Rated Power: 0.25 (W)
Resistance Tolerance: ±20 (%)
Sliding Noise: Less Than 68m (V)
Resolution: 100 (%)
Zero Resistance: 2 (Ω)
Contact Resistance: 5 (Ω)
Insulation Resistance: 100 (MΩ)
Whole Length: Approx. 75mm/3.0in
Package Included:
5 * B103 10K Ohm Slide Potentiometer
