Description

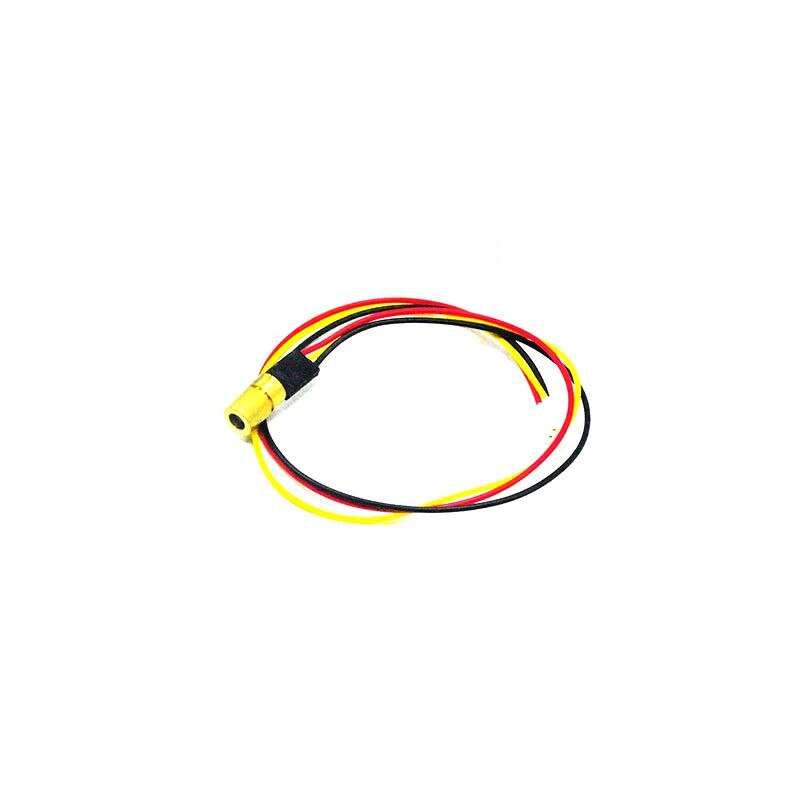

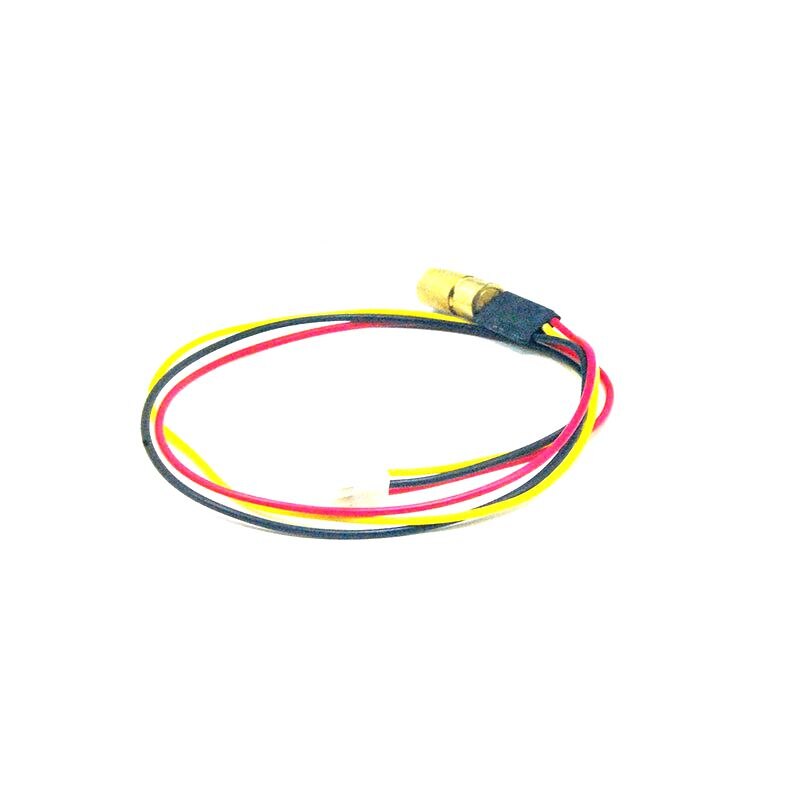

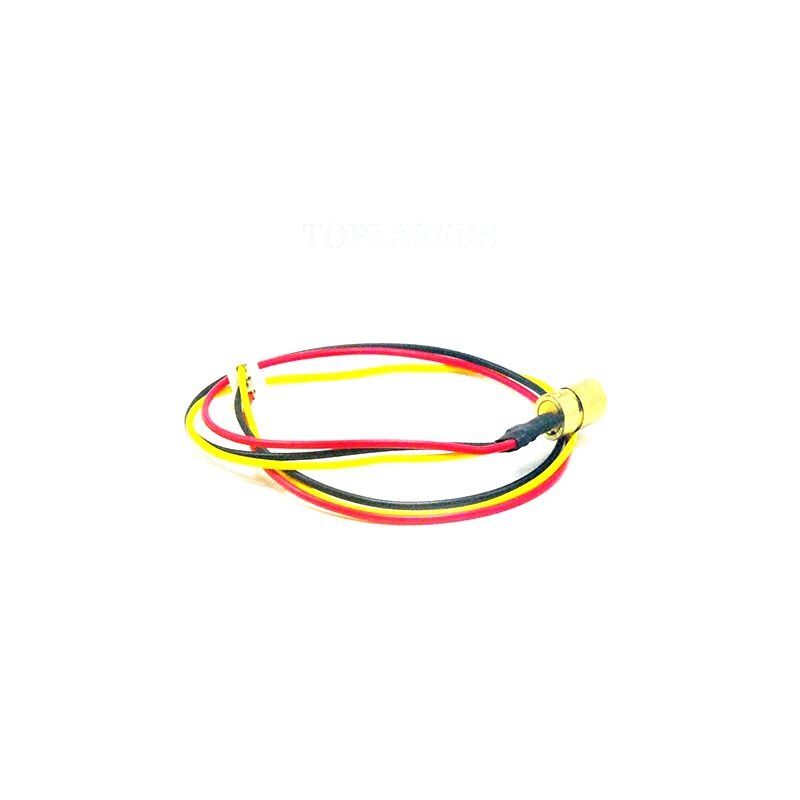

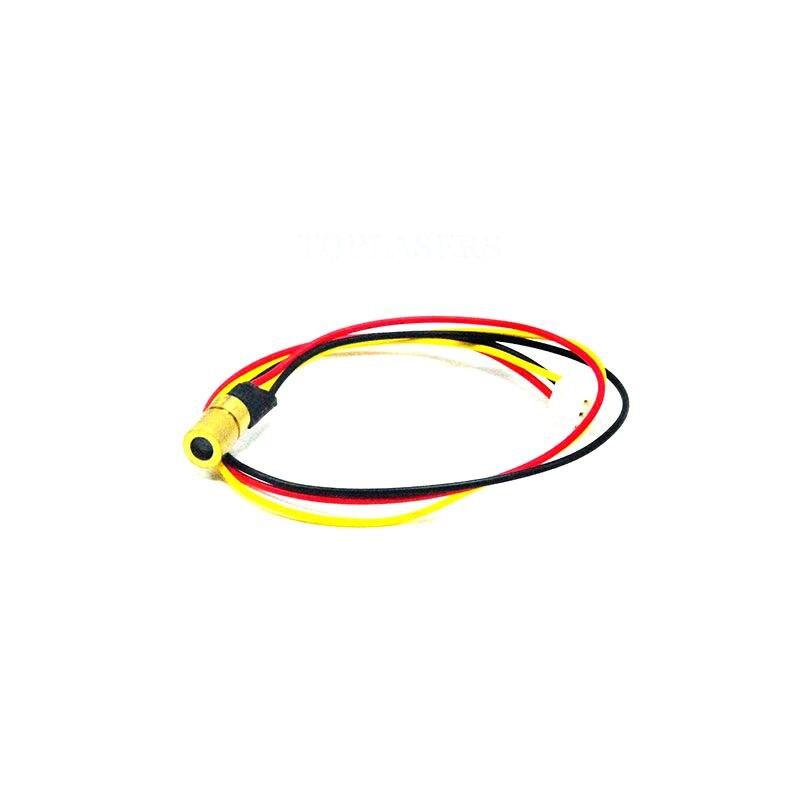

5pcs 980nm 30mW Infrared IR DC3- 5V Laser Dot Diode Module w/ TTL 0-15KHz 8x13mm

Please note:980nm is IR lasers which can not be seen by naked eyes.It can only be captured by night vision camera or IR laser detection equipment.The dot is rectangular,not a round one.Kindly please make sure you know it before ordering.Thanks.

Parameters

Wavelength:980nm

Output Power:30mw

Working Voltage:5V

Working Current:<100mA

Working Temperature:＋10 ℃~＋40 ℃

Laser Shape:Dot(rectangular to oval)

Focusable:Yes

TTL:0-15Khz

TTL Modulation

Voltage:0-5V Off low, high open, normal status open

Material and Color:Brass

Lens:Plastic

Dimensions:8x13mm

Features

Three-wire input, the red line is positive, black line is negative,TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.

This 980nm laser module with driver built-in is an industrial electronic component and  used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Package

5pcs 980nm 30mW Infrared IR DC3- 5V Laser Dot Diode Module w/ TTL 0-15KHz 8x13mm
